105400-7190 ZEXEL F 019 Z9E 859 BOSCH GOVERNOR f019z9e859 1054007190




Information governor

BOSCH F 019 Z9E 859 f019z9e859
ZEXEL 105400-7190 1054007190
105400-7190 GOVERNOR
Rating:
69
Buy GOVERNOR 105400-7190 zexel genuine, new aftermarket engine parts with delivery

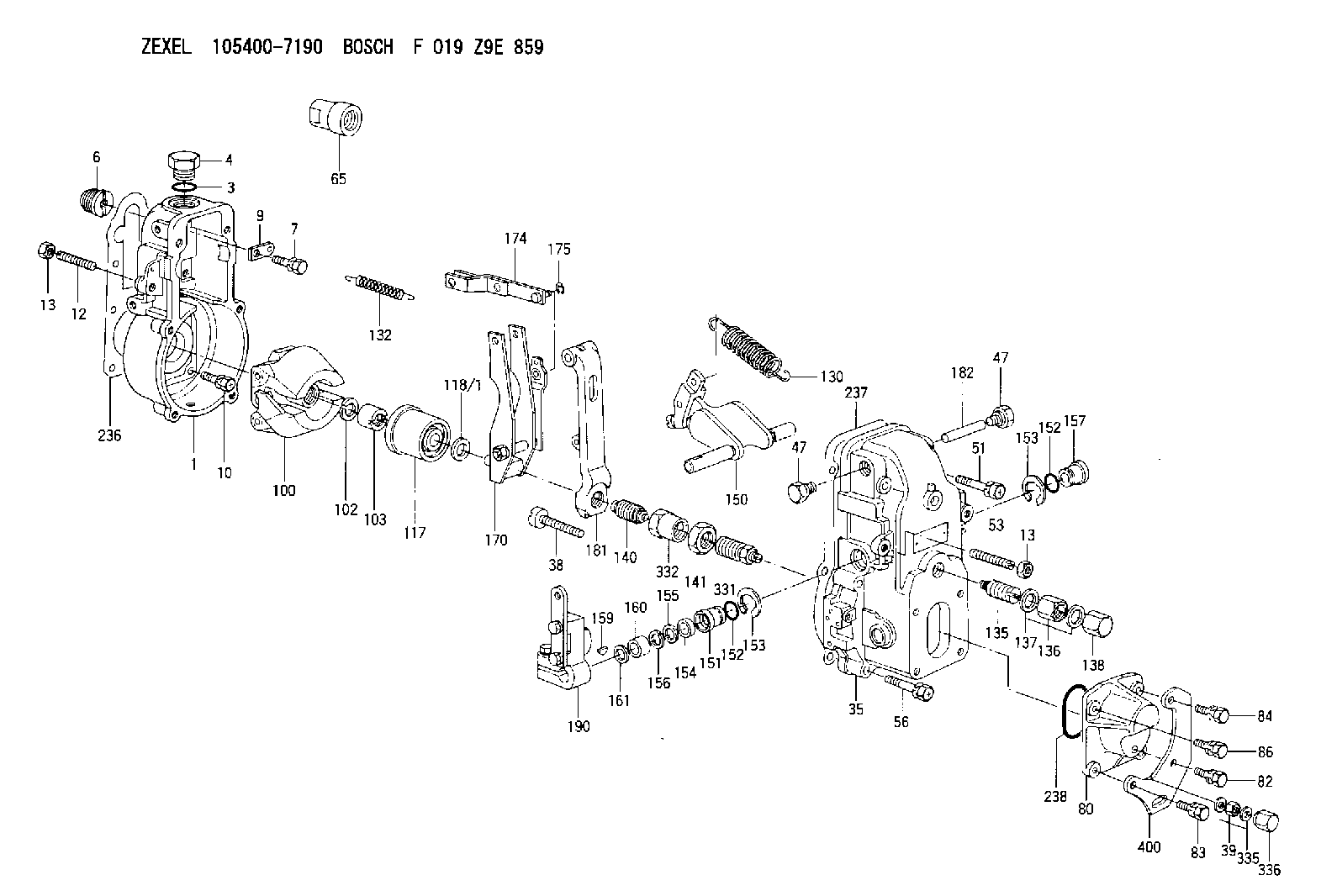

Scheme ###:

1. [1] 154000-6300 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1900 PLATE
10. [6] 029010-6810 BLEEDER SCREW
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-2020 GOVERNOR COVER
38. [1] 154031-3000 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0300 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 154050-1720 STOPPING DEVICE
80. [1] 154063-5100 COVER
82. [1] 029020-6260 BLEEDER SCREW
83. [1] 029020-6260 BLEEDER SCREW
84. [1] 020006-2040 BLEEDER SCREW M6P1L20 4T
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-9720 FLYWEIGHT ASSEMBLY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-2900 GOVERNOR SPRING
132. [1] 154154-1200 COILED SPRING
135. [1] 154158-0820 HEADLESS SCREW
136. [1] 154011-1700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154185-4420 HEADLESS SCREW
141. [1] 029201-6080 UNION NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-0920 FORK LEVER
174. [1] 154230-3920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-4100 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154342-2320 CONTROL LEVER
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
331. [1] 154172-5720 HEADLESS SCREW
332. [1] 029201-6010 UNION NUT
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT
400. [1] 154358-7200 BRACKET

Include in #1:

101495-3150 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105400-7190
F 019 Z9E 859
NP-EP/RSV200-1400AQ24A12

GOVERNOR
K




Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
There have been instances of DEF manifold return fittings being blocked due to incomplete drilling of the fitting. This issue affects 462-3219 DEF Manifold Gp, 462-3232 DEF Manifold Gp, and 462-3610 DEF Manifold Gp.The following event codes may become active due to this issue:
Table 1
J1939 Code and Description CDL Code and Description
4334-16
Aftertreatment #1 DEF #1 Pressure (absolute) : High - moderate severity (2) E930 (2)
High Aftertreatment #1 DEF Pressure
5392-31
Aftertreatment Diesel Exhaust Fluid Dosing Unit Loss of Prime E1370 (2)
Aftertreatment #1 DEF Dosing Unit Loss of Prime Solution
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Illustration 1 g06565786
View of the return fitting on the DEF manifold
(1) Example of a blocked return fitting
Inspect DEF manifold return fitting (1) for blockage due to incomplete drilling. Refer to Illustration 1.
If the manifold fitting is not drilled completely, record the part number and serial number of the manifold from the label.
Submit a Dealer Solutions Network (DSN) ticket for part return.
Replace the suspect manifold with a new part. Inspect the new part for a correctly drilled manifold before installation.
If the manifold fitting is drilled completely, install the manifold. Follow the correct troubleshooting procedure for any active diagnostic codes. Refer to Troubleshooting.

Have questions with 105400-7190?





Group cross 105400-7190 ZEXEL




F 019 Z9E 857
NP-EP/RSV200-1600AQ21A12

GOVERNOR












F 019 Z9E 858
NP-EP/RSV200-1300AQ39A302

GOVERNOR
F 019 Z9E 658

GOVERNOR



105400-7190
F 019 Z9E 859
NP-EP/RSV200-1400AQ24A12

GOVERNOR
