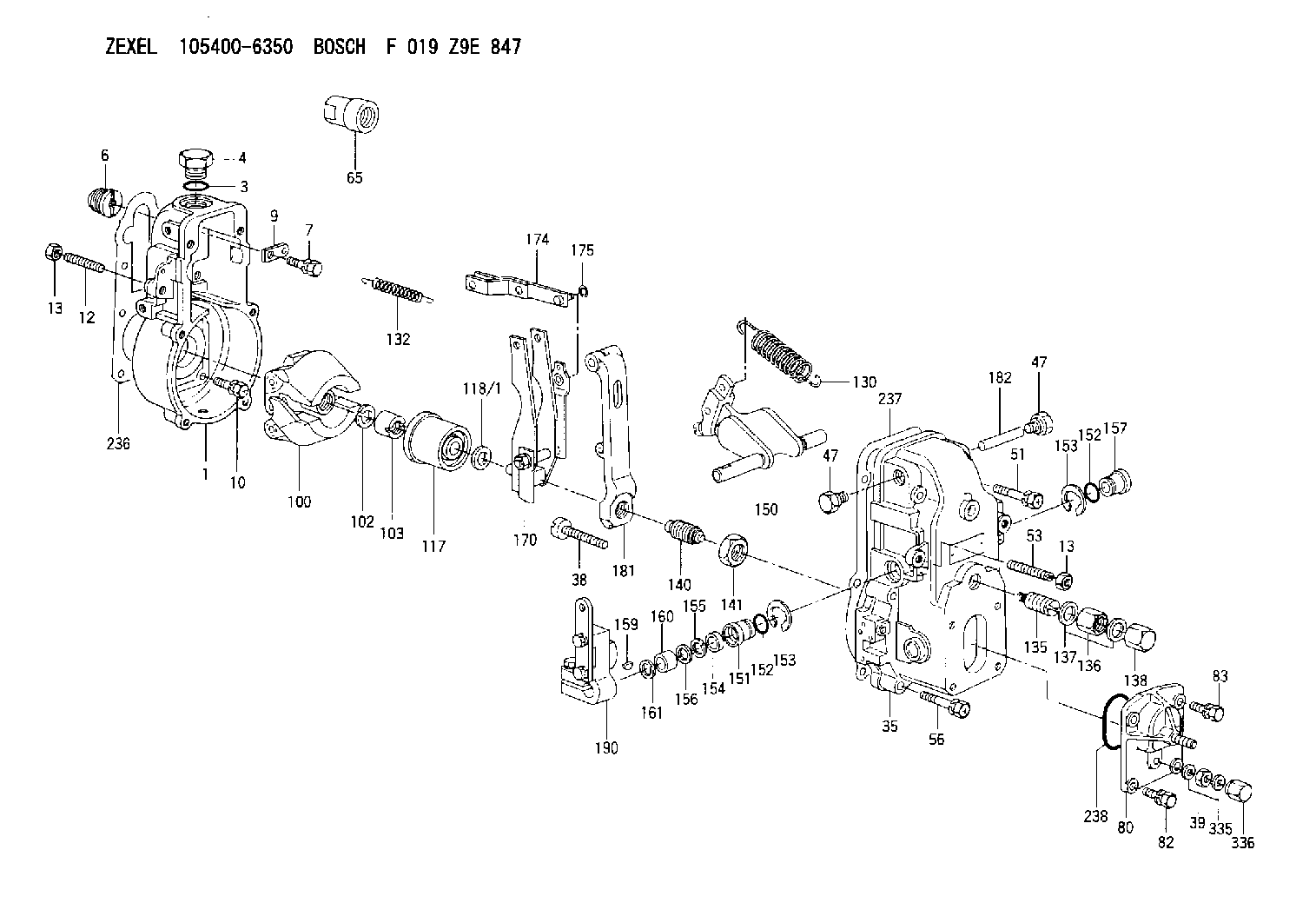

105400-6350 ZEXEL F 019 Z9E 847 BOSCH GOVERNOR f019z9e847 1054006350

Start By:a. remove automatic timing advance unit
Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
Before any timing gears are removed, make sure "C" on the crankshaft gear is in alignment with "C" mark on the camshaft gear. 1. Remove bolts, plate (1) and fuel pump idler gear (2). 2. Remove bearing from idler gear (2) with tool (A). 3. Remove four bolts (3) and camshaft gear (4). 4. Remove bolts that are used to fasten shield (5) in position between the fuel pump and the exhaust manifold. Slide shield back from the timing cover plate.5. Remove the three nuts (6). 6. Remove six bolts (7). Remove the timing gear plate and the gasket. The following steps are to install the timing gears and plate.7. Clean the old gasket from the contact surfaces of the timing gear plate and cylinder block. Install a new gasket on the cylinder block. Cut the gasket even with the bottom face of the cylinder block.8. Be sure the O-ring seals are in position on the end of the fuel injection pump housing. Put the timing gear plate in position on the cylinder block and install the six bolts (7). Install nuts (6).
After the timing gear plate is installed, be sure the rack is free to move in the fuel injection pump housing. The O-ring seal on the drive end of the fuel injection pump housing can hold the rack and prevent free rack movement. Rack movement can be seen through hole in the timing gear plate just above where the fuel pump gear is mounted. If the rack does not move freely, remove the timing gear plate and check the O-ring seal on the drive end of the fuel injection pump housing. If the rack does not move freely, the engine can over speed and be damaged. Serious personal injury can be the result.
9. Install camshaft gear (4) with the "C" mark on the camshaft gear in alignment with the "C" mark on the crankshaft gear as shown in the illustration in the Specification section of this manual. Tighten the volts to a torque of 55 7 N m (41 5 lb ft).10. Use tooling (A) to install the bearing in idler gear (2). The end of the bearing must be 1.52 .025 mm (.060 .010 in) below the face of the gear hub.11. Be sure the oil hole in the shaft for gear (2) is open. Install idler gear (2). Put the plate on position with the finished side toward gear (2) and install the bolts.12. Install shield (5) and the four bolts.End By:a. install automatic timing advance unit
