105400-6340 ZEXEL F 019 Z1F 024 BOSCH GOVERNOR f019z1f024 1054006340

Information governor

BOSCH F 019 Z1F 024 f019z1f024

ZEXEL 105400-6340 1054006340

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105400-6340 zexel genuine, new aftermarket engine parts with delivery

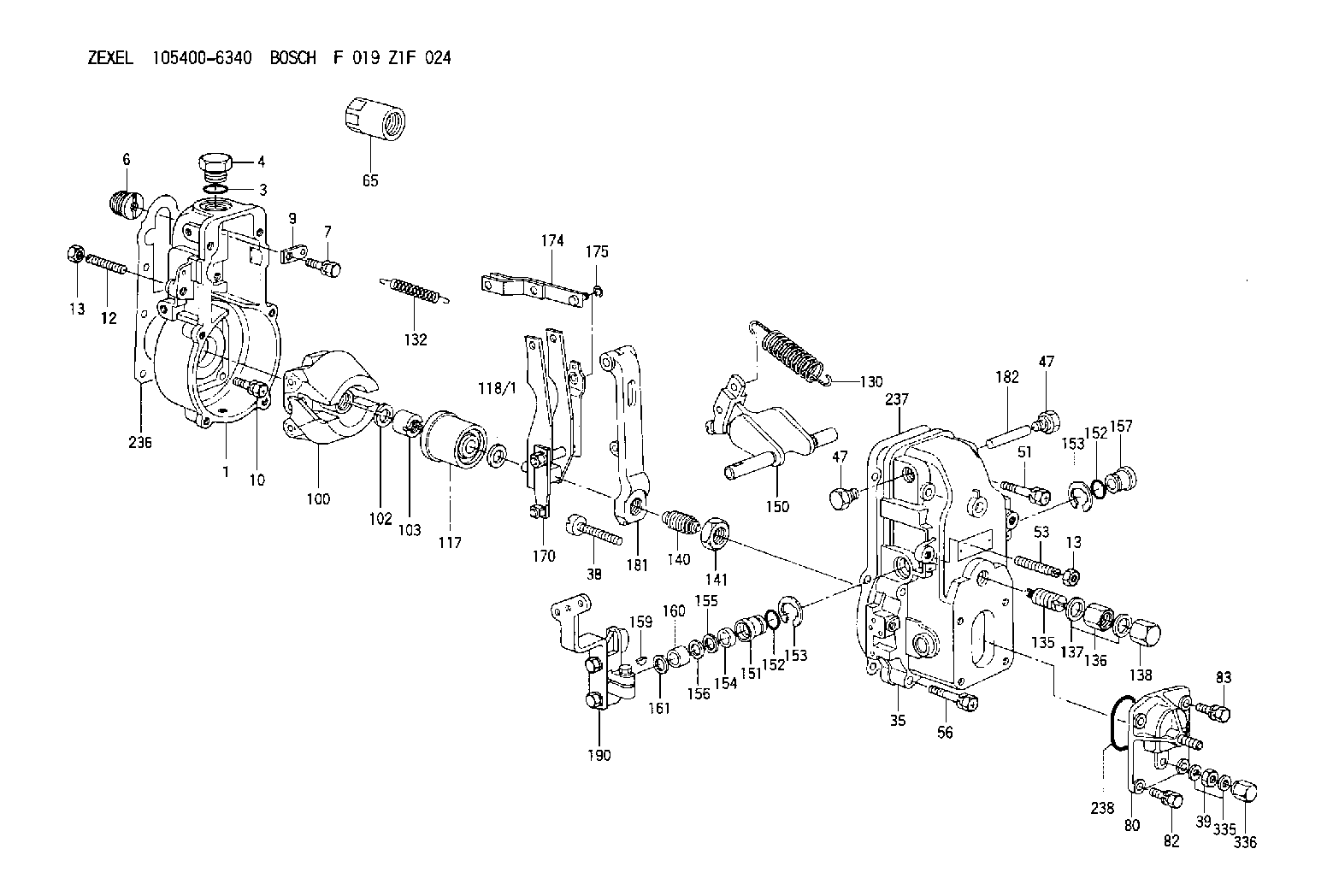

Scheme ###:

1.	[1]	154000-6300	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-2020	GOVERNOR COVER
38.	[1]	154031-2400	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0300	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154050-9020	STOPPING DEVICE
80.	[1]	154063-6820	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0120	FLYWEIGHT
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0400	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154158-1820	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-2220	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-0920	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154343-9220	CONTROL LEVER
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT

Include in #1:

101495-3310 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105400-6340
105400-6341

F 019 Z1F 024

GOVERNOR
* K 14JB GOV RSV GOV

Information:

Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
1. Remove cover (1) and the O-ring seal from the riming gear plate.
Use care when the trunnion is removed to prevent damage to the crankshaft front seal
2. Remove three bolts (2), trunnion (3) and the O-ring seal. 3. Remove the bolts that hold the timing gear cover in place. Carefully loosen the cover from the dowels and remove cover (4).4. Clean the old gasket from the contact surface of the timing gear cover and the timing gear plate.Install Timing Gear Cover
1. Install a new gasket (1) on the timing gear plate. Cut the gasket even with the bottom face on the cylinder block. 2. Install the timing gear cover (2). The bolts in locations (3) and (4) are tightened to a torque of 23 4 N m (17 3 lb ft). 3. Be sure the O-ring seal (6) is on position on trunnion. Install trunnion (5) and the bolts. Tighten the bolts to a torque of 135 15 N m (100 11 lb ft). 4. Install the O-ring seal and cover (7).End By:a. install crankshaft damper and pulleyb. install water pumpc. install air compressord. install oil pan
