105400-5970 ZEXEL 9 420 612 843 BOSCH GOVERNOR 9420612843 1054005970 8970372400




Information governor

BOSCH 9 420 612 843 9420612843
ZEXEL 105400-5970 1054005970
ISUZU 8970372400 8970372400
105400-5970 GOVERNOR
Rating:
27
Buy GOVERNOR 105400-5970 zexel genuine, new aftermarket engine parts with delivery

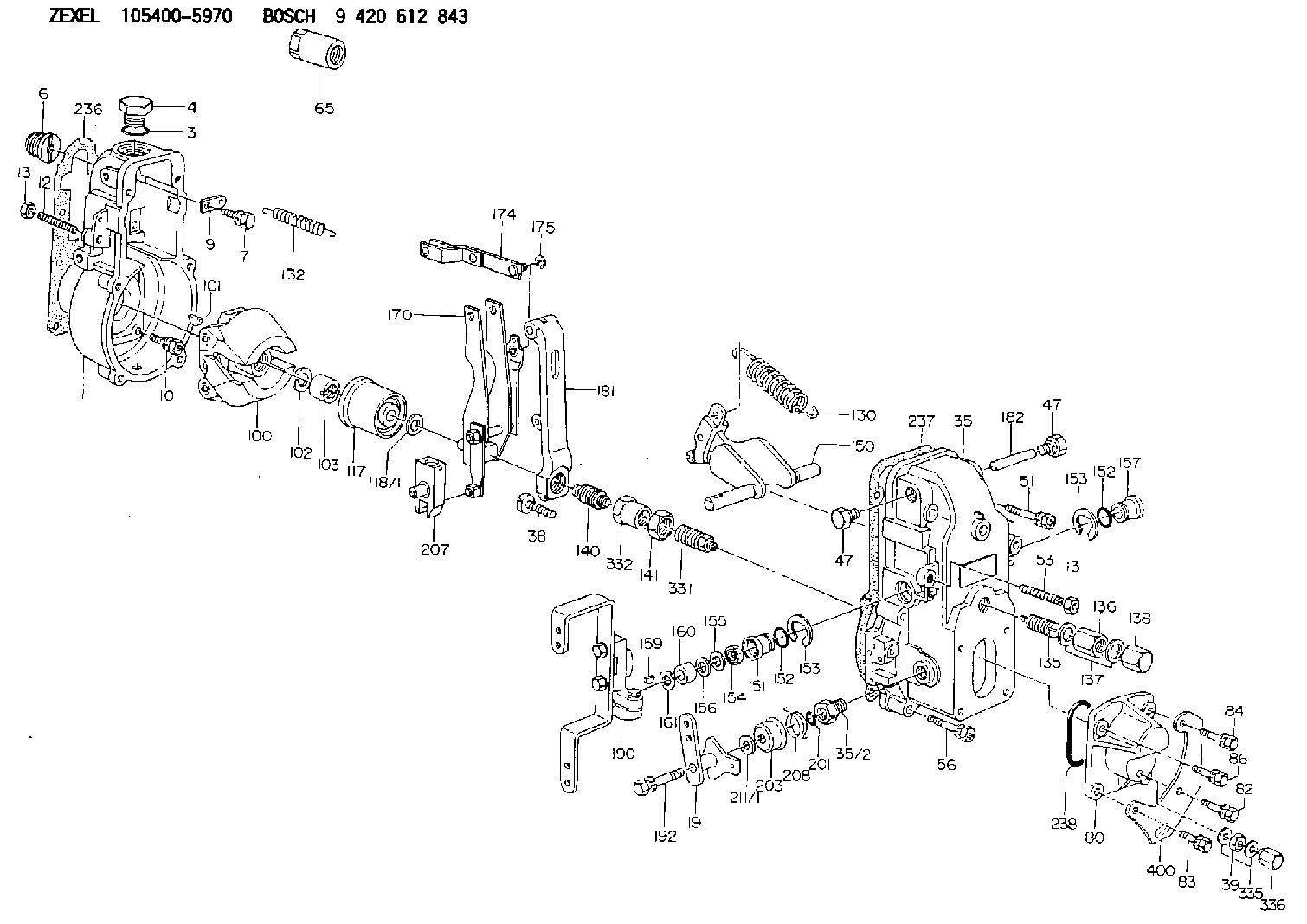

Scheme ###:

1. [1] 154000-6300 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1900 PLATE
10. [6] 029010-6810 BLEEDER SCREW
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-1020 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-3000 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0200 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 155404-5700 CAP
80. [1] 154063-5100 COVER
82. [1] 029020-6260 BLEEDER SCREW
83. [1] 029020-6260 BLEEDER SCREW
84. [1] 020006-2040 BLEEDER SCREW M6P1L20 4T
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-2900 GOVERNOR SPRING
132. [1] 154154-0800 COILED SPRING
135. [1] 154158-0820 HEADLESS SCREW
136. [1] 154011-1700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154178-9220 HEADLESS SCREW
141. [1] 029201-6080 UNION NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-3000 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-3100 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-7320 FORK LEVER
174. [1] 154230-3920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-4100 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154349-2620 CONTROL LEVER
191. [1] 154380-1520 CONTROL LEVER
192. [1] 020006-3540 BLEEDER SCREW
201. [1] 029631-0030 O-RING &9.8W2.3
203. [1] 154322-0100 CAP
207. [1] 154326-5020 CONTROL LEVER
208. [1] 154327-7600 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
331. [1] 154179-1820 HEADLESS SCREW
332. [1] 029201-6010 UNION NUT
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT
400. [1] 154358-7200 BRACKET

Include in #1:

101492-0460 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105400-5970
9 420 612 843
NP-EP/RSV200-1300AQ44A312
8970372400  ISUZU
GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV




Information:

Start By:a. remove oil panb. remove oil pump 1. Remove bolts (1) and bearing cap (2). Remove the bearing half from the cap.
If the crankshaft is turned in the wrong direction, the tab of the bearing will be pushed between the crankshaft and cylinder block. This can cause damage to either or both the crankshaft and the block.
2. Remove the upper half of the main bearings as follows:a. Turn the crankshaft until tool (A) can be installed in the crankshaft journal oil passage. Install tool (A).b. Turn the crankshaft in the direction which will push the upper main bearing out, tab end first.c. Check the condition of the bearings. (See Guideline For Reusable Parts, Main And Connecting Rod Bearings, FORM No. SEBF8009 and SEBD0531). Both the center and two end main journals have no oil hole. To remove these bearings, put a thin piece of soft material, (that will not damage the crankshaft journal), against the end of the bearing opposite the tab. Hit the bearing with the soft material until the tab of the bearing is free from the groove in the block. The following steps are for the installation of the crankshaft main bearings. Put clean engine oil on the main bearings for the assembly. Also, be sure the tabs on the back side of the main bearings fit in the grooves of the main bearing caps and cylinder block.3. Clean the surfaces in the cylinder block for the main bearings. Use tool (A), and install new upper halves of main bearing (bearings with the oil hole) in the cylinder block. Do not put oil on the back of the bearing.4. Clean the surface of the main bearing caps for the main bearings. Install the new lower halves of the main bearings in the main caps. Do not put oil on the back of the bearing.
Install the main bearing caps with the sequence number to the right, 1 through 7, front to rear.
5. Put main bearing caps (2) in position on the cylinder block. Put engine oil on the bolt threads and the contact surfaces of the bolt heads, and install the bolts. Tighten the bolts on the side where the main bearing tabs are located to a torque of 54 7 N m (40 5 lb.ft.). Tighten the bolts on the opposite side to a torque of 54 7 N m (40 5 lb.ft.).6. Put a mark on each bolt head and the bearing caps. Turn the bolts that are opposite the main bearing tabs an additional 90° 5° turn. Then turn the bolts on the side where the main bearing tabs are located an additional 90° 5° turn. 8. Check the end play of the crankshaft with a dial indicator and magnetic base. The end play must be 0.07 to 0.24 mm (.003 to .009 in.). The end play is controlled by the thrust bearings, which are part of main bearing No. six.End By:a. install oil pumpb. install oil pan

Have questions with 105400-5970?





Group cross 105400-5970 ZEXEL

F 019 Z1F 015
NP-EP/RSV200-1300AQ39A312

GOVERNOR

Hino

F 019 Z1E 276
223202710A
GOVERNOR
9 420 612 069
NP-EP/RSV200-1300AQ39A312
223202711A
GOVERNOR
9 420 612 069
NP-EP/RSV200-1300AQ39A312
S223202711A
GOVERNOR
F 019 Z1E 743

GOVERNOR
9 420 612 757

GOVERNOR



Isuzu

9 420 612 501
NP-EP/RSV200-1350AQ49A312
8943607050
GOVERNOR

Hino

9 420 613 452
NP-EP/RSV200-1600AQ21A312
223202760A
GOVERNOR

Isuzu

105400-5970
9 420 612 843
NP-EP/RSV200-1300AQ44A312
8970372400
GOVERNOR
9 420 612 736
NP-EP/RSV200-1450AQ2A302

GOVERNOR

Nissan-Diesel

F 019 Z4E 211
NP-EP/RSV200-1300AQ39A312
1910990279
GOVERNOR
