Information governor
BOSCH
F 019 Z1E 737
f019z1e737
ZEXEL
105400-4830
1054004830
Rating:

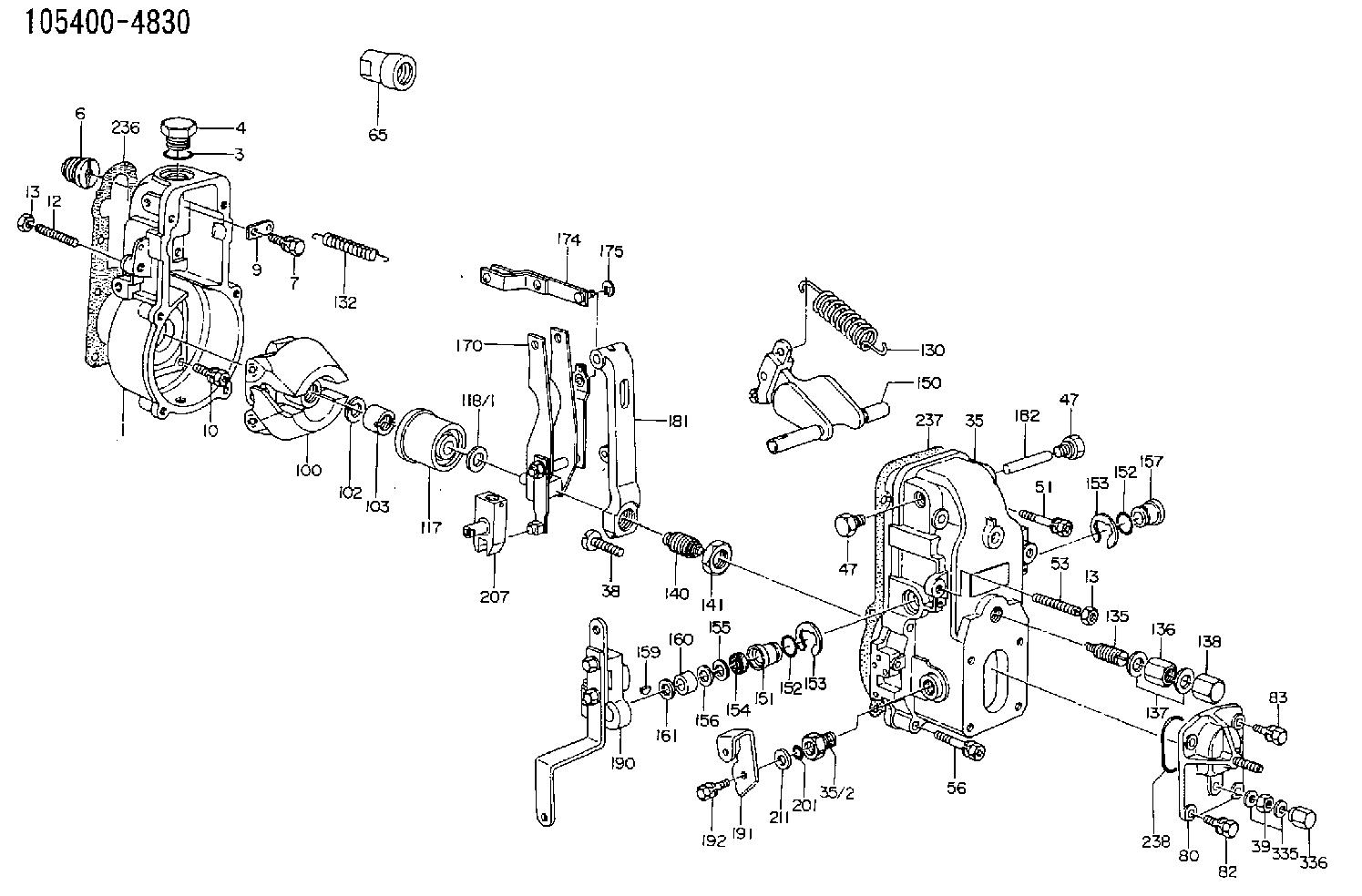

Scheme ###:
| 1. | [1] | 154000-6300 | GOVERNOR HOUSING |
| 3. | [1] | 029632-5070 | O-RING |
| 4. | [1] | 154007-2900 | CAPSULE |
| 6. | [1] | 154007-0200 | ADAPTOR |
| 7. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
| 9. | [1] | 154350-1900 | PLATE |
| 10. | [6] | 029010-6810 | BLEEDER SCREW |
| 12. | [1] | 154010-1100 | FLAT-HEAD SCREW |
| 13. | [2] | 154011-0100 | HEXAGON NUT |
| 13. | [2] | 154011-0100 | HEXAGON NUT |
| 35. | [1] | 154500-1020 | GOVERNOR COVER |
| 35/2. | [1] | 154321-0400 | BUSHING |
| 38. | [1] | 154031-2400 | FLAT-HEAD SCREW |
| 39. | [1] | 139206-0600 | UNION NUT |
| 47. | [2] | 154036-0300 | CAPSULE |
| 47. | [2] | 154036-0300 | CAPSULE |
| 51. | [2] | 020106-5040 | BLEEDER SCREW |
| 53. | [1] | 154010-0200 | FLAT-HEAD SCREW |
| 56. | [4] | 020106-3840 | BLEEDER SCREW |
| 65. | [1] | 155404-5300 | CAP |
| 80. | [1] | 154063-6820 | COVER |
| 82. | [2] | 029020-6210 | BLEEDER SCREW |
| 83. | [2] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
| 100. | [1] | 154101-0120 | FLYWEIGHT |
| 102. | [1] | 029321-2020 | LOCKING WASHER |
| 103. | [1] | 029231-2030 | UNION NUT |
| 117. | [1] | 154123-0120 | SLIDING PIECE |
| 118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
| 118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
| 118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
| 118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
| 118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
| 118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
| 118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
| 118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
| 118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
| 130. | [1] | 154150-0100 | GOVERNOR SPRING |
| 132. | [1] | 154154-1200 | COILED SPRING |
| 135. | [1] | 154158-0820 | HEADLESS SCREW |
| 136. | [1] | 154011-1700 | UNION NUT |
| 137. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
| 138. | [1] | 154159-1200 | CAP NUT |
| 140. | [1] | 154177-0820 | HEADLESS SCREW |
| 141. | [1] | 029201-6010 | UNION NUT |
| 150. | [1] | 154200-7020 | SWIVELLING LEVER |
| 151. | [1] | 154204-4300 | BUSHING |
| 152. | [2] | 029631-8020 | O-RING |
| 152. | [2] | 029631-8020 | O-RING |
| 153. | [2] | 016010-1640 | LOCKING WASHER |
| 153. | [2] | 016010-1640 | LOCKING WASHER |
| 154. | [1] | 139611-0000 | PACKING RING |
| 155. | [1] | 139411-0000 | SHIM |
| 156. | [0] | 029311-1070 | SHIM D16&11T0.5 |
| 157. | [1] | 154204-4400 | BUSHING |
| 159. | [1] | 025803-1310 | WOODRUFF KEY |
| 160. | [1] | 154206-2800 | BUSHING |
| 161. | [0] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
| 170. | [1] | 154210-0920 | FORK LEVER |
| 174. | [1] | 154230-3920 | STRAP |
| 175. | [1] | 016010-0540 | LOCKING WASHER |
| 181. | [1] | 154236-4100 | TENSIONING LEVER |
| 182. | [1] | 154237-0100 | BEARING PIN |
| 190. | [1] | 154342-6220 | CONTROL LEVER |
| 191. | [1] | 154366-7300 | CONTROL LEVER |
| 192. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
| 201. | [1] | 029631-0030 | O-RING &9.8W2.3 |
| 207. | [1] | 154326-5020 | CONTROL LEVER |
| 211. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
| 211B. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
| 236. | [1] | 154390-0000 | GASKET |
| 237. | [1] | 154390-0300 | GASKET |
| 238. | [1] | 029635-2020 | O-RING |
| 335. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
| 336. | [1] | 154035-1600 | CAP NUT |
Include in #1:
101452-3090
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
9N2648 Flywheel AssemblyMake reference to Flywheel Runout for the correct method of flywheel inspection.(1) Put 2P2506 Thread Lubricant on all bolt threads that hold flywheel to crankshaft and tighten to a torque of ... 270 25 N m (200 20 lb ft)(2) Maximum permissible temperature of the gear for installation on the flywheel (do not use a torch) ... 315°C (600°F)9N0676 Flywheel Group
9N2649 Flywheel AssemblyMake reference to Flywheel Runout for the correct method of flywheel inspection.(1) Put 2P2506 Thread Lubricant on all bolt threads that hold flywheel to crankshaft and tighten to a torque of ... 270 25 N m (200 20 lb ft)(2) Maximum permissible temperature of the gear for installation on the flywheel (do not use a torch) ... 315°C (600°F)9N0678 Flywheel Group
4W6730 FlywheelMake reference to Flywheel Runout for correct method of flywheel inspection.(1) Put 2P2506 Thread Lubricant on all bolt threads that hold flywheel to crankshaft and tighten to a torque of ... 270 25 N m (200 20 lb ft)6N1299 Flywheel Group
6N1301 Flywheel AssemblyMake reference to Flywheel Runout for the correct method of flywheel inspection.(1) Put 2P2506 Thread Lubricant on all bolt threads that hold flywheel to crankshaft and tighten to a torque of ... 270 25 N m (200 20 lb ft)(2) Maximum permissible temperature of the gear for installation on the flywheel (do not use a torch) ... 315°C (600°F)4W7370 Flywheel Group
4W7186 Flywheel AssemblyMake reference to Flywheel Runout for the correct method of flywheel inspection.(1) Maximum permissible temperature of the gear for installation on the flywheel (do not use a torch) ... 315°C (600°F)(2) Put 2P2506 Thread Lubricant on all bolt threads that hold flywheel to crankshaft and tighten to a torque of ... 270 25 N (200 20 lb ft)(3) Bore in bushing ... 52.007 0.013 mm (2.0475 .0005 in)(4) Diameter of bushing ... 72.022 0.015 mm (2.8355 .0006 in) Bore in flywheel ... 71.971 0.015 mm (2.8335 .0006 in)
