Information governor
BOSCH
F 019 Z9E 436
f019z9e436
ZEXEL
105354-0880
1053540880

Rating:

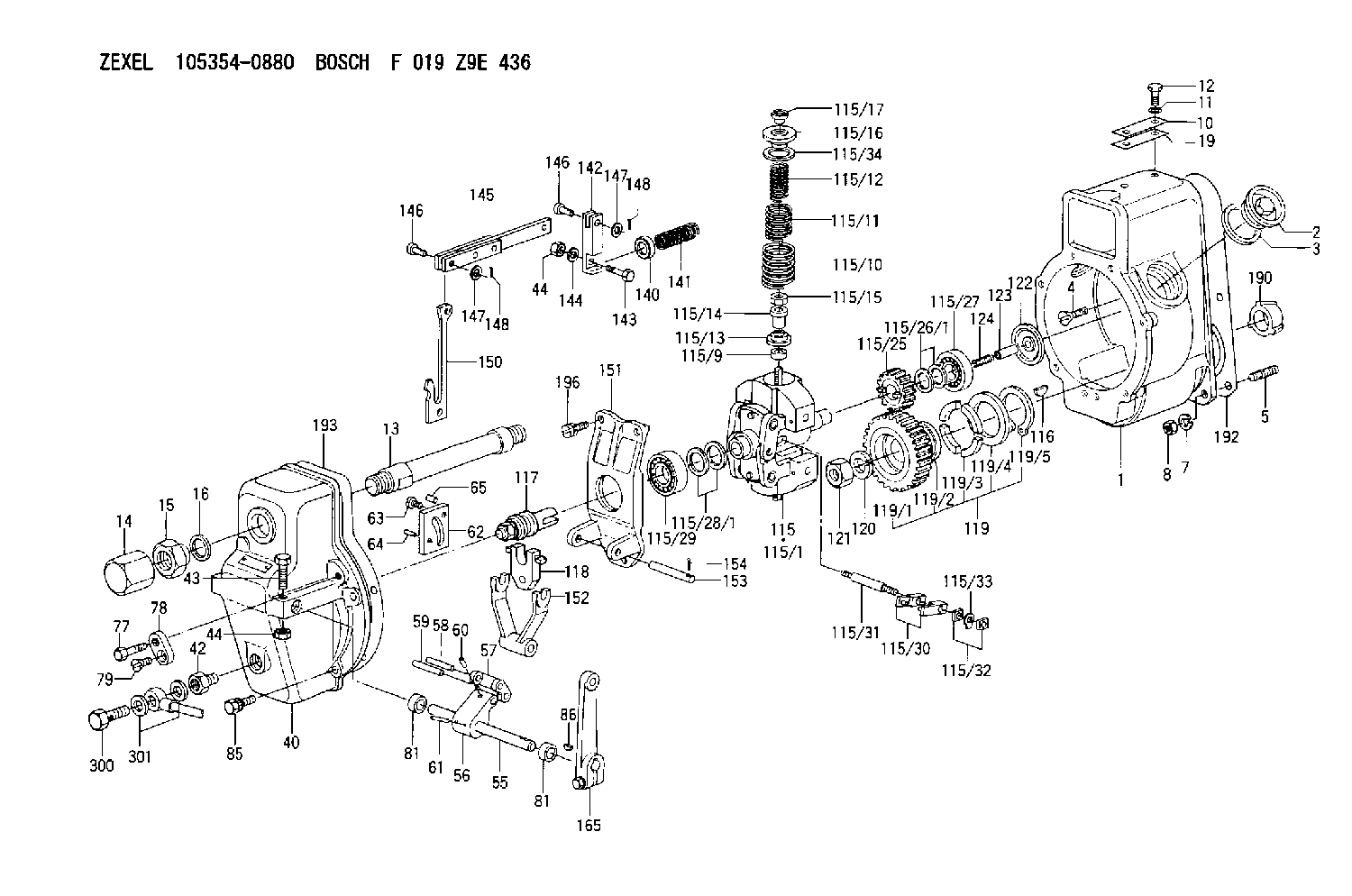

Scheme ###:
1. | [1] | 153002-2800 | GOVERNOR HOUSING |
2. | [2] | 153005-0800 | CAPSULE |
3. | [2] | 153006-0100 | GASKET |
4. | [2] | 021008-2520 | FLAT-HEAD SCREW |
5. | [2] | 029040-8070 | STUD |
7. | [2] | 014110-8440 | LOCKING WASHER |
8. | [2] | 013020-8020 | UNION NUT M8P1.25H7 |
10. | [1] | 153013-0300 | PLATE |
11. | [2] | 139505-0000 | PLAIN WASHER |
12. | [2] | 029010-6620 | BLEEDER SCREW |
13. | [1] | 153014-0900 | PIPE |
14. | [1] | 153016-0500 | CAP NUT |
15. | [1] | 029202-6010 | UNION NUT |
16. | [1] | 029332-6050 | GASKET |
19. | [1] | 153018-0300 | GASKET |
40. | [1] | 153106-4020 | GOVERNOR COVER |
42. | [1] | 131002-3800 | ADAPTOR |
43. | [1] | 155615-1600 | BLEEDER SCREW |
44. | [3] | 013020-6040 | UNION NUT M6P1H5 |
44. | [3] | 013020-6040 | UNION NUT M6P1H5 |
55. | [1] | 153120-0200 | LEVER SHAFT |
56. | [1] | 153123-0300 | CONTROL LEVER |
57. | [1] | 153124-0200 | CONNECTOR |
58. | [1] | 153125-0300 | BEARING PIN |
59. | [1] | 153125-0400 | BEARING PIN |
60. | [2] | 024020-1230 | BEARING PIN |
61. | [2] | 015130-2090 | TAPER PIN |
62. | [1] | 153127-0300 | CAM PLATE |
63. | [1] | 021006-2540 | FLAT-HEAD SCREW |
64. | [1] | 024040-2430 | BEARING PIN |
65. | [1] | 024040-1030 | BEARING PIN |
77. | [1] | 153141-1300 | BLEEDER SCREW |
78. | [1] | 153142-0120 | CAP |
79. | [1] | 021006-1040 | FLAT-HEAD SCREW |
81. | [2] | 029621-1020 | PACKING RING |
81. | [2] | 029621-1020 | PACKING RING |
85. | [4] | 020106-2240 | BLEEDER SCREW |
86. | [1] | 025803-1310 | WOODRUFF KEY |
115. | [1] | 153207-4120 | FLYWEIGHT ASSEMBLY |
115/1. | [1] | 153207-0010 | FLYWEIGHT |
115/9. | [1] | 153227-0100 | BUSHING |
115/10. | [2] | 153231-2600 | GOVERNOR SPRING |
115/11. | [2] | 153233-8600 | GOVERNOR SPRING |
115/12. | [2] | 153236-9900 | GOVERNOR SPRING |
115/13. | [2] | 153240-3000 | SLOTTED WASHER |
115/14. | [2] | 153241-0300 | UNION NUT |
115/15. | [2] | 153242-0100 | HEXAGON NUT |
115/16. | [2] | 153243-0200 | SLOTTED WASHER |
115/17. | [2] | 153244-0100 | UNION NUT |
115/25. | [1] | 153252-0200 | TOOTHED GEAR |
115/26/1. | [0] | 029311-5020 | SHIM D20.5&15T0.05 |
115/26/1. | [0] | 029311-5030 | SHIM D20.5&15T0.1 |
115/26/1. | [0] | 029311-5050 | SHIM D20.5&15T0.2 |
115/26/1. | [0] | 029311-5060 | SHIM D20.5&15T0.4 |
115/26/1. | [0] | 029311-5080 | SHIM D20.5&15T0.5 |
115/26/1. | [0] | 029311-5120 | SHIM D20.5&15T0.3 |
115/27. | [1] | 028001-5010 | BEARING PLATE |
115/28/1. | [0] | 029312-4050 | SHIM D33&24T0.6 |
115/28/1. | [0] | 153556-2900 | SHIM D33&24T0.1 |
115/28/1. | [0] | 153556-3000 | SHIM D33&24T0.2 |
115/28/1. | [0] | 153556-3100 | SHIM D33&24T0.3 |
115/29. | [1] | 028012-4010 | BEARING PLATE |
115/30. | [4] | 153257-0120 | STRAP |
115/31. | [1] | 153270-0300 | FLAT-HEAD SCREW |
115/32. | [4] | 029220-6010 | UNION NUT |
115/33. | [2] | 153271-0100 | TAB WASHER |
115/34. | [0] | 029312-5120 | SHIM D33&25T0.2 |
115/34. | [0] | 029312-6150 | SHIM D33&26T0.5 |
116. | [1] | 025805-1910 | WOODRUFF KEY |
117. | [1] | 153300-0320 | TERMINAL STUD |
118. | [1] | 153316-0300 | CROSS-HEAD |
119. | [1] | 153320-0320 | TOOTHED GEAR |
119/1. | [1] | 153320-0220 | TOOTHED GEAR |
119/2. | [1] | 153260-0320 | BUSHING |
119/3. | [4] | 153251-0200 | DAMPER |
119/4. | [1] | 153321-0100 | PLAIN WASHER |
119/5. | [1] | 016020-4010 | LOCKING WASHER |
120. | [1] | 014111-8410 | LOCKING WASHER |
121. | [1] | 013121-8140 | UNION NUT M18P1.5H15 |
122. | [1] | 153322-0120 | PLATE |
123. | [1] | 153323-0200 | SLOTTED WASHER |
124. | [1] | 153324-0100 | COILED SPRING |
140. | [1] | 153400-0200 | SLOTTED WASHER |
141. | [1] | 153401-0300 | COILED SPRING |
142. | [1] | 153402-0300 | CONNECTOR |
143. | [1] | 010006-1840 | BLEEDER SCREW M6P1L18 4T |
144. | [1] | 014110-6440 | LOCKING WASHER |
145. | [1] | 153405-0520 | STRAP |
146. | [2] | 025060-1620 | BEARING PIN |
146. | [2] | 025060-1620 | BEARING PIN |
147. | [2] | 029310-6040 | SHIM |
147. | [2] | 029310-6040 | SHIM |
148. | [2] | 025515-1510 | SPLIT PIN |
148. | [2] | 025515-1510 | SPLIT PIN |
150. | [1] | 153410-0300 | VARIABLE-FULCRUM LEVER |
151. | [1] | 153413-0100 | BRACKET |
152. | [1] | 153418-0100 | FORK LINK |
153. | [1] | 153419-0100 | BEARING PIN |
154. | [1] | 015320-2540 | SPLIT PIN |
165. | [1] | 153500-0220 | CONTROL LEVER |
190. | [1] | 155412-5600 | IMPELLER WHEEL |
192. | [1] | 154350-1000 | GASKET |
193. | [1] | 153550-3000 | GASKET |
196. | [4] | 021006-2040 | FLAT-HEAD SCREW |
300. | [1] | 027412-2440 | EYE BOLT |
301. | [2] | 029341-2140 | GASKET |
Include in #1:
103662-2172
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
105354-0880
F 019 Z9E 436
GOVERNOR
* K
* K
