105354-0870 ZEXEL 9 420 610 695 BOSCH GOVERNOR 9420610695 1053540870

Information governor

BOSCH 9 420 610 695 9420610695

ZEXEL 105354-0870 1053540870

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105354-0870 zexel genuine, new aftermarket engine parts with delivery

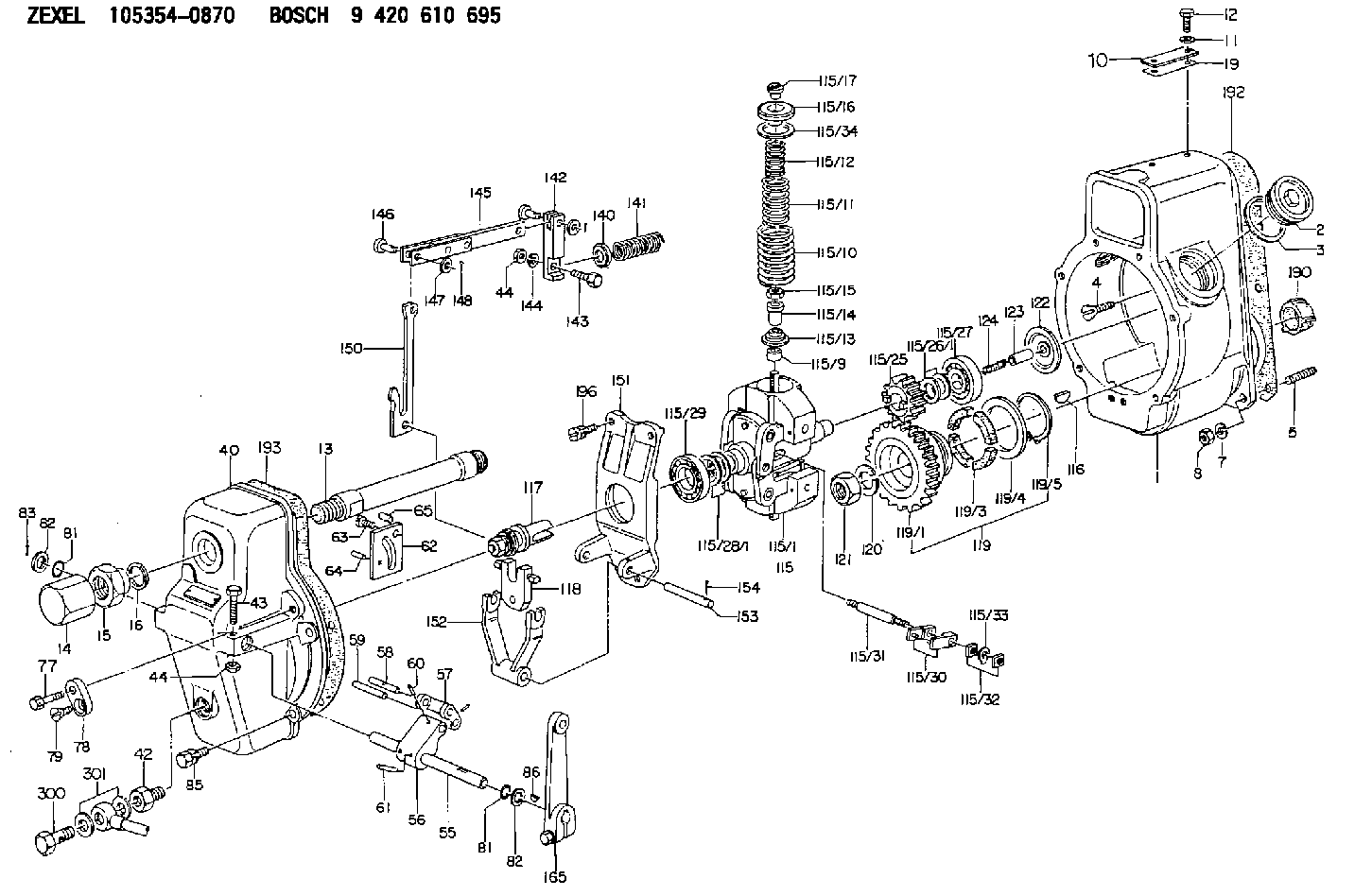

Scheme ###:

1.	[1]	153002-2800	GOVERNOR HOUSING
2.	[2]	153005-0800	CAPSULE
3.	[2]	153006-0100	GASKET
4.	[2]	021008-2520	FLAT-HEAD SCREW
5.	[2]	029040-8070	STUD
7.	[2]	014110-8440	LOCKING WASHER
8.	[2]	013020-8020	UNION NUT M8P1.25H7
10.	[1]	153013-0300	PLATE
11.	[2]	139505-0000	PLAIN WASHER
12.	[2]	029010-6620	BLEEDER SCREW
13.	[1]	153014-0900	PIPE
14.	[1]	153016-0500	CAP NUT
15.	[1]	029202-6010	UNION NUT
16.	[1]	029332-6050	GASKET
19.	[1]	153018-0300	GASKET
40.	[1]	153106-4020	GOVERNOR COVER
42.	[1]	131002-3800	ADAPTOR
43.	[1]	155615-1600	BLEEDER SCREW
44.	[3]	013020-6040	UNION NUT M6P1H5
44.	[3]	013020-6040	UNION NUT M6P1H5
55.	[1]	153120-0200	LEVER SHAFT
56.	[1]	153123-0300	CONTROL LEVER
57.	[1]	153124-0200	CONNECTOR
58.	[1]	153125-0300	BEARING PIN
59.	[1]	153125-0400	BEARING PIN
60.	[2]	024020-1230	BEARING PIN
61.	[2]	015130-2090	TAPER PIN
62.	[1]	153127-0300	CAM PLATE
63.	[1]	021006-2540	FLAT-HEAD SCREW
64.	[1]	024040-2430	BEARING PIN
65.	[1]	024040-1030	BEARING PIN
77.	[1]	153141-1000	BLEEDER SCREW
78.	[1]	153142-0120	CAP
79.	[1]	021006-1040	FLAT-HEAD SCREW
81.	[2]	029621-1020	PACKING RING
81.	[2]	029621-1020	PACKING RING
85.	[4]	020106-2240	BLEEDER SCREW
86.	[1]	025803-1310	WOODRUFF KEY
115.	[1]	153207-3720	FLYWEIGHT ASSEMBLY
115/1.	[1]	153207-0010	FLYWEIGHT
115/9.	[1]	153227-0100	BUSHING
115/10.	[2]	153231-0400	COILED SPRING
115/11.	[2]	153233-7600	COILED SPRING
115/12.	[2]	153236-2400	GOVERNOR SPRING
115/13.	[2]	153240-1700	SLOTTED WASHER
115/13B.	[2]	153240-1800	SLOTTED WASHER
115/13C.	[2]	153240-1900	SLOTTED WASHER
115/14.	[2]	153241-0300	UNION NUT
115/15.	[2]	153242-0100	HEXAGON NUT
115/16.	[2]	153243-0200	SLOTTED WASHER
115/17.	[2]	153244-0100	UNION NUT
115/25.	[1]	153252-0200	TOOTHED GEAR
115/26/1.	[0]	029311-5020	SHIM D20.5&15T0.05
115/26/1.	[0]	029311-5030	SHIM D20.5&15T0.1
115/26/1.	[0]	029311-5050	SHIM D20.5&15T0.2
115/26/1.	[0]	029311-5060	SHIM D20.5&15T0.4
115/26/1.	[0]	029311-5080	SHIM D20.5&15T0.5
115/26/1.	[0]	029311-5120	SHIM D20.5&15T0.3
115/27.	[1]	028001-5010	BEARING PLATE
115/28/1.	[0]	029312-4050	SHIM D33&24T0.6
115/28/1.	[0]	153556-2900	SHIM D33&24T0.1
115/28/1.	[0]	153556-3000	SHIM D33&24T0.2
115/28/1.	[0]	153556-3100	SHIM D33&24T0.3
115/29.	[1]	028012-4010	BEARING PLATE
115/30.	[4]	153257-0120	STRAP
115/31.	[1]	153270-0300	FLAT-HEAD SCREW
115/32.	[4]	029220-6010	UNION NUT
115/33.	[2]	153271-0100	TAB WASHER
115/34.	[0]	029312-5120	SHIM D33&25T0.2
115/34.	[0]	029312-6150	SHIM D33&26T0.5
116.	[1]	025805-1910	WOODRUFF KEY
117.	[1]	153300-0320	TERMINAL STUD
118.	[1]	153316-0300	CROSS-HEAD
119.	[1]	153320-0320	TOOTHED GEAR
119/1.	[1]	153320-0220	TOOTHED GEAR
119/2.	[1]	153260-0320	BUSHING
119/3.	[4]	153251-0200	DAMPER
119/4.	[1]	153321-0100	PLAIN WASHER
119/5.	[1]	016020-4010	LOCKING WASHER
120.	[1]	014111-8410	LOCKING WASHER
121.	[1]	013121-8140	UNION NUT M18P1.5H15
122.	[1]	153322-0120	PLATE
123.	[1]	153323-0200	SLOTTED WASHER
124.	[1]	153324-0100	COILED SPRING
140.	[1]	153400-0200	SLOTTED WASHER
141.	[1]	153401-0300	COILED SPRING
142.	[1]	153402-0300	CONNECTOR
143.	[1]	010006-1840	BLEEDER SCREW M6P1L18 4T
144.	[1]	014110-6440	LOCKING WASHER
145.	[1]	153405-0520	STRAP
146.	[2]	025060-1620	BEARING PIN
147.	[2]	029310-6040	SHIM
148.	[2]	025515-1510	SPLIT PIN
150.	[1]	153410-0300	VARIABLE-FULCRUM LEVER
151.	[1]	153413-0100	BRACKET
152.	[1]	153418-0100	FORK LINK
153.	[1]	153419-0100	BEARING PIN
154.	[1]	015320-2540	SPLIT PIN
165.	[1]	153500-0220	CONTROL LEVER
190.	[1]	155412-5600	IMPELLER WHEEL
192.	[1]	154350-1000	GASKET
193.	[1]	153550-3000	GASKET
196.	[4]	021006-2040	FLAT-HEAD SCREW
300.	[1]	027412-2440	EYE BOLT
301.	[2]	029341-2140	GASKET
