105354-0811 ZEXEL F 019 Z1E 524 BOSCH GOVERNOR f019z1e524 1053540811

Information governor

BOSCH F 019 Z1E 524 f019z1e524

ZEXEL 105354-0811 1053540811

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105354-0811 zexel genuine, new aftermarket engine parts with delivery

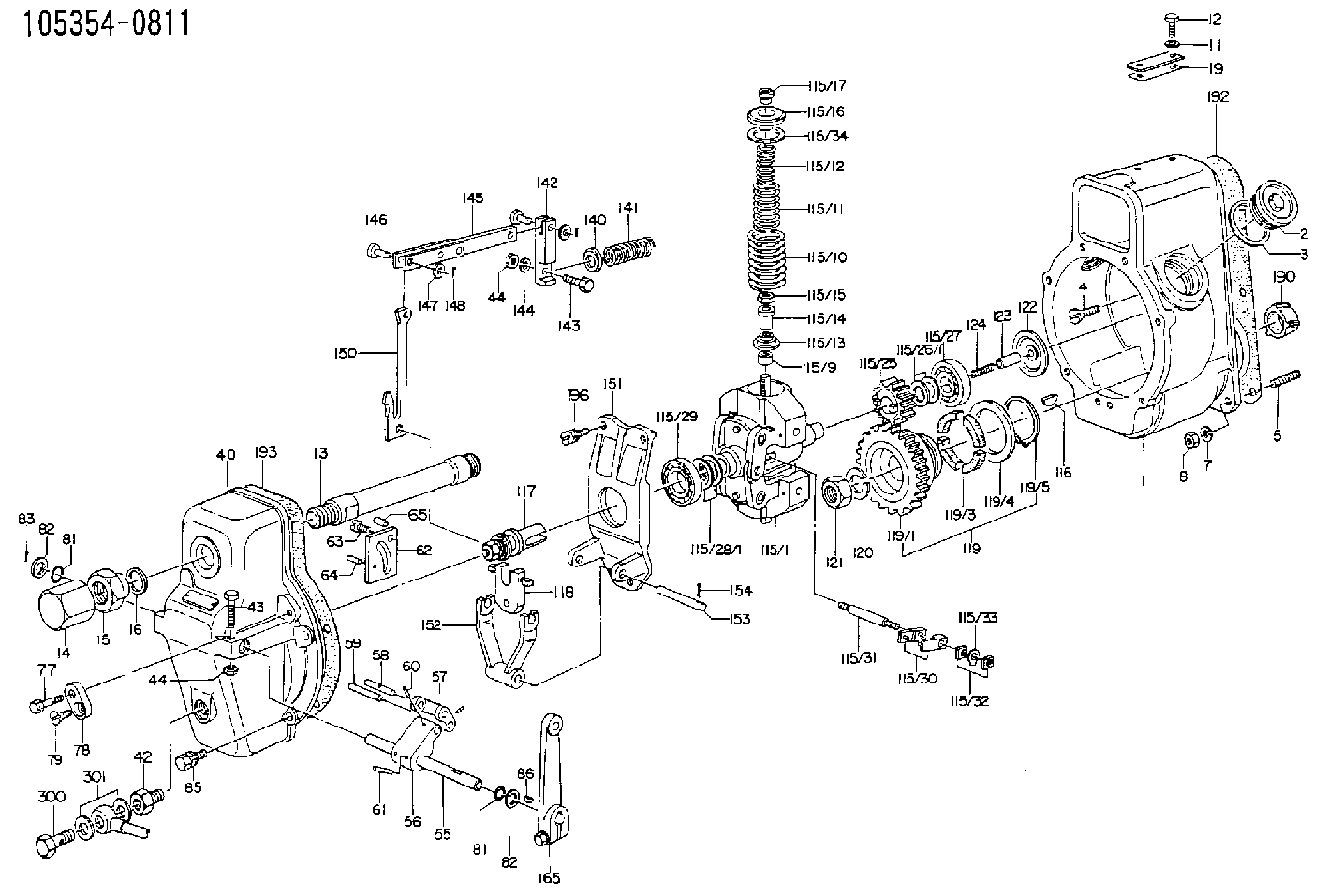

Scheme ###:

1.	[1]	153002-2800	GOVERNOR HOUSING
2.	[2]	153005-0800	CAPSULE
3.	[2]	153006-0100	GASKET
4.	[2]	021008-2520	FLAT-HEAD SCREW
5.	[2]	029040-8070	STUD
7.	[2]	014110-8440	LOCKING WASHER
8.	[2]	013020-8020	UNION NUT M8P1.25H7
10.	[1]	153013-0100	PLATE
11.	[2]	026506-1040	GASKET D9.9&6.2T1
12.	[2]	029010-6620	BLEEDER SCREW
13.	[1]	153014-0900	PIPE
14.	[1]	153016-0500	CAP NUT
15.	[1]	029202-6010	UNION NUT
16.	[1]	029332-6050	GASKET
19.	[1]	153018-0100	GASKET
40.	[1]	153106-3820	GOVERNOR HOUSING
42.	[1]	131002-3800	ADAPTOR
43.	[1]	155615-1600	BLEEDER SCREW
44.	[3]	013020-6040	UNION NUT M6P1H5
44.	[3]	013020-6040	UNION NUT M6P1H5
55.	[1]	153120-0200	LEVER SHAFT
56.	[1]	153123-0300	CONTROL LEVER
57.	[1]	153124-0200	CONNECTOR
58.	[1]	153125-0300	BEARING PIN
59.	[1]	153125-0400	BEARING PIN
60.	[2]	024020-1230	BEARING PIN
61.	[2]	015130-2090	TAPER PIN
62.	[1]	153127-0300	CAM PLATE
63.	[1]	021006-2540	FLAT-HEAD SCREW
64.	[1]	024040-2430	BEARING PIN
65.	[1]	024040-1030	BEARING PIN
77.	[1]	153141-1300	BLEEDER SCREW
78.	[1]	153142-0120	CAP
79.	[1]	021006-1040	FLAT-HEAD SCREW
81.	[2]	029631-1030	O-RING
81.	[2]	029631-1030	O-RING
82.	[2]	029301-1060	PLAIN WASHER
82.	[2]	029301-1060	PLAIN WASHER
83.	[1]	025520-2010	SPLIT PIN
85.	[4]	020106-2240	BLEEDER SCREW
86.	[1]	025803-1310	WOODRUFF KEY
115.	[1]	153207-4020	FLYWEIGHT ASSEMBLY
115/1.	[1]	153207-0010	FLYWEIGHT
115/9.	[1]	153227-0100	BUSHING
115/10.	[2]	153231-1400	GOVERNOR SPRING
115/11.	[2]	153233-8600	GOVERNOR SPRING
115/12.	[2]	153236-3500	GOVERNOR SPRING
115/13.	[2]	153240-3000	SLOTTED WASHER
115/14.	[2]	153241-0300	UNION NUT
115/15.	[2]	153242-0100	HEXAGON NUT
115/16.	[2]	153243-0200	SLOTTED WASHER
115/17.	[2]	153244-0100	UNION NUT
115/25.	[1]	153252-0200	TOOTHED GEAR
115/26/1.	[0]	029311-5020	SHIM D20.5&15T0.05
115/26/1.	[0]	029311-5030	SHIM D20.5&15T0.1
115/26/1.	[0]	029311-5050	SHIM D20.5&15T0.2
115/26/1.	[0]	029311-5060	SHIM D20.5&15T0.4
115/26/1.	[0]	029311-5080	SHIM D20.5&15T0.5
115/26/1.	[0]	029311-5120	SHIM D20.5&15T0.3
115/27.	[1]	028001-5010	BEARING PLATE
115/28/1.	[0]	029312-4050	SHIM D33&24T0.6
115/28/1.	[0]	153556-2900	SHIM D33&24T0.1
115/28/1.	[0]	153556-3000	SHIM D33&24T0.2
115/28/1.	[0]	153556-3100	SHIM D33&24T0.3
115/29.	[1]	028012-4010	BEARING PLATE
115/30.	[4]	153257-0120	STRAP
115/31.	[1]	153270-0300	FLAT-HEAD SCREW
115/32.	[4]	029220-6010	UNION NUT
115/33.	[2]	153271-0100	TAB WASHER
115/34.	[0]	029312-5120	SHIM D33&25T0.2
115/34.	[0]	029312-6150	SHIM D33&26T0.5
116.	[1]	025805-1910	WOODRUFF KEY
117.	[1]	153300-0320	TERMINAL STUD
118.	[1]	153316-0300	CROSS-HEAD
119.	[1]	153320-0320	TOOTHED GEAR
119/1.	[1]	153320-0220	TOOTHED GEAR
119/2.	[1]	153260-0320	BUSHING
119/3.	[4]	153251-0200	DAMPER
119/4.	[1]	153321-0100	PLAIN WASHER
119/5.	[1]	016020-4010	LOCKING WASHER
120.	[1]	014111-8410	LOCKING WASHER
121.	[1]	013121-8140	UNION NUT M18P1.5H15
122.	[1]	153322-0120	PLATE
123.	[1]	153323-0200	SLOTTED WASHER
124.	[1]	153324-0100	COILED SPRING
140.	[1]	153400-0200	SLOTTED WASHER
141.	[1]	153401-0300	COILED SPRING
142.	[1]	153402-0300	CONNECTOR
143.	[1]	010006-1840	BLEEDER SCREW M6P1L18 4T
144.	[1]	014110-6440	LOCKING WASHER
145.	[1]	153405-0520	STRAP
146.	[2]	025060-1620	BEARING PIN
147.	[2]	029310-6040	SHIM
148.	[2]	025515-1510	SPLIT PIN
150.	[1]	153410-0300	VARIABLE-FULCRUM LEVER
151.	[1]	153413-0100	BRACKET
152.	[1]	153418-0100	FORK LINK
153.	[1]	153419-0100	BEARING PIN
154.	[1]	015320-2540	SPLIT PIN
165.	[1]	153500-0220	CONTROL LEVER
190.	[1]	155412-5600	IMPELLER WHEEL
192.	[1]	154350-1000	GASKET
193.	[1]	153550-3000	GASKET
196.	[4]	021006-2040	FLAT-HEAD SCREW
300.	[1]	027412-2440	EYE BOLT
301.	[2]	029341-2140	GASKET

Include in #1:

103662-1990 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105354-0811

F 019 Z1E 524

GOVERNOR
* K

Information:

Caterpillar: Confidential Yellow
PSP FOR REPLACING ERODED CYLINDER HEAD INJECTOR SLEEVES IN CERTAIN IT14B INTEGRATED TOOLCARRIERS; E110B, E120B, E200B, EL2 00B, 213B, 214B, 224B, E240B, EL240B EXCAVATORS; 446 BACKHOE LOADERS; AND 3114 AND 3116 INDUSTRIAL AND GENERATOR SET EN GINES - PS0456 - MAILED CFEL
The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
E-81 1100, 1290 PS0456 This Program can only be administered after a failure occurs. The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS0456" as Part Number, "7755" as Group Number, and "96" as Description Code. If this Program is administered on E200B or EL200B Excavators, it is recommended that the June 23, 1990 Service Letter - PS4442 be done at the same time. Termination Date
June 30, 1991
Problem
The fuel injector sleeves in the cylinder head of certain IT14B Integrated Toolcarriers; E110B, E120B, E200B, EL200B, 213B, 214B, 224B, E240B, and EL240B Excavators; 446 Backhoe Loaders; and 3114 and 3116 Industrial and Generator Set Engines are subject to pitting and erosion due to fuel cavitation between the injector and the sleeve. The sleeves may pit or crack through, allowing fuel to contaminate the coolant. Coolant contaminated with fuel may also damage the radiator and coolant hoses.
Affected Product
Model Identification Number IT14B 3NJ1-42 E110B 8MF1-151 E120B 6JF1-212 E200B* 6KF1-439 6KG1-249 EL200B* 7DF1-986 213B 1EJ1-233, 236-245, 247, 248 214B 4CF1-261, 263, 265-275, 278 9MF1-171, 173-182, 185 224B 7WF1-47, 51, 56, 65 E240B 8SF1-36 9PF1-196 EL240B 5WG1-166 6MG1-104 446 6XF1-227 3114 5EF1-675 6AF1-581 1ZG1-432 5JG1-743 3116 2SG1-936 2WG1-859 4PG1-611 1NJ1-999 * The E200B and EL200B Excavators need to be updated to a new injector design released for that machine. The new injectors have a different orifice size to help eliminate black smoke problems reported on some earlier machines. When replacing injectors on E200B and EL200B Excavators, use injector part number 7E8729 if available. Reset the fuel setting and timing if the injectors are available.
