Information governor
BOSCH
9 420 613 128
9420613128
ZEXEL
105306-0591
1053060591
NISSAN-DIESEL
1910196206
1910196206
Rating:

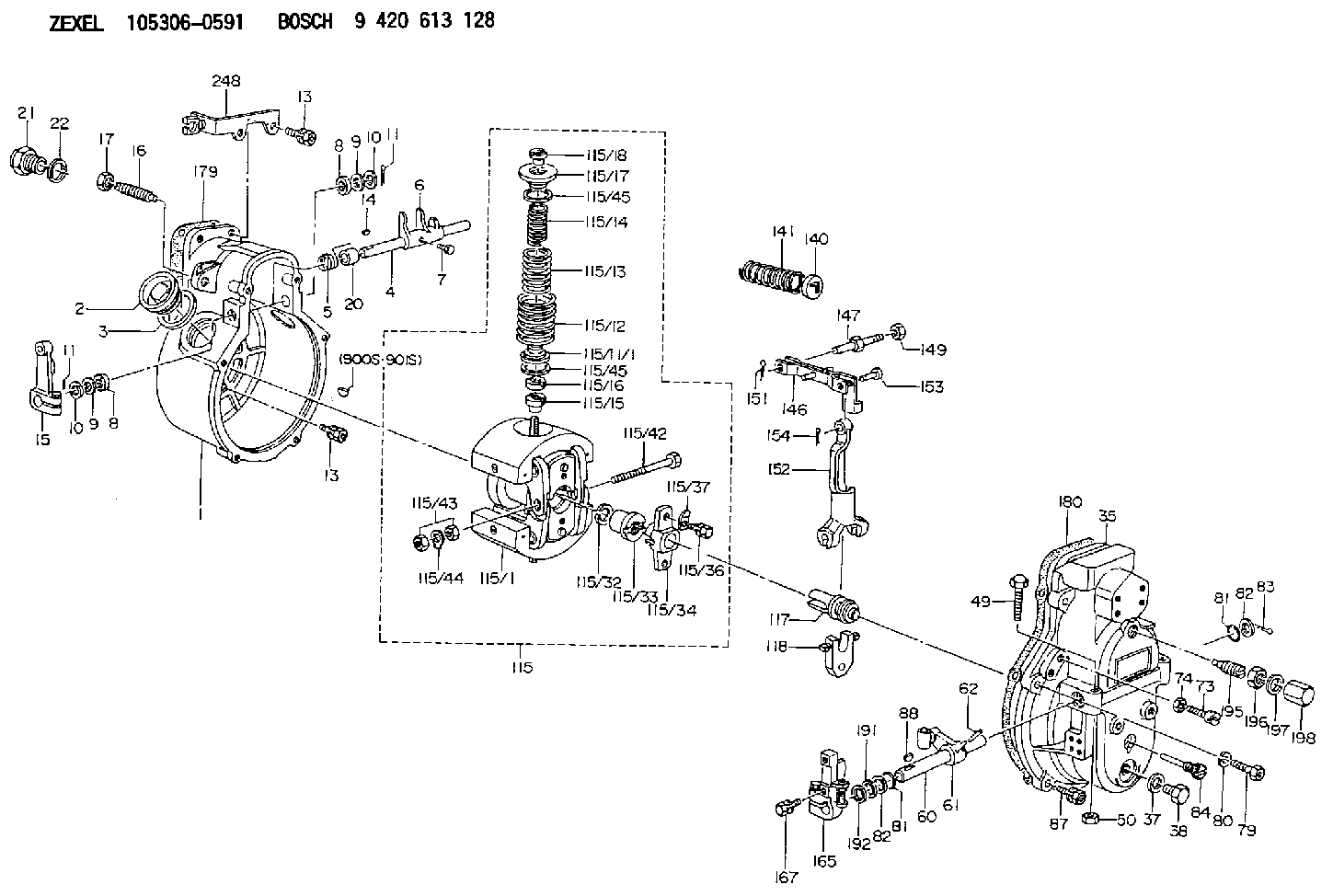

Scheme ###:
| 1. | [1] | 153003-0320 | GOVERNOR HOUSING |
| 2. | [2] | 153005-0800 | CAPSULE |
| 3. | [2] | 153006-0100 | GASKET |
| 4. | [1] | 155004-2601 | LEVER SHAFT |
| 5. | [1] | 155005-2300 | COILED SPRING |
| 6. | [1] | 155003-1601 | CONTROL LEVER |
| 7. | [1] | 155006-0100 | BLEEDER SCREW |
| 8. | [2] | 029620-8080 | PACKING RING |
| 8. | [2] | 029620-8080 | PACKING RING |
| 9. | [0] | 029310-8040 | SHIM D13.5&8T0.2 |
| 9. | [0] | 029310-8040 | SHIM D13.5&8T0.2 |
| 9B. | [0] | 029310-8050 | SHIM D13.5&8T0.5 |
| 10. | [2] | 029300-8320 | SHIM |
| 10. | [2] | 029300-8320 | SHIM |
| 11. | [2] | 025520-1210 | SPLIT PIN |
| 11. | [2] | 025520-1210 | SPLIT PIN |
| 13. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
| 13. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
| 14. | [1] | 025802-1010 | WOODRUFF KEY |
| 15. | [1] | 155414-3920 | CONTROL LEVER |
| 16. | [1] | 155411-7100 | FLAT-HEAD SCREW |
| 17. | [1] | 155011-0200 | HEXAGON NUT |
| 21. | [1] | 155404-1700 | CAP |
| 22. | [1] | 026524-3040 | GASKET |
| 35. | [1] | 153100-4110 | GOVERNOR COVER |
| 37. | [1] | 026510-1440 | GASKET D13.9&10.2T1 |
| 38. | [1] | 029111-0030 | CAPSULE |
| 49. | [1] | 153141-1700 | BLEEDER SCREW |
| 50. | [1] | 013020-6040 | UNION NUT M6P1H5 |
| 60. | [1] | 153120-2800 | LEVER SHAFT |
| 61. | [1] | 153123-0120 | CONTROL LEVER |
| 62. | [2] | 015130-2090 | TAPER PIN |
| 73. | [1] | 153141-2400 | BLEEDER SCREW |
| 74. | [1] | 013020-6040 | UNION NUT M6P1H5 |
| 79. | [1] | 029010-6310 | BLEEDER SCREW |
| 80. | [1] | 029320-6010 | LOCKING WASHER |
| 81. | [2] | 029631-1110 | O-RING |
| 81. | [2] | 029631-1110 | O-RING |
| 82. | [2] | 029301-1080 | PLAIN WASHER D17&11.1T1 |
| 83. | [1] | 025520-2010 | SPLIT PIN |
| 84. | [1] | 153145-0100 | FLAT-HEAD SCREW |
| 87. | [5] | 020106-2840 | BLEEDER SCREW |
| 88. | [1] | 025803-1310 | WOODRUFF KEY |
| 115. | [1] | 153200-4720 | FLYWEIGHT ASSEMBLY |
| 115/1. | [1] | 153200-7910 | FLYWEIGHT |
| 115/11/1. | [2] | 153229-3800 | SLOTTED WASHER T0.5 |
| 115/11/1. | [2] | 153229-3900 | SLOTTED WASHER T0.4 |
| 115/11/1. | [2] | 153229-4000 | SLOTTED WASHER T0.3 |
| 115/11/1. | [2] | 153229-4100 | SLOTTED WASHER T0.2 |
| 115/11/1. | [2] | 153229-4600 | SLOTTED WASHER |
| 115/11/1. | [2] | 153229-4700 | SLOTTED WASHER |
| 115/11/1. | [2] | 153229-4800 | SLOTTED WASHER |
| 115/12. | [2] | 153230-9000 | GOVERNOR SPRING |
| 115/13. | [2] | 153232-2500 | GOVERNOR SPRING |
| 115/14. | [2] | 153236-0200 | GOVERNOR SPRING |
| 115/15. | [2] | 153241-0400 | UNION NUT |
| 115/16. | [2] | 153242-0100 | HEXAGON NUT |
| 115/17. | [2] | 153243-0100 | SLOTTED WASHER |
| 115/18. | [2] | 153244-0100 | UNION NUT |
| 115/32. | [1] | 029321-2020 | LOCKING WASHER |
| 115/33. | [1] | 153255-0600 | HEXAGON NUT |
| 115/34. | [1] | 153256-0300 | BUSHING |
| 115/36. | [2] | 020006-1820 | BLEEDER SCREW |
| 115/37. | [2] | 153556-2700 | PLAIN WASHER |
| 115/42. | [1] | 153270-0100 | BLEEDER SCREW |
| 115/43. | [2] | 013020-6040 | UNION NUT M6P1H5 |
| 115/44. | [1] | 153271-0100 | TAB WASHER |
| 115/45. | [0] | 029312-5120 | SHIM D33&25T0.2 |
| 115/45. | [0] | 029312-6150 | SHIM D33&26T0.5 |
| 115/45. | [0] | 029312-6150 | SHIM D33&26T0.5 |
| 117. | [1] | 153300-0220 | TERMINAL STUD |
| 118. | [1] | 153316-0200 | CROSS-HEAD |
| 140. | [1] | 153400-0600 | SLOTTED WASHER |
| 141. | [1] | 153401-0600 | COILED SPRING |
| 146. | [1] | 153405-3920 | STRAP |
| 147. | [1] | 153406-0700 | BLEEDER SCREW |
| 149. | [0] | 013020-5220 | |
| 149. | [1] | 013020-5240 | UNION NUT M5P0.8H4 |
| 151. | [1] | 025520-1210 | SPLIT PIN |
| 152. | [1] | 153410-0100 | VARIABLE-FULCRUM LEVER |
| 153. | [1] | 025060-1610 | BEARING PIN |
| 154. | [1] | 025515-1510 | SPLIT PIN |
| 165. | [1] | 153500-4420 | CONTROL LEVER |
| 167. | [2] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
| 179. | [1] | 154371-5600 | GASKET |
| 180. | [1] | 154390-1200 | GASKET |
| 191. | [0] | 029311-1070 | SHIM D16&11T0.5 |
| 191B. | [0] | 029311-1090 | SHIM D16&11T0.3 |
| 192. | [0] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
| 195. | [1] | 154050-2720 | HEADLESS SCREW |
| 196. | [1] | 029201-2140 | UNION NUT |
| 197. | [1] | 026512-1540 | GASKET D15.4&12.2T1.50 |
| 198. | [1] | 154159-1200 | CAP NUT |
| 248. | [1] | 153551-9220 | PLATE |
| 900S. | [1] | 025803-1310 | WOODRUFF KEY |
| 901S. | [1] | 025803-1610 | WOODRUFF KEY |
Include in #1:
106651-0352
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
