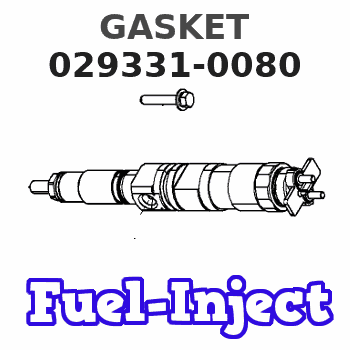

029331-0080 ZEXEL 9 442 611 834 BOSCH GASKET 9442611834 0293310080 6053138200

AFFECTED PRODUCT
Model Identification Number
C9 LFE00178-00180, 182, 193-194, 196, 2025, 2372-2375, 2585-2588, 2594-2595, 2710, 2714-2716, 2718-2722, 2725-2727, 2729, 2731-2741, 2743-2747, 2765-2784, 2831, 2833-2836, 2838-2839, 2841-2843, 2847-2852, 2855, 2857-2858, 2862, 2879, 2881-2886, 2888, 2890-2892, 2894-2896, 2898-2907, 2909, 2914, 2916-2918, 2920-2921, 2923-2924, 2926, 2928, 2931, 2934, 2937, 2986, 2988-2993, 2995-3043, 3045-3065, 3101-3106, 3110-3111, 3113, 3116, 3118, 3120, 3122, 3125, 3127-3129, 3132-3133, 3138, 3149-3168, 3204-3242, 3250, 3258-3343, 3345-3386, 3582-3584, 3590-3604, 3681-3730, 3732-3735, 3738-3739, 3741-3742, 3744-3749, 3791, 3793-3794, 3812-3831, 3866-3880, 3882-3897, 3899-3919, 3950-4020, 4026-4083, 4085-4118, 4121-4122, 4124-4151, 4153-4240, 4242, 4253-4278, 4281-4316, 4383-4384, 4387-4390, 4392-4395, 4398-4492, 4495-4497
PARTS NEEDED
Qty
Part Number Description
1 5734235 INJECTOR GP
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 1% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
****Parts Stock ****
Remove all 387-9435 Fuel Injectors from dealer parts stock. Refer to the Parts Disposition.
****Affected Product****
Replace the failed 387-9435 Fuel Injector with a 573-4235 Fuel Injector. Refer to the Disassembly and Assembly, RENR7460, "Unit Injector - Remove", and "Unit Injector - Install", for rework instructions.
SERVICE CLAIM ALLOWANCES
****Parts Stock****
Submit one claim for all parts removed from dealer parts stock.
****Affected Product****
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-6000 hrs,
0-192 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 3.0-hour job
PARTS DISPOSITION
****Parts Stock****
Hold all 387-9435 Fuel Injectors for a Parts Return Request (PRR). A Parts Return Request (PRR) will be issued to you through the Send-It-Back process after the claim is submitted. Make sure to list the service letter program number on the packing slip and include the closed work order paperwork. Handle all other parts in accordance with your Warranty Bulletin on warranty parts handling.
If a Parts Return Request (PRR) is not issued to you after 30 days through the Send-It-Back process, handle the parts in accordance with your warranty bulletin on warranty parts handling.
****Affected Product****
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
