Information fuel-injection pump
BOSCH
9 410 612 341
9410612341
ZEXEL
108092-0161
1080920161
HINO
221005270A
221005270a

Rating:

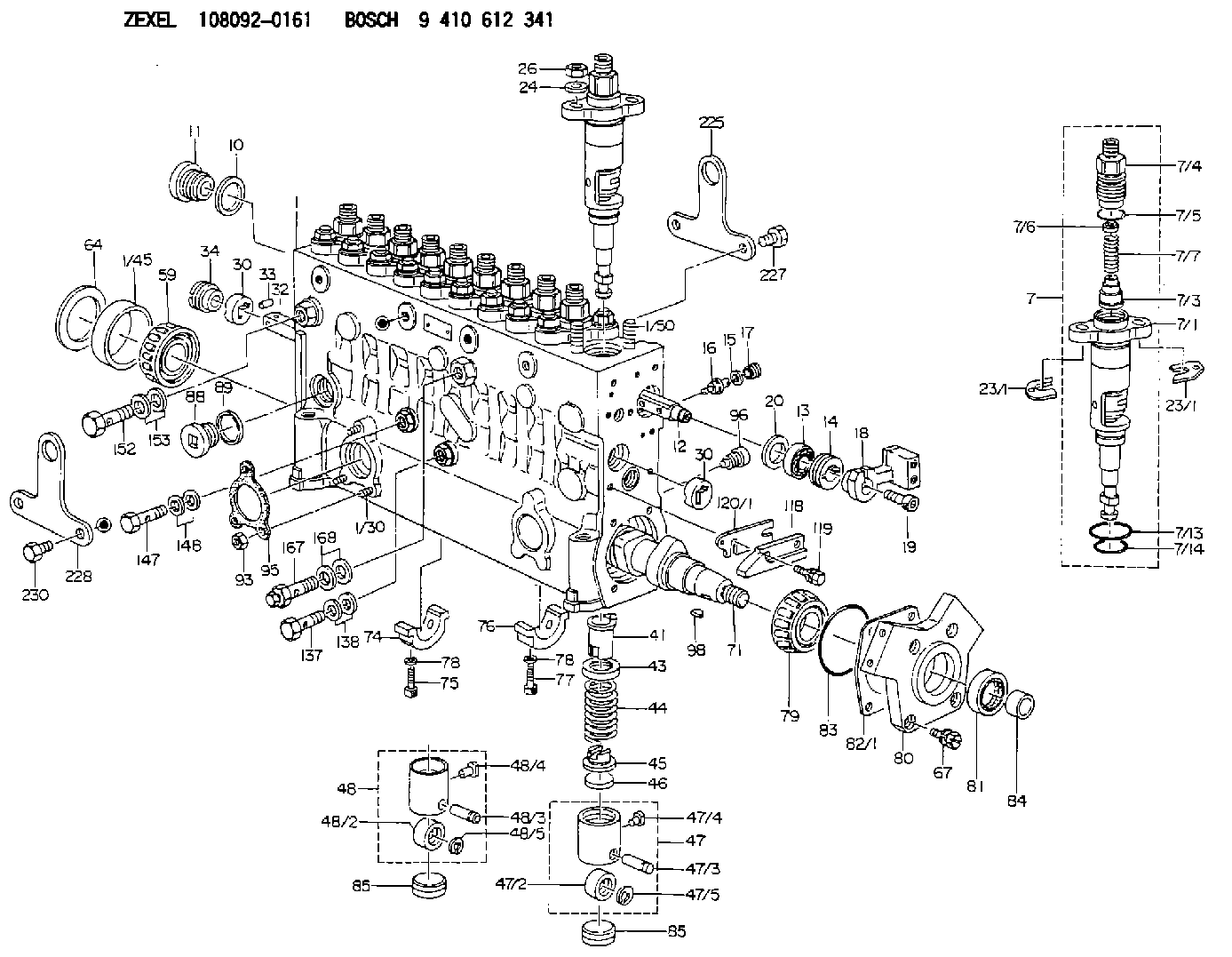

Scheme ###:
1. | [1] | 134084-0420 | PUMP HOUSING |
1/30. | [3] | 029040-6020 | STUD |
1/45. | [1] | 134311-0000 | SPACER RING |
1/50. | [20] | 134138-0200 | STUD |
7. | [10] | 134148-4320 | PLUNGER-AND-BARREL ASSY |
7/1. | [1] | 134178-2420 | PLUNGER-AND-BARREL ASSY |
7/3. | [1] | 134180-0520 | VALVE |
7/4. | [1] | 134171-0400 | FITTING |
7/5. | [1] | 139718-0300 | O-RING |
7/6. | [1] | 134117-2100 | FILLER PIECE |
7/7. | [1] | 134112-2900 | COILED SPRING |
7/13. | [1] | 139727-0300 | O-RING |
7/14. | [1] | 139723-0100 | O-RING |
10. | [1] | 029632-2070 | O-RING |
11. | [1] | 134227-4200 | CAPSULE |
12. | [1] | 134227-4500 | CONTROL ROD |
13. | [1] | 134227-1400 | BEARING PLATE |
14. | [1] | 134227-0300 | BUSHING |
15. | [10] | 014160-6110 | CONICAL SPRING WASHER |
16. | [10] | 134227-0400 | BEARING PIN |
17. | [10] | 134227-0501 | FLAT-HEAD SCREW |
18. | [1] | 134227-4720 | CONNECTOR |
19. | [1] | 139005-0300 | HEX-SOCKET-HEAD CAP SCREW |
20. | [1] | 139320-0000 | PLAIN WASHER |
23/1. | [0] | 139400-0900 | SHIM T0.500 |
23/1. | [0] | 139400-1000 | SHIM T0.525 |
23/1. | [0] | 139400-1100 | SHIM T0.550 |
23/1. | [0] | 139400-1200 | SHIM T0.575 |
23/1. | [0] | 139400-1300 | SHIM T0.600 |
23/1. | [0] | 139400-1400 | SHIM T0.625 |
23/1. | [0] | 139400-1500 | SHIM T0.650 |
23/1. | [0] | 139400-1600 | SHIM T0.675 |
23/1. | [0] | 139400-1700 | SHIM T0.700 |
23/1. | [0] | 139400-1800 | SHIM T0.725 |
23/1. | [0] | 139400-1900 | SHIM T0.750 |
23/1. | [0] | 139400-2000 | SHIM T0.775 |
23/1. | [0] | 139400-2100 | SHIM T0.800 |
23/1. | [0] | 139400-2200 | SHIM T0.825 |
23/1. | [0] | 139400-2300 | SHIM T0.850 |
23/1. | [0] | 139400-2400 | SHIM T0.875 |
23/1. | [0] | 139400-2500 | SHIM T0.900 |
23/1. | [0] | 139400-2600 | SHIM T0.925 |
23/1. | [0] | 139400-2700 | SHIM T0.950 |
23/1. | [0] | 139400-2700 | SHIM T0.950 |
23/1. | [0] | 139400-2800 | SHIM T0.975 |
23/1. | [0] | 139400-2900 | SHIM T1.000 |
23/1. | [0] | 139400-3000 | SHIM T1.025 |
23/1. | [0] | 139400-3100 | SHIM T1.050 |
23/1. | [0] | 139400-3200 | SHIM T1.075 |
23/1. | [0] | 139400-3300 | SHIM T1.100 |
23/1. | [0] | 139400-3400 | SHIM T1.125 |
23/1. | [0] | 139400-3500 | SHIM T1.150 |
23/1. | [0] | 139400-3600 | SHIM T1.175 |
23/1. | [0] | 139400-3700 | SHIM T1.200 |
23/1. | [0] | 139400-3800 | SHIM T1.225 |
23/1. | [0] | 139400-3900 | SHIM T1.250 |
23/1. | [0] | 139400-4000 | SHIM T1.275 |
23/1. | [0] | 139400-4100 | SHIM T1.300 |
23/1. | [0] | 139400-4200 | SHIM T1.325 |
23/1. | [0] | 139400-4300 | SHIM T1.350 |
23/1. | [0] | 139400-4400 | SHIM T1.375 |
23/1. | [0] | 139400-4500 | SHIM T1.400 |
23/1. | [0] | 139400-4600 | SHIM T1.425 |
23/1. | [0] | 139400-4700 | SHIM T1.450 |
23/1. | [0] | 139400-4800 | SHIM T1.475 |
23/1. | [0] | 139400-4900 | SHIM T1.500 |
23/1. | [0] | 139400-5000 | SHIM T1.525 |
23/1. | [0] | 139400-5100 | SHIM T1.550 |
23/1. | [0] | 139400-5200 | SHIM T1.575 |
23/1. | [0] | 139400-5300 | SHIM T1.600 |
23/1. | [0] | 139400-5400 | SHIM T1.625 |
23/1. | [0] | 139400-5500 | SHIM T1.650 |
23/1. | [0] | 139400-5600 | SHIM T1.675 |
23/1. | [0] | 139400-5700 | SHIM T1.700 |
23/1. | [0] | 139400-5800 | SHIM T1.725 |
23/1. | [0] | 139400-5900 | SHIM T1.750 |
23/1. | [0] | 139400-6000 | SHIM T1.775 |
23/1. | [0] | 139400-6100 | SHIM T1.800 |
23/1. | [0] | 139400-6200 | SHIM T1.825 |
23/1. | [0] | 139400-6300 | SHIM T1.850 |
23/1. | [0] | 139400-6400 | SHIM T1.875 |
23/1. | [0] | 139400-6500 | SHIM T1.900 |
23/1. | [0] | 139400-6600 | SHIM T1.925 |
23/1. | [0] | 139400-6700 | SHIM T1.950 |
23/1. | [0] | 139400-6800 | SHIM T1.975 |
24. | [20] | 134132-0300 | PLAIN WASHER D20&11T2.5 |
26. | [20] | 139210-0200 | UNION NUT |
30. | [2] | 134001-0000 | BUSHING |
30. | [2] | 134001-0000 | BUSHING |
32. | [1] | 134250-0000 | CONTROL RACK |
33. | [1] | 024030-2030 | BEARING PIN |
34. | [1] | 134222-0000 | BUSHING |
41. | [10] | 134241-0720 | CONTROL SLEEVE |
43. | [10] | 134216-0401 | SLOTTED WASHER |
44. | [10] | 134215-1300 | COMPRESSION SPRING |
45. | [10] | 134217-0800 | SLOTTED WASHER |
46. | [10] | 134563-2800 | SPRING SEAT |
47. | [6] | 134200-1320 | TAPPET |
47/2. | [1] | 134204-0300 | ROLLER |
47/3. | [1] | 134203-0200 | BEARING PIN |
47/4. | [1] | 131206-0500 | SLIDER |
47/5. | [1] | 134208-0100 | LOCKING WASHER |
48. | [4] | 134200-1220 | TAPPET |
48/2. | [1] | 134204-0300 | ROLLER |
48/3. | [1] | 134203-0200 | BEARING PIN |
48/4. | [1] | 131206-0500 | SLIDER |
48/5. | [1] | 134208-0100 | LOCKING WASHER |
59. | [1] | 016650-2230 | BEARING PLATE |
64. | [1] | 134303-0500 | SHIM D59.8&43T1.6 |
67. | [4] | 139006-4100 | BLEEDER SCREW |
71. | [1] | 134397-0200 | CAMSHAFT |
74. | [2] | 134306-2200 | BEARING SHELL |
75. | [4] | 010206-2040 | HEX-SOCKET-HEAD CAP SCREW |
76. | [2] | 134306-2300 | BEARING SHELL |
77. | [4] | 010206-2040 | HEX-SOCKET-HEAD CAP SCREW |
78. | [8] | 026506-1040 | GASKET D9.9&6.2T1 |
78. | [8] | 026506-1040 | GASKET D9.9&6.2T1 |
79. | [1] | 035302-0600 | BEARING PLATE |
80. | [1] | 134316-7400 | COVER |
81. | [1] | 139634-0200 | PACKING RING |
82/1. | [0] | 134314-0700 | SHIM T0.1 |
82/1. | [0] | 134314-0800 | SHIM T0.12 |
82/1. | [0] | 134314-0900 | SHIM T0.14 |
82/1. | [0] | 134314-1000 | SHIM T0.16 |
82/1. | [0] | 134314-1100 | SHIM T0.18 |
82/1. | [0] | 134314-1200 | SHIM T0.3 |
82/1. | [0] | 134314-1300 | SHIM T0.5 |
83. | [1] | 139766-0000 | O-RING |
84. | [1] | 134563-2500 | SLIDING PIECE |
85. | [10] | 134034-0000 | CAPSULE |
85. | [10] | 134034-0000 | CAPSULE |
88. | [1] | 134045-0100 | CAPSULE |
89. | [1] | 026524-2940 | GASKET D28.9&24.3T2 |
93. | [3] | 139206-0400 | UNION NUT |
95. | [1] | 131041-0800 | GASKET |
96. | [10] | 134047-0000 | CAPSULE |
98. | [1] | 025806-2210 | WOODRUFF KEY |
118. | [1] | 134496-7200 | POINTER |
119. | [2] | 029020-6210 | BLEEDER SCREW |
120/1. | [0] | 139400-0100 | SHIM T0.2 |
120/1. | [0] | 139400-0200 | SHIM T0.3 |
120/1. | [0] | 139400-0300 | SHIM T0.5 |
120/1. | [0] | 139400-0400 | SHIM T1.0 |
120/1. | [0] | 139400-7200 | SHIM T0.1 |
137. | [1] | 134430-1600 | EYE BOLT |
138. | [2] | 139516-0200 | GASKET |
147. | [1] | 134430-3000 | EYE BOLT |
148. | [2] | 139510-0300 | GASKET |
152. | [1] | 029731-4680 | EYE BOLT |
153. | [2] | 139514-0300 | GASKET |
167. | [1] | 134424-4120 | OVER FLOW VALVE |
168. | [2] | 139514-0300 | GASKET |
225. | [1] | 134439-0000 | HANGER |
227. | [2] | 156633-9100 | BLEEDER SCREW |
228. | [1] | 131439-0600 | HANGER |
230. | [1] | 156633-9100 | BLEEDER SCREW |
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
If the engine is stored for 6 months or more, the fuel injection pump linkage needs to be lubricated.Solution
Follow the procedure in this article to lubricate the fuel injection pump linkage.
Remove the fuel shutoff solenoid. Refer to Disassembly and Assembly, "Fuel Shutoff Solenoid - Remove and Install" for the correct procedure.
Spray the fuel control rack with a suitable lubricant spray.
Use a suitable magnet to operate the fuel control rack. The operation of the fuel control rack will disperse the lubricant.Note: If the fuel control rack does not move freely, then the fuel injection pump should be replaced. Refer to Disassembly and Assembly, "Fuel Injection Pump - Remove and Install" for the correct procedure.
Install the fuel shutoff solenoid. Refer to Disassembly and Assembly, "Fuel Shutoff Solenoid - Remove and Install" for the correct procedure.
Record the repair in the Service Information Management System (SIMSi), including the engine/machine serial number and the date of the repair.
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
If the engine is stored for 6 months or more, the fuel injection pump linkage needs to be lubricated.Solution
Follow the procedure in this article to lubricate the fuel injection pump linkage.
Remove the fuel shutoff solenoid. Refer to Disassembly and Assembly, "Fuel Shutoff Solenoid - Remove and Install" for the correct procedure.
Spray the fuel control rack with a suitable lubricant spray.
Use a suitable magnet to operate the fuel control rack. The operation of the fuel control rack will disperse the lubricant.Note: If the fuel control rack does not move freely, then the fuel injection pump should be replaced. Refer to Disassembly and Assembly, "Fuel Injection Pump - Remove and Install" for the correct procedure.
Install the fuel shutoff solenoid. Refer to Disassembly and Assembly, "Fuel Shutoff Solenoid - Remove and Install" for the correct procedure.
Record the repair in the Service Information Management System (SIMSi), including the engine/machine serial number and the date of the repair.
