108092-0012 ZEXEL 9 410 610 901 BOSCH FUEL-INJECTION PUMP 9410610901 1080920012

Information fuel-injection pump

BOSCH 9 410 610 901 9410610901

ZEXEL 108092-0012 1080920012

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 108092-0012 zexel genuine, new aftermarket engine parts with delivery

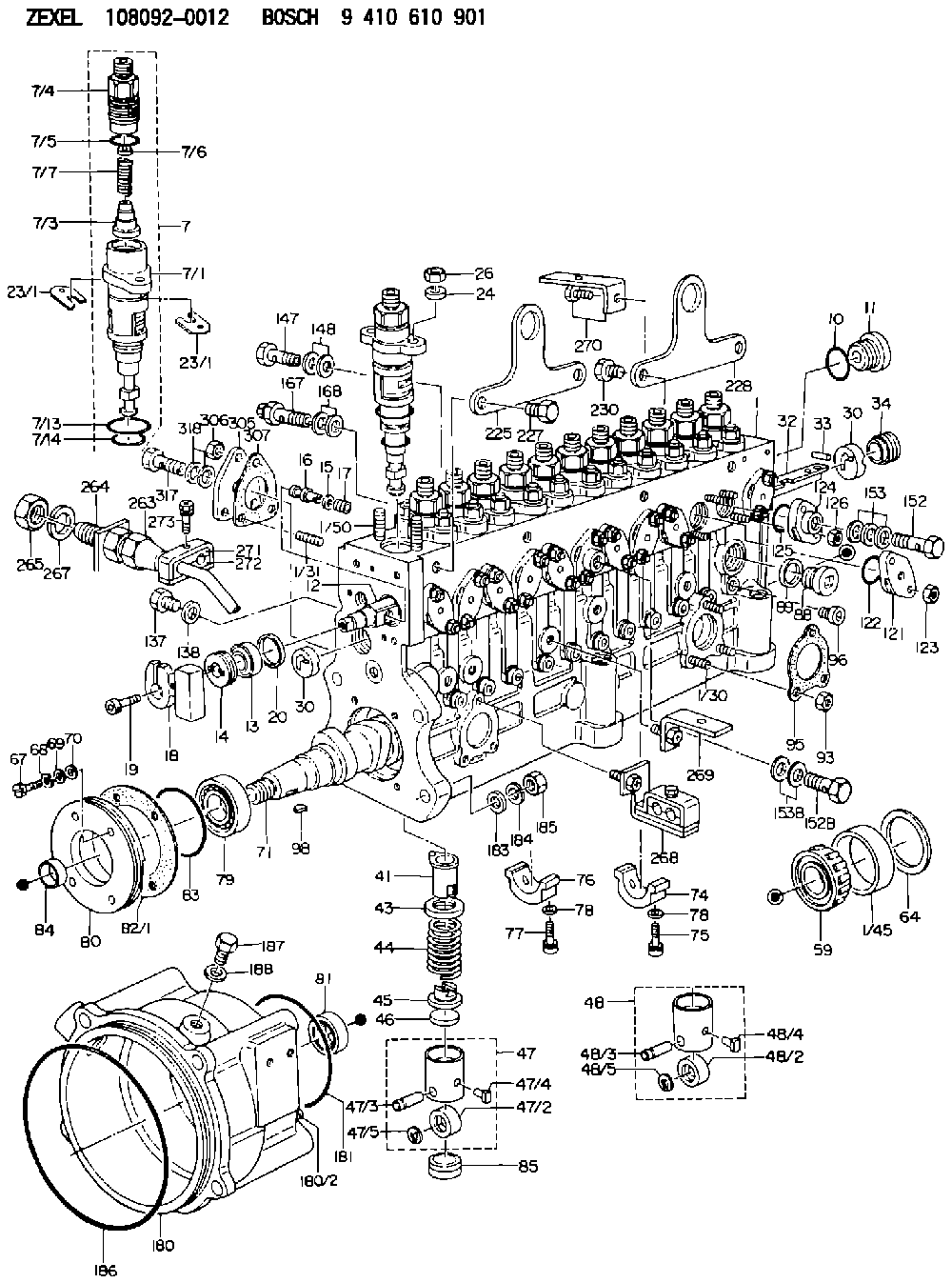

Scheme ###:

1.	[1]	134088-0222	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/31.	[3]	139008-0800	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[24]	134138-0200	STUD
7.	[12]	134148-2320	PLUNGER-AND-BARREL ASSY
7/1.	[1]	134178-1620	PLUNGER-AND-BARREL ASSY
7/3.	[1]	134180-0520	VALVE
7/4.	[1]	134171-0400	FITTING
7/5.	[1]	139718-0300	O-RING
7/6.	[1]	134117-2100	FILLER PIECE
7/7.	[1]	134112-2900	COILED SPRING
7/13.	[1]	139727-0300	O-RING
7/14.	[1]	139723-0100	O-RING
10.	[1]	139722-0200	O-RING
11.	[1]	134227-4200	CAPSULE
12.	[1]	134227-3900	CONTROL ROD
13.	[1]	134227-1400	BEARING PLATE
14.	[1]	134227-0300	BUSHING
15.	[12]	014160-6110	CONICAL SPRING WASHER
16.	[12]	134227-0400	BEARING PIN
17.	[12]	134227-0501	FLAT-HEAD SCREW
18.	[1]	134227-4120	CONNECTOR
19.	[1]	139005-0300	HEX-SOCKET-HEAD CAP SCREW
20.	[1]	139320-0000	PLAIN WASHER
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-1000	SHIM T0.525
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1200	SHIM T0.575
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1400	SHIM T0.625
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1600	SHIM T0.675
23/1.	[0]	139400-1700	SHIM T0.700
23/1.	[0]	139400-1800	SHIM T0.725
23/1.	[0]	139400-1900	SHIM T0.750
23/1.	[0]	139400-2000	SHIM T0.775
23/1.	[0]	139400-2100	SHIM T0.800
23/1.	[0]	139400-2200	SHIM T0.825
23/1.	[0]	139400-2300	SHIM T0.850
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2500	SHIM T0.900
23/1.	[0]	139400-2600	SHIM T0.925
23/1.	[0]	139400-2700	SHIM T0.950
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2900	SHIM T1.000
23/1.	[0]	139400-3000	SHIM T1.025
23/1.	[0]	139400-3100	SHIM T1.050
23/1.	[0]	139400-3200	SHIM T1.075
23/1.	[0]	139400-3300	SHIM T1.100
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3500	SHIM T1.150
23/1.	[0]	139400-3600	SHIM T1.175
23/1.	[0]	139400-3700	SHIM T1.200
23/1.	[0]	139400-3800	SHIM T1.225
23/1.	[0]	139400-3900	SHIM T1.250
23/1.	[0]	139400-4000	SHIM T1.275
23/1.	[0]	139400-4100	SHIM T1.300
23/1.	[0]	139400-4200	SHIM T1.325
23/1.	[0]	139400-4300	SHIM T1.350
23/1.	[0]	139400-4400	SHIM T1.375
23/1.	[0]	139400-4500	SHIM T1.400
23/1.	[0]	139400-4600	SHIM T1.425
23/1.	[0]	139400-4700	SHIM T1.450
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4900	SHIM T1.500
23/1.	[0]	139400-5000	SHIM T1.525
23/1.	[0]	139400-5100	SHIM T1.550
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5300	SHIM T1.600
23/1.	[0]	139400-5400	SHIM T1.625
23/1.	[0]	139400-5500	SHIM T1.650
23/1.	[0]	139400-5600	SHIM T1.675
23/1.	[0]	139400-5700	SHIM T1.700
23/1.	[0]	139400-5800	SHIM T1.725
23/1.	[0]	139400-5900	SHIM T1.750
23/1.	[0]	139400-6000	SHIM T1.775
23/1.	[0]	139400-6100	SHIM T1.800
23/1.	[0]	139400-6200	SHIM T1.825
23/1.	[0]	139400-6300	SHIM T1.850
23/1.	[0]	139400-6400	SHIM T1.875
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6600	SHIM T1.925
23/1.	[0]	139400-6700	SHIM T1.950
23/1.	[0]	139400-6800	SHIM T1.975
24.	[24]	134132-0300	PLAIN WASHER D20&11T2.5
26.	[24]	139210-0200	UNION NUT
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	134259-0000	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[12]	134241-0720	CONTROL SLEEVE
43.	[12]	134216-0401	SLOTTED WASHER
44.	[12]	134215-1300	COMPRESSION SPRING
45.	[12]	134217-0800	SLOTTED WASHER
46.	[12]	134563-2800	SPRING SEAT
47.	[8]	134200-1320	TAPPET
47/2.	[1]	134204-0300	ROLLER
47/3.	[1]	134203-0200	BEARING PIN
47/4.	[1]	131206-0500	SLIDER
47/5.	[1]	134208-0100	LOCKING WASHER
48.	[4]	134200-1220	TAPPET
48/2.	[1]	134204-0300	ROLLER
48/3.	[1]	134203-0200	BEARING PIN
48/4.	[1]	131206-0500	SLIDER
48/5.	[1]	134208-0100	LOCKING WASHER
59.	[1]	016650-2230	BEARING PLATE
64.	[1]	134303-0500	SHIM D59.8&43T1.6
67.	[4]	139006-6700	BLEEDER SCREW
68.	[4]	029320-6010	LOCKING WASHER
69.	[4]	029300-6170	SHIM D12&6.2T1
70.	[4]	029340-6120	GASKET
71.	[1]	134397-0000	CAMSHAFT
74.	[2]	134306-1500	BEARING SHELL
75.	[4]	010206-3040	HEX-SOCKET-HEAD CAP SCREW M6P1L30
76.	[2]	134306-1600	BEARING SHELL
77.	[4]	010206-3040	HEX-SOCKET-HEAD CAP SCREW M6P1L30
78.	[8]	026506-1040	GASKET D9.9&6.2T1
78.	[8]	026506-1040	GASKET D9.9&6.2T1
79.	[1]	035302-0600	BEARING PLATE
80.	[1]	134316-6400	COVER
81.	[1]	139634-0200	PACKING RING
82/1.	[0]	134314-0700	SHIM T0.1
82/1.	[0]	134314-0800	SHIM T0.12
82/1.	[0]	134314-0900	SHIM T0.14
82/1.	[0]	134314-1000	SHIM T0.16
82/1.	[0]	134314-1100	SHIM T0.18
82/1.	[0]	134314-1200	SHIM T0.3
82/1.	[0]	134314-1300	SHIM T0.5
83.	[1]	139766-0000	O-RING
84.	[1]	134563-2500	SLIDING PIECE
85.	[12]	134034-0000	CAPSULE
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET D28.9&24.3T2
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[12]	134047-0000	CAPSULE
98.	[1]	025806-2210	WOODRUFF KEY
121.	[10]	134227-1800	CAPSULE
122.	[10]	139720-0100	O-RING
123.	[20]	139206-0800	UNION NUT
124.	[2]	134227-1900	CAPSULE
125.	[2]	139720-0100	O-RING
126.	[4]	139206-0800	UNION NUT
137.	[1]	029111-4050	CAPSULE
138.	[1]	139514-0000	GASKET D19.2&14.2T1.0
147.	[1]	139810-0000	EYE BOLT
148.	[2]	139510-0000	GASKET D15.2&10.2T1.0
152.	[1]	134430-4120	EYE BOLT
152B.	[1]	139814-0000	EYE BOLT
153.	[3]	139514-0000	GASKET D19.2&14.2T1.0
153B.	[2]	139514-0000	GASKET D19.2&14.2T1.0
167.	[1]	134424-4320	OVER FLOW VALVE
168.	[2]	139514-0000	GASKET D19.2&14.2T1.0
180.	[1]	134459-1220	BRACKET
180/2.	[4]	029041-0300	STUD
181.	[1]	016510-9510	O-RING
183.	[4]	014011-0140	PLAIN WASHER D22&10.5T1.6
184.	[4]	014111-0440	LOCKING WASHER
185.	[4]	013021-0040	UNION NUT M10P1.5H8
186.	[1]	139799-0500	O-RING
187.	[1]	134045-0200	CAPSULE
188.	[1]	139524-0000	GASKET
225.	[1]	134439-0000	HANGER
227.	[2]	156633-9100	BLEEDER SCREW
228.	[1]	134439-0000	HANGER
230.	[2]	156633-9100	BLEEDER SCREW
263.	[1]	134433-9420	PIPE
264.	[1]	134400-1700	UNION
265.	[1]	134400-1600	UNION NUT
267.	[1]	014112-0440	LOCKING WASHER
268.	[1]	134563-5220	BRACKET
269.	[1]	134563-5520	BRACKET
270.	[1]	134563-5520	BRACKET
271.	[1]	134563-5320	CLAMPING BAND
272.	[1]	134563-5420	CLAMPING BAND
273.	[1]	020106-3540	BLEEDER SCREW
305.	[1]	131040-0620	COVER
306.	[3]	013030-8140	UNION NUT M8P1.25H5
307.	[1]	131041-0900	GASKET
317.	[1]	139814-0000	EYE BOLT
318.	[2]	139514-0000	GASKET D19.2&14.2T1.0

Include in #1:

108922-1013 as FUEL INJECTION PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

108092-0012
108092-0013

9 410 610 901

FUEL-INJECTION PUMP
* Q
