108082-5011 ZEXEL 9 410 613 288 BOSCH FUEL-INJECTION PUMP 9410613288 1080825011




Information fuel-injection pump

BOSCH 9 410 613 288 9410613288
ZEXEL 108082-5011 1080825011
108082-5011 FUEL-INJECTION PUMP
Rating:
48
Buy FUEL-INJECTION PUMP 108082-5011 zexel genuine, new aftermarket engine parts with delivery

Scheme ###:

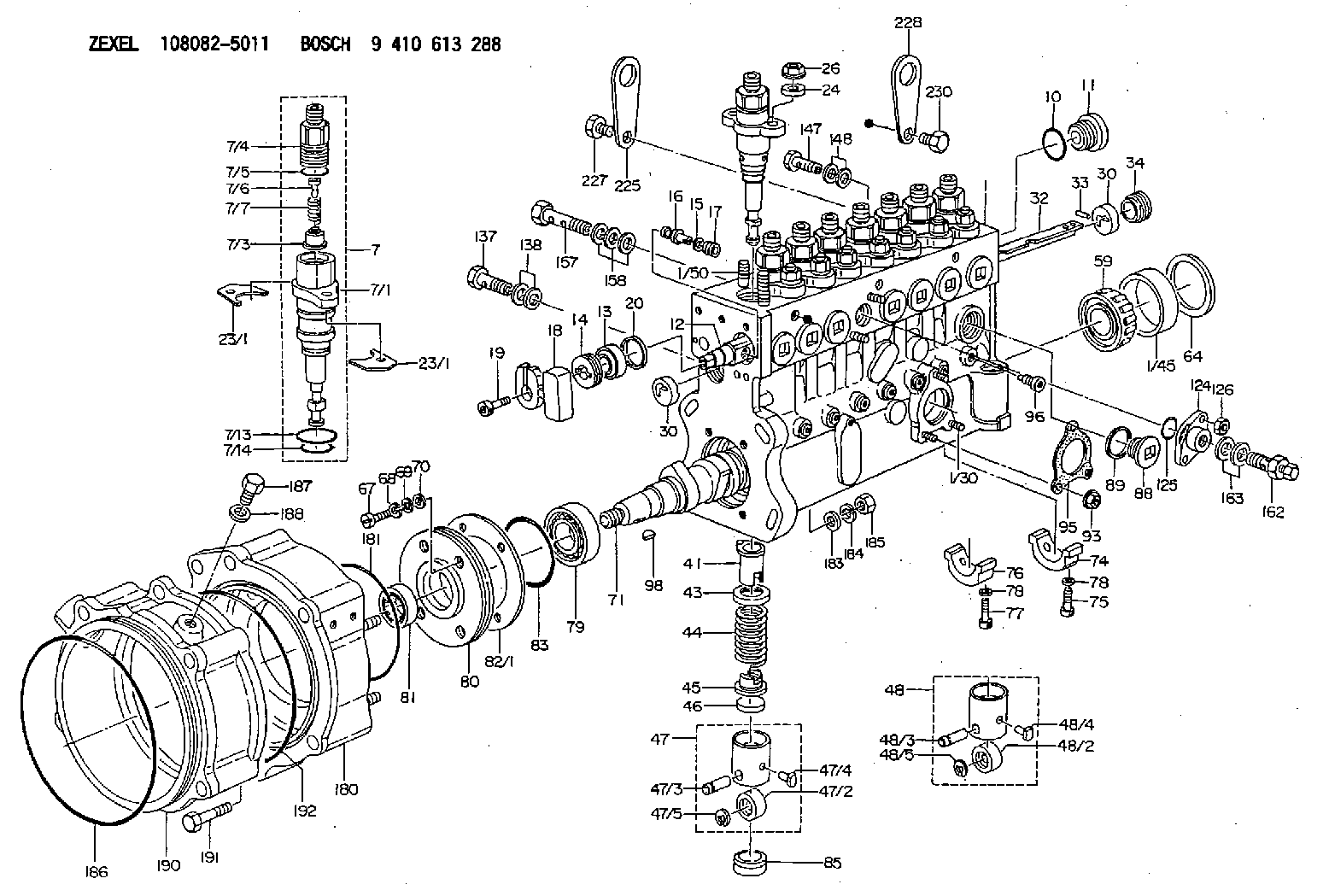

PUMP HOUSING
1. [1] 134083-0120 PUMP HOUSING
1/30. [3] 029040-6020 STUD
1/45. [1] 134311-0000 SPACER RING
1/50. [16] 134138-0200 STUD
7. [8] 134148-7620 PLUNGER-AND-BARREL ASSY
7/1. [1] 134178-4820 PLUNGER-AND-BARREL ASSY
7/3. [1] 134180-1420 VALVE
7/4. [1] 134171-0401 FITTING
7/5. [1] 139718-0300 O-RING
7/6. [1] 134117-2100 FILLER PIECE
7/7. [1] 134112-2900 COILED SPRING
7/13. [1] 139727-0300 O-RING
7/14. [1] 139723-0100 O-RING
10. [1] 139722-0200 O-RING
11. [1] 134227-4200 CAPSULE
12. [1] 134227-2400 CONTROL ROD
13. [1] 134227-4900 BEARING PLATE
14. [1] 134227-0300 BUSHING
15. [8] 014160-6110 CONICAL SPRING WASHER
16. [8] 134227-0400 BEARING PIN
17. [8] 134227-0501 FLAT-HEAD SCREW
18. [1] 134227-3400 CONNECTOR
19. [1] 139005-0300 HEX-SOCKET-HEAD CAP SCREW
20. [1] 139320-0000 PLAIN WASHER
23/1. [0] 139400-0900 SHIM T0.500
23/1. [0] 139400-1000 SHIM T0.525
23/1. [0] 139400-1100 SHIM T0.550
23/1. [0] 139400-1200 SHIM T0.575
23/1. [0] 139400-1300 SHIM T0.600
23/1. [0] 139400-1400 SHIM T0.625
23/1. [0] 139400-1500 SHIM T0.650
23/1. [0] 139400-1600 SHIM T0.675
23/1. [0] 139400-1700 SHIM T0.700
23/1. [0] 139400-1800 SHIM T0.725
23/1. [0] 139400-1900 SHIM T0.750
23/1. [0] 139400-2000 SHIM T0.775
23/1. [0] 139400-2100 SHIM T0.800
23/1. [0] 139400-2200 SHIM T0.825
23/1. [0] 139400-2300 SHIM T0.850
23/1. [0] 139400-2400 SHIM T0.875
23/1. [0] 139400-2500 SHIM T0.900
23/1. [0] 139400-2600 SHIM T0.925
23/1. [0] 139400-2700 SHIM T0.950
23/1. [0] 139400-2800 SHIM T0.975
23/1. [0] 139400-2900 SHIM T1.000
23/1. [0] 139400-3000 SHIM T1.025
23/1. [0] 139400-3100 SHIM T1.050
23/1. [0] 139400-3200 SHIM T1.075
23/1. [0] 139400-3300 SHIM T1.100
23/1. [0] 139400-3400 SHIM T1.125
23/1. [0] 139400-3500 SHIM T1.150
23/1. [0] 139400-3600 SHIM T1.175
23/1. [0] 139400-3700 SHIM T1.200
23/1. [0] 139400-3800 SHIM T1.225
23/1. [0] 139400-3900 SHIM T1.250
23/1. [0] 139400-4000 SHIM T1.275
23/1. [0] 139400-4100 SHIM T1.300
23/1. [0] 139400-4200 SHIM T1.325
23/1. [0] 139400-4300 SHIM T1.350
23/1. [0] 139400-4400 SHIM T1.375
23/1. [0] 139400-4500 SHIM T1.400
23/1. [0] 139400-4600 SHIM T1.425
23/1. [0] 139400-4700 SHIM T1.450
23/1. [0] 139400-4800 SHIM T1.475
23/1. [0] 139400-4900 SHIM T1.500
23/1. [0] 139400-5000 SHIM T1.525
23/1. [0] 139400-5100 SHIM T1.550
23/1. [0] 139400-5200 SHIM T1.575
23/1. [0] 139400-5300 SHIM T1.600
23/1. [0] 139400-5400 SHIM T1.625
23/1. [0] 139400-5500 SHIM T1.650
23/1. [0] 139400-5600 SHIM T1.675
23/1. [0] 139400-5700 SHIM T1.700
23/1. [0] 139400-5800 SHIM T1.725
23/1. [0] 139400-5900 SHIM T1.750
23/1. [0] 139400-6000 SHIM T1.775
23/1. [0] 139400-6100 SHIM T1.800
23/1. [0] 139400-6200 SHIM T1.825
23/1. [0] 139400-6300 SHIM T1.850
23/1. [0] 139400-6400 SHIM T1.875
23/1. [0] 139400-6400 SHIM T1.875
23/1. [0] 139400-6500 SHIM T1.900
23/1. [0] 139400-6600 SHIM T1.925
23/1. [0] 139400-6700 SHIM T1.950
23/1. [0] 139400-6800 SHIM T1.975
24. [16] 134132-0300 PLAIN WASHER D20&11T2.5
26. [16] 139210-0200 UNION NUT
30. [2] 134001-0000 BUSHING
30. [2] 134001-0000 BUSHING
32. [1] 134258-2200 CONTROL RACK
33. [1] 024030-2030 BEARING PIN
34. [1] 134222-0000 BUSHING
41. [8] 134241-0720 CONTROL SLEEVE
43. [8] 134216-0401 SLOTTED WASHER
44. [8] 134215-1600 COMPRESSION SPRING
45. [8] 134217-0800 SLOTTED WASHER
46. [8] 134563-2800 SPRING SEAT
47. [4] 134200-2021 TAPPET
47/2. [1] 134204-0300 ROLLER
47/3. [1] 134203-0200 BEARING PIN
47/4. [1] 131206-0500 SLIDER
47/5. [1] 134208-0100 LOCKING WASHER
48. [4] 134200-2121 TAPPET
48/2. [1] 134204-0300 ROLLER
48/3. [1] 134203-0200 BEARING PIN
48/4. [1] 131206-0500 SLIDER
48/5. [1] 134208-0100 LOCKING WASHER
59. [1] 016650-2230 BEARING PLATE
64. [1] 134303-0500 SHIM D59.8&43T1.6
67. [4] 139006-6700 BLEEDER SCREW
68. [4] 029320-6010 LOCKING WASHER
69. [4] 029300-6170 SHIM D12&6.2T1
70. [4] 029340-6120 GASKET
71. [1] 134387-1000 CAMSHAFT
74. [1] 134306-1500 BEARING SHELL
75. [2] 010206-3040 HEX-SOCKET-HEAD CAP SCREW M6P1L30
76. [2] 134306-1600 BEARING SHELL
77. [4] 010206-3040 HEX-SOCKET-HEAD CAP SCREW M6P1L30
78. [6] 026506-1040 GASKET D9.9&6.2T1
78. [6] 026506-1040 GASKET D9.9&6.2T1
79. [1] 035302-0600 BEARING PLATE
80. [1] 134316-8000 COVER
81. [1] 139630-0100 PACKING RING
82/1. [0] 134314-0700 SHIM T0.1
82/1. [0] 134314-0800 SHIM T0.12
82/1. [0] 134314-0900 SHIM T0.14
82/1. [0] 134314-1000 SHIM T0.16
82/1. [0] 134314-1100 SHIM T0.18
82/1. [0] 134314-1200 SHIM T0.3
82/1. [0] 134314-1300 SHIM T0.5
83. [1] 139766-0000 O-RING
85. [8] 134034-0000 CAPSULE
88. [1] 134045-0100 CAPSULE
89. [1] 026524-2940 GASKET D28.9&24.3T2
93. [3] 139206-0400 UNION NUT
95. [1] 131041-0800 GASKET
96. [8] 134047-0000 CAPSULE
98. [1] 025806-2210 WOODRUFF KEY
124. [1] 134227-1900 CAPSULE
125. [1] 139720-0100 O-RING
126. [2] 139206-0800 UNION NUT
137. [1] 139814-0000 EYE BOLT
138. [2] 139514-0000 GASKET D19.2&14.2T1.0
147. [1] 139810-0000 EYE BOLT
148. [2] 139510-0000 GASKET D15.2&10.2T1.0
157. [1] 134430-4020 EYE BOLT
158. [3] 139514-0000 GASKET D19.2&14.2T1.0
162. [1] 134424-4320 OVER FLOW VALVE
163. [2] 139514-0000 GASKET D19.2&14.2T1.0
180. [1] 134459-1520 BRACKET
181. [1] 016510-9510 O-RING
183. [4] 014011-0140 PLAIN WASHER D22&10.5T1.6
184. [4] 014111-0440 LOCKING WASHER
185. [4] 013021-0040 UNION NUT M10P1.5H8
186. [1] 139799-0500 O-RING
187. [1] 134045-0200 CAPSULE
188. [1] 139524-0000 GASKET
190. [1] 134459-1600 BRACKET
191. [3] 029001-0730 BLEEDER SCREW M10P1.5L30
192. [1] 139799-0900 O-RING
225. [1] 131439-0600 HANGER
227. [1] 156633-9100 BLEEDER SCREW
228. [1] 131439-0600 HANGER
230. [1] 156633-9100 BLEEDER SCREW

Include in #1:

108822-1013 as FUEL INJECTION PUMP
108822-1014
108822-1015

Cross reference number

Zexel num
Bosch num
Firm num
Name
108082-5011
108082-5012
9 410 613 288

FUEL-INJECTION PUMP
* Q
