107069-1140 ZEXEL 9 410 614 008 BOSCH FUEL-INJECTION PUMP 9410614008 1070691140 1670195105

Information fuel-injection pump

BOSCH 9 410 614 008 9410614008

ZEXEL 107069-1140 1070691140

NISSAN-DIESEL 1670195105 1670195105

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 107069-1140 zexel genuine, new aftermarket engine parts with delivery

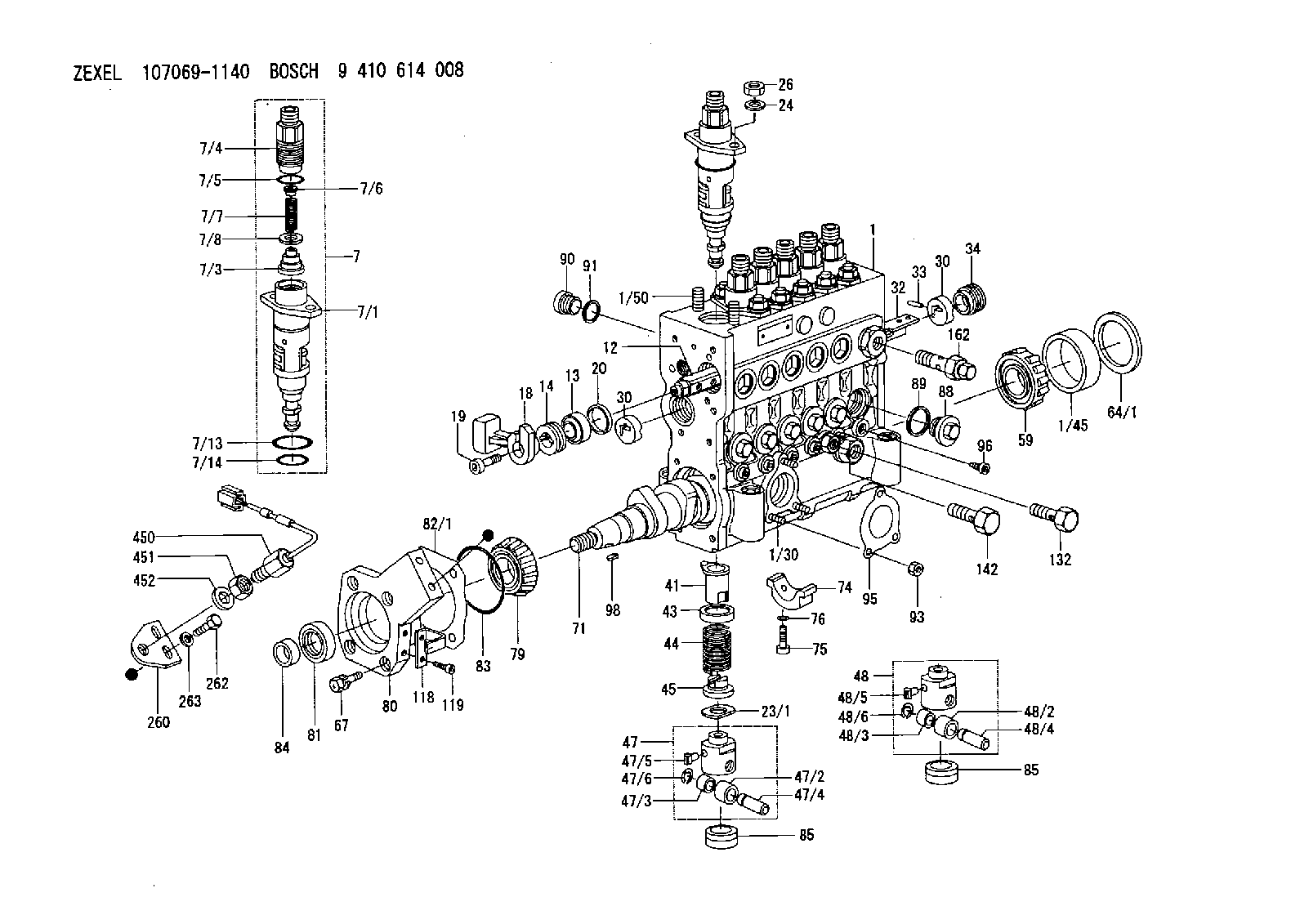

Scheme ###:

1.	[1]	135000-0820	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[12]	135024-0000	STUD
7.	[6]	135130-0220	PLUNGER-AND-BARREL ASSY
7/1.	[6]	135176-0320	PLUNGER-AND-BARREL ASSY M4
7/3.	[6]	135182-0020	VALVE MM2
7/4.	[6]	135116-0000	FITTING
7/5.	[6]	029632-0030	O-RING
7/6.	[6]	134117-2000	FILLER PIECE
7/7.	[6]	134112-2800	COILED SPRING
7/8.	[6]	135115-0000	GASKET
7/13.	[6]	135134-0000	O-RING
7/14.	[6]	135134-0200	O-RING
12.	[1]	135227-0020	CONTROL ROD
13.	[1]	134227-1400	BEARING PLATE
14.	[1]	134227-0300	BUSHING
18.	[1]	135227-1000	CONNECTOR
19.	[1]	139005-0300	HEX-SOCKET-HEAD CAP SCREW
20.	[1]	139320-0000	PLAIN WASHER
23/1.	[0]	139415-0000	SHIM D19&10T0.500
23/1.	[0]	139415-0100	SHIM D19&10T0.525
23/1.	[0]	139415-0200	SHIM D19&10T0.550
23/1.	[0]	139415-0300	SHIM D19&10T0.575
23/1.	[0]	139415-0400	SHIM D19&10T0.600
23/1.	[0]	139415-0500	SHIM D19&10T0.625
23/1.	[0]	139415-0600	SHIM D19&10T0.650
23/1.	[0]	139415-0700	SHIM D19&10T0.675
23/1.	[0]	139415-0800	SHIM D19&10T0.700
23/1.	[0]	139415-0900	SHIM D19&10T0.725
23/1.	[0]	139415-1000	SHIM D19&10T0.750
23/1.	[0]	139415-1100	SHIM D19&10T0.775
23/1.	[0]	139415-1200	SHIM D19&10T0.800
23/1.	[0]	139415-1300	SHIM D19&10T0.825
23/1.	[0]	139415-1400	SHIM D19&10T0.850
23/1.	[0]	139415-1500	SHIM D19&10T0.875
23/1.	[0]	139415-1600	SHIM D19&10T0.900
23/1.	[0]	139415-1700	SHIM D19&10T0.925
23/1.	[0]	139415-1800	SHIM D19&10T0.950
23/1.	[0]	139415-1900	SHIM D19&10T0.975
23/1.	[0]	139415-2000	SHIM D19&10T1.000
23/1.	[0]	139415-2100	SHIM D19&10T1.025
23/1.	[0]	139415-2200	SHIM D19&10T1.050
23/1.	[0]	139415-2300	SHIM D19&10T1.075
23/1.	[0]	139415-2400	SHIM D19&10T1.100
23/1.	[0]	139415-2500	SHIM D19&10T1.125
23/1.	[0]	139415-2600	SHIM D19&10T1.150
23/1.	[0]	139415-2700	SHIM D19&10T1.175
23/1.	[0]	139415-2800	SHIM D19&10T1.200
23/1.	[0]	139415-2900	SHIM D19&10T1.225
23/1.	[0]	139415-3000	SHIM D19&10T1.250
23/1.	[0]	139415-3100	SHIM D19&10T1.275
23/1.	[0]	139415-3200	SHIM D19&10T1.300
23/1.	[0]	139415-3300	SHIM D19&10T1.325
23/1.	[0]	139415-3400	SHIM D19&10T1.350
23/1.	[0]	139415-3500	SHIM D19&10T1.375
23/1.	[0]	139415-3600	SHIM D19&10T1.400
23/1.	[0]	139415-3700	SHIM D19&10T1.425
23/1.	[0]	139415-3800	SHIM D19&10T1.450
23/1.	[0]	139415-3900	SHIM D19&10T1.475
23/1.	[0]	139415-4000	SHIM D19&10T1.500
23/1.	[0]	139415-4100	SHIM D19&10T1.525
23/1.	[0]	139415-4200	SHIM D19&10T1.550
23/1.	[0]	139415-4300	SHIM D19&10T1.575
23/1.	[0]	139415-4400	SHIM D19&10T1.600
23/1.	[0]	139415-4500	SHIM D19&10T1.625
23/1.	[0]	139415-4600	SHIM D19&10T1.650
23/1.	[0]	139415-4700	SHIM D19&10T1.675
23/1.	[0]	139415-4800	SHIM D19&10T1.700
23/1.	[0]	139415-4900	SHIM D19&10T1.725
23/1.	[0]	139415-5000	SHIM D19&10T1.750
23/1.	[0]	139415-5100	SHIM D19&10T1.775
23/1.	[0]	139415-5200	SHIM D19&10T1.800
23/1.	[0]	139415-5300	SHIM D19&10T1.825
23/1.	[0]	139415-5400	SHIM D19&10T1.850
23/1.	[0]	139415-5500	SHIM D19&10T1.875
23/1.	[0]	139415-5600	SHIM D19&10T1.900
23/1.	[0]	139415-5700	SHIM D19&10T1.925
23/1.	[0]	139415-5800	SHIM D19&10T1.950
23/1.	[0]	139415-5900	SHIM D19&10T1.975
24.	[12]	134132-0300	PLAIN WASHER
26.	[12]	139210-0200	UNION NUT
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	135256-0121	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[6]	135241-0020	CONTROL SLEEVE
43.	[6]	135216-0000	SLOTTED WASHER
44.	[6]	135215-0000	COMPRESSION SPRING
45.	[6]	135217-0000	SLOTTED WASHER
47.	[4]	135200-0120	TAPPET
47/2.	[4]	135204-0000	ROLLER
47/3.	[4]	135205-0000	BUSHING
47/4.	[4]	135203-0000	BEARING PIN
47/5.	[4]	135206-0000	SLIDER
47/6.	[4]	135208-0000	LOCKING WASHER
48.	[2]	135200-0020	TAPPET
48/2.	[2]	135204-0000	ROLLER
48/3.	[2]	135205-0000	BUSHING
48/4.	[2]	135203-0000	BEARING PIN
48/5.	[2]	135206-0000	SLIDER
48/6.	[2]	135208-0000	LOCKING WASHER
59.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
67.	[4]	139006-4100	BLEEDER SCREW
71.	[1]	135360-0000	CAMSHAFT
74.	[3]	135306-0000	BEARING SHELL
75.	[6]	010206-2540	HEX-SOCKET-HEAD CAP SCREW
76.	[6]	026506-1040	GASKET
79.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
80.	[1]	135316-0100	COVER
81.	[1]	139625-0100	PACKING RING
82/1.	[0]	135314-0000	SHIM T0.10
82/1.	[0]	135314-0100	SHIM T0.12
82/1.	[0]	135314-0200	SHIM T0.14
82/1.	[0]	135314-0300	SHIM T0.16
82/1.	[0]	135314-0400	SHIM T0.18
82/1.	[0]	135314-0500	SHIM T0.3
82/1.	[0]	135314-0600	SHIM T0.5
83.	[1]	029635-5050	O-RING
84.	[1]	134563-0900	SLIDING PIECE
85.	[6]	135034-0000	CAPSULE
85.	[6]	135034-0000	CAPSULE
88.	[6]	135045-0000	CAPSULE
89.	[6]	026522-2740	GASKET
90.	[7]	135045-0100	CAPSULE
91.	[7]	026514-1840	GASKET
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[6]	134047-0000	CAPSULE
98.	[1]	025805-1910	WOODRUFF KEY
118.	[1]	135496-0000	POINTER
119.	[2]	010206-1240	HEX-SOCKET-HEAD CAP SCREW
132.	[1]	135430-0000	EYE BOLT
142.	[1]	139810-1400	EYE BOLT
162.	[1]	134424-4120	OVER FLOW VALVE
260.	[1]	156913-9400	PLATE
262.	[2]	020118-1440	BLEEDER SCREW
263.	[2]	014020-8140	PLAIN WASHER
450.	[1]	479748-6800	PULSE GENERATOR
451.	[1]	029201-6150	UNION NUT
452.	[1]	139316-0000	PLAIN WASHER

Include in #1:

107692-0480 as FUEL INJECTION PUMP

107692-0520

107692-0530

107692-0550

Cross reference number

Zexel num

Bosch num

Firm num

Name

107069-1140

9 410 614 008
NP-TC6MD110/32ARS1

1670195105 NISSAN-DIESEL

FUEL-INJECTION PUMP
