107069-1090 ZEXEL 9 410 614 007 BOSCH FUEL-INJECTION PUMP 9410614007 1070691090 1670195104

Information fuel-injection pump

BOSCH 9 410 614 007 9410614007

ZEXEL 107069-1090 1070691090

NISSAN-DIESEL 1670195104 1670195104

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 107069-1090 zexel genuine, new aftermarket engine parts with delivery

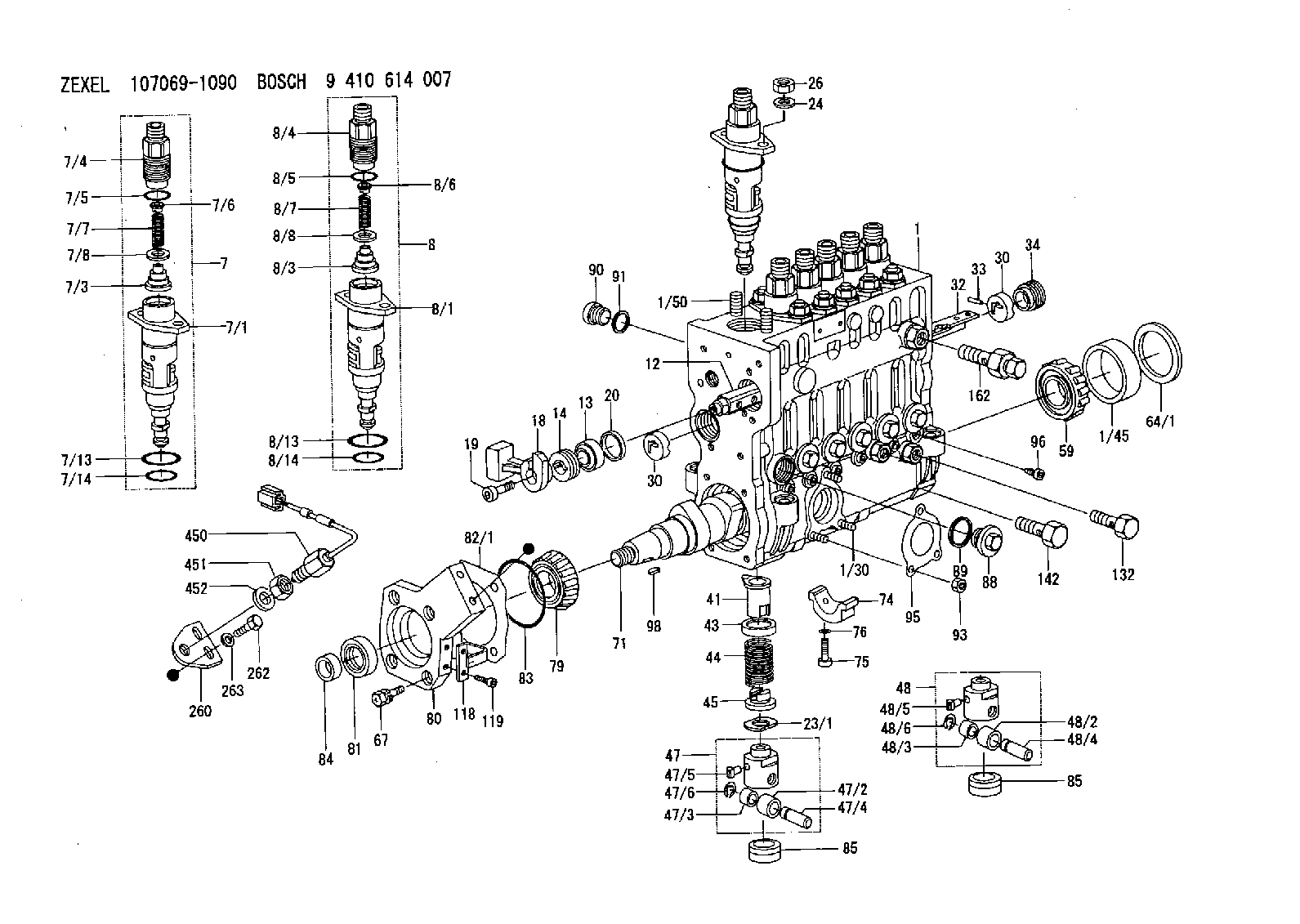

Scheme ###:

1.	[1]	135000-0320	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[12]	135024-0000	STUD
7.	[5]	135130-0220	PLUNGER-AND-BARREL ASSY
7/1.	[5]	135176-0320	PLUNGER-AND-BARREL ASSY M4
7/3.	[5]	135182-0020	VALVE MM2
7/4.	[5]	135116-0000	FITTING
7/5.	[5]	029632-0030	O-RING
7/6.	[5]	134117-2000	FILLER PIECE
7/7.	[5]	134112-2800	COILED SPRING
7/8.	[5]	135115-0000	GASKET
7/13.	[5]	135134-0000	O-RING
7/14.	[5]	135134-0200	O-RING
8.	[1]	135130-0620	PLUNGER-AND-BARREL ASSY
8/1.	[1]	135176-0520	PLUNGER-AND-BARREL ASSY M6
8/3.	[1]	135182-0020	VALVE MM2
8/4.	[1]	135116-0000	FITTING
8/5.	[1]	029632-0030	O-RING
8/6.	[1]	134117-2000	FILLER PIECE
8/7.	[1]	134112-2800	COILED SPRING
8/8.	[1]	135115-0000	GASKET
8/13.	[1]	135134-0000	O-RING
8/14.	[1]	135134-0200	O-RING
12.	[1]	135227-0020	CONTROL ROD
13.	[1]	134227-1400	BEARING PLATE
14.	[1]	134227-0300	BUSHING
18.	[1]	135227-1000	CONNECTOR
19.	[1]	139005-0300	HEX-SOCKET-HEAD CAP SCREW
20.	[1]	139320-0000	PLAIN WASHER
23/1.	[0]	139415-0000	SHIM D19&10T0.500
23/1.	[0]	139415-0100	SHIM D19&10T0.525
23/1.	[0]	139415-0200	SHIM D19&10T0.550
23/1.	[0]	139415-0300	SHIM D19&10T0.575
23/1.	[0]	139415-0400	SHIM D19&10T0.600
23/1.	[0]	139415-0500	SHIM D19&10T0.625
23/1.	[0]	139415-0600	SHIM D19&10T0.650
23/1.	[0]	139415-0700	SHIM D19&10T0.675
23/1.	[0]	139415-0800	SHIM D19&10T0.700
23/1.	[0]	139415-0900	SHIM D19&10T0.725
23/1.	[0]	139415-1000	SHIM D19&10T0.750
23/1.	[0]	139415-1100	SHIM D19&10T0.775
23/1.	[0]	139415-1200	SHIM D19&10T0.800
23/1.	[0]	139415-1300	SHIM D19&10T0.825
23/1.	[0]	139415-1400	SHIM D19&10T0.850
23/1.	[0]	139415-1500	SHIM D19&10T0.875
23/1.	[0]	139415-1600	SHIM D19&10T0.900
23/1.	[0]	139415-1700	SHIM D19&10T0.925
23/1.	[0]	139415-1800	SHIM D19&10T0.950
23/1.	[0]	139415-1900	SHIM D19&10T0.975
23/1.	[0]	139415-2000	SHIM D19&10T1.000
23/1.	[0]	139415-2100	SHIM D19&10T1.025
23/1.	[0]	139415-2200	SHIM D19&10T1.050
23/1.	[0]	139415-2300	SHIM D19&10T1.075
23/1.	[0]	139415-2400	SHIM D19&10T1.100
23/1.	[0]	139415-2500	SHIM D19&10T1.125
23/1.	[0]	139415-2600	SHIM D19&10T1.150
23/1.	[0]	139415-2700	SHIM D19&10T1.175
23/1.	[0]	139415-2800	SHIM D19&10T1.200
23/1.	[0]	139415-2900	SHIM D19&10T1.225
23/1.	[0]	139415-3000	SHIM D19&10T1.250
23/1.	[0]	139415-3100	SHIM D19&10T1.275
23/1.	[0]	139415-3200	SHIM D19&10T1.300
23/1.	[0]	139415-3300	SHIM D19&10T1.325
23/1.	[0]	139415-3400	SHIM D19&10T1.350
23/1.	[0]	139415-3500	SHIM D19&10T1.375
23/1.	[0]	139415-3600	SHIM D19&10T1.400
23/1.	[0]	139415-3700	SHIM D19&10T1.425
23/1.	[0]	139415-3800	SHIM D19&10T1.450
23/1.	[0]	139415-3900	SHIM D19&10T1.475
23/1.	[0]	139415-4000	SHIM D19&10T1.500
23/1.	[0]	139415-4100	SHIM D19&10T1.525
23/1.	[0]	139415-4200	SHIM D19&10T1.550
23/1.	[0]	139415-4300	SHIM D19&10T1.575
23/1.	[0]	139415-4400	SHIM D19&10T1.600
23/1.	[0]	139415-4500	SHIM D19&10T1.625
23/1.	[0]	139415-4600	SHIM D19&10T1.650
23/1.	[0]	139415-4700	SHIM D19&10T1.675
23/1.	[0]	139415-4800	SHIM D19&10T1.700
23/1.	[0]	139415-4900	SHIM D19&10T1.725
23/1.	[0]	139415-5000	SHIM D19&10T1.750
23/1.	[0]	139415-5100	SHIM D19&10T1.775
23/1.	[0]	139415-5200	SHIM D19&10T1.800
23/1.	[0]	139415-5300	SHIM D19&10T1.825
23/1.	[0]	139415-5400	SHIM D19&10T1.850
23/1.	[0]	139415-5500	SHIM D19&10T1.875
23/1.	[0]	139415-5600	SHIM D19&10T1.900
23/1.	[0]	139415-5700	SHIM D19&10T1.925
23/1.	[0]	139415-5800	SHIM D19&10T1.950
23/1.	[0]	139415-5900	SHIM D19&10T1.975
24.	[12]	134132-0300	PLAIN WASHER
26.	[12]	139210-0200	UNION NUT
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	135256-0121	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[6]	135241-0020	CONTROL SLEEVE
43.	[6]	135216-0000	SLOTTED WASHER
44.	[6]	135215-0000	COMPRESSION SPRING
45.	[6]	135217-0000	SLOTTED WASHER
47.	[4]	135200-0120	TAPPET
47/2.	[4]	135204-0000	ROLLER
47/3.	[4]	135205-0000	BUSHING
47/4.	[4]	135203-0000	BEARING PIN
47/5.	[4]	135206-0000	SLIDER
47/6.	[4]	135208-0000	LOCKING WASHER
48.	[2]	135200-0020	TAPPET
48/2.	[2]	135204-0000	ROLLER
48/3.	[2]	135205-0000	BUSHING
48/4.	[2]	135203-0000	BEARING PIN
48/5.	[2]	135206-0000	SLIDER
48/6.	[2]	135208-0000	LOCKING WASHER
59.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
67.	[4]	139006-4100	BLEEDER SCREW
71.	[1]	135360-0000	CAMSHAFT
74.	[3]	135306-0000	BEARING SHELL
75.	[6]	010206-2540	HEX-SOCKET-HEAD CAP SCREW
76.	[6]	026506-1040	GASKET
79.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
80.	[1]	135316-0100	COVER
81.	[1]	139625-0100	PACKING RING
82/1.	[0]	135314-0000	SHIM T0.10
82/1.	[0]	135314-0100	SHIM T0.12
82/1.	[0]	135314-0200	SHIM T0.14
82/1.	[0]	135314-0300	SHIM T0.16
82/1.	[0]	135314-0400	SHIM T0.18
82/1.	[0]	135314-0500	SHIM T0.3
82/1.	[0]	135314-0600	SHIM T0.5
83.	[1]	029635-5050	O-RING
84.	[1]	134563-0900	SLIDING PIECE
85.	[6]	135034-0000	CAPSULE
85.	[6]	135034-0000	CAPSULE
88.	[6]	135045-0000	CAPSULE
89.	[6]	026522-2740	GASKET
90.	[7]	135045-0100	CAPSULE
91.	[7]	026514-1840	GASKET
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[6]	134047-0000	CAPSULE
98.	[1]	025805-1910	WOODRUFF KEY
118.	[1]	135496-0000	POINTER
119.	[2]	010206-1240	HEX-SOCKET-HEAD CAP SCREW
132.	[1]	135430-0000	EYE BOLT
142.	[1]	139810-1400	EYE BOLT
162.	[1]	134424-4120	OVER FLOW VALVE
260.	[1]	156913-9400	PLATE
262.	[2]	020118-1440	BLEEDER SCREW
263.	[2]	014020-8140	PLAIN WASHER
450.	[1]	479748-6800	PULSE GENERATOR
451.	[1]	029201-6150	UNION NUT
452.	[1]	139316-0000	PLAIN WASHER

Include in #1:

107692-0320 as FUEL INJECTION PUMP

107692-0360

107692-0370

107692-0390

Cross reference number

Zexel num

Bosch num

Firm num

Name

107069-1090

9 410 614 007
NP-TC6MD110/320RS

1670195104 NISSAN-DIESEL

FUEL-INJECTION PUMP
* Q

Information:

TERMINATION DATE
30Sep2014
PROBLEM
The existing fuel injector has a 150 degree spray pattern. During the combustion stroke (process), the current end of injection timing maps can allow the 150 degree spray pattern to temporarily impinge upon the exposed wall of the cylinder liner as the piston moves downward in the bore.
Depending on engine speed and load factors, the fuel making contact with the liner can dilute the oil film or cause excessive soot. The excessive soot can build up to form carbon deposits at the piston lands and grooves, resulting in uneven top ring and groove wear, which may cause ring breakage. This situation is aggravated by contamination within the air and lubrication systems.
AFFECTED PRODUCT
Model Identification Number
793D FDB01439, 1442-1443, 1450-1451, 1561-1562, 1566-1567, 1576, 1620-1622, 1627, 1629
PARTS NEEDED
Qty
Part Number Description
16 4237547 INJECTOR GP-FUEL
1 4264383 SOFTWARE GP-ELEK
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 32% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Refer to the service manual if/as necessary.
Install a full set of sixteen 145 degree fuel injectors along with
the software.
NOTE 1: Do not mix the 145 degree fuel injectors with the former 150 degree fuel injectors in the same engine.
NOTE 2: Do not install the software that is listed in the Parts Needed unless all sixteen fuel injectors have been replaced by the 145 degree spray pattern fuel injectors that is listed in the Parts Needed.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-20000 hrs,
0-72 mo 100.0% 50.0% 0.0% 0.0% 0.0% 50.0%
This is a 8.0-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
