107069-1071 ZEXEL 9 410 614 111 BOSCH FUEL-INJECTION PUMP 9410614111 1070691071 me731616

Information fuel-injection pump

BOSCH 9 410 614 111 9410614111

ZEXEL 107069-1071 1070691071

MITSUBISHI ME731616 me731616

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 107069-1071 zexel genuine, new aftermarket engine parts with delivery

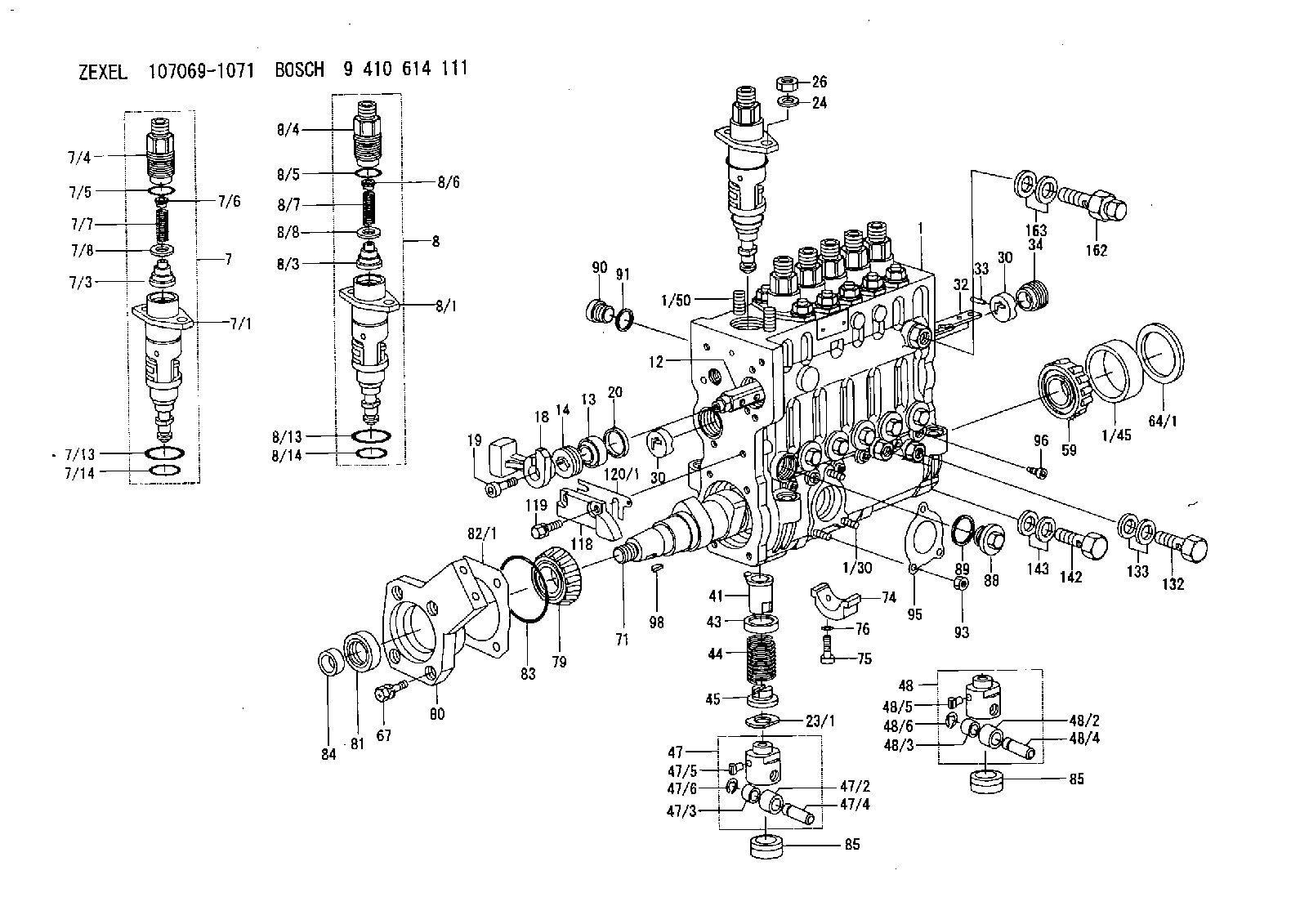

Scheme ###:

1.	[1]	135000-0420	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[12]	135024-0000	STUD
7.	[5]	135130-0120	PLUNGER-AND-BARREL ASSY
7/1.	[5]	135176-0320	PLUNGER-AND-BARREL ASSY M4
7/3.	[5]	135182-0020	VALVE MM2
7/4.	[5]	135116-0000	FITTING
7/5.	[5]	029632-0030	O-RING
7/6.	[5]	134117-2000	FILLER PIECE
7/7.	[5]	134112-2900	COILED SPRING
7/8.	[5]	135115-0000	GASKET
7/13.	[5]	135134-0000	O-RING
7/14.	[5]	135134-0200	O-RING
8.	[1]	135130-0520	PLUNGER-AND-BARREL ASSY
8/1.	[1]	135176-0520	PLUNGER-AND-BARREL ASSY M6
8/3.	[1]	135182-0020	VALVE MM2
8/4.	[1]	135116-0000	FITTING
8/5.	[1]	029632-0030	O-RING
8/6.	[1]	134117-2000	FILLER PIECE
8/7.	[1]	134112-2900	COILED SPRING
8/8.	[1]	135115-0000	GASKET
8/13.	[1]	135134-0000	O-RING
8/14.	[1]	135134-0200	O-RING
12.	[1]	135227-0020	CONTROL ROD
13.	[1]	134227-1400	BEARING PLATE
14.	[1]	134227-0300	BUSHING
18.	[1]	135227-1000	CONNECTOR
19.	[1]	139005-0300	HEX-SOCKET-HEAD CAP SCREW
20.	[1]	139320-0000	PLAIN WASHER
23/1.	[0]	139415-0000	SHIM D19&10T0.500
23/1.	[0]	139415-0100	SHIM D19&10T0.525
23/1.	[0]	139415-0200	SHIM D19&10T0.550
23/1.	[0]	139415-0300	SHIM D19&10T0.575
23/1.	[0]	139415-0400	SHIM D19&10T0.600
23/1.	[0]	139415-0500	SHIM D19&10T0.625
23/1.	[0]	139415-0600	SHIM D19&10T0.650
23/1.	[0]	139415-0700	SHIM D19&10T0.675
23/1.	[0]	139415-0800	SHIM D19&10T0.700
23/1.	[0]	139415-0900	SHIM D19&10T0.725
23/1.	[0]	139415-1000	SHIM D19&10T0.750
23/1.	[0]	139415-1100	SHIM D19&10T0.775
23/1.	[0]	139415-1200	SHIM D19&10T0.800
23/1.	[0]	139415-1300	SHIM D19&10T0.825
23/1.	[0]	139415-1400	SHIM D19&10T0.850
23/1.	[0]	139415-1500	SHIM D19&10T0.875
23/1.	[0]	139415-1600	SHIM D19&10T0.900
23/1.	[0]	139415-1700	SHIM D19&10T0.925
23/1.	[0]	139415-1800	SHIM D19&10T0.950
23/1.	[0]	139415-1900	SHIM D19&10T0.975
23/1.	[0]	139415-2000	SHIM D19&10T1.000
23/1.	[0]	139415-2100	SHIM D19&10T1.025
23/1.	[0]	139415-2200	SHIM D19&10T1.050
23/1.	[0]	139415-2300	SHIM D19&10T1.075
23/1.	[0]	139415-2400	SHIM D19&10T1.100
23/1.	[0]	139415-2500	SHIM D19&10T1.125
23/1.	[0]	139415-2600	SHIM D19&10T1.150
23/1.	[0]	139415-2700	SHIM D19&10T1.175
23/1.	[0]	139415-2800	SHIM D19&10T1.200
23/1.	[0]	139415-2900	SHIM D19&10T1.225
23/1.	[0]	139415-3000	SHIM D19&10T1.250
23/1.	[0]	139415-3100	SHIM D19&10T1.275
23/1.	[0]	139415-3200	SHIM D19&10T1.300
23/1.	[0]	139415-3300	SHIM D19&10T1.325
23/1.	[0]	139415-3400	SHIM D19&10T1.350
23/1.	[0]	139415-3500	SHIM D19&10T1.375
23/1.	[0]	139415-3600	SHIM D19&10T1.400
23/1.	[0]	139415-3700	SHIM D19&10T1.425
23/1.	[0]	139415-3800	SHIM D19&10T1.450
23/1.	[0]	139415-3900	SHIM D19&10T1.475
23/1.	[0]	139415-4000	SHIM D19&10T1.500
23/1.	[0]	139415-4100	SHIM D19&10T1.525
23/1.	[0]	139415-4200	SHIM D19&10T1.550
23/1.	[0]	139415-4300	SHIM D19&10T1.575
23/1.	[0]	139415-4400	SHIM D19&10T1.600
23/1.	[0]	139415-4500	SHIM D19&10T1.625
23/1.	[0]	139415-4600	SHIM D19&10T1.650
23/1.	[0]	139415-4700	SHIM D19&10T1.675
23/1.	[0]	139415-4800	SHIM D19&10T1.700
23/1.	[0]	139415-4900	SHIM D19&10T1.725
23/1.	[0]	139415-5000	SHIM D19&10T1.750
23/1.	[0]	139415-5100	SHIM D19&10T1.775
23/1.	[0]	139415-5200	SHIM D19&10T1.800
23/1.	[0]	139415-5300	SHIM D19&10T1.825
23/1.	[0]	139415-5400	SHIM D19&10T1.850
23/1.	[0]	139415-5500	SHIM D19&10T1.875
23/1.	[0]	139415-5600	SHIM D19&10T1.900
23/1.	[0]	139415-5700	SHIM D19&10T1.925
23/1.	[0]	139415-5800	SHIM D19&10T1.950
23/1.	[0]	139415-5900	SHIM D19&10T1.975
24.	[12]	134132-0300	PLAIN WASHER
26.	[12]	139210-0200	UNION NUT
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	135256-0121	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[6]	135241-0020	CONTROL SLEEVE
43.	[6]	135216-0000	SLOTTED WASHER
44.	[6]	135215-0000	COMPRESSION SPRING
45.	[6]	135217-0000	SLOTTED WASHER
47.	[4]	135200-0120	TAPPET
47/2.	[4]	135204-0000	ROLLER
47/3.	[4]	135205-0000	BUSHING
47/4.	[4]	135203-0000	BEARING PIN
47/5.	[4]	135206-0000	SLIDER
47/6.	[4]	135208-0000	LOCKING WASHER
48.	[2]	135200-0020	TAPPET
48/2.	[2]	135204-0000	ROLLER
48/3.	[2]	135205-0000	BUSHING
48/4.	[2]	135203-0000	BEARING PIN
48/5.	[2]	135206-0000	SLIDER
48/6.	[2]	135208-0000	LOCKING WASHER
59.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
67.	[4]	139006-5800	BLEEDER SCREW
71.	[1]	135360-0100	CAMSHAFT
74.	[3]	135306-0000	BEARING SHELL
75.	[6]	010206-2540	HEX-SOCKET-HEAD CAP SCREW
76.	[6]	026506-1040	GASKET
79.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
80.	[1]	135316-0400	COVER
81.	[1]	139625-0000	PACKING RING
82/1.	[0]	135314-0000	SHIM T0.10
82/1.	[0]	135314-0100	SHIM T0.12
82/1.	[0]	135314-0200	SHIM T0.14
82/1.	[0]	135314-0300	SHIM T0.16
82/1.	[0]	135314-0400	SHIM T0.18
82/1.	[0]	135314-0500	SHIM T0.3
82/1.	[0]	135314-0600	SHIM T0.5
83.	[1]	029635-5010	O-RING
84.	[1]	134563-0900	SLIDING PIECE
85.	[6]	135034-0000	CAPSULE
85.	[6]	135034-0000	CAPSULE
88.	[6]	135045-0000	CAPSULE
89.	[6]	026522-2740	GASKET
90.	[7]	135045-0100	CAPSULE
91.	[7]	026514-1840	GASKET
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[6]	134047-0000	CAPSULE
98.	[1]	025805-1910	WOODRUFF KEY
118.	[1]	135496-0101	POINTER
119.	[2]	020006-1440	BLEEDER SCREW
120/1.	[0]	139400-0500	SHIM T0.20
120/1.	[0]	139400-0600	SHIM T0.30
120/1.	[0]	139400-0700	SHIM T0.50
120/1.	[0]	139400-0800	SHIM T1.00
132.	[1]	135430-0000	EYE BOLT
133.	[2]	026514-1840	GASKET
142.	[1]	029731-0180	EYE BOLT
143.	[2]	026510-1340	GASKET
162.	[1]	131424-8420	OVER FLOW VALVE
163.	[2]	029341-4130	GASKET

Include in #1:

107691-2003 as FUEL INJECTION PUMP

107691-2013

Cross reference number

Zexel num

Bosch num

Firm num

Name

107069-1071

9 410 614 111
NP-TC6MD110/321RS

ME731616 MITSUBISHI

FUEL-INJECTION PUMP
* Q

Information:

(1) Remove former fuel injection lines (1), the clamps and through-the-cover fuel line adapters (2) from the engine; these parts will not be needed again. Install 8M4437 Seals on twelve 1W6777 Adapters (3). Put engine oil on the seals and install the adapters in valve cover base assemblies (4) where adapters (2) were removed. Fasten the adapters to bases (4) with two 5N5365 Locks on each and the former nuts. Connect former fuel lines (5) to adapters (3) and the former fuel nozzle adapters. (2) Install a 2W2500 Washer (7) and a 6V6579 Seal (8) on each adapter (3). Install a 5P9267 Seal on each injector pump; put diesel fuel on the seals before installation. Loosely install fuel injection line assemblies: number "6" (9), number "12" (10), number "4" (11), number "2" (12), number "10" (13) and number "8" (14) on the right side of the engine between the fuel injection pumps and adapters (3). See the above chart for the correct part number of the fuel lines. Remove two bolts and install 5N5370 Bracket (15) and 5N5374 Clamp (16) where the bolts were removed. Fasten the fuel injection lines to bracket (15) with two 5N5369 Dampers, a 5N5371 Clamp and two 2W7884 Bolt Assemblies. Fasten the fuel injection lines to clamp (16) with two 5N5373 Dampers, a 5N5372 Clamp and two 2W7884 Bolts. Use 5N5957 and 5N5958 Clamps, two 5N5956 Dampers and a 2W7884 Bolt Assembly to fasten the fuel lines together at (A). Use 5N5376 and 5N5377 Clamps, two 5N5375 Dampers and three 2W7884 Bolt Assemblies to fasten the fuel lines together at (B). Tighten the bolt assemblies to 10 N m (7 lb.ft.) torque. Tighten nuts (17) on each end of the fuel injection lines to 40 7 N m (35 5 lb.ft.) torque, then tighten nuts (18).(3) Loosely install fuel injection line assemblies; number "11" (19), number "3" (20), number "7" (21), number "9" (22), number "5" (23) and number "1" (24) on the left side of the engine between adapters (3) and the fuel injection pump as shown. Remove a bolt and install 5N5370 Bracket (25) where the bolt was removed. Fasten the fuel lines to bracket (25) with two 5N5369 Dampers, a 5N5371 Clamp and two 2W7884 Bolts. On engines equipped with aftercooler, fasten 5N5379 Plate (26) to an existing bolt on the aftercooler. Fasten the fuel injection lines to plate (26) with two 5N5378 Dampers, a 5N5374 Clamp and two 2W7884 Bolt Assemblies. Use two 5N5376 and 5N5377 Clamps, four 5N5375 Dampers and four 2W7884 Bolt Assemblies to fasten the fuel lines together at locations (C). If the engine does not have an aftercooler, use 5N5957 and 5N5958 Clamps, two 5N5956 Dampers and a 2W7884 Bolt Assembly to fasten the fuel injection lines together at (D). Tighten the fuel lines as shown in step 2.2W5100 Fuel Lines Drain Group
(1) Install a 9L8496 Tee (1) in each adapter (2). Connect tees (1) together with ten 5N5940 Tube Assemblies (3).
