106097-5500 ZEXEL 9 410 614 455 BOSCH FUEL-INJECTION PUMP 9410614455 1060975500 1671197118

Information fuel-injection pump

BOSCH 9 410 614 455 9410614455

ZEXEL 106097-5500 1060975500

NISSAN-DIESEL 1671197118 1671197118

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106097-5500 zexel genuine, new aftermarket engine parts with delivery

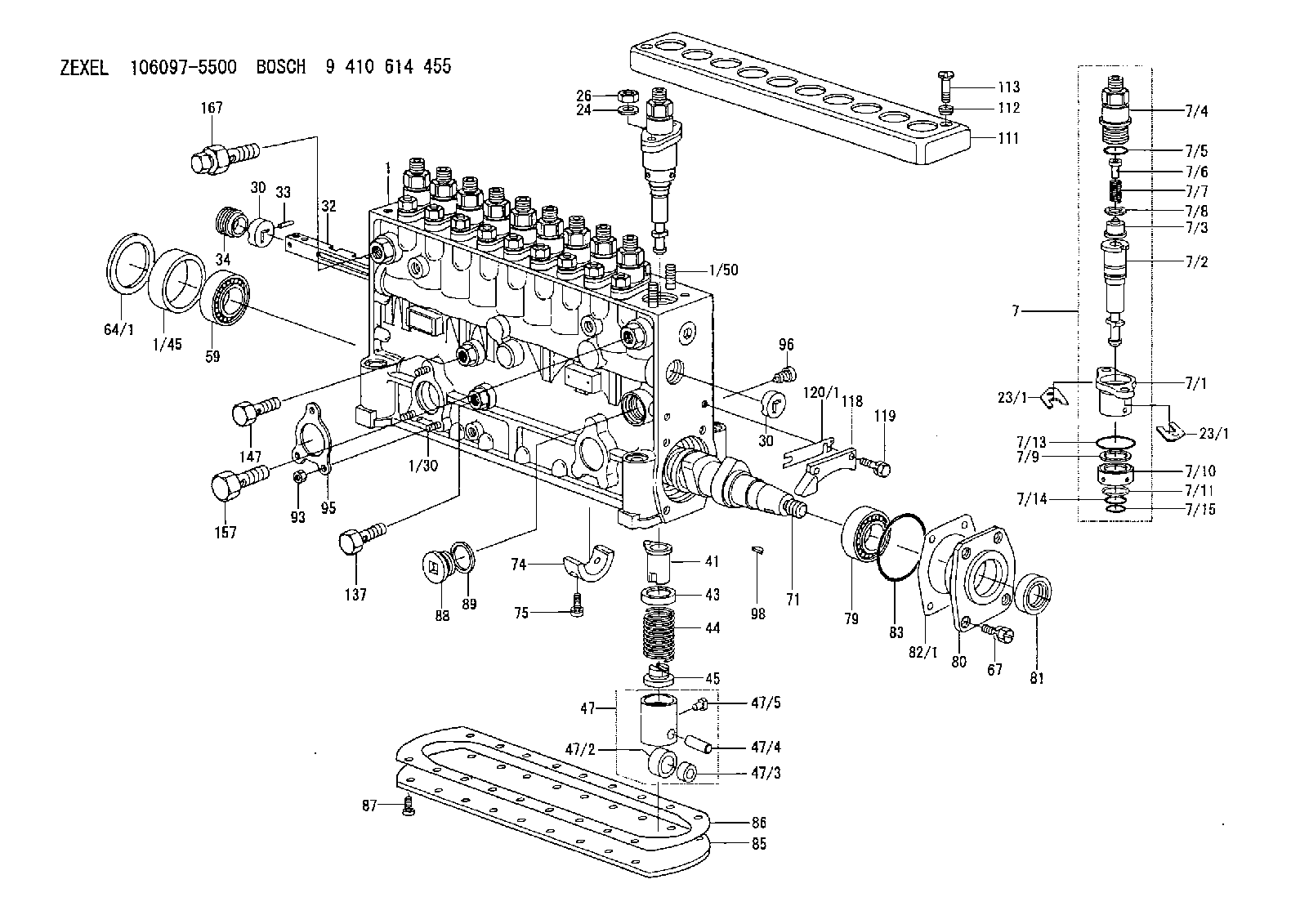

Scheme ###:

1.	[1]	134050-5621	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[20]	134138-0000	STUD
7.	[10]	134143-9620	PLUNGER-AND-BARREL ASSY
7/1.	[10]	134131-1920	FLANGE BUSHING
7/2.	[10]	134151-3420	PLUNGER-AND-BARREL ASSY P114
7/3.	[10]	134110-5420	DELIVERY-VALVE ASSEMBLY P53
7/4.	[10]	134116-5000	FITTING
7/5.	[10]	139722-0400	O-RING
7/6.	[10]	134117-1400	FILLER PIECE
7/7.	[10]	134112-0600	COILED SPRING
7/8.	[10]	134115-0100	GASKET
7/9.	[10]	029302-0140	PLAIN WASHER
7/10.	[10]	134135-0400	CAPSULE
7/11.	[10]	029602-0010	LOCKING WASHER
7/13.	[10]	139729-0400	O-RING
7/14.	[10]	139715-0400	O-RING
7/15.	[10]	139715-0400	O-RING
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-1000	SHIM T0.525
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1200	SHIM T0.575
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1400	SHIM T0.625
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1600	SHIM T0.675
23/1.	[0]	139400-1700	SHIM T0.700
23/1.	[0]	139400-1800	SHIM T0.725
23/1.	[0]	139400-1900	SHIM T0.750
23/1.	[0]	139400-2000	SHIM T0.775
23/1.	[0]	139400-2100	SHIM T0.800
23/1.	[0]	139400-2200	SHIM T0.825
23/1.	[0]	139400-2300	SHIM T0.850
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2500	SHIM T0.900
23/1.	[0]	139400-2600	SHIM T0.925
23/1.	[0]	139400-2700	SHIM T0.950
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2900	SHIM T1.000
23/1.	[0]	139400-3000	SHIM T1.025
23/1.	[0]	139400-3100	SHIM T1.050
23/1.	[0]	139400-3200	SHIM T1.075
23/1.	[0]	139400-3300	SHIM T1.100
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3500	SHIM T1.150
23/1.	[0]	139400-3600	SHIM T1.175
23/1.	[0]	139400-3700	SHIM T1.200
23/1.	[0]	139400-3800	SHIM T1.225
23/1.	[0]	139400-3900	SHIM T1.250
23/1.	[0]	139400-4000	SHIM T1.275
23/1.	[0]	139400-4100	SHIM T1.300
23/1.	[0]	139400-4200	SHIM T1.325
23/1.	[0]	139400-4300	SHIM T1.350
23/1.	[0]	139400-4400	SHIM T1.375
23/1.	[0]	139400-4500	SHIM T1.400
23/1.	[0]	139400-4600	SHIM T1.425
23/1.	[0]	139400-4700	SHIM T1.450
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4900	SHIM T1.500
23/1.	[0]	139400-5000	SHIM T1.525
23/1.	[0]	139400-5100	SHIM T1.550
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5300	SHIM T1.600
23/1.	[0]	139400-5400	SHIM T1.625
23/1.	[0]	139400-5500	SHIM T1.650
23/1.	[0]	139400-5600	SHIM T1.675
23/1.	[0]	139400-5700	SHIM T1.700
23/1.	[0]	139400-5800	SHIM T1.725
23/1.	[0]	139400-5900	SHIM T1.750
23/1.	[0]	139400-6000	SHIM T1.775
23/1.	[0]	139400-6100	SHIM T1.800
23/1.	[0]	139400-6200	SHIM T1.825
23/1.	[0]	139400-6300	SHIM T1.850
23/1.	[0]	139400-6400	SHIM T1.875
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6600	SHIM T1.925
23/1.	[0]	139400-6700	SHIM T1.950
23/1.	[0]	139400-6800	SHIM T1.975
24.	[20]	134132-0300	PLAIN WASHER
26.	[20]	013021-0040	UNION NUT M10P1.5H8
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	134250-0201	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[10]	134241-0021	CONTROL SLEEVE
43.	[10]	134216-0000	SLOTTED WASHER
44.	[10]	134215-0300	COMPRESSION SPRING
45.	[10]	134217-0500	SLOTTED WASHER
47.	[10]	134200-0020	TAPPET
47/2.	[10]	134204-0000	ROLLER
47/3.	[10]	134205-0000	BUSHING
47/4.	[10]	134203-0000	BEARING PIN
47/5.	[10]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
67.	[4]	029010-6810	BLEEDER SCREW
71.	[1]	134391-0000	CAMSHAFT
74.	[2]	134306-0000	BEARING SHELL
75.	[4]	020106-2040	BLEEDER SCREW
79.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
80.	[1]	134316-0100	COVER
81.	[1]	026712-5010	PACKING RING
82/1.	[0]	134314-0000	SHIM T0.1
82/1.	[0]	134314-0100	SHIM T0.12
82/1.	[0]	134314-0200	SHIM T0.14
82/1.	[0]	134314-0300	SHIM T0.16
82/1.	[0]	134314-0400	SHIM T0.18
82/1.	[0]	134314-0500	SHIM T0.3
82/1.	[0]	134314-0600	SHIM T0.5
83.	[1]	029635-5010	O-RING
85.	[1]	134043-1400	COVER
86.	[1]	134042-1600	GASKET
87.	[16]	012206-1640	FLAT-HEAD SCREW
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[10]	134047-0000	CAPSULE
98.	[1]	029470-5010	WOODRUFF KEY
111.	[1]	134416-0400	COVER
112.	[4]	014530-6540	TAB WASHER
113.	[4]	021306-3010	FLAT-HEAD SCREW
118.	[1]	134496-1200	POINTER
119.	[2]	029020-6210	BLEEDER SCREW
120/1.	[0]	139400-0100	SHIM T0.2
120/1.	[0]	139400-0200	SHIM T0.3
120/1.	[0]	139400-0300	SHIM T0.5
120/1.	[0]	139400-0400	SHIM T1.0
120/1.	[0]	139400-7200	SHIM T0.1
137.	[1]	029731-4680	EYE BOLT
147.	[1]	029731-0120	EYE BOLT
157.	[1]	029731-4680	EYE BOLT
167.	[1]	132424-0620	OVER FLOW VALVE

Include in #1:

106971-0371 as FUEL INJECTION PUMP

106971-0530

106971-0570

Cross reference number

Zexel num

Bosch num

Firm num

Name

106097-5500

9 410 614 455
NP-PE10P120/721RS1

1671197118 NISSAN-DIESEL

FUEL-INJECTION PUMP
Q

Information:

AUGUST 2011
INFORMATION RELEASE MEMO
Reman
PELJ1306 ?2011 Caterpillar REMAN DIESEL PARTICULATE FILTERS FOR MACHINE APPLICATIONS
To provide our customers with cost effective service options to support their Tier 4 emissions engines, Cat Reman has released a Reman version of the diesel particulate filters (DPF) used on many Tier 4 Cat? machines. The DPF traps both soot and ash. Soot is removed through a regeneration process outlined in the machines operation and maintenance manual. Ash that accumulates from engine oil is removed through a cleaning procedure that requires removal of the DPF from the machine. The cleaning procedure requires the DPF to be removed from the machine. Special Instruction REHS5045 outlines the three approved processes for performing the required Diesel Particulate Filter (DPF) maintenance on Tier 4 products equipped with a DPF.
Replacement of the existing DPF with a new Cat DPF
Replacement of the existing DPF with a remanufactured Cat DPF
Removal of the existing DPF and having the DPF cleaned by a Cat approved cleaning device.
The Reman DPFs listed below are available to support these maintenance requirements:
Core Acceptance
After gaining some experience with the previously released DPFs used for on-highway engines and to support the launch of these additional machine DPFs, we have changed some of the inspection criteria and issued a revision to SELD0292. SELD0292-02 Caterpillar Diesel Particulate Filter (DPF) is the current Core Acceptance Criteria (CAC). It is critical to avoid non-operational damage that can decrease the value of the cores. Encourage service technicians to handle and package the cores with care so they will be more likely to be eligible for the full core refunds. Please always refer to the most current version at catreman.cat.com/core to view the latest requirements. The acceptability inspection for these is a simple visual inspection based on the following guidelines:
Warranty
All Reman products carry the same warranty as new parts. Please consult the appropriate warranty statement for your area.
Core Management
Please refer to the Cat Core Management Information System (CMIS 2) related to the parts information application that describes all Reman part/Core Acceptability Family (CAF) and other related information. Also refer to other CMIS 2 inquiry applications such as: Dealer Customer Profile, Inspection Reason Codes, Inspection Line Inquiry, Dealer Add Charges, Dealer Entitlement Activity, Dealer CCR Inquiry, Dealer CCR Entry, Dealer Shipment Processing, Dealer Process Packaging Grief and Reporting. This information is available to all dealers worldwide that have been converted to CMIS 2.
Please go to the Reman web site https://catreman.cat.com for the latest policy and procedural updates that are available to all dealers worldwide explaining policy and procedural information such as Policy and Core Management SELD0122 -10, "Core Management Systems and Operations Procedures SELD0040-14, "Reman Core Return Packaging Instructions And Guidelines SELD0300-00 and "Shipping Instructions" SELD0039-14.
If you have any questions regarding Reman Core Management or Core Management Systems (CMIS2),
