106097-5350 ZEXEL 9 410 612 879 BOSCH FUEL-INJECTION PUMP 9410612879 1060975350 221002960a

Information fuel-injection pump

BOSCH 9 410 612 879 9410612879

ZEXEL 106097-5350 1060975350

HINO 221002960A 221002960a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106097-5350 zexel genuine, new aftermarket engine parts with delivery

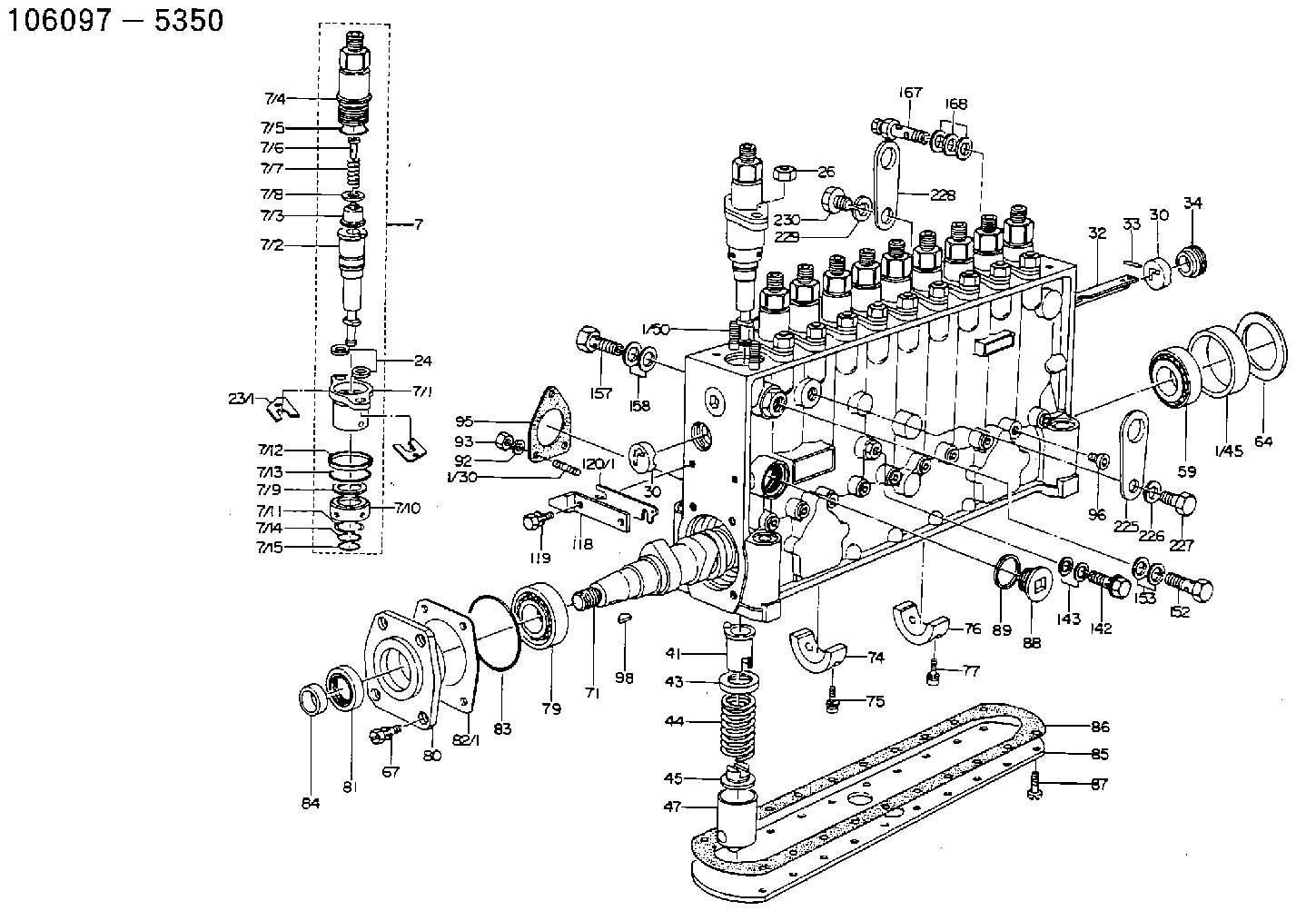

Scheme ###:

1.	[1]	134066-0220	PUMP HOUSING
1.	[1]	134066-0220	PUMP HOUSING
1.	[1]	134066-0220	PUMP HOUSING
1.	[1]	134066-0220	PUMP HOUSING
1.	[1]	134066-0220	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[20]	134138-0000	STUD
7.	[10]	134143-3920	PLUNGER-AND-BARREL ASSY
7/1.	[10]	134131-1020	FLANGE BUSHING
7/2.	[10]	134151-1120	PLUNGER-AND-BARREL ASSY
7/3.	[10]	134110-7020	DELIVERY-VALVE ASSEMBLY
7/4.	[10]	134116-3821	FITTING
7/5.	[10]	029632-2070	O-RING
7/7.	[10]	134112-0500	COMPRESSION SPRING
7/8.	[10]	134115-0100	GASKET
7/9.	[10]	029302-0140	PLAIN WASHER
7/10.	[10]	134135-0200	CAPSULE
7/11.	[10]	029602-0010	LOCKING WASHER
7/12.	[10]	134137-0100	SPACER RING
7/13.	[10]	029632-9030	O-RING
7/14.	[10]	029631-5020	O-RING
7/15.	[10]	029631-5020	O-RING
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-1000	SHIM T0.525
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1200	SHIM T0.575
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1400	SHIM T0.625
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1600	SHIM T0.675
23/1.	[0]	139400-1700	SHIM T0.700
23/1.	[0]	139400-1800	SHIM T0.725
23/1.	[0]	139400-1900	SHIM T0.750
23/1.	[0]	139400-2000	SHIM T0.775
23/1.	[0]	139400-2100	SHIM T0.800
23/1.	[0]	139400-2200	SHIM T0.825
23/1.	[0]	139400-2300	SHIM T0.850
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2500	SHIM T0.900
23/1.	[0]	139400-2600	SHIM T0.925
23/1.	[0]	139400-2700	SHIM T0.950
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2900	SHIM T1.000
23/1.	[0]	139400-3000	SHIM T1.025
23/1.	[0]	139400-3100	SHIM T1.050
23/1.	[0]	139400-3200	SHIM T1.075
23/1.	[0]	139400-3300	SHIM T1.100
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3500	SHIM T1.150
23/1.	[0]	139400-3600	SHIM T1.175
23/1.	[0]	139400-3700	SHIM T1.200
23/1.	[0]	139400-3800	SHIM T1.225
23/1.	[0]	139400-3900	SHIM T1.250
23/1.	[0]	139400-4000	SHIM T1.275
23/1.	[0]	139400-4100	SHIM T1.300
23/1.	[0]	139400-4200	SHIM T1.325
23/1.	[0]	139400-4300	SHIM T1.350
23/1.	[0]	139400-4400	SHIM T1.375
23/1.	[0]	139400-4500	SHIM T1.400
23/1.	[0]	139400-4600	SHIM T1.425
23/1.	[0]	139400-4700	SHIM T1.450
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4900	SHIM T1.500
23/1.	[0]	139400-5000	SHIM T1.525
23/1.	[0]	139400-5100	SHIM T1.550
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5300	SHIM T1.600
23/1.	[0]	139400-5400	SHIM T1.625
23/1.	[0]	139400-5500	SHIM T1.650
23/1.	[0]	139400-5600	SHIM T1.675
23/1.	[0]	139400-5700	SHIM T1.700
23/1.	[0]	139400-5800	SHIM T1.725
23/1.	[0]	139400-5900	SHIM T1.750
23/1.	[0]	139400-6000	SHIM T1.775
23/1.	[0]	139400-6100	SHIM T1.800
23/1.	[0]	139400-6200	SHIM T1.825
23/1.	[0]	139400-6300	SHIM T1.850
23/1.	[0]	139400-6400	SHIM T1.875
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6600	SHIM T1.925
23/1.	[0]	139400-6700	SHIM T1.950
23/1.	[0]	139400-6800	SHIM T1.975
24.	[20]	134132-0300	PLAIN WASHER D20&11T2.5
26.	[20]	013021-0040	UNION NUT M10P1.5H8
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	134250-0000	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[10]	134241-0320	CONTROL SLEEVE
43.	[10]	134216-0000	SLOTTED WASHER
44.	[10]	134215-0700	COILED SPRING
45.	[10]	134217-0500	SLOTTED WASHER
47.	[10]	134200-0420	TAPPET
47/2.	[1]	134204-0100	ROLLER
47/3.	[1]	134205-0000	BUSHING
47/4.	[1]	134203-0000	BEARING PIN
47/5.	[1]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
67.	[4]	029010-6810	BLEEDER SCREW
71.	[1]	134391-1600	CAMSHAFT
74.	[2]	134306-0600	BEARING SHELL
75.	[4]	020106-2040	BLEEDER SCREW M6P1L20
76.	[2]	134306-1200	BEARING SHELL
77.	[4]	020106-2040	BLEEDER SCREW M6P1L20
79.	[1]	016650-2230	BEARING PLATE
80.	[1]	134316-1700	COVER
81.	[1]	139625-0000	PACKING RING
82/1.	[0]	134314-0000	SHIM T0.1
82/1.	[0]	134314-0100	SHIM T0.12
82/1.	[0]	134314-0200	SHIM T0.14
82/1.	[0]	134314-0300	SHIM T0.16
82/1.	[0]	134314-0400	SHIM T0.18
82/1.	[0]	134314-0500	SHIM T0.3
82/1.	[0]	134314-0600	SHIM T0.5
83.	[1]	029635-5010	O-RING
84.	[1]	134563-0900	SLIDING PIECE
85.	[1]	134043-1400	COVER
86.	[1]	134042-1600	GASKET
87.	[16]	012206-1640	FLAT-HEAD SCREW M6P1L16
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET D28.9&24.3T2
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[10]	134047-0000	CAPSULE
98.	[1]	025805-1910	WOODRUFF KEY
118.	[1]	134496-1400	POINTER
119.	[2]	029020-6210	BLEEDER SCREW
120/1.	[0]	139400-0100	SHIM T0.2
120/1.	[0]	139400-0200	SHIM T0.3
120/1.	[0]	139400-0300	SHIM T0.5
120/1.	[0]	139400-0400	SHIM T1.0
120/1.	[0]	139400-7200	SHIM T0.1
142.	[1]	134430-0200	EYE BOLT
143.	[2]	139510-0300	GASKET
152.	[1]	139814-0400	EYE BOLT
153.	[3]	139514-0300	GASKET
157.	[1]	029731-4680	EYE BOLT
158.	[2]	139514-0300	GASKET
167.	[1]	134424-0820	OVER FLOW VALVE
168.	[3]	139514-0300	GASKET
225.	[1]	134510-4700	HANGER
226.	[1]	014111-4440	LOCKING WASHER
227.	[1]	134510-4800	BLEEDER SCREW
228.	[1]	134510-4700	HANGER
229.	[1]	014111-4440	LOCKING WASHER
230.	[1]	134510-4800	BLEEDER SCREW

Include in #1:

106971-3082 as FUEL INJECTION PUMP

106971-3111

Cross reference number

Zexel num

Bosch num

Firm num

Name

106097-5350

9 410 612 879
NP-PE10P120/721RS3S

221002960A HINO

FUEL-INJECTION PUMP
