106097-5091 ZEXEL 9 410 610 109 BOSCH FUEL-INJECTION PUMP 9410610109 1060975091

Information fuel-injection pump

BOSCH 9 410 610 109 9410610109

ZEXEL 106097-5091 1060975091

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106097-5091 zexel genuine, new aftermarket engine parts with delivery

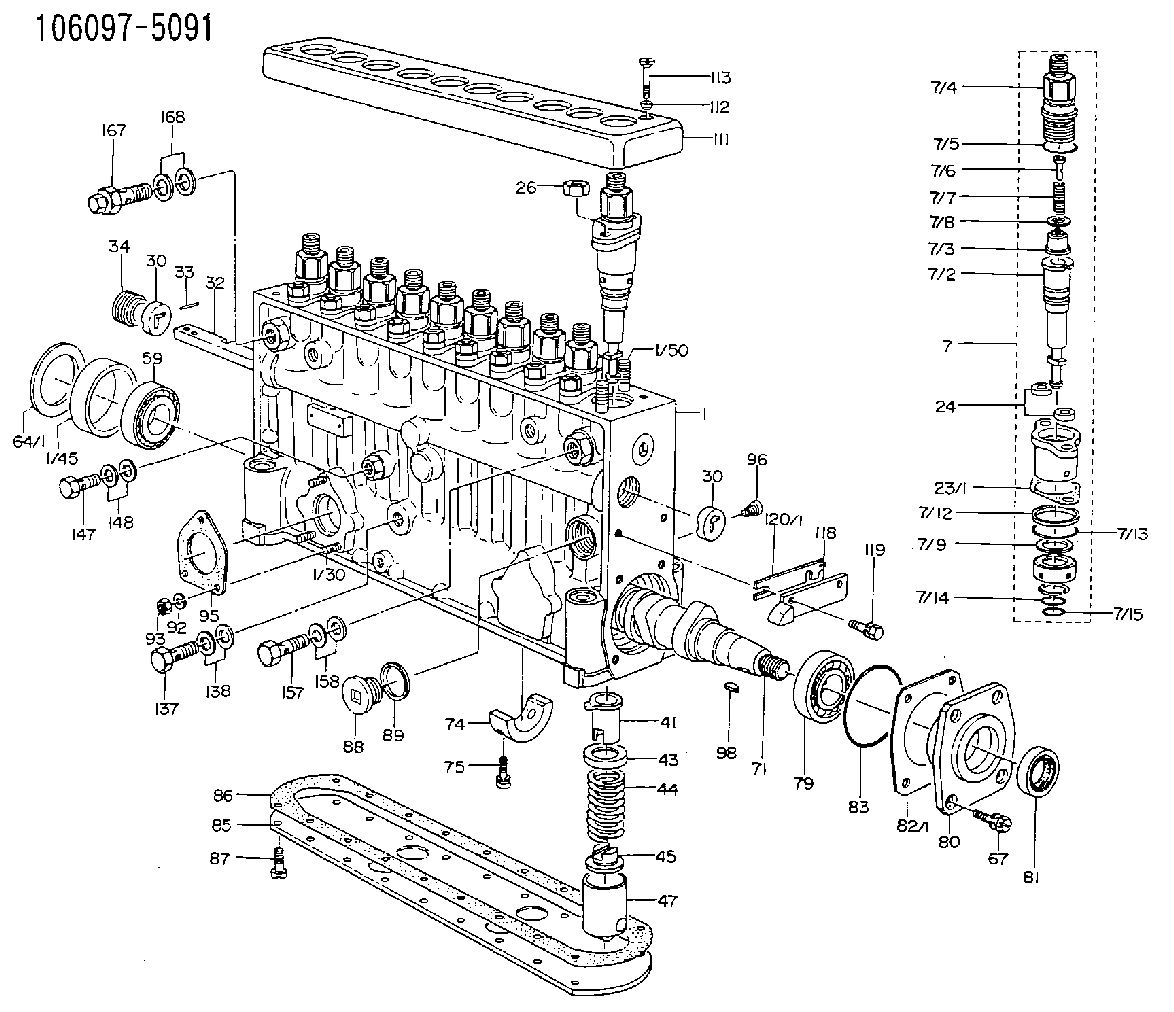

Scheme ###:

1.	[1]	134050-1920	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[20]	134138-0000	STUD
7.	[10]	134143-2520	PLUNGER-AND-BARREL ASSY
7/1.	[10]	134131-1020	FLANGE BUSHING
7/2.	[10]	134151-0420	PLUNGER-AND-BARREL ASSY
7/3.	[10]	134110-5420	DELIVERY-VALVE ASSEMBLY
7/4.	[10]	134116-3200	FITTING
7/5.	[10]	029632-2070	O-RING
7/6.	[10]	134117-1400	FILLER PIECE
7/7.	[10]	134112-0600	COILED SPRING
7/8.	[10]	134115-0100	GASKET
7/9.	[10]	029302-0140	PLAIN WASHER
7/10.	[10]	134135-0200	CAPSULE
7/11.	[10]	029602-0010	LOCKING WASHER
7/12.	[10]	134137-0000	SPACER RING
7/13.	[10]	029632-9030	O-RING
7/14.	[10]	029631-5020	O-RING
7/15.	[10]	029631-5020	O-RING
23/1.	[0]	134139-0000	SHIM T0.5
23/1.	[0]	134139-0100	SHIM T0.6
23/1.	[0]	134139-0200	SHIM T0.7
23/1.	[0]	134139-0300	SHIM T0.8
23/1.	[0]	134139-0400	SHIM T0.9
23/1.	[0]	134139-0500	SHIM T0.4
23/1.	[0]	134139-0600	SHIM T0.15
23/1.	[0]	134139-2300	SHIM T1.5
24.	[20]	134132-0300	PLAIN WASHER D20&11T2.5
26.	[20]	013021-0040	UNION NUT M10P1.5H8
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	134250-0000	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[10]	134241-0021	CONTROL SLEEVE
43.	[10]	134216-0000	SLOTTED WASHER
44.	[10]	134215-0300	COMPRESSION SPRING
45.	[10]	134217-0500	SLOTTED WASHER
47.	[10]	134200-0020	TAPPET
47/2.	[1]	134204-0000	ROLLER
47/3.	[1]	134205-0000	BUSHING
47/4.	[1]	134203-0000	BEARING PIN
47/5.	[1]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
67.	[4]	029010-6810	BLEEDER SCREW
71.	[1]	134391-0000	CAMSHAFT
74.	[2]	134306-0000	BEARING SHELL
75.	[4]	020106-2040	BLEEDER SCREW M6P1L20
79.	[1]	016650-2230	BEARING PLATE
80.	[1]	134316-0100	COVER
81.	[1]	026712-5010	PACKING RING
82/1.	[0]	134314-0000	SHIM T0.1
82/1.	[0]	134314-0100	SHIM T0.12
82/1.	[0]	134314-0200	SHIM T0.14
82/1.	[0]	134314-0300	SHIM T0.16
82/1.	[0]	134314-0400	SHIM T0.18
82/1.	[0]	134314-0500	SHIM T0.3
82/1.	[0]	134314-0600	SHIM T0.5
83.	[1]	029635-5010	O-RING
85.	[1]	134043-0300	COVER
86.	[1]	134042-1600	GASKET
87.	[16]	012206-1640	FLAT-HEAD SCREW M6P1L16
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET D28.9&24.3T2
92.	[3]	014110-6440	LOCKING WASHER
93.	[3]	013020-6040	UNION NUT M6P1H5
95.	[1]	131041-0800	GASKET
96.	[10]	134047-0000	CAPSULE
98.	[1]	025805-1910	WOODRUFF KEY
111.	[1]	134416-0400	COVER
112.	[4]	014530-6540	TAB WASHER
113.	[4]	021306-3010	FLAT-HEAD SCREW
118.	[1]	134496-1200	POINTER
119.	[2]	029020-6210	BLEEDER SCREW
120/1.	[0]	139400-0100	SHIM T0.2
120/1.	[0]	139400-0200	SHIM T0.3
120/1.	[0]	139400-0300	SHIM T0.5
120/1.	[0]	139400-0400	SHIM T1.0
120/1.	[0]	139400-7200	SHIM T0.1
137.	[1]	029731-4680	EYE BOLT
138.	[2]	026514-1840	GASKET D17.9&14.2T1
147.	[1]	029731-0120	EYE BOLT
148.	[2]	026510-1440	GASKET D13.9&10.2T1
157.	[1]	029731-4680	EYE BOLT
158.	[2]	026514-1840	GASKET D17.9&14.2T1
167.	[1]	132424-0620	OVER FLOW VALVE
168.	[2]	026514-1840	GASKET D17.9&14.2T1

Include in #1:

106971-0162 as FUEL INJECTION PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

106097-5091
106097-5092

9 410 610 109
NP-PE10P120/721RS1NP20

FUEL-INJECTION PUMP
