Information fuel-injection pump
ZEXEL
106097-5020
1060975020
NISSAN-DIESEL
1671197013
1671197013
Rating:

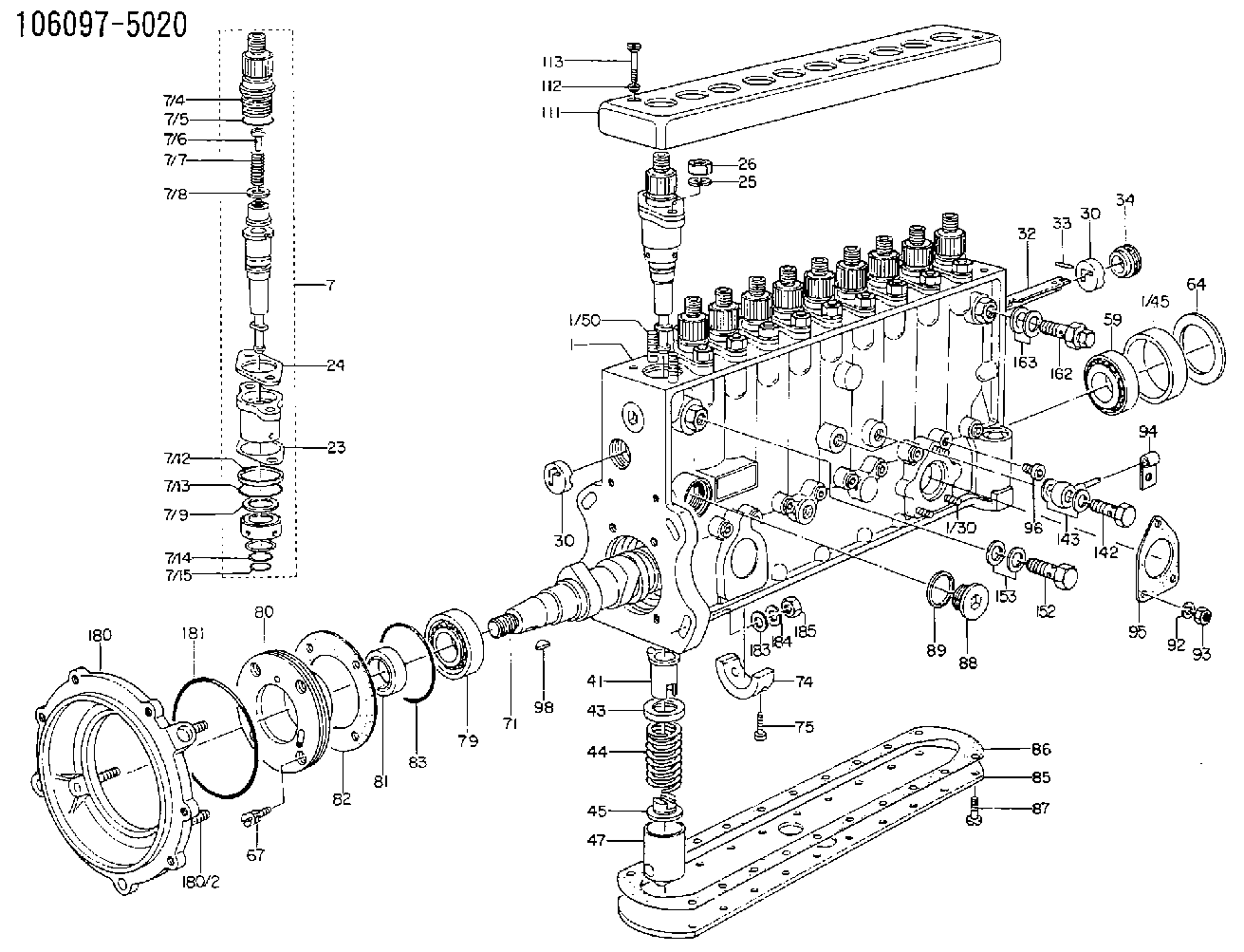

Scheme ###:
| 1. | [1] | 134000-3320 | PUMP HOUSING |
| 1/5. | [1] | 131400-0100 | ADAPTOR |
| 1/12. | [1] | 134026-0000 | CAPSULE |
| 1/30. | [3] | 029040-6020 | STUD |
| 1/45. | [1] | 134311-0000 | SPACER RING |
| 1/50. | [20] | 134138-0000 | STUD |
| 7. | [10] | 134130-3320 | PLUNGER-AND-BARREL ASSY |
| 7/4. | [10] | 134116-0700 | FITTING |
| 7/5. | [10] | 029632-2070 | O-RING |
| 7/6. | [10] | 134117-0500 | FILLER PIECE |
| 7/7. | [10] | 132112-0200 | COILED SPRING |
| 7/8. | [10] | 134115-0100 | GASKET |
| 7/9. | [10] | 029302-0140 | PLAIN WASHER |
| 7/12. | [10] | 134137-0000 | SPACER RING |
| 7/13. | [10] | 029632-9030 | O-RING |
| 7/15. | [10] | 029631-5020 | O-RING |
| 23. | [10] | 029998-4040 | SHIM |
| 23/1. | [0] | 134139-0000 | SHIM |
| 23/1. | [0] | 134139-0100 | SHIM |
| 23/1. | [0] | 134139-0200 | SHIM |
| 23/1. | [0] | 134139-0300 | SHIM |
| 23/1. | [0] | 134139-0400 | SHIM |
| 23/1. | [0] | 134139-0500 | SHIM |
| 23/1. | [0] | 134139-0600 | SHIM |
| 23/1. | [0] | 134139-2300 | SHIM |
| 24. | [10] | 134132-0100 | PLAIN WASHER |
| 25. | [20] | 014111-0440 | LOCKING WASHER |
| 26. | [20] | 013021-0040 | UNION NUT |
| 30. | [2] | 134001-0000 | BUSHING |
| 30. | [2] | 134001-0000 | BUSHING |
| 32. | [1] | 134250-0000 | CONTROL RACK |
| 33. | [1] | 024030-2030 | BEARING PIN |
| 34. | [1] | 134222-0000 | BUSHING |
| 41. | [10] | 134241-0020 | CONTROL SLEEVE |
| 43. | [10] | 134216-0000 | SLOTTED WASHER |
| 44. | [10] | 134215-0300 | COMPRESSION SPRING |
| 45. | [10] | 134217-0000 | SLOTTED WASHER |
| 47. | [10] | 134200-0020 | TAPPET |
| 59. | [1] | 016650-2230 | BEARING PLATE |
| 64. | [1] | 029998-3100 | SHIM |
| 64/1. | [0] | 134303-0000 | SHIM |
| 64/1. | [0] | 134303-0100 | SHIM |
| 64/1. | [0] | 134303-0200 | SHIM |
| 64/1. | [0] | 134303-0300 | SHIM |
| 64/1. | [0] | 134303-0400 | SHIM |
| 67. | [4] | 029010-6810 | BLEEDER SCREW |
| 71. | [1] | 134391-0000 | CAMSHAFT |
| 74. | [2] | 134306-0000 | BEARING SHELL |
| 75. | [4] | 020106-2040 | BLEEDER SCREW |
| 79. | [1] | 016650-2230 | BEARING PLATE |
| 80. | [1] | 134316-1120 | COVER |
| 81. | [1] | 026712-5010 | PACKING RING |
| 82. | [1] | 029998-4030 | SHIM |
| 82/1. | [0] | 134314-0000 | SHIM |
| 82/1. | [0] | 134314-0100 | SHIM |
| 82/1. | [0] | 134314-0200 | SHIM |
| 82/1. | [0] | 134314-0300 | SHIM |
| 82/1. | [0] | 134314-0400 | SHIM |
| 82/1. | [0] | 134314-0500 | SHIM |
| 82/1. | [0] | 134314-0600 | SHIM |
| 83. | [1] | 029635-5010 | O-RING |
| 85. | [1] | 134043-0300 | COVER |
| 86. | [1] | 134042-1600 | GASKET |
| 87. | [16] | 012206-1640 | FLAT-HEAD SCREW |
| 88. | [1] | 134045-0100 | CAPSULE |
| 89. | [1] | 026524-2940 | GASKET |
| 92. | [3] | 014110-6440 | LOCKING WASHER |
| 93. | [3] | 013020-6040 | UNION NUT |
| 94. | [1] | 134447-0000 | CLAMPING BAND |
| 95. | [1] | 131041-0800 | GASKET |
| 96. | [10] | 134047-0000 | CAPSULE |
| 98. | [1] | 025805-1910 | WOODRUFF KEY |
| 111. | [1] | 134416-0400 | COVER |
| 112. | [4] | 014530-6540 | TAB WASHER |
| 113. | [4] | 021306-3010 | FLAT-HEAD SCREW |
| 142. | [1] | 029731-0490 | EYE BOLT |
| 143. | [3] | 026510-1440 | GASKET |
| 152. | [1] | 029731-4680 | EYE BOLT |
| 153. | [2] | 026514-1840 | GASKET |
| 162. | [1] | 132424-0620 | OVER FLOW VALVE |
| 163. | [2] | 026514-1840 | GASKET |
| 180. | [1] | 134459-0120 | BRACKET |
| 180/2. | [4] | 029041-0230 | STUD |
| 181. | [1] | 029639-0020 | O-RING |
| 183. | [4] | 014011-0140 | PLAIN WASHER |
| 184. | [4] | 014111-0440 | LOCKING WASHER |
| 185. | [4] | 013021-0040 | UNION NUT |
Include in #1:
106971-0120
as FUEL INJECTION PUMP
