106087-9030 ZEXEL 9 410 612 127 BOSCH FUEL-INJECTION PUMP 9410612127 1060879030 1671197666




Information fuel-injection pump

BOSCH 9 410 612 127 9410612127
ZEXEL 106087-9030 1060879030
NISSAN-DIESEL 1671197666 1671197666
106087-9030 FUEL-INJECTION PUMP
Rating:
80
Buy FUEL-INJECTION PUMP 106087-9030 zexel genuine, new aftermarket engine parts with delivery

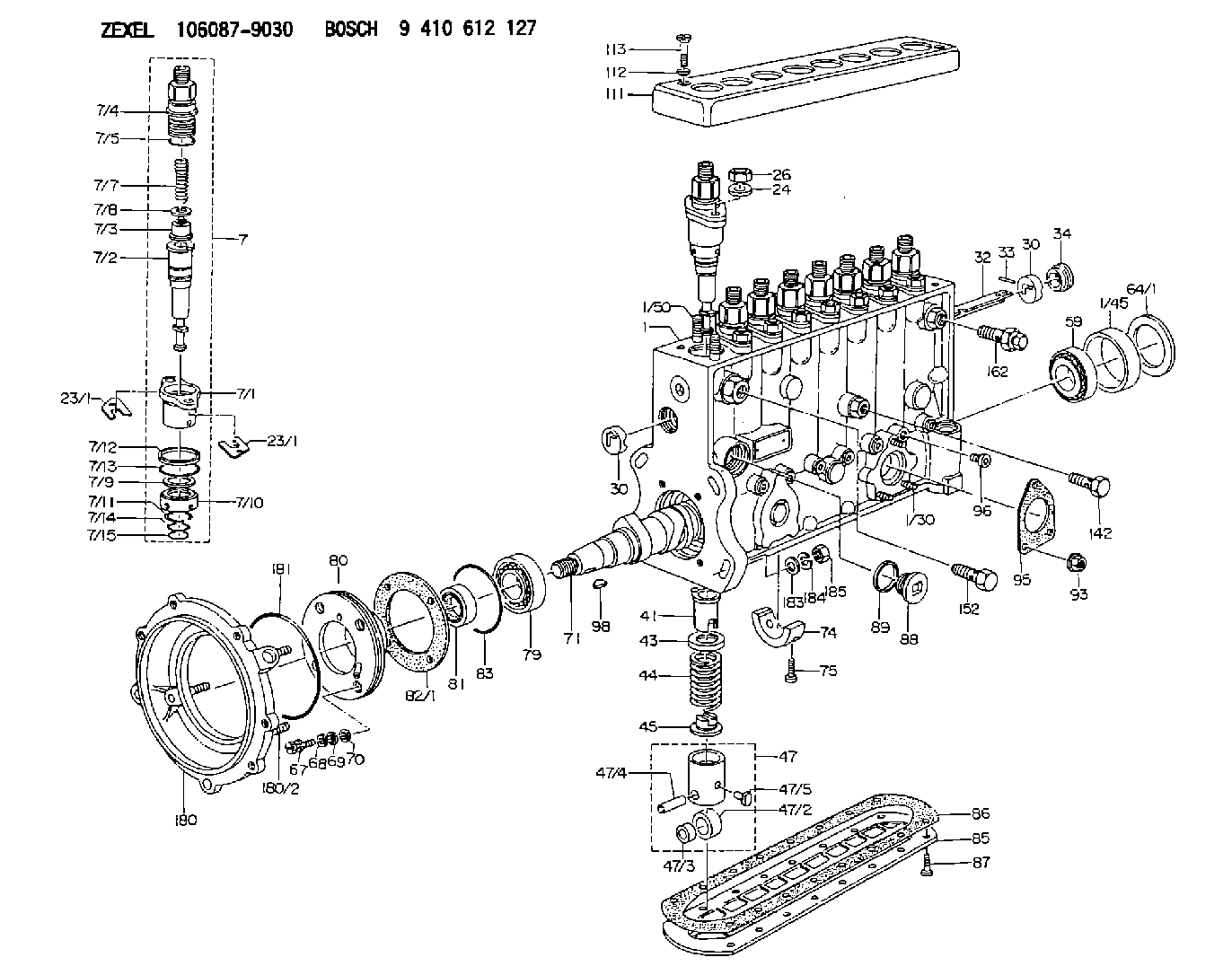

Scheme ###:

PUMP HOUSING
1. [1] 134000-7821 PUMP HOUSING
1/30. [3] 029040-6020 STUD
1/45. [1] 134311-0000 SPACER RING
1/50. [16] 134138-0000 STUD
7. [8] 134146-1020 PLUNGER-AND-BARREL ASSY
7/1. [8] 134131-1020 FLANGE BUSHING
7/2. [8] 134151-4120 PLUNGER-AND-BARREL ASSY
7/3. [8] 134110-6820 DELIVERY-VALVE ASSEMBLY
7/4. [8] 134116-2220 FITTING
7/5. [8] 029632-2070 O-RING
7/7. [8] 132112-0200 COILED SPRING
7/8. [8] 134115-0100 GASKET
7/9. [8] 029302-0140 PLAIN WASHER
7/10. [8] 134135-0200 CAPSULE
7/11. [8] 029602-0010 LOCKING WASHER
7/12. [8] 134137-0100 SPACER RING
7/13. [8] 029632-9030 O-RING
7/14. [8] 029631-5020 O-RING
7/15. [8] 029631-5020 O-RING
23/1. [0] 139400-0900 SHIM T0.500
23/1. [0] 139400-1000 SHIM T0.525
23/1. [0] 139400-1100 SHIM T0.550
23/1. [0] 139400-1200 SHIM T0.575
23/1. [0] 139400-1300 SHIM T0.600
23/1. [0] 139400-1400 SHIM T0.625
23/1. [0] 139400-1500 SHIM T0.650
23/1. [0] 139400-1600 SHIM T0.675
23/1. [0] 139400-1700 SHIM T0.700
23/1. [0] 139400-1800 SHIM T0.725
23/1. [0] 139400-1900 SHIM T0.750
23/1. [0] 139400-2000 SHIM T0.775
23/1. [0] 139400-2100 SHIM T0.800
23/1. [0] 139400-2200 SHIM T0.825
23/1. [0] 139400-2200 SHIM T0.825
23/1. [0] 139400-2300 SHIM T0.850
23/1. [0] 139400-2400 SHIM T0.875
23/1. [0] 139400-2500 SHIM T0.900
23/1. [0] 139400-2600 SHIM T0.925
23/1. [0] 139400-2700 SHIM T0.950
23/1. [0] 139400-2800 SHIM T0.975
23/1. [0] 139400-2900 SHIM T1.000
23/1. [0] 139400-3000 SHIM T1.025
23/1. [0] 139400-3100 SHIM T1.050
23/1. [0] 139400-3200 SHIM T1.075
23/1. [0] 139400-3300 SHIM T1.100
23/1. [0] 139400-3400 SHIM T1.125
23/1. [0] 139400-3500 SHIM T1.150
23/1. [0] 139400-3600 SHIM T1.175
23/1. [0] 139400-3700 SHIM T1.200
23/1. [0] 139400-3800 SHIM T1.225
23/1. [0] 139400-3900 SHIM T1.250
23/1. [0] 139400-4000 SHIM T1.275
23/1. [0] 139400-4100 SHIM T1.300
23/1. [0] 139400-4200 SHIM T1.325
23/1. [0] 139400-4300 SHIM T1.350
23/1. [0] 139400-4400 SHIM T1.375
23/1. [0] 139400-4500 SHIM T1.400
23/1. [0] 139400-4600 SHIM T1.425
23/1. [0] 139400-4700 SHIM T1.450
23/1. [0] 139400-4800 SHIM T1.475
23/1. [0] 139400-4900 SHIM T1.500
23/1. [0] 139400-5000 SHIM T1.525
23/1. [0] 139400-5100 SHIM T1.550
23/1. [0] 139400-5200 SHIM T1.575
23/1. [0] 139400-5300 SHIM T1.600
23/1. [0] 139400-5400 SHIM T1.625
23/1. [0] 139400-5500 SHIM T1.650
23/1. [0] 139400-5600 SHIM T1.675
23/1. [0] 139400-5700 SHIM T1.700
23/1. [0] 139400-5800 SHIM T1.725
23/1. [0] 139400-5900 SHIM T1.750
23/1. [0] 139400-6000 SHIM T1.775
23/1. [0] 139400-6100 SHIM T1.800
23/1. [0] 139400-6200 SHIM T1.825
23/1. [0] 139400-6300 SHIM T1.850
23/1. [0] 139400-6400 SHIM T1.875
23/1. [0] 139400-6500 SHIM T1.900
23/1. [0] 139400-6600 SHIM T1.925
23/1. [0] 139400-6700 SHIM T1.950
23/1. [0] 139400-6800 SHIM T1.975
24. [16] 134132-0300 PLAIN WASHER D20&11T2.5
26. [16] 013021-0040 UNION NUT M10P1.5H8
30. [2] 134001-0000 BUSHING
30. [2] 134001-0000 BUSHING
32. [1] 134258-0000 CONTROL RACK
33. [1] 024030-2030 BEARING PIN
34. [1] 134222-0000 BUSHING
41. [8] 134241-0021 CONTROL SLEEVE
43. [8] 134216-0000 SLOTTED WASHER
44. [8] 134215-0300 COMPRESSION SPRING
45. [8] 134217-0500 SLOTTED WASHER
47. [8] 134200-0020 TAPPET
47/2. [1] 134204-0000 ROLLER
47/3. [1] 134205-0000 BUSHING
47/4. [1] 134203-0000 BEARING PIN
47/5. [1] 131206-0500 SLIDER
59. [1] 016650-2230 BEARING PLATE
64/1. [0] 134303-0000 SHIM D59.8&43T1.2
64/1. [0] 134303-0100 SHIM D59.8&43T1.5
64/1. [0] 134303-0200 SHIM D59.8&43T1.8
64/1. [0] 134303-0300 SHIM D59.8&43T2.0
64/1. [0] 134303-0400 SHIM D59.8&43T0.6
67. [4] 134329-0000 BLEEDER SCREW
68. [4] 029320-6010 LOCKING WASHER
69. [4] 029300-6170 SHIM D12&6.2T1
70. [4] 029340-6120 GASKET
71. [1] 134381-0700 CAMSHAFT
74. [1] 134306-0000 BEARING SHELL
75. [2] 020106-2040 BLEEDER SCREW M6P1L20
79. [1] 016650-2230 BEARING PLATE
80. [1] 134316-1120 COVER
81. [1] 026712-5010 PACKING RING
82/1. [0] 134314-0000 SHIM T0.1
82/1. [0] 134314-0100 SHIM T0.12
82/1. [0] 134314-0200 SHIM T0.14
82/1. [0] 134314-0300 SHIM T0.16
82/1. [0] 134314-0400 SHIM T0.18
82/1. [0] 134314-0500 SHIM T0.3
82/1. [0] 134314-0600 SHIM T0.5
83. [1] 029635-5010 O-RING
85. [1] 134043-0700 COVER
86. [1] 134042-1500 GASKET
87. [14] 012206-1640 FLAT-HEAD SCREW M6P1L16
88. [1] 134045-0100 CAPSULE
89. [1] 026524-2940 GASKET D28.9&24.3T2
93. [3] 139206-0400 UNION NUT
95. [1] 131041-0800 GASKET
96. [8] 134047-0000 CAPSULE
98. [1] 025805-1910 WOODRUFF KEY
111. [1] 134416-0000 COVER
112. [2] 014530-6540 TAB WASHER
113. [2] 021306-3010 FLAT-HEAD SCREW
142. [1] 029731-0490 EYE BOLT
152. [1] 029731-4680 EYE BOLT
162. [1] 132424-0620 OVER FLOW VALVE
180. [1] 134459-0120 BRACKET
180/2. [4] 029041-0300 STUD
181. [1] 029639-0020 O-RING
183. [4] 014011-0140 PLAIN WASHER D22&10.5T1.6
184. [4] 014111-0440 LOCKING WASHER
185. [4] 013021-0040 UNION NUT M10P1.5H8

Include in #1:

106871-0710 as FUEL INJECTION PUMP
106871-0711

Cross reference number

Zexel num
Bosch num
Firm num
Name
106087-9030
9 410 612 127
NP-PES8P120/321RS1
1671197666  NISSAN-DIESEL
FUEL-INJECTION PUMP
Q




Information:

Introduction
Do not perform any procedure in this Special Instruction until you have read the information and you understand the information.The actuator and pump groups of these fuel injectors are sensitive to debris in the oil. The injector may malfunction due to debris in the oil, causing seizure, or high leaks in components.
Table 1
Revision Table
Revision Summary of Changes
3 Added serial numbers. Improvement Procedure
Clean oil rail after pump failure.Reference: Refer to Special Instruction, REHS3819 for the procedure to clean the oil rail after engine failure to avoid debris in the oil system.
Use clean oil and clean filters.The life of the injector depends on the oil quality. It can be increased if good cleaning practices are performed before installing the injectors.Reference: Refer to Operation and Maintenance Manual, SEBU6250 and Operation and Maintenance Manual, SEBU6251 for direction on oil sampling intervals and optimizing engine oil life.
Illustration 1 g06207717
(1) Actuator
(2) Pump Group
(3) Valve Seat Damage Due to Debris in the Oil SystemInjector Failure Due To Damage From Debris In The Oil May Not Be A Warrantable Failure
Illustration 2 g06244961

Have questions with 106087-9030?





Group cross 106087-9030 ZEXEL

Isuzu

106087-9000

1156101680
FUEL-INJECTION PUMP
106087-9010

106087-9011
9 410 612 865
NP-PES8P120/321RS3000NP195

FUEL-INJECTION PUMP
106087-9012

106087-9013
9 410 612 085

FUEL-INJECTION PUMP
106087-9013
9 410 614 319

FUEL-INJECTION PUMP

Nissan-Diesel

106087-9020
9 410 612 290
NP-PES8P120/521RS1
1671197619
FUEL-INJECTION PUMP
106087-9030
9 410 612 127
NP-PES8P120/321RS1
1671197666
FUEL-INJECTION PUMP
106087-9040
9 410 612 128
NP-PES8P120/321RS1
1671197703
FUEL-INJECTION PUMP
