106087-7351 ZEXEL 9 410 612 193 BOSCH FUEL-INJECTION PUMP 9410612193 1060877351

Information fuel-injection pump

BOSCH 9 410 612 193 9410612193

ZEXEL 106087-7351 1060877351

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106087-7351 zexel genuine, new aftermarket engine parts with delivery

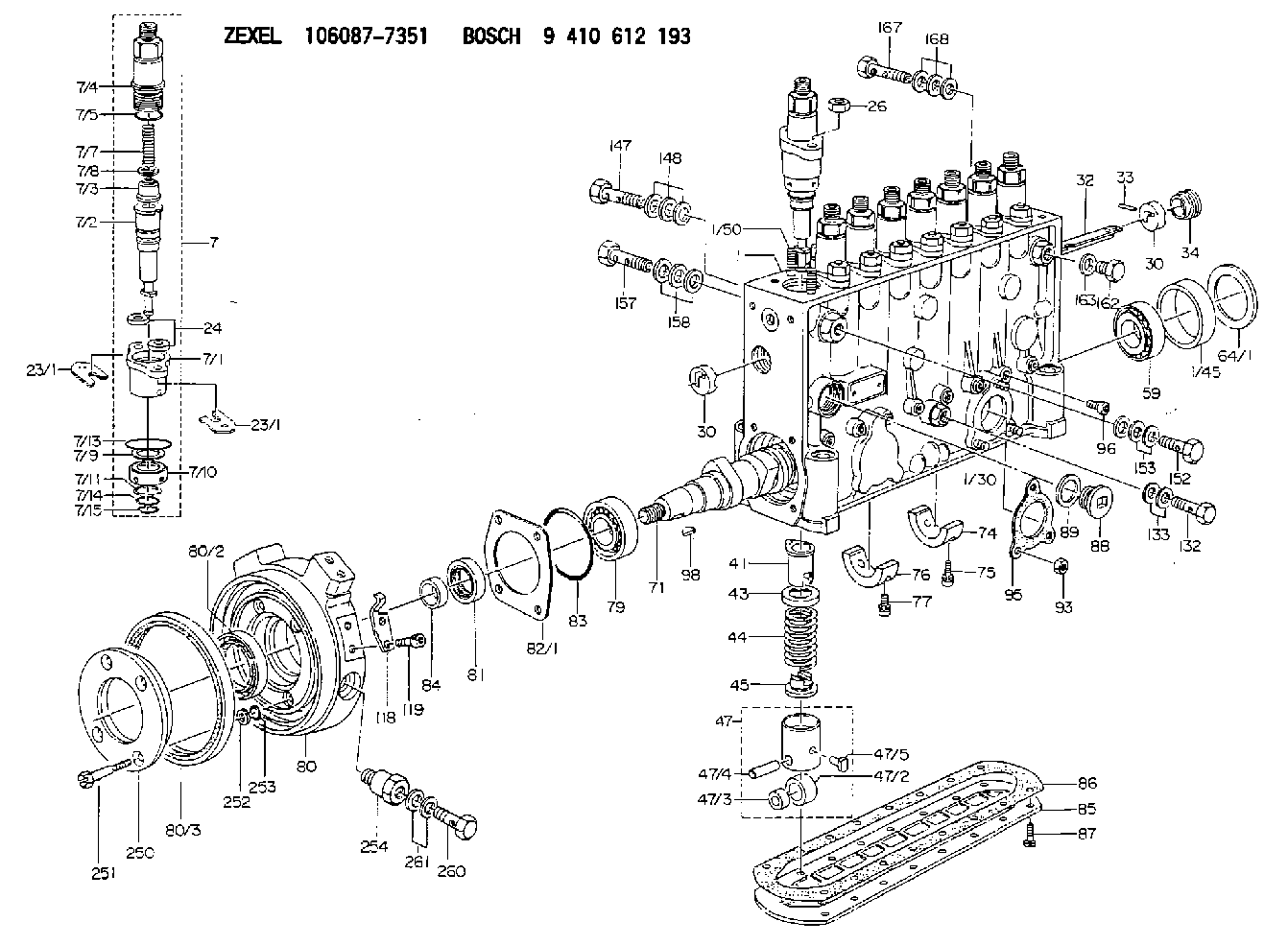

Scheme ###:

1.	[1]	134064-0420	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[16]	134138-0000	STUD
7.	[8]	134145-6022	PLUNGER-AND-BARREL ASSY
7/1.	[8]	134131-1920	FLANGE BUSHING
7/2.	[8]	134152-0020	PLUNGER-AND-BARREL ASSY P180
7/3.	[8]	134110-8620	DELIVERY-VALVE ASSEMBLY P85
7/4.	[8]	134116-5220	FITTING
7/5.	[8]	139722-0400	O-RING
7/7.	[8]	134112-0500	COMPRESSION SPRING
7/8.	[8]	134115-0100	GASKET
7/9.	[8]	029302-0140	PLAIN WASHER
7/10.	[8]	134135-0400	CAPSULE
7/11.	[8]	029602-0010	LOCKING WASHER
7/13.	[8]	139729-0400	O-RING
7/14.	[8]	139715-0400	O-RING
7/15.	[8]	139715-0400	O-RING
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-1000	SHIM T0.525
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1200	SHIM T0.575
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1400	SHIM T0.625
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1600	SHIM T0.675
23/1.	[0]	139400-1700	SHIM T0.700
23/1.	[0]	139400-1800	SHIM T0.725
23/1.	[0]	139400-1900	SHIM T0.750
23/1.	[0]	139400-2000	SHIM T0.775
23/1.	[0]	139400-2100	SHIM T0.800
23/1.	[0]	139400-2200	SHIM T0.825
23/1.	[0]	139400-2300	SHIM T0.850
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2500	SHIM T0.900
23/1.	[0]	139400-2600	SHIM T0.925
23/1.	[0]	139400-2700	SHIM T0.950
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2900	SHIM T1.000
23/1.	[0]	139400-3000	SHIM T1.025
23/1.	[0]	139400-3100	SHIM T1.050
23/1.	[0]	139400-3200	SHIM T1.075
23/1.	[0]	139400-3300	SHIM T1.100
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3500	SHIM T1.150
23/1.	[0]	139400-3600	SHIM T1.175
23/1.	[0]	139400-3700	SHIM T1.200
23/1.	[0]	139400-3800	SHIM T1.225
23/1.	[0]	139400-3900	SHIM T1.250
23/1.	[0]	139400-4000	SHIM T1.275
23/1.	[0]	139400-4100	SHIM T1.300
23/1.	[0]	139400-4200	SHIM T1.325
23/1.	[0]	139400-4300	SHIM T1.350
23/1.	[0]	139400-4400	SHIM T1.375
23/1.	[0]	139400-4500	SHIM T1.400
23/1.	[0]	139400-4600	SHIM T1.425
23/1.	[0]	139400-4700	SHIM T1.450
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4900	SHIM T1.500
23/1.	[0]	139400-5000	SHIM T1.525
23/1.	[0]	139400-5100	SHIM T1.550
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5300	SHIM T1.600
23/1.	[0]	139400-5400	SHIM T1.625
23/1.	[0]	139400-5500	SHIM T1.650
23/1.	[0]	139400-5600	SHIM T1.675
23/1.	[0]	139400-5700	SHIM T1.700
23/1.	[0]	139400-5800	SHIM T1.725
23/1.	[0]	139400-5900	SHIM T1.750
23/1.	[0]	139400-6000	SHIM T1.775
23/1.	[0]	139400-6100	SHIM T1.800
23/1.	[0]	139400-6200	SHIM T1.825
23/1.	[0]	139400-6300	SHIM T1.850
23/1.	[0]	139400-6400	SHIM T1.875
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6600	SHIM T1.925
23/1.	[0]	139400-6700	SHIM T1.950
23/1.	[0]	139400-6800	SHIM T1.975
24.	[16]	134132-0300	PLAIN WASHER
26.	[16]	013021-0040	UNION NUT M10P1.5H8
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	134258-2400	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[8]	134241-0320	CONTROL SLEEVE
43.	[8]	134216-0000	SLOTTED WASHER
44.	[8]	134215-0700	COILED SPRING
45.	[8]	134217-0500	SLOTTED WASHER
47.	[8]	134200-0420	TAPPET
47/2.	[8]	134204-0100	ROLLER
47/3.	[8]	134205-0000	BUSHING
47/4.	[8]	134203-0000	BEARING PIN
47/5.	[8]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
71.	[1]	134381-3700	CAMSHAFT
74.	[1]	134306-0600	BEARING SHELL
75.	[2]	020106-2040	BLEEDER SCREW
76.	[2]	134306-1200	BEARING SHELL
77.	[4]	020106-2040	BLEEDER SCREW
79.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
80.	[1]	134316-5120	COVER
80/2.	[1]	139634-0100	PACKING RING
80/3.	[1]	139699-0100	PACKING RING
82/1.	[0]	134314-0000	SHIM T0.1
82/1.	[0]	134314-0100	SHIM T0.12
82/1.	[0]	134314-0200	SHIM T0.14
82/1.	[0]	134314-0300	SHIM T0.16
82/1.	[0]	134314-0400	SHIM T0.18
82/1.	[0]	134314-0500	SHIM T0.3
82/1.	[0]	134314-0600	SHIM T0.5
83.	[1]	029635-5010	O-RING
85.	[1]	134043-0700	COVER
86.	[1]	134042-1500	GASKET
87.	[14]	012206-1640	FLAT-HEAD SCREW
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[8]	134047-0000	CAPSULE
98.	[1]	029470-5010	WOODRUFF KEY
118.	[1]	134496-3700	POINTER
119.	[2]	010206-1240	HEX-SOCKET-HEAD CAP SCREW
132.	[1]	134430-3120	EYE BOLT
133.	[2]	139516-0200	GASKET
147.	[1]	139810-0700	EYE BOLT
148.	[3]	139510-0300	GASKET
152.	[1]	029731-4680	EYE BOLT
153.	[2]	139514-0300	GASKET D18.6&14.2T1.6
157.	[1]	139814-0400	EYE BOLT
158.	[3]	139514-0300	GASKET D18.6&14.2T1.6
162.	[1]	029111-4120	SCREW PLUG
163.	[1]	139514-0300	GASKET D18.6&14.2T1.6
167.	[1]	134424-0820	OVER FLOW VALVE
168.	[3]	139514-0300	GASKET D18.6&14.2T1.6
250.	[1]	134311-0420	PLATE
250/2.	[1]	139642-0100	PACKING RING
251.	[4]	139006-3101	BLEEDER SCREW
252.	[4]	016430-0070	BACKUP RING
253.	[4]	016500-0750	O-RING
254.	[1]	134400-1100	ADAPTOR
260.	[1]	029731-4680	EYE BOLT
261.	[2]	139514-0300	GASKET D18.6&14.2T1.6

Include in #1:

106871-8380 as FUEL INJECTION PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

106087-7351

9 410 612 193
NP-PE8P120/321RS3S

FUEL-INJECTION PUMP
