106087-5650 ZEXEL 9 410 611 154 BOSCH FUEL-INJECTION PUMP 9410611154 1060875650 221002350a




Information fuel-injection pump

BOSCH 9 410 611 154 9410611154
ZEXEL 106087-5650 1060875650
HINO 221002350A 221002350a
106087-5650 FUEL-INJECTION PUMP
Rating:
44
Buy FUEL-INJECTION PUMP 106087-5650 zexel genuine, new aftermarket engine parts with delivery

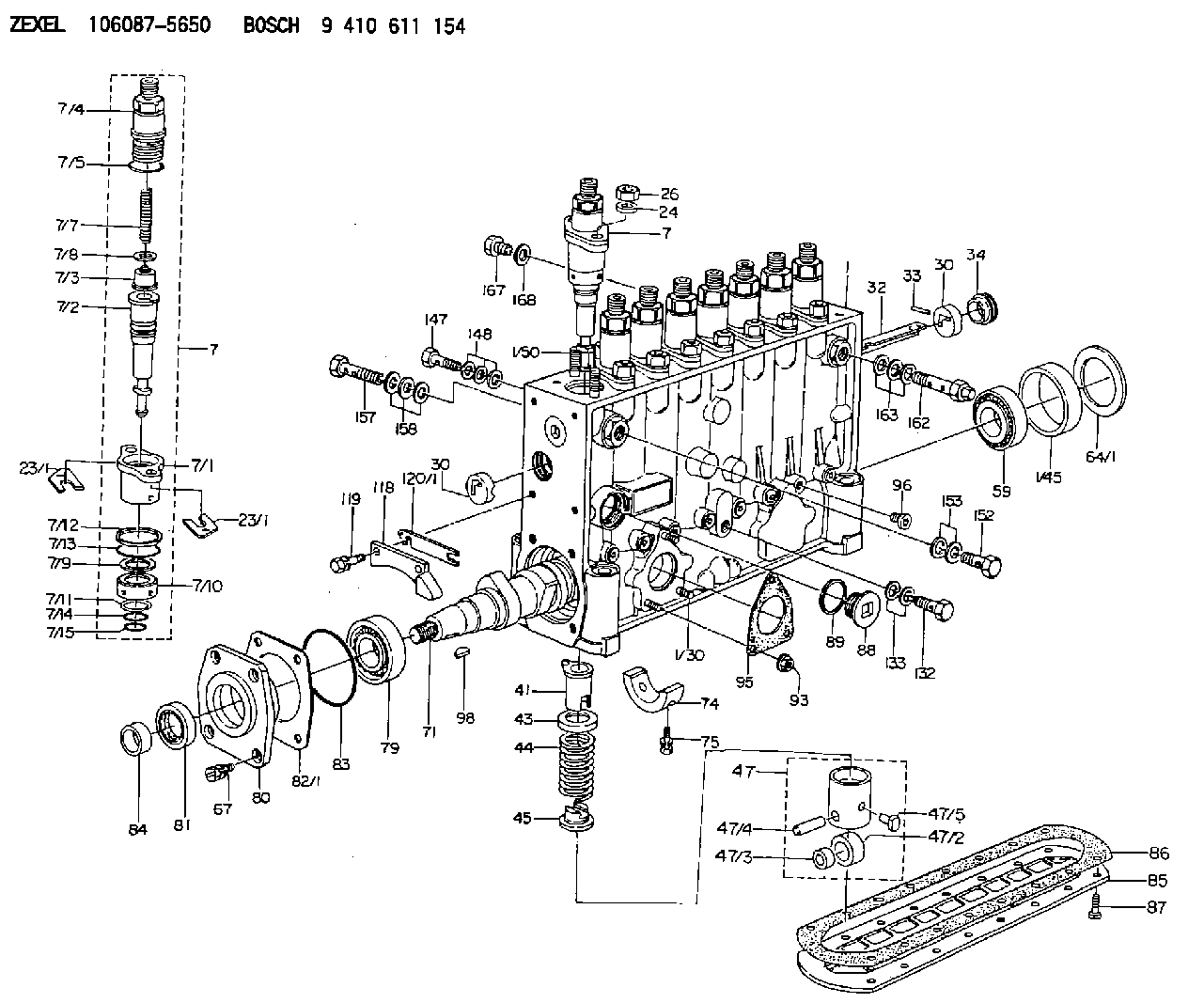

Scheme ###:

PUMP HOUSING
1. [1] 134050-8020 PUMP HOUSING
1/30. [3] 029040-6020 STUD
1/45. [1] 134311-0000 SPACER RING
1/50. [16] 134138-0000 STUD
7. [8] 134143-3920 PLUNGER-AND-BARREL ASSY
7. [8] 134143-3920 PLUNGER-AND-BARREL ASSY
7/1. [8] 134131-1020 FLANGE BUSHING
7/2. [8] 134151-1120 PLUNGER-AND-BARREL ASSY
7/3. [8] 134110-7020 DELIVERY-VALVE ASSEMBLY
7/4. [8] 134116-3821 FITTING
7/5. [8] 029632-2070 O-RING
7/7. [8] 134112-0500 COMPRESSION SPRING
7/8. [8] 134115-0100 GASKET
7/9. [8] 029302-0140 PLAIN WASHER
7/10. [8] 134135-0200 CAPSULE
7/11. [8] 029602-0010 LOCKING WASHER
7/12. [8] 134137-0100 SPACER RING
7/13. [8] 029632-9030 O-RING
7/14. [8] 029631-5020 O-RING
7/15. [8] 029631-5020 O-RING
23/1. [0] 139400-0900 SHIM T0.500
23/1. [0] 139400-1000 SHIM T0.525
23/1. [0] 139400-1100 SHIM T0.550
23/1. [0] 139400-1200 SHIM T0.575
23/1. [0] 139400-1300 SHIM T0.600
23/1. [0] 139400-1400 SHIM T0.625
23/1. [0] 139400-1500 SHIM T0.650
23/1. [0] 139400-1600 SHIM T0.675
23/1. [0] 139400-1700 SHIM T0.700
23/1. [0] 139400-1800 SHIM T0.725
23/1. [0] 139400-1900 SHIM T0.750
23/1. [0] 139400-2000 SHIM T0.775
23/1. [0] 139400-2100 SHIM T0.800
23/1. [0] 139400-2200 SHIM T0.825
23/1. [0] 139400-2300 SHIM T0.850
23/1. [0] 139400-2400 SHIM T0.875
23/1. [0] 139400-2500 SHIM T0.900
23/1. [0] 139400-2600 SHIM T0.925
23/1. [0] 139400-2700 SHIM T0.950
23/1. [0] 139400-2800 SHIM T0.975
23/1. [0] 139400-2800 SHIM T0.975
23/1. [0] 139400-2900 SHIM T1.000
23/1. [0] 139400-3000 SHIM T1.025
23/1. [0] 139400-3100 SHIM T1.050
23/1. [0] 139400-3200 SHIM T1.075
23/1. [0] 139400-3300 SHIM T1.100
23/1. [0] 139400-3400 SHIM T1.125
23/1. [0] 139400-3500 SHIM T1.150
23/1. [0] 139400-3600 SHIM T1.175
23/1. [0] 139400-3700 SHIM T1.200
23/1. [0] 139400-3800 SHIM T1.225
23/1. [0] 139400-3900 SHIM T1.250
23/1. [0] 139400-4000 SHIM T1.275
23/1. [0] 139400-4100 SHIM T1.300
23/1. [0] 139400-4200 SHIM T1.325
23/1. [0] 139400-4300 SHIM T1.350
23/1. [0] 139400-4400 SHIM T1.375
23/1. [0] 139400-4500 SHIM T1.400
23/1. [0] 139400-4600 SHIM T1.425
23/1. [0] 139400-4700 SHIM T1.450
23/1. [0] 139400-4800 SHIM T1.475
23/1. [0] 139400-4900 SHIM T1.500
23/1. [0] 139400-5000 SHIM T1.525
23/1. [0] 139400-5100 SHIM T1.550
23/1. [0] 139400-5200 SHIM T1.575
23/1. [0] 139400-5300 SHIM T1.600
23/1. [0] 139400-5400 SHIM T1.625
23/1. [0] 139400-5500 SHIM T1.650
23/1. [0] 139400-5600 SHIM T1.675
23/1. [0] 139400-5700 SHIM T1.700
23/1. [0] 139400-5800 SHIM T1.725
23/1. [0] 139400-5900 SHIM T1.750
23/1. [0] 139400-6000 SHIM T1.775
23/1. [0] 139400-6100 SHIM T1.800
23/1. [0] 139400-6200 SHIM T1.825
23/1. [0] 139400-6300 SHIM T1.850
23/1. [0] 139400-6400 SHIM T1.875
23/1. [0] 139400-6500 SHIM T1.900
23/1. [0] 139400-6600 SHIM T1.925
23/1. [0] 139400-6700 SHIM T1.950
23/1. [0] 139400-6800 SHIM T1.975
24. [16] 134132-0300 PLAIN WASHER D20&11T2.5
26. [16] 013021-0040 UNION NUT M10P1.5H8
30. [2] 134001-0000 BUSHING
30. [2] 134001-0000 BUSHING
32. [1] 134258-0100 CONTROL RACK
33. [1] 024030-2030 BEARING PIN
34. [1] 134222-0000 BUSHING
41. [8] 134241-0320 CONTROL SLEEVE
43. [8] 134216-0000 SLOTTED WASHER
44. [8] 134215-0700 COILED SPRING
45. [8] 134217-0500 SLOTTED WASHER
47. [8] 134200-0420 TAPPET
47/2. [1] 134204-0100 ROLLER
47/3. [1] 134205-0000 BUSHING
47/4. [1] 134203-0000 BEARING PIN
47/5. [1] 131206-0500 SLIDER
59. [1] 016650-2230 BEARING PLATE
64/1. [0] 134303-0000 SHIM D59.8&43T1.2
64/1. [0] 134303-0100 SHIM D59.8&43T1.5
64/1. [0] 134303-0200 SHIM D59.8&43T1.8
64/1. [0] 134303-0300 SHIM D59.8&43T2.0
64/1. [0] 134303-0400 SHIM D59.8&43T0.6
67. [4] 029010-6810 BLEEDER SCREW
71. [1] 134381-4600 CAMSHAFT
74. [1] 134306-0300 BEARING SHELL
75. [2] 020106-2040 BLEEDER SCREW M6P1L20
79. [1] 016650-2230 BEARING PLATE
80. [1] 134316-1700 COVER
81. [1] 139625-0000 PACKING RING
82/1. [0] 134314-0000 SHIM T0.1
82/1. [0] 134314-0100 SHIM T0.12
82/1. [0] 134314-0200 SHIM T0.14
82/1. [0] 134314-0300 SHIM T0.16
82/1. [0] 134314-0400 SHIM T0.18
82/1. [0] 134314-0500 SHIM T0.3
82/1. [0] 134314-0600 SHIM T0.5
83. [1] 029635-5010 O-RING
84. [1] 134563-0900 SLIDING PIECE
85. [1] 134043-0700 COVER
86. [1] 134042-1500 GASKET
87. [14] 012206-1640 FLAT-HEAD SCREW M6P1L16
88. [1] 134045-0100 CAPSULE
89. [1] 026524-2940 GASKET D28.9&24.3T2
93. [3] 139206-0400 UNION NUT
95. [1] 131041-0800 GASKET
96. [8] 134047-0000 CAPSULE
98. [1] 025805-1910 WOODRUFF KEY
118. [1] 134496-2000 POINTER
119. [2] 029020-6210 BLEEDER SCREW
120/1. [0] 139400-0100 SHIM T0.2
120/1. [0] 139400-0200 SHIM T0.3
120/1. [0] 139400-0300 SHIM T0.5
120/1. [0] 139400-0400 SHIM T1.0
120/1. [0] 139400-7200 SHIM T0.1
132. [1] 134430-3120 EYE BOLT
133. [2] 139516-0200 GASKET
147. [1] 139810-0700 EYE BOLT
148. [3] 139510-0300 GASKET
152. [1] 029731-4680 EYE BOLT
153. [2] 139514-0300 GASKET
157. [1] 139814-0400 EYE BOLT
158. [3] 139514-0300 GASKET
162. [1] 134424-0820 OVER FLOW VALVE
163. [3] 139514-0300 GASKET
167. [1] 029111-4120 SCREW PLUG M14P1.5L13
168. [1] 139514-0300 GASKET

Include in #1:

106871-3600 as FUEL INJECTION PUMP
106871-3601
106871-3602
106871-3612
106871-3622
106871-8830

Cross reference number

Zexel num
Bosch num
Firm num
Name
106087-5650
9 410 611 154
NP-PE8P120/321RS3S
221002350A  HINO
FUEL-INJECTION PUMP
Q




Information:


Use of Cat Diesel Fuel System Cleaner or Cat Diesel Fuel System Conditioner does not lessen the responsibility of the engine owner and/or responsibility of the fuel supplier to follow all industry standard maintenance practices for fuel storage and for fuel handling. Refer to the “General Fuel Information” article in this Special Publication for additional information. Additionally, use of Cat Diesel Fuel System Cleaner or Cat Diesel Fuel System Conditioner does NOT lessen the responsibility of the owner of the engine to use appropriate diesel fuel. Refer to the “Fuel Specifications” section in this Special Publication (Maintenance Section) for guidance.
Cat strongly recommends the use of Cat Diesel Fuel Conditioner with biodiesel and biodiesel blends. Cat Diesel Fuel Conditioner is suitable for use with biodiesel/biodiesel blends that meet Cat biodiesel recommendations and requirements. Not all fuel additives are suitable for use with biodiesel/biodiesel blends. Read and follow all applicable label usage instructions. Also, refer to this Special Publication, "Distillate Diesel Fuel" article and also refer to the “Biodiesel” article, which includes Cat biodiesel recommendations and requirements.Cat Diesel Fuel Conditioner has proven to be compatible with existing and U.S. EPA 2007 on-highway certified diesel engine emission control catalysts and particulate filters.Note: When used as directed, Cat Diesel Fuel Conditioner will not raise fuel sulfur levels measurably in the final fuel/additive blend. In the U.S. the current formulation of Cat Diesel Fuel Conditioner must be blended in at the recommended treat-rate at the fuel supplier/distributor level for use in on-highway or other applications where use of ULSD fuel is mandated (15 ppm or less fuel sulfur). Follow all applicable national, regional, and local laws, mandates, and regulations concerning the use of diesel fuel conditioners/additives.
When used as directed Cat Diesel Fuel Conditioner will not raise fuel sulfur levels measurably in the final fuel/additive blend. Follow all applicable national, regional, and local laws, mandates, and regulations concerning the use of diesel fuel conditioners/additives.
Cat Diesel Fuel System Cleaner
Note: Cat Diesel Fuel System Cleaner, part number 343-6210, is the only fuel system cleaner available to the end user that is tested and approved by Cat for use in Cat diesel engines.Cat Diesel Fuel System Cleaner is a proven high performance detergent product designed for cleaning deposits that form in the fuel system. Deposits in the fuel system reduce system performance and can increase fuel consumption. Cat Diesel Fuel System Cleaner addresses the deposits formed due to the use of degraded diesel fuel, poor quality diesel fuel, and diesel fuel containing high quantities of high molecular weight compounds. Cat Diesel Fuel System Cleaner addresses deposits formed due to the use of biodiesel, biodiesel blends, and biodiesel that does not meet the appropriate quality specifications. Continued use of Cat Diesel Fuel System Cleaner is proven to inhibit the growth of new deposits.Cat Diesel Fuel System Cleaner can be added directly to diesel fuel, biodiesel, or biodiesel blends. Cat Diesel Fuel System Cleaner is a United States Environmental Protection Agency registered fuel additive that can be used with

Have questions with 106087-5650?





Group cross 106087-5650 ZEXEL

Mitsubishi

106087-5600
9 410 610 386
NP-PE8P120/721RS3000NP182
ME717125
FUEL-INJECTION PUMP
106087-5630
9 410 614 369
ME717168
FUEL-INJECTION PUMP

Hino

106087-5650
9 410 611 154
NP-PE8P120/321RS3S
221002350A
FUEL-INJECTION PUMP
106087-5660
9 410 612 861
221002380A
FUEL-INJECTION PUMP
106087-5670
9 410 612 862
NP-PE8P120/321RS3000
221002440A
FUEL-INJECTION PUMP
106087-5680

221002520A
FUEL-INJECTION PUMP
