106087-5372 ZEXEL 9 410 614 044 BOSCH FUEL-INJECTION PUMP 9410614044 1060875372

Information fuel-injection pump

BOSCH 9 410 614 044 9410614044

ZEXEL 106087-5372 1060875372

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106087-5372 zexel genuine, new aftermarket engine parts with delivery

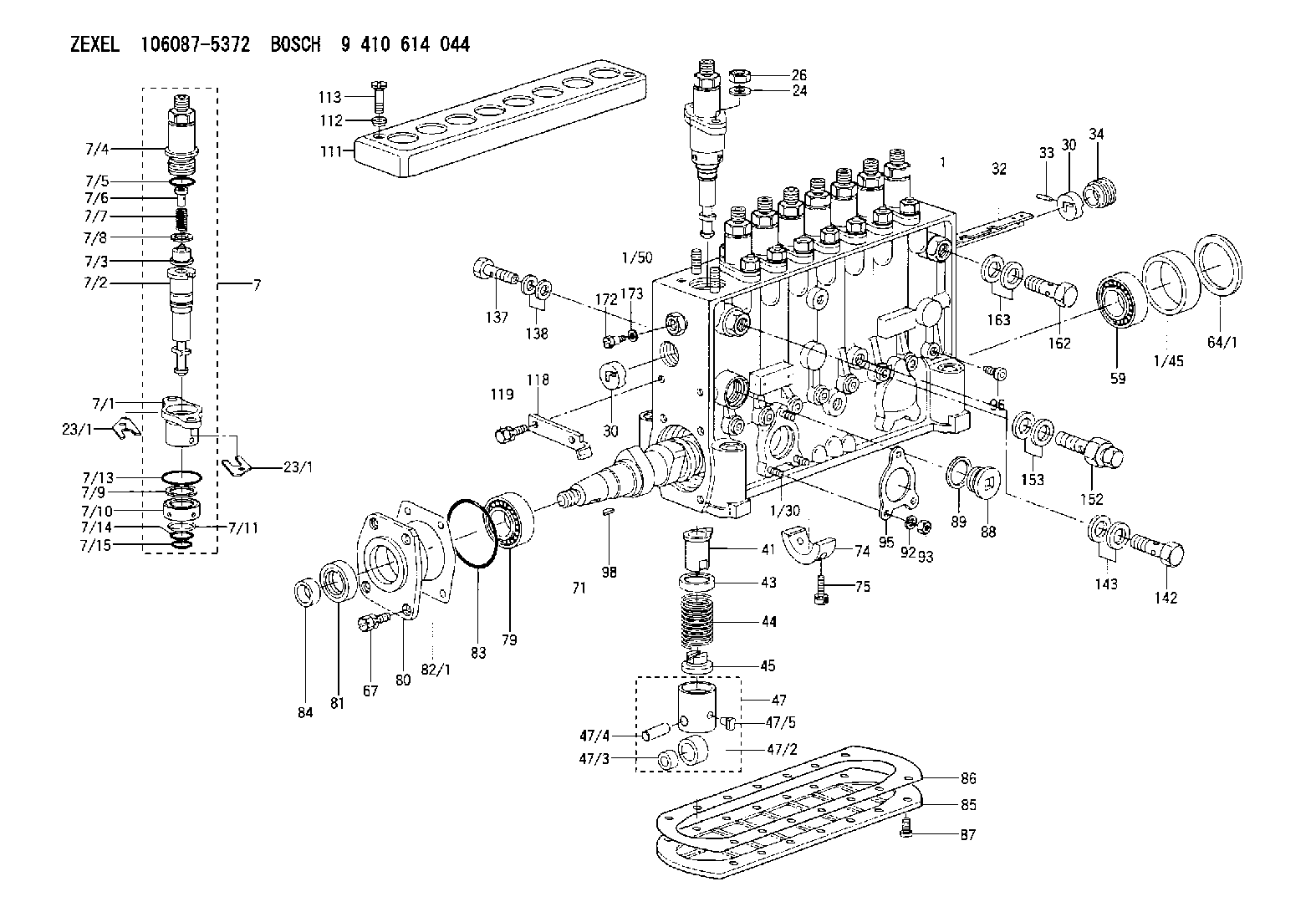

Scheme ###:

1.	[1]	134050-2821	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[16]	134138-0000	STUD
7.	[8]	134145-3320	PLUNGER-AND-BARREL ASSY
7/1.	[1]	134131-1920	FLANGE BUSHING
7/2.	[1]	134101-4520	PLUNGER-AND-BARREL ASSY
7/3.	[1]	134110-3820	DELIVERY-VALVE ASSEMBLY
7/4.	[1]	134116-2820	FITTING
7/5.	[1]	139722-0400	O-RING
7/6.	[1]	134117-1300	FILLER PIECE
7/7.	[1]	134112-0000	COILED SPRING
7/8.	[1]	134115-0100	GASKET
7/9.	[1]	029302-0140	PLAIN WASHER
7/10.	[1]	134135-0400	CAPSULE
7/11.	[1]	029602-0010	LOCKING WASHER
7/13.	[1]	139729-0400	O-RING
7/14.	[1]	139715-0400	O-RING
7/15.	[1]	139715-0400	O-RING
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-1000	SHIM T0.525
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1200	SHIM T0.575
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1400	SHIM T0.625
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1600	SHIM T0.675
23/1.	[0]	139400-1700	SHIM T0.700
23/1.	[0]	139400-1800	SHIM T0.725
23/1.	[0]	139400-1900	SHIM T0.750
23/1.	[0]	139400-2000	SHIM T0.775
23/1.	[0]	139400-2100	SHIM T0.800
23/1.	[0]	139400-2200	SHIM T0.825
23/1.	[0]	139400-2300	SHIM T0.850
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2500	SHIM T0.900
23/1.	[0]	139400-2600	SHIM T0.925
23/1.	[0]	139400-2700	SHIM T0.950
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2900	SHIM T1.000
23/1.	[0]	139400-3000	SHIM T1.025
23/1.	[0]	139400-3100	SHIM T1.050
23/1.	[0]	139400-3200	SHIM T1.075
23/1.	[0]	139400-3300	SHIM T1.100
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3500	SHIM T1.150
23/1.	[0]	139400-3600	SHIM T1.175
23/1.	[0]	139400-3700	SHIM T1.200
23/1.	[0]	139400-3800	SHIM T1.225
23/1.	[0]	139400-3900	SHIM T1.250
23/1.	[0]	139400-4000	SHIM T1.275
23/1.	[0]	139400-4100	SHIM T1.300
23/1.	[0]	139400-4200	SHIM T1.325
23/1.	[0]	139400-4300	SHIM T1.350
23/1.	[0]	139400-4400	SHIM T1.375
23/1.	[0]	139400-4500	SHIM T1.400
23/1.	[0]	139400-4600	SHIM T1.425
23/1.	[0]	139400-4700	SHIM T1.450
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4900	SHIM T1.500
23/1.	[0]	139400-5000	SHIM T1.525
23/1.	[0]	139400-5100	SHIM T1.550
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5300	SHIM T1.600
23/1.	[0]	139400-5400	SHIM T1.625
23/1.	[0]	139400-5500	SHIM T1.650
23/1.	[0]	139400-5600	SHIM T1.675
23/1.	[0]	139400-5700	SHIM T1.700
23/1.	[0]	139400-5800	SHIM T1.725
23/1.	[0]	139400-5900	SHIM T1.750
23/1.	[0]	139400-6000	SHIM T1.775
23/1.	[0]	139400-6100	SHIM T1.800
23/1.	[0]	139400-6200	SHIM T1.825
23/1.	[0]	139400-6300	SHIM T1.850
23/1.	[0]	139400-6400	SHIM T1.875
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6600	SHIM T1.925
23/1.	[0]	139400-6700	SHIM T1.950
23/1.	[0]	139400-6800	SHIM T1.975
24.	[16]	134132-0300	PLAIN WASHER D20&11T2.5
26.	[16]	013021-0040	UNION NUT M10P1.5H8
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	134258-2200	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[8]	134241-0021	CONTROL SLEEVE
43.	[8]	134216-0000	SLOTTED WASHER
44.	[8]	134215-0000	COMPRESSION SPRING
45.	[8]	134217-0500	SLOTTED WASHER
47.	[8]	134200-0020	TAPPET
47/2.	[1]	134204-0000	ROLLER
47/3.	[1]	134205-0000	BUSHING
47/4.	[1]	134203-0000	BEARING PIN
47/5.	[1]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
67.	[8]	029010-6810	BLEEDER SCREW
71.	[1]	134381-1700	CAMSHAFT
74.	[1]	134306-0000	BEARING SHELL
75.	[2]	020106-2040	BLEEDER SCREW M6P1L20
79.	[1]	016650-2230	BEARING PLATE
80.	[1]	134316-1700	COVER
81.	[1]	139625-0000	PACKING RING
82/1.	[0]	134314-0000	SHIM T0.1
82/1.	[0]	134314-0100	SHIM T0.12
82/1.	[0]	134314-0200	SHIM T0.14
82/1.	[0]	134314-0300	SHIM T0.16
82/1.	[0]	134314-0400	SHIM T0.18
82/1.	[0]	134314-0500	SHIM T0.3
82/1.	[0]	134314-0600	SHIM T0.5
83.	[1]	029635-5010	O-RING
84.	[1]	134563-0900	SLIDING PIECE
85.	[1]	134043-0700	COVER
86.	[1]	134042-1500	GASKET
87.	[14]	012206-1640	FLAT-HEAD SCREW M6P1L16
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET D28.9&24.3T2
92.	[3]	014110-6440	LOCKING WASHER
93.	[3]	013020-6040	UNION NUT M6P1H5
95.	[2]	131041-0800	GASKET
96.	[8]	134047-0000	CAPSULE
98.	[1]	134563-0700	WOODRUFF KEY
111.	[1]	134416-0000	COVER
112.	[2]	014530-6540	TAB WASHER
113.	[2]	021306-3010	FLAT-HEAD SCREW
118.	[1]	134496-1000	POINTER
119.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
137.	[1]	029731-4570	EYE BOLT
138.	[2]	029341-4130	GASKET D20&13.8T2*
142.	[1]	134430-0200	EYE BOLT
143.	[2]	029341-0110	GASKET
152.	[1]	133424-0221	OVER FLOW VALVE
153.	[2]	029341-4130	GASKET D20&13.8T2*
162.	[1]	029731-4570	EYE BOLT
163.	[2]	029341-4130	GASKET D20&13.8T2*
172.	[1]	131420-0400	BLEEDER SCREW
173.	[1]	026506-1040	GASKET D9.9&6.2T1

Include in #1:

106871-2062 as FUEL INJECTION PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

106087-5372

9 410 614 044
NP-PE8P120/321/4LS3000

FUEL-INJECTION PUMP
Q

Information:

Introduction
This Special Instruction addresses the issue about the amount of ash in the DPF, and whether the DPF must be cleaned. Use the following procedure in order to determine if the DPF must be cleaned.Procedure
Note: This test is not designed to determine if a DPF is clean, only to determine if the DPF must be cleaned.
Perform a crack detection test. Refer to Special Instruction, REHS5017. Go to Step 2 if the DPF passes the crack detection test. Contact the Technical Communicator, if the DPF fails the test
Use a wire with the maximum diameter of 1.04140 mm (0.041 inch). Hold the wire so that the end of the wire is just inside the cell approximately 6.35000 mm (0.25 inch).
Drop the wire into the cell of the DPF.
Mark the wire at the top of the cell where the wire exits from the DPF.
Measure the depth that the wire dropped by measuring from the mark to the bottom tip of the wire.
Record the measurement.
Illustration 1 g03021156
Top view of DPFView of locations for recording measurements (1) Weld line
Perform Steps 3 through 6 for all locations. Refer to Illustration 1 for the proper location for recording measurements.
Average the measurements and subtract the average from the length of the DPF substrate length. The DPF must be cleaned if the number is more than 6 inches. Replace the DPF if the DPF cannot be cleaned.
