106087-5301 ZEXEL 9 410 612 860 BOSCH FUEL-INJECTION PUMP 9410612860 1060875301 221002003a

Information fuel-injection pump

BOSCH 9 410 612 860 9410612860

ZEXEL 106087-5301 1060875301

HINO 221002003A 221002003a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106087-5301 zexel genuine, new aftermarket engine parts with delivery

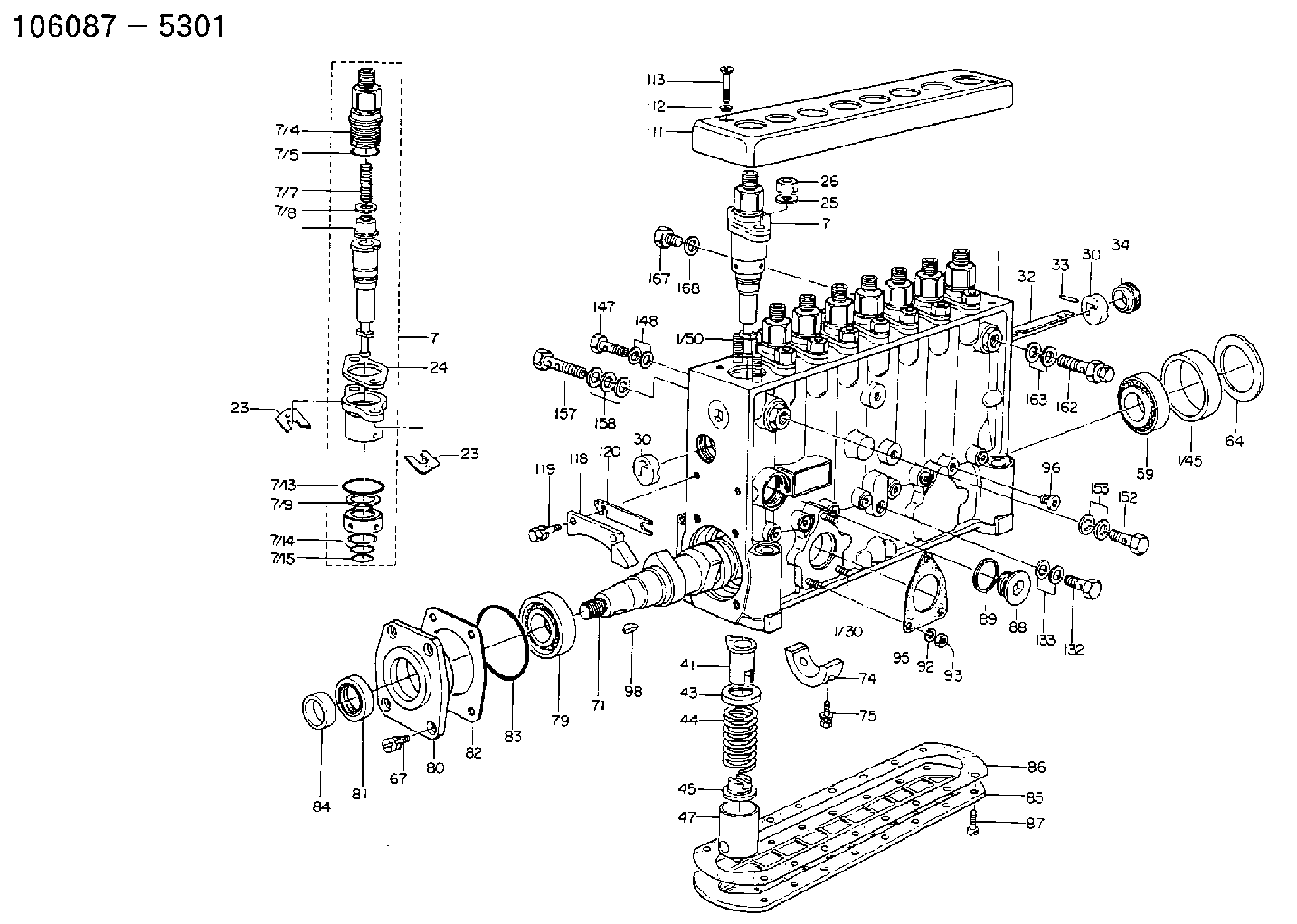

Scheme ###:

1.	[1]	134050-1721	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[16]	134138-0000	STUD
7.	[8]	134142-8520	PLUNGER-AND-BARREL ASSY
7.	[8]	134142-8520	PLUNGER-AND-BARREL ASSY
7/1.	[8]	134131-0520	FLANGE BUSHING
7/2.	[8]	134101-4420	PLUNGER-AND-BARREL ASSY
7/3.	[8]	134110-2120	DELIVERY-VALVE ASSEMBLY
7/3.	[8]	134110-2120	DELIVERY-VALVE ASSEMBLY
7/4.	[8]	134116-3120	FITTING
7/5.	[8]	029632-2070	O-RING
7/7.	[8]	134112-0500	COMPRESSION SPRING
7/8.	[8]	134115-0100	GASKET
7/9.	[8]	029302-0140	PLAIN WASHER
7/10.	[8]	134135-0200	CAPSULE
7/11.	[8]	029602-0010	LOCKING WASHER
7/12.	[8]	134137-0100	SPACER RING
7/13.	[8]	029632-9030	O-RING
7/14.	[8]	029631-5020	O-RING
7/15.	[8]	029631-5020	O-RING
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-1000	SHIM T0.525
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1200	SHIM T0.575
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1400	SHIM T0.625
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1600	SHIM T0.675
23/1.	[0]	139400-1700	SHIM T0.700
23/1.	[0]	139400-1800	SHIM T0.725
23/1.	[0]	139400-1900	SHIM T0.750
23/1.	[0]	139400-2000	SHIM T0.775
23/1.	[0]	139400-2100	SHIM T0.800
23/1.	[0]	139400-2200	SHIM T0.825
23/1.	[0]	139400-2300	SHIM T0.850
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2500	SHIM T0.900
23/1.	[0]	139400-2600	SHIM T0.925
23/1.	[0]	139400-2700	SHIM T0.950
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2900	SHIM T1.000
23/1.	[0]	139400-3000	SHIM T1.025
23/1.	[0]	139400-3100	SHIM T1.050
23/1.	[0]	139400-3200	SHIM T1.075
23/1.	[0]	139400-3300	SHIM T1.100
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3500	SHIM T1.150
23/1.	[0]	139400-3600	SHIM T1.175
23/1.	[0]	139400-3700	SHIM T1.200
23/1.	[0]	139400-3800	SHIM T1.225
23/1.	[0]	139400-3900	SHIM T1.250
23/1.	[0]	139400-4000	SHIM T1.275
23/1.	[0]	139400-4100	SHIM T1.300
23/1.	[0]	139400-4200	SHIM T1.325
23/1.	[0]	139400-4300	SHIM T1.350
23/1.	[0]	139400-4400	SHIM T1.375
23/1.	[0]	139400-4500	SHIM T1.400
23/1.	[0]	139400-4600	SHIM T1.425
23/1.	[0]	139400-4700	SHIM T1.450
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4900	SHIM T1.500
23/1.	[0]	139400-5000	SHIM T1.525
23/1.	[0]	139400-5100	SHIM T1.550
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5300	SHIM T1.600
23/1.	[0]	139400-5400	SHIM T1.625
23/1.	[0]	139400-5500	SHIM T1.650
23/1.	[0]	139400-5600	SHIM T1.675
23/1.	[0]	139400-5700	SHIM T1.700
23/1.	[0]	139400-5800	SHIM T1.725
23/1.	[0]	139400-5900	SHIM T1.750
23/1.	[0]	139400-6000	SHIM T1.775
23/1.	[0]	139400-6100	SHIM T1.800
23/1.	[0]	139400-6200	SHIM T1.825
23/1.	[0]	139400-6300	SHIM T1.850
23/1.	[0]	139400-6400	SHIM T1.875
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6600	SHIM T1.925
23/1.	[0]	139400-6700	SHIM T1.950
23/1.	[0]	139400-6800	SHIM T1.975
24.	[8]	134132-0100	PLAIN WASHER
26.	[16]	013021-0040	UNION NUT M10P1.5H8
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	134258-0100	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[8]	134241-0021	CONTROL SLEEVE
43.	[8]	134216-0000	SLOTTED WASHER
44.	[8]	134215-0400	COMPRESSION SPRING
45.	[8]	134217-0500	SLOTTED WASHER
47.	[8]	134200-0020	TAPPET
47/2.	[1]	134204-0000	ROLLER
47/3.	[1]	134205-0000	BUSHING
47/4.	[1]	134203-0000	BEARING PIN
47/5.	[1]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
67.	[4]	029010-6810	BLEEDER SCREW
71.	[1]	134381-1900	CAMSHAFT
74.	[1]	134306-0000	BEARING SHELL
75.	[2]	020106-2040	BLEEDER SCREW M6P1L20
79.	[1]	016650-2230	BEARING PLATE
80.	[1]	134316-1700	COVER
81.	[1]	139625-0000	PACKING RING
82/1.	[0]	134314-0000	SHIM T0.1
82/1.	[0]	134314-0100	SHIM T0.12
82/1.	[0]	134314-0200	SHIM T0.14
82/1.	[0]	134314-0300	SHIM T0.16
82/1.	[0]	134314-0400	SHIM T0.18
82/1.	[0]	134314-0500	SHIM T0.3
82/1.	[0]	134314-0600	SHIM T0.5
83.	[1]	029635-5010	O-RING
84.	[1]	134563-0900	SLIDING PIECE
85.	[1]	134043-0700	COVER
86.	[1]	134042-1500	GASKET
87.	[14]	012206-1640	FLAT-HEAD SCREW M6P1L16
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET D28.9&24.3T2
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[8]	134047-0000	CAPSULE
98.	[1]	025805-1910	WOODRUFF KEY
111.	[1]	134416-0720	COVER
112.	[2]	014530-6540	TAB WASHER
113.	[2]	021306-3010	FLAT-HEAD SCREW
118.	[1]	134496-1300	POINTER
119.	[2]	029020-6210	BLEEDER SCREW
120/1.	[0]	139400-0100	SHIM T0.2
120/1.	[0]	139400-0200	SHIM T0.3
120/1.	[0]	139400-0300	SHIM T0.5
120/1.	[0]	139400-0400	SHIM T1.0
120/1.	[0]	139400-7200	SHIM T0.1
132.	[1]	134430-3120	EYE BOLT
133.	[2]	139516-0000	GASKET
147.	[1]	139810-0700	EYE BOLT
148.	[3]	139510-0100	GASKET
152.	[1]	029731-4680	EYE BOLT
153.	[2]	139514-0100	GASKET
157.	[1]	139814-0400	EYE BOLT
158.	[3]	139514-0100	GASKET
162.	[1]	134424-1020	OVER FLOW VALVE
163.	[2]	139514-0100	GASKET
167.	[1]	029111-4120	SCREW PLUG M14P1.5L13
168.	[1]	139514-0100	GASKET

Include in #1:

106871-3421 as FUEL INJECTION PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

106087-5301
106087-5302

9 410 612 860

221002003A HINO

FUEL-INJECTION PUMP
* Q

Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
Elevated sodium in the oil samples.Solution
If the source of the sodium cannot be isolated via other normal testing of individual components (water pumps, oil coolers, and so on), then complete the following procedure:
Shut down the engine and allow system to cool.
Flip the ground level shutdown switch on the truck front bumper and leave the switch engaged. This action disables the fuel injection.
Verify that the engine will crank but the engine does NOT start.
Pull the last exhaust manifold from each bank of the engine.
Pressurize the truck cooling system, refer to Testing and Adjusting, KENR5397 for additional information.
Hold pressure on the cooling system for no more than 10 minutes for the first test. If the leak is bad, holding the pressure too long could risk hydraulic lock.
Illustration 1 g06059950
While cranking the engine, shine a light up into the exhaust manifolds and look for cylinders that are puffing steam and white smoke.
Verify any leaks by pulling the exhaust thermocouple port from the exhaust runner on that cylinder. Check for signs of moisture/steaming in that exhaust runner.
Repair any leaking injector sleeve by replacing the head.
