106086-5760 ZEXEL 9 410 614 053 BOSCH FUEL-INJECTION PUMP 9410614053 1060865760 me756444

Information fuel-injection pump

BOSCH 9 410 614 053 9410614053

ZEXEL 106086-5760 1060865760

MITSUBISHI ME756444 me756444

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106086-5760 zexel genuine, new aftermarket engine parts with delivery

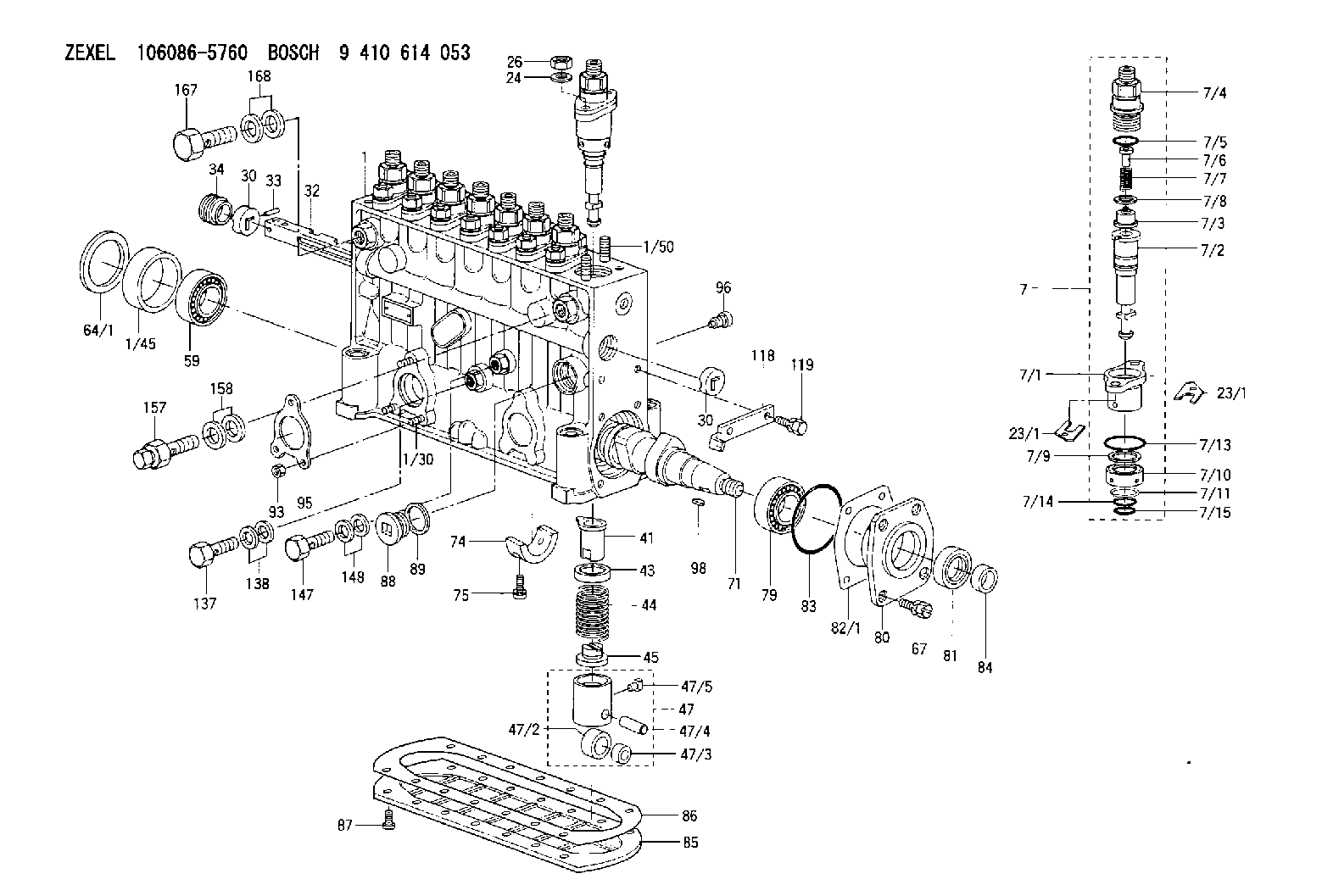

Scheme ###:

1.	[1]	134064-1620	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[16]	134138-0000	STUD
7.	[8]	134166-8820	PLUNGER-AND-BARREL ASSY
7/1.	[1]	134131-1920	FLANGE BUSHING
7/2.	[1]	134154-3320	PLUNGER-AND-BARREL ASSY
7/3.	[1]	134110-5020	DELIVERY-VALVE ASSEMBLY
7/4.	[1]	134116-2400	FITTING
7/5.	[1]	139722-0400	O-RING
7/6.	[1]	134117-1400	FILLER PIECE
7/7.	[1]	134112-1500	COILED SPRING
7/8.	[1]	134115-0100	GASKET
7/9.	[1]	029302-0140	PLAIN WASHER
7/10.	[1]	134135-0400	CAPSULE
7/11.	[1]	029602-0010	LOCKING WASHER
7/13.	[1]	139729-0400	O-RING
7/14.	[1]	139715-0400	O-RING
7/15.	[1]	139715-0400	O-RING
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-1000	SHIM T0.525
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1200	SHIM T0.575
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1400	SHIM T0.625
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1600	SHIM T0.675
23/1.	[0]	139400-1700	SHIM T0.700
23/1.	[0]	139400-1800	SHIM T0.725
23/1.	[0]	139400-1900	SHIM T0.750
23/1.	[0]	139400-2000	SHIM T0.775
23/1.	[0]	139400-2100	SHIM T0.800
23/1.	[0]	139400-2200	SHIM T0.825
23/1.	[0]	139400-2300	SHIM T0.850
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2500	SHIM T0.900
23/1.	[0]	139400-2600	SHIM T0.925
23/1.	[0]	139400-2700	SHIM T0.950
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2900	SHIM T1.000
23/1.	[0]	139400-3000	SHIM T1.025
23/1.	[0]	139400-3100	SHIM T1.050
23/1.	[0]	139400-3200	SHIM T1.075
23/1.	[0]	139400-3300	SHIM T1.100
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3500	SHIM T1.150
23/1.	[0]	139400-3600	SHIM T1.175
23/1.	[0]	139400-3700	SHIM T1.200
23/1.	[0]	139400-3800	SHIM T1.225
23/1.	[0]	139400-3900	SHIM T1.250
23/1.	[0]	139400-4000	SHIM T1.275
23/1.	[0]	139400-4100	SHIM T1.300
23/1.	[0]	139400-4200	SHIM T1.325
23/1.	[0]	139400-4300	SHIM T1.350
23/1.	[0]	139400-4400	SHIM T1.375
23/1.	[0]	139400-4500	SHIM T1.400
23/1.	[0]	139400-4600	SHIM T1.425
23/1.	[0]	139400-4700	SHIM T1.450
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4900	SHIM T1.500
23/1.	[0]	139400-5000	SHIM T1.525
23/1.	[0]	139400-5100	SHIM T1.550
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5300	SHIM T1.600
23/1.	[0]	139400-5400	SHIM T1.625
23/1.	[0]	139400-5500	SHIM T1.650
23/1.	[0]	139400-5600	SHIM T1.675
23/1.	[0]	139400-5700	SHIM T1.700
23/1.	[0]	139400-5800	SHIM T1.725
23/1.	[0]	139400-5900	SHIM T1.750
23/1.	[0]	139400-6000	SHIM T1.775
23/1.	[0]	139400-6100	SHIM T1.800
23/1.	[0]	139400-6200	SHIM T1.825
23/1.	[0]	139400-6300	SHIM T1.850
23/1.	[0]	139400-6400	SHIM T1.875
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6600	SHIM T1.925
23/1.	[0]	139400-6700	SHIM T1.950
23/1.	[0]	139400-6800	SHIM T1.975
24.	[16]	134132-0300	PLAIN WASHER D20&11T2.5
26.	[16]	013021-0040	UNION NUT M10P1.5H8
30.	[2]	134001-0800	BUSHING
30.	[2]	134001-0800	BUSHING
32.	[1]	134258-2600	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[8]	134241-0021	CONTROL SLEEVE
43.	[8]	134216-0000	SLOTTED WASHER
44.	[8]	134215-0400	COMPRESSION SPRING
45.	[8]	134217-0500	SLOTTED WASHER
47.	[8]	134200-0020	TAPPET
47/2.	[1]	134204-0000	ROLLER
47/3.	[1]	134205-0000	BUSHING
47/4.	[1]	134203-0000	BEARING PIN
47/5.	[1]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
67.	[4]	029010-6810	BLEEDER SCREW
71.	[1]	134381-1800	CAMSHAFT
74.	[1]	134306-0100	BEARING SHELL
75.	[2]	020106-2040	BLEEDER SCREW M6P1L20
79.	[1]	016650-2230	BEARING PLATE
80.	[1]	134316-1700	COVER
81.	[1]	139625-0000	PACKING RING
82/1.	[0]	134314-0000	SHIM T0.1
82/1.	[0]	134314-0100	SHIM T0.12
82/1.	[0]	134314-0200	SHIM T0.14
82/1.	[0]	134314-0300	SHIM T0.16
82/1.	[0]	134314-0400	SHIM T0.18
82/1.	[0]	134314-0500	SHIM T0.3
82/1.	[0]	134314-0600	SHIM T0.5
83.	[1]	029635-5010	O-RING
84.	[1]	134563-0900	SLIDING PIECE
85.	[1]	134043-0700	COVER
86.	[1]	134042-1500	GASKET
87.	[14]	012206-1640	FLAT-HEAD SCREW M6P1L16
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET D28.9&24.3T2
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[8]	134047-0000	CAPSULE
98.	[1]	025805-1910	WOODRUFF KEY
118.	[1]	134496-2800	POINTER
119.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
137.	[1]	134430-2620	EYE BOLT
138.	[2]	026514-1840	GASKET D17.9&14.2T1
147.	[1]	029731-0120	EYE BOLT
148.	[2]	026510-1340	GASKET D13.4&10.2T1
157.	[1]	131424-8020	OVER FLOW VALVE
158.	[2]	029341-4130	GASKET D20&13.8T2*
167.	[1]	029731-4680	EYE BOLT
168.	[2]	029341-4130	GASKET D20&13.8T2*

Include in #1:

106861-2660 as FUEL INJECTION PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

106086-5760

9 410 614 053
NP-PE8P110/721RS3000

ME756444 MITSUBISHI

FUEL-INJECTION PUMP
Q

Information:

Illustration 1 g01096972
Hand priming pump (1) Air purge screw (2) Fuel pressure regulating valve
Open air purge screw (1) for the fuel filter by three full turns. Do not remove the air purge screw.
Do not crank the engine continuously for more than 30 seconds. Allow the starting motor to cool for two minutes before cranking the engine again.
Start the engine. The engine should start and the engine should run smoothly. If the engine does not start after 30 seconds, allow the starting motor to cool for two minutes before attempting to start the engine again.Note: You may use the hand priming pump for the fuel filter (if equipped) instead of starting the engine and running the engine.
While the engine is running, observe air purge screw (1). When a small drop of fuel appears at the threads of the air purge screw, close and tighten air purge screw (1) .Note: There may be a noticeable change in the sound of the running engine when the air purge screw is tightened. The change in the sound of the engine is normal.Note: Failure to tighten all fittings could result in serious fuel leaks.
Clean any residual fuel from the engine components.The Engine Has Been Run Out of Fuel
Use a suitable container to catch any fuel that might spill. Clean up any spilled fuel immediately.
Do not allow dirt to enter the fuel system. Thoroughly clean the area around a fuel system component that will be
