106086-5291 ZEXEL 9 410 613 861 BOSCH FUEL-INJECTION PUMP 9410613861 1060865291 1671197515




Information fuel-injection pump

BOSCH 9 410 613 861 9410613861
ZEXEL 106086-5291 1060865291
NISSAN-DIESEL 1671197515 1671197515
106086-5291 FUEL-INJECTION PUMP
Rating:
22
Buy FUEL-INJECTION PUMP 106086-5291 zexel genuine, new aftermarket engine parts with delivery

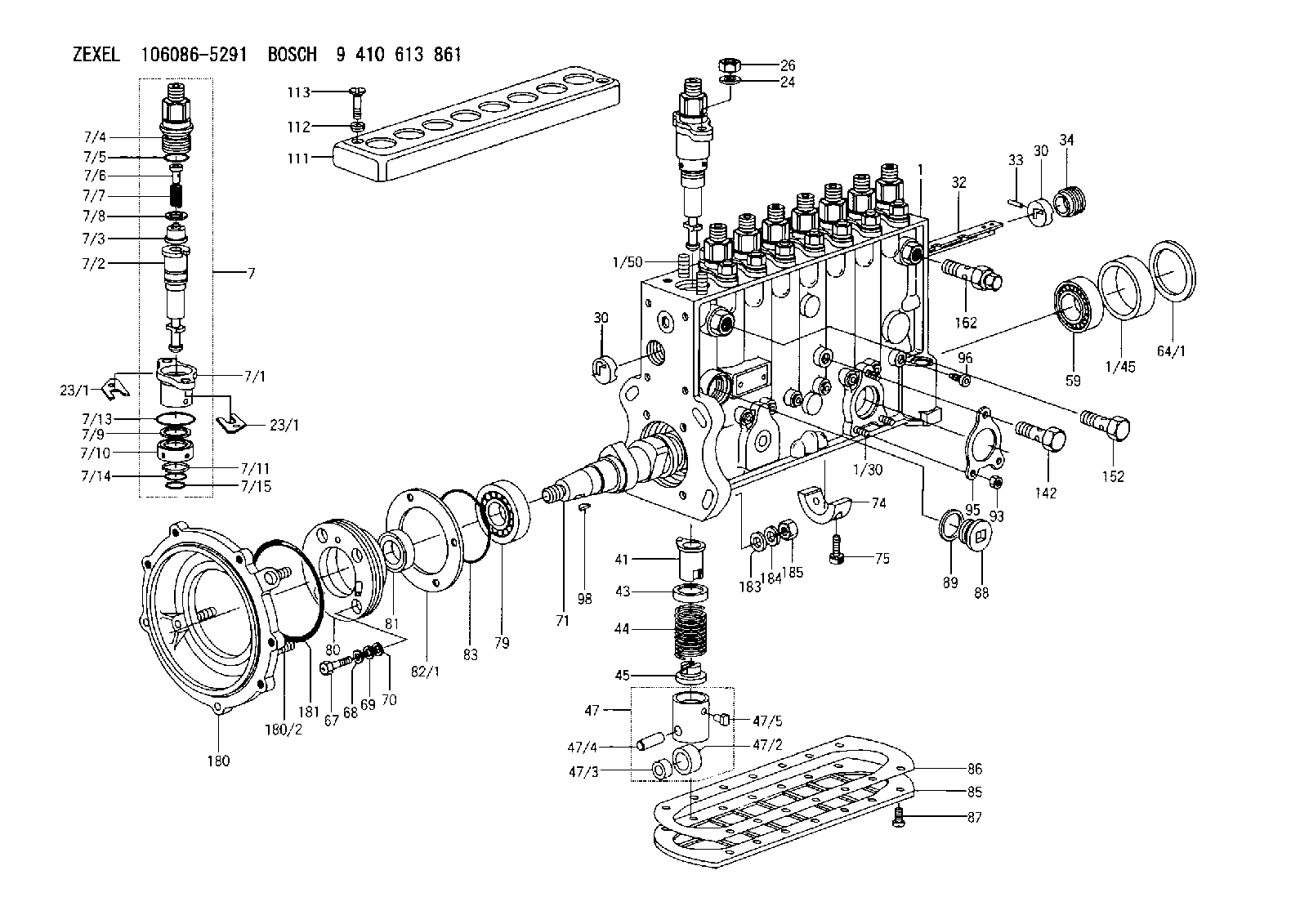

Scheme ###:

1. [1] 134000-3421 PUMP HOUSING
1/30. [3] 029040-6020 STUD
1/45. [1] 134311-0000 SPACER RING
1/50. [16] 134138-0000 STUD
7. [8] 134144-6120 PLUNGER-AND-BARREL ASSY
7/1. [8] 134131-1920 FLANGE BUSHING
7/2. [8] 134101-4120 PLUNGER-AND-BARREL ASSY P27
7/3. [8] 134110-2020 DELIVERY-VALVE ASSEMBLY P19
7/4. [8] 134116-0700 FITTING
7/5. [8] 139722-0400 O-RING
7/6. [8] 134117-0500 FILLER PIECE
7/7. [8] 132112-0200 COILED SPRING
7/8. [8] 134115-0100 GASKET
7/9. [8] 029302-0140 PLAIN WASHER
7/10. [8] 134135-0400 CAPSULE
7/11. [8] 029602-0010 LOCKING WASHER
7/13. [8] 139729-0400 O-RING
7/14. [8] 139715-0400 O-RING
7/15. [8] 139715-0400 O-RING
23/1. [0] 139400-0900 SHIM T0.500
23/1. [0] 139400-0900 SHIM T0.500
23/1. [0] 139400-1000 SHIM T0.525
23/1. [0] 139400-1100 SHIM T0.550
23/1. [0] 139400-1200 SHIM T0.575
23/1. [0] 139400-1300 SHIM T0.600
23/1. [0] 139400-1400 SHIM T0.625
23/1. [0] 139400-1500 SHIM T0.650
23/1. [0] 139400-1600 SHIM T0.675
23/1. [0] 139400-1700 SHIM T0.700
23/1. [0] 139400-1800 SHIM T0.725
23/1. [0] 139400-1900 SHIM T0.750
23/1. [0] 139400-2000 SHIM T0.775
23/1. [0] 139400-2100 SHIM T0.800
23/1. [0] 139400-2200 SHIM T0.825
23/1. [0] 139400-2300 SHIM T0.850
23/1. [0] 139400-2400 SHIM T0.875
23/1. [0] 139400-2500 SHIM T0.900
23/1. [0] 139400-2600 SHIM T0.925
23/1. [0] 139400-2700 SHIM T0.950
23/1. [0] 139400-2800 SHIM T0.975
23/1. [0] 139400-2900 SHIM T1.000
23/1. [0] 139400-3000 SHIM T1.025
23/1. [0] 139400-3100 SHIM T1.050
23/1. [0] 139400-3200 SHIM T1.075
23/1. [0] 139400-3300 SHIM T1.100
23/1. [0] 139400-3400 SHIM T1.125
23/1. [0] 139400-3500 SHIM T1.150
23/1. [0] 139400-3600 SHIM T1.175
23/1. [0] 139400-3700 SHIM T1.200
23/1. [0] 139400-3800 SHIM T1.225
23/1. [0] 139400-3900 SHIM T1.250
23/1. [0] 139400-4000 SHIM T1.275
23/1. [0] 139400-4100 SHIM T1.300
23/1. [0] 139400-4200 SHIM T1.325
23/1. [0] 139400-4300 SHIM T1.350
23/1. [0] 139400-4400 SHIM T1.375
23/1. [0] 139400-4500 SHIM T1.400
23/1. [0] 139400-4600 SHIM T1.425
23/1. [0] 139400-4700 SHIM T1.450
23/1. [0] 139400-4800 SHIM T1.475
23/1. [0] 139400-4900 SHIM T1.500
23/1. [0] 139400-5000 SHIM T1.525
23/1. [0] 139400-5100 SHIM T1.550
23/1. [0] 139400-5200 SHIM T1.575
23/1. [0] 139400-5300 SHIM T1.600
23/1. [0] 139400-5400 SHIM T1.625
23/1. [0] 139400-5500 SHIM T1.650
23/1. [0] 139400-5600 SHIM T1.675
23/1. [0] 139400-5700 SHIM T1.700
23/1. [0] 139400-5800 SHIM T1.725
23/1. [0] 139400-5900 SHIM T1.750
23/1. [0] 139400-6000 SHIM T1.775
23/1. [0] 139400-6100 SHIM T1.800
23/1. [0] 139400-6200 SHIM T1.825
23/1. [0] 139400-6300 SHIM T1.850
23/1. [0] 139400-6400 SHIM T1.875
23/1. [0] 139400-6500 SHIM T1.900
23/1. [0] 139400-6600 SHIM T1.925
23/1. [0] 139400-6700 SHIM T1.950
23/1. [0] 139400-6800 SHIM T1.975
24. [16] 134132-0300 PLAIN WASHER
26. [16] 013021-0040 UNION NUT M10P1.5H8
30. [2] 134001-0000 BUSHING
30. [2] 134001-0000 BUSHING
32. [1] 134258-2200 CONTROL RACK
33. [1] 024030-2030 BEARING PIN
34. [1] 134222-0000 BUSHING
41. [8] 134241-0021 CONTROL SLEEVE
43. [8] 134216-0000 SLOTTED WASHER
44. [8] 134215-0300 COMPRESSION SPRING
45. [8] 134217-0500 SLOTTED WASHER
47. [8] 134200-0020 TAPPET
47/2. [8] 134204-0000 ROLLER
47/3. [8] 134205-0000 BUSHING
47/4. [8] 134203-0000 BEARING PIN
47/5. [8] 131206-0500 SLIDER
59. [1] 016650-2230 BEARING PLATE 4T-32205(NSK)
64/1. [0] 134303-0000 SHIM D59.8&43T1.2
64/1. [0] 134303-0100 SHIM D59.8&43T1.5
64/1. [0] 134303-0200 SHIM D59.8&43T1.8
64/1. [0] 134303-0300 SHIM D59.8&43T2.0
64/1. [0] 134303-0400 SHIM D59.8&43T0.6
67. [4] 134329-0000 BLEEDER SCREW
68. [4] 029320-6010 LOCKING WASHER
69. [4] 029300-6170 SHIM
70. [4] 029340-6120 GASKET
71. [1] 134381-0700 CAMSHAFT
74. [1] 134306-0000 BEARING SHELL
75. [2] 020106-2040 BLEEDER SCREW
79. [1] 016650-2230 BEARING PLATE 4T-32205(NSK)
80. [1] 134316-1120 COVER
81. [1] 026712-5010 PACKING RING
82/1. [0] 134314-0000 SHIM T0.1
82/1. [0] 134314-0100 SHIM T0.12
82/1. [0] 134314-0200 SHIM T0.14
82/1. [0] 134314-0300 SHIM T0.16
82/1. [0] 134314-0400 SHIM T0.18
82/1. [0] 134314-0500 SHIM T0.3
82/1. [0] 134314-0600 SHIM T0.5
83. [1] 029635-5010 O-RING
85. [1] 134043-0700 COVER
86. [1] 134042-1500 GASKET
87. [14] 012206-1640 FLAT-HEAD SCREW
88. [1] 134045-0100 CAPSULE
89. [1] 026524-2940 GASKET
93. [3] 139206-0400 UNION NUT
95. [1] 131041-0800 GASKET
96. [8] 134047-0000 CAPSULE
98. [1] 029470-5010 WOODRUFF KEY
111. [1] 134416-0000 COVER
112. [2] 014530-6540 TAB WASHER
113. [2] 021306-3010 FLAT-HEAD SCREW
142. [1] 029731-0490 EYE BOLT
152. [1] 029731-4680 EYE BOLT
162. [1] 132424-0620 OVER FLOW VALVE
180. [1] 134459-0120 BRACKET
180/2. [4] 029041-0300 STUD
181. [1] 029639-0020 O-RING
183. [4] 014011-0140 PLAIN WASHER
184. [4] 014111-0440 LOCKING WASHER
185. [4] 013021-0040 UNION NUT M10P1.5H8

Include in #1:

106861-0600 as FUEL INJECTION PUMP

Cross reference number

Zexel num
Bosch num
Firm num
Name
106086-5291
9 410 613 861
NP-PES8P110/521/5RS1NP65
1671197515  NISSAN-DIESEL
FUEL-INJECTION PUMP
