106080-5610 ZEXEL 9 410 612 436 BOSCH FUEL-INJECTION PUMP 9410612436 1060805610

Information fuel-injection pump

BOSCH 9 410 612 436 9410612436

ZEXEL 106080-5610 1060805610

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106080-5610 zexel genuine, new aftermarket engine parts with delivery

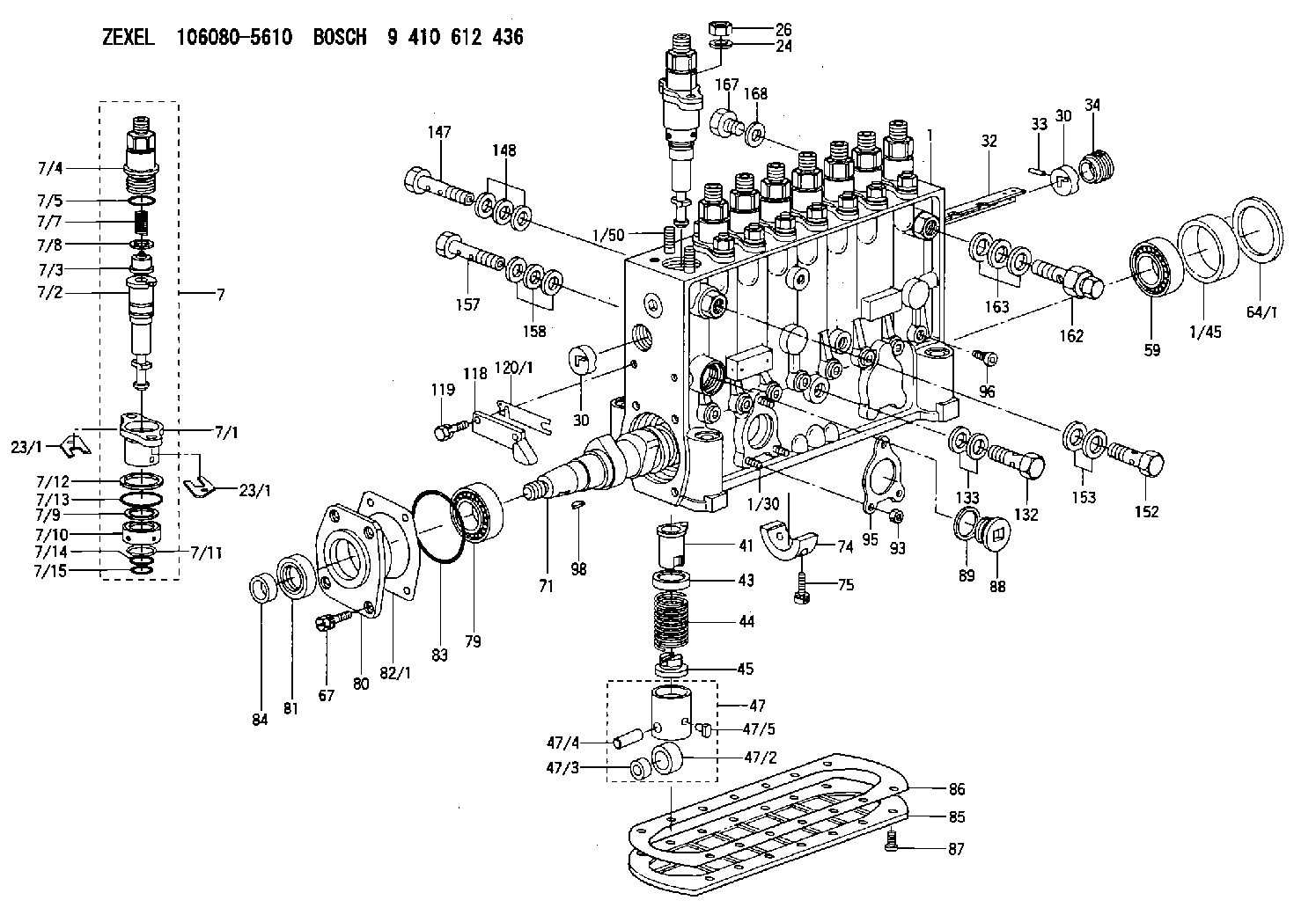

Scheme ###:

1.	[1]	134050-8020	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[16]	134138-0000	STUD
7.	[8]	134150-6120	PLUNGER-AND-BARREL ASSY
7/1.	[1]	134131-1020	FLANGE BUSHING
7/2.	[1]	134151-1120	PLUNGER-AND-BARREL ASSY
7/3.	[1]	134110-8620	DELIVERY-VALVE ASSEMBLY
7/4.	[1]	134116-5220	FITTING
7/5.	[1]	029632-2070	O-RING
7/7.	[1]	134112-0500	COMPRESSION SPRING
7/8.	[1]	134115-0100	GASKET
7/9.	[1]	029302-0140	PLAIN WASHER
7/10.	[1]	134135-0200	CAPSULE
7/11.	[1]	029602-0010	LOCKING WASHER
7/12.	[1]	134137-0100	SPACER RING
7/13.	[1]	029632-9030	O-RING
7/14.	[1]	029631-5020	O-RING
7/15.	[0]	029631-5020	O-RING
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-1000	SHIM T0.525
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1200	SHIM T0.575
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1400	SHIM T0.625
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1600	SHIM T0.675
23/1.	[0]	139400-1700	SHIM T0.700
23/1.	[0]	139400-1800	SHIM T0.725
23/1.	[0]	139400-1900	SHIM T0.750
23/1.	[0]	139400-2000	SHIM T0.775
23/1.	[0]	139400-2100	SHIM T0.800
23/1.	[0]	139400-2200	SHIM T0.825
23/1.	[0]	139400-2300	SHIM T0.850
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2500	SHIM T0.900
23/1.	[0]	139400-2600	SHIM T0.925
23/1.	[0]	139400-2700	SHIM T0.950
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2900	SHIM T1.000
23/1.	[0]	139400-3000	SHIM T1.025
23/1.	[0]	139400-3100	SHIM T1.050
23/1.	[0]	139400-3200	SHIM T1.075
23/1.	[0]	139400-3300	SHIM T1.100
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3500	SHIM T1.150
23/1.	[0]	139400-3600	SHIM T1.175
23/1.	[0]	139400-3700	SHIM T1.200
23/1.	[0]	139400-3800	SHIM T1.225
23/1.	[0]	139400-3900	SHIM T1.250
23/1.	[0]	139400-4000	SHIM T1.275
23/1.	[0]	139400-4100	SHIM T1.300
23/1.	[0]	139400-4200	SHIM T1.325
23/1.	[0]	139400-4300	SHIM T1.350
23/1.	[0]	139400-4400	SHIM T1.375
23/1.	[0]	139400-4500	SHIM T1.400
23/1.	[0]	139400-4600	SHIM T1.425
23/1.	[0]	139400-4700	SHIM T1.450
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4900	SHIM T1.500
23/1.	[0]	139400-5000	SHIM T1.525
23/1.	[0]	139400-5100	SHIM T1.550
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5300	SHIM T1.600
23/1.	[0]	139400-5400	SHIM T1.625
23/1.	[0]	139400-5500	SHIM T1.650
23/1.	[0]	139400-5600	SHIM T1.675
23/1.	[0]	139400-5700	SHIM T1.700
23/1.	[0]	139400-5800	SHIM T1.725
23/1.	[0]	139400-5900	SHIM T1.750
23/1.	[0]	139400-6000	SHIM T1.775
23/1.	[0]	139400-6100	SHIM T1.800
23/1.	[0]	139400-6200	SHIM T1.825
23/1.	[0]	139400-6300	SHIM T1.850
23/1.	[0]	139400-6400	SHIM T1.875
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6600	SHIM T1.925
23/1.	[0]	139400-6700	SHIM T1.950
23/1.	[0]	139400-6800	SHIM T1.975
24.	[16]	134132-0300	PLAIN WASHER D20&11T2.5
26.	[16]	013021-0040	UNION NUT M10P1.5H8
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	134258-0000	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[8]	134241-0320	CONTROL SLEEVE
43.	[8]	134216-0000	SLOTTED WASHER
44.	[8]	134215-0700	COILED SPRING
45.	[8]	134217-0500	SLOTTED WASHER
47.	[8]	134200-0420	TAPPET
47/2.	[1]	134204-0100	ROLLER
47/3.	[1]	134205-0000	BUSHING
47/4.	[1]	134203-0000	BEARING PIN
47/5.	[1]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
67.	[4]	029010-6810	BLEEDER SCREW
71.	[1]	134381-4600	CAMSHAFT
74.	[1]	134306-0300	BEARING SHELL
75.	[2]	020106-2040	BLEEDER SCREW M6P1L20
79.	[1]	016650-2230	BEARING PLATE
80.	[1]	134316-1700	COVER
81.	[1]	139625-0000	PACKING RING
82/1.	[0]	134314-0000	SHIM T0.1
82/1.	[0]	134314-0100	SHIM T0.12
82/1.	[0]	134314-0200	SHIM T0.14
82/1.	[0]	134314-0300	SHIM T0.16
82/1.	[0]	134314-0400	SHIM T0.18
82/1.	[0]	134314-0500	SHIM T0.3
82/1.	[0]	134314-0600	SHIM T0.5
83.	[1]	029635-5010	O-RING
84.	[1]	134563-0900	SLIDING PIECE
85.	[1]	134043-0700	COVER
86.	[1]	134042-1500	GASKET
87.	[14]	012206-1640	FLAT-HEAD SCREW M6P1L16
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET D28.9&24.3T2
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[8]	134047-0000	CAPSULE
98.	[1]	025805-1910	WOODRUFF KEY
118.	[1]	134496-2000	POINTER
119.	[2]	029020-6210	BLEEDER SCREW
120/1.	[0]	139400-0100	SHIM T0.2
120/1.	[0]	139400-0200	SHIM T0.3
120/1.	[0]	139400-0300	SHIM T0.5
120/1.	[0]	139400-0400	SHIM T1.0
120/1.	[0]	139400-7200	SHIM T0.1
132.	[1]	134430-3120	EYE BOLT
133.	[2]	139516-0000	GASKET
147.	[1]	139810-0700	EYE BOLT
148.	[3]	139510-0100	GASKET
152.	[1]	029731-4680	EYE BOLT
153.	[2]	139514-0100	GASKET
157.	[1]	139814-0400	EYE BOLT
158.	[3]	139514-0100	GASKET
162.	[1]	134424-0820	OVER FLOW VALVE
163.	[3]	139514-0100	GASKET
167.	[1]	029111-4120	SCREW PLUG M14P1.5L13
168.	[1]	139514-0100	GASKET

Include in #1:

106871-9101 as FUEL INJECTION PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

106080-5610

9 410 612 436

FUEL-INJECTION PUMP
* Q

Information:

- Generator Monitoring SystemI/O - Input/OutputMMS - Marine Monitoring SystemMMS II - Marine Monitoring System IIPLC - Programmable Logic ControllerThe 203-7811 Engine Monitoring Control Group is the service replacement for the 146-3117 Monitoring Control and the 162-1662 Monitoring Control that are used in MMS. The 203-7811 Engine Monitoring Control Group uses Wonderware as the "Graphic Display Application".The 203-7810 Engine Monitoring Control Group is the optional monitor that is used in the MMS II and the GMS. The 203-7810 Engine Monitoring Control Group uses the RSView as the "Graphic Display Application".When these engine monitoring control groups are used as service replacements in the field, use the procedure that follows to register the software to the user. This procedure can be done when the engine monitoring control group is connected to the PLC. This procedure can also be done when the engine monitoring control group is not connected to the PLC.
Connect a keyboard that is compatible with the PS/2 style of connector. Connect electrical power to the monitor.
Turn on the power.
When you are prompted, accept the license agreement. Press the "Next" button.
Enter the Microsoft Windows NT product identification number. This number is located on the right side of the computer. Press "Next".
When the message indicates that the system could not complete the login, select "OK".
Input "Administrator" for the login username. Input "3600" for the login password.
After a successful login as "Administrator", do one of the items that follow:
Restart the computer.
Close all of the programs and use a different login username.
When the message indicates that the system could not complete the login, select "OK".
Input "Operator" for the login username. Input "password" for the login password.
After a successful login as "Operator", one of the items that follow will occur:
If a 203-7811 Engine Monitoring Control Group is used, the Wonderware I/O Server and the Window Viewer will be started.
If a 203-7810 Engine Monitoring Control Group is used, the RSView Runtime will be started.
Remove the keyboard. The setup is complete.In applications that use Wonderware or RSView, the engine monitoring control group must be connected to the PLC in order for the data to be displayed.After a successful login to the "Operator" account, the computer will automatically start and the computer will start the application in the "Operator" account. The automatic start-up can be bypassed by doing the operations that follow:
Attach a keyboard.
Hold the "shift" key in the down position while the start-up of the computer is initiated.
