106069-8111 ZEXEL 9 410 613 885 BOSCH FUEL-INJECTION PUMP 9410613885 1060698111




Information fuel-injection pump

BOSCH 9 410 613 885 9410613885
ZEXEL 106069-8111 1060698111
106069-8111 FUEL-INJECTION PUMP
Rating:
81
Buy FUEL-INJECTION PUMP 106069-8111 zexel genuine, new aftermarket engine parts with delivery

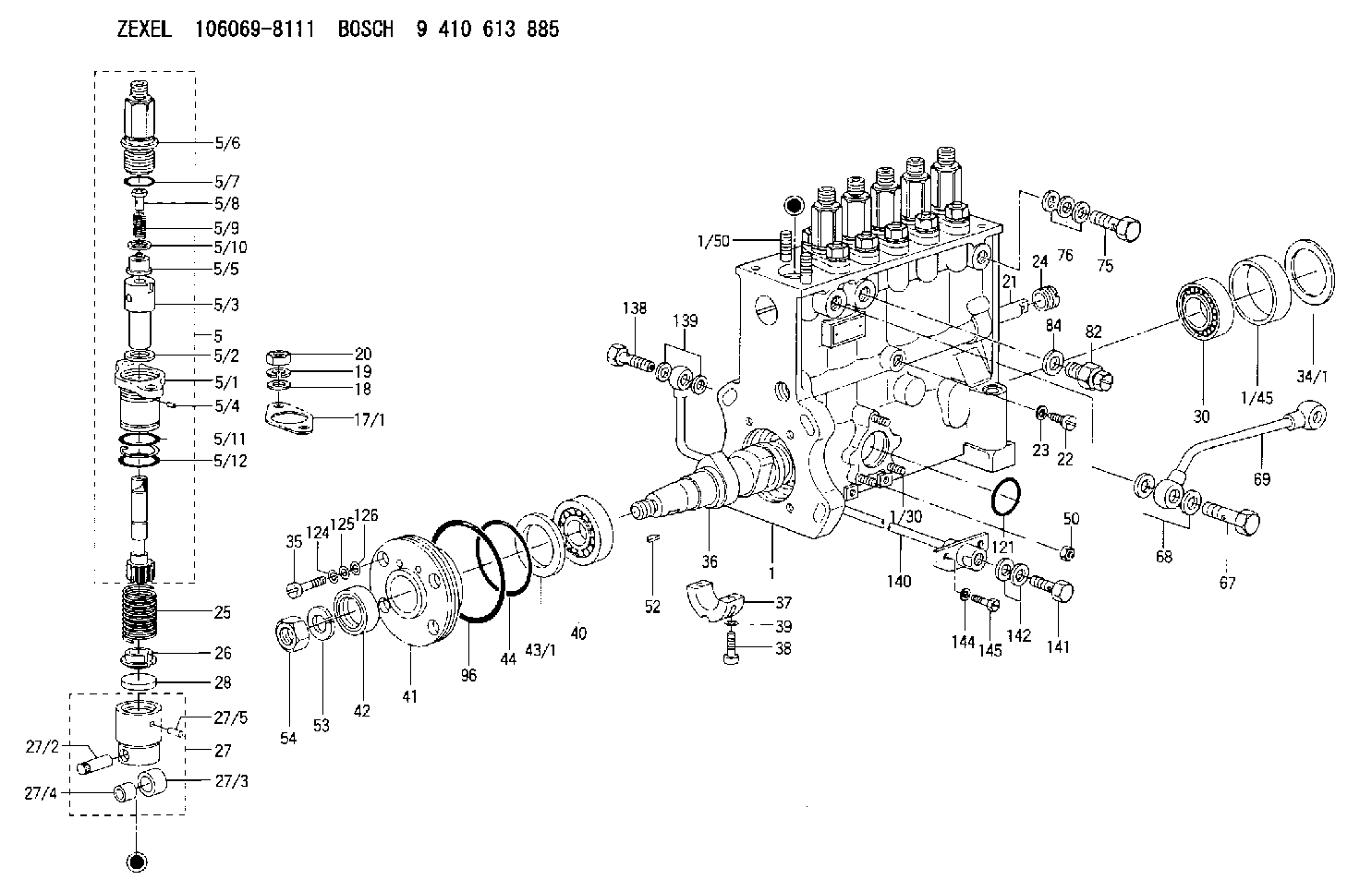

Scheme ###:

PUMP HOUSING
1. [1] 134000-8420 PUMP HOUSING
1/30. [3] 029040-6020 STUD
1/45. [1] 134311-0000 SPACER RING
1/50. [12] 029041-2100 STUD
5. [6] 134145-1120 PLUNGER-AND-BARREL ASSY
5/1. [1] 134131-1300 FLANGE BUSHING
5/2. [1] 029331-9040 GASKET
5/3. [1] 134151-2720 PLUNGER-AND-BARREL ASSY
5/4. [1] 134563-0600 BEARING PIN
5/5. [1] 134110-6220 DELIVERY-VALVE ASSEMBLY
5/6. [1] 134116-3020 FITTING
5/7. [1] 029632-5080 O-RING
5/8. [1] 134117-0500 FILLER PIECE
5/9. [1] 134112-2000 COILED SPRING
5/10. [1] 134115-0100 GASKET
5/11. [1] 029632-9040 O-RING
5/12. [1] 029632-9040 O-RING
17/1. [0] 134139-2400 SHIM T0.15
17/1. [0] 134139-2500 SHIM T0.4
17/1. [0] 134139-2600 SHIM T0.5
17/1. [0] 134139-2700 SHIM T0.6
17/1. [0] 134139-2800 SHIM T0.7
17/1. [0] 134139-2900 SHIM T0.8
17/1. [0] 134139-3000 SHIM T0.9
17/1. [0] 134139-3100 SHIM T1.0
18. [12] 029301-2330 PLAIN WASHER
19. [12] 014111-2440 LOCKING WASHER D21.5&12.2T3
20. [12] 013021-2140 UNION NUT M12P1.75H10
21. [1] 134256-2000 CONTROL RACK
22. [1] 134226-0000 FLAT-HEAD SCREW
23. [1] 134510-3900 GASKET
24. [1] 134222-0100 BUSHING
25. [6] 134215-0100 COMPRESSION SPRING
26. [6] 134217-0200 SLOTTED WASHER
27. [6] 134200-0520 TAPPET
27/2. [1] 134203-0100 BEARING PIN
27/3. [1] 134204-0100 ROLLER
27/4. [1] 134205-0000 BUSHING
27/5. [1] 134213-0000 BEARING PIN
28. [6] 134140-0400 SPRING SEAT D14T3.9
30. [1] 016650-2230 BEARING PLATE
34/1. [0] 134303-0000 SHIM D59.8&43T1.2
34/1. [0] 134303-0100 SHIM D59.8&43T1.5
34/1. [0] 134303-0200 SHIM D59.8&43T1.8
34/1. [0] 134303-0300 SHIM D59.8&43T2.0
34/1. [0] 134303-0400 SHIM D59.8&43T0.6
35. [4] 029050-6360 FLAT-HEAD SCREW
36. [1] 134371-5600 CAMSHAFT
37. [1] 134305-0000 BEARING SHELL
38. [2] 029020-6140 HEX-SOCKET-HEAD CAP SCREW
39. [2] 134510-3900 GASKET
40. [1] 016650-2230 BEARING PLATE
41. [1] 134316-2400 COVER
42. [1] 026712-5020 PACKING RING
43/1. [0] 134314-0000 SHIM T0.1
43/1. [0] 134314-0100 SHIM T0.12
43/1. [0] 134314-0200 SHIM T0.14
43/1. [0] 134314-0300 SHIM T0.16
43/1. [0] 134314-0400 SHIM T0.18
43/1. [0] 134314-0500 SHIM T0.3
43/1. [0] 134314-0600 SHIM T0.5
44. [1] 029635-5050 O-RING
50. [3] 139206-0400 UNION NUT
52. [1] 025805-1910 WOODRUFF KEY
53. [1] 014111-8410 LOCKING WASHER
54. [1] 139218-0000 UNION NUT
67. [1] 029731-4680 EYE BOLT
68. [2] 029341-4130 GASKET D20&13.8T2*
69. [1] 134433-4720 PIPE
75. [1] 029731-4280 EYE BOLT
76. [3] 029341-4130 GASKET D20&13.8T2*
82. [1] 134420-0020 BLEEDER SCREW
84. [1] 026514-1840 GASKET D17.9&14.2T1
96. [1] 029639-0030 O-RING
121. [1] 029633-1020 O-RING
124. [4] 029320-6010 LOCKING WASHER
125. [4] 029300-6170 SHIM D12&6.2T1
126. [4] 029340-6120 GASKET
138. [1] 029731-4680 EYE BOLT
139. [2] 029341-4130 GASKET D20&13.8T2*
140. [1] 134433-1720 PIPE
141. [1] 029731-4680 EYE BOLT
142. [2] 029341-4130 GASKET D20&13.8T2*
144. [2] 014110-8440 LOCKING WASHER
145. [2] 010038-2040 BLEEDER SCREW M8P1.25L20

Include in #1:

106692-4672 as FUEL INJECTION PUMP
106692-9031
106692-9231

Cross reference number

Zexel num
Bosch num
Firm num
Name
106069-8111
9 410 613 885
NP-PES6PD140A410L

FUEL-INJECTION PUMP
Q
