Information fuel-injection pump
ZEXEL
106069-1060
1060691060
ISUZU
1156101740
1156101740
Rating:
Scheme ###:

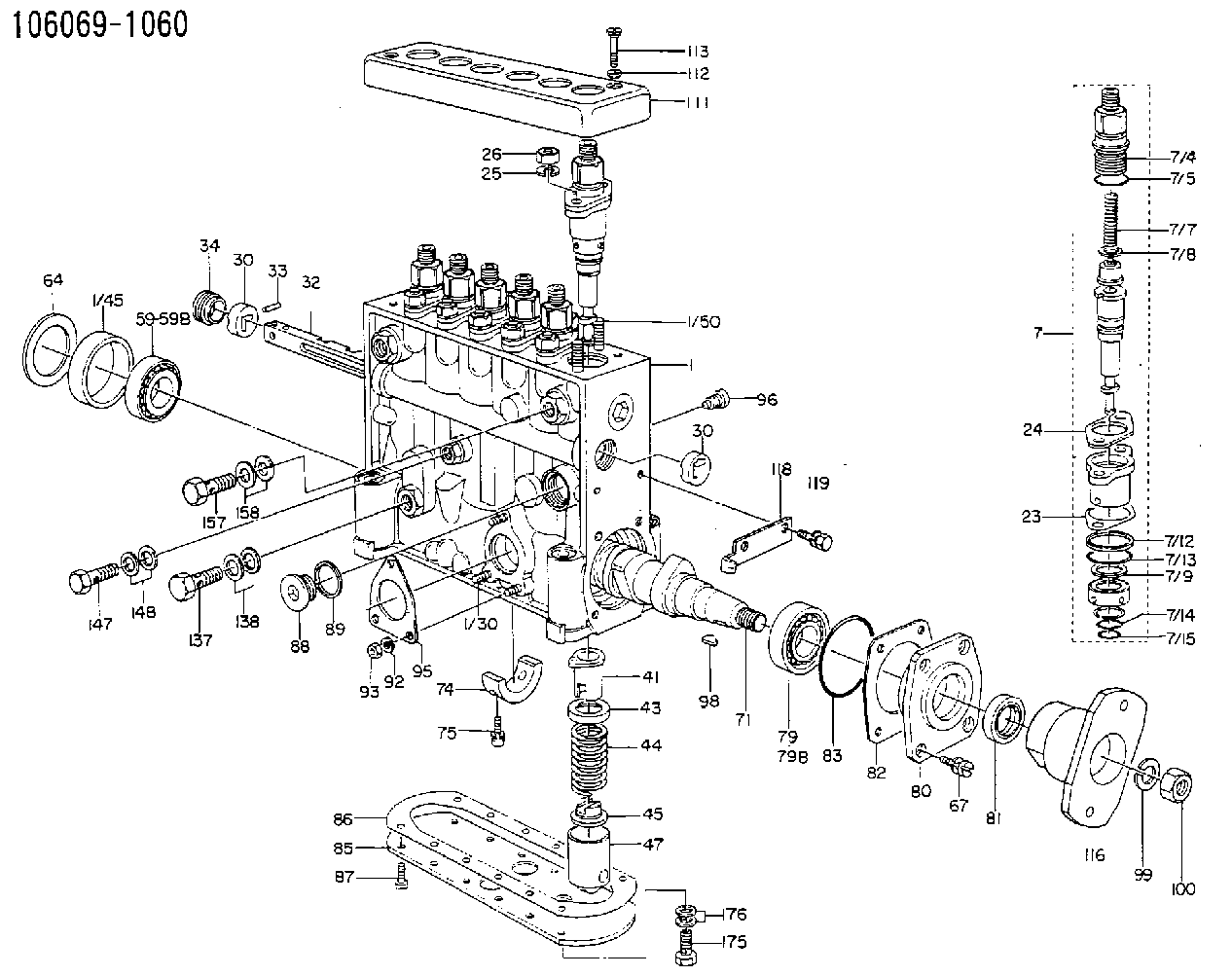

| 1. | [1] | 134000-2220 | PUMP HOUSING |
| 1/11. | [1] | 134026-0000 | CAPSULE |
| 1/30. | [3] | 029040-6020 | STUD |
| 1/45. | [1] | 134311-0000 | SPACER RING |
| 1/50. | [12] | 134138-0000 | STUD |
| 7. | [6] | 134130-0920 | PLUNGER-AND-BARREL ASSY |
| 7/3. | [6] | 134110-0520 | DELIVERY-VALVE ASSEMBLY |
| 7/4. | [6] | 134116-0820 | FITTING |
| 7/5. | [6] | 029632-2070 | O-RING |
| 7/7. | [6] | 131112-1600 | COILED SPRING |
| 7/8. | [6] | 134115-0100 | GASKET |
| 7/9. | [6] | 029302-0140 | PLAIN WASHER |
| 7/12. | [6] | 134137-0000 | SPACER RING |
| 7/13. | [6] | 029632-9030 | O-RING |
| 7/15. | [6] | 029631-5020 | O-RING |
| 23. | [6] | 029998-4040 | SHIM |
| 23/1. | [0] | 134139-0000 | SHIM |
| 23/1. | [0] | 134139-0100 | SHIM |
| 23/1. | [0] | 134139-0200 | SHIM |
| 23/1. | [0] | 134139-0300 | SHIM |
| 23/1. | [0] | 134139-0400 | SHIM |
| 23/1. | [0] | 134139-0500 | SHIM |
| 23/1. | [0] | 134139-0600 | SHIM |
| 23/1. | [0] | 134139-2300 | SHIM |
| 24. | [6] | 134132-0100 | PLAIN WASHER |
| 25. | [12] | 134132-0300 | PLAIN WASHER |
| 26. | [12] | 013021-0040 | UNION NUT |
| 30. | [2] | 134001-0000 | BUSHING |
| 30. | [2] | 134001-0000 | BUSHING |
| 32. | [1] | 134256-0700 | CONTROL RACK |
| 33. | [1] | 024030-2030 | BEARING PIN |
| 34. | [1] | 134222-0000 | BUSHING |
| 41. | [6] | 134241-0020 | CONTROL SLEEVE |
| 43. | [6] | 134216-0000 | SLOTTED WASHER |
| 44. | [6] | 134215-0000 | COMPRESSION SPRING |
| 45. | [6] | 134217-0000 | SLOTTED WASHER |
| 47. | [6] | 134200-0020 | TAPPET |
| 59. | [1] | 016650-2230 | BEARING PLATE |
| 59B. | [1] | 028222-5010 | BEARING PLATE |
| 64. | [1] | 029998-3100 | SHIM |
| 64/1. | [0] | 134303-0000 | SHIM |
| 64/1. | [0] | 134303-0100 | SHIM |
| 64/1. | [0] | 134303-0200 | SHIM |
| 64/1. | [0] | 134303-0300 | SHIM |
| 64/1. | [0] | 134303-0400 | SHIM |
| 67. | [4] | 029010-6810 | BLEEDER SCREW |
| 71. | [1] | 134370-0000 | CAMSHAFT |
| 74. | [1] | 134306-0000 | BEARING SHELL |
| 75. | [2] | 020106-2040 | BLEEDER SCREW |
| 79. | [1] | 016650-2230 | BEARING PLATE |
| 79B. | [1] | 028222-5010 | BEARING PLATE |
| 80. | [1] | 134330-0000 | COVER |
| 81. | [1] | 029622-0140 | PACKING RING |
| 82. | [1] | 029998-4030 | SHIM |
| 82/1. | [0] | 134314-0000 | SHIM |
| 82/1. | [0] | 134314-0100 | SHIM |
| 82/1. | [0] | 134314-0200 | SHIM |
| 82/1. | [0] | 134314-0300 | SHIM |
| 82/1. | [0] | 134314-0400 | SHIM |
| 82/1. | [0] | 134314-0500 | SHIM |
| 82/1. | [0] | 134314-0600 | SHIM |
| 83. | [1] | 029635-5010 | O-RING |
| 85. | [1] | 134043-0800 | COVER |
| 86. | [1] | 134042-1400 | GASKET |
| 87. | [12] | 012206-1640 | FLAT-HEAD SCREW |
| 88. | [1] | 134045-0100 | CAPSULE |
| 89. | [1] | 026524-2940 | GASKET |
| 92. | [3] | 014110-6440 | LOCKING WASHER |
| 93. | [3] | 013020-6040 | UNION NUT |
| 95. | [1] | 131041-0800 | GASKET |
| 96. | [6] | 134047-0000 | CAPSULE |
| 98. | [1] | 025804-1610 | WOODRUFF KEY |
| 111. | [1] | 134416-0820 | COVER |
| 112. | [2] | 014530-6540 | TAB WASHER |
| 113. | [2] | 021306-3010 | FLAT-HEAD SCREW |
| 118. | [1] | 134496-0500 | POINTER |
| 119. | [2] | 020006-1240 | BLEEDER SCREW |
| 137. | [1] | 139814-0000 | EYE BOLT |
| 138. | [2] | 139514-0000 | GASKET |
| 147. | [1] | 139810-0000 | EYE BOLT |
| 148. | [2] | 139510-0000 | GASKET |
| 157. | [1] | 139814-0000 | EYE BOLT |
| 158. | [2] | 139514-0000 | GASKET |
