Information fuel-injection pump
BOSCH
9 410 613 251
9410613251
ZEXEL
106068-5040
1060685040
Rating:

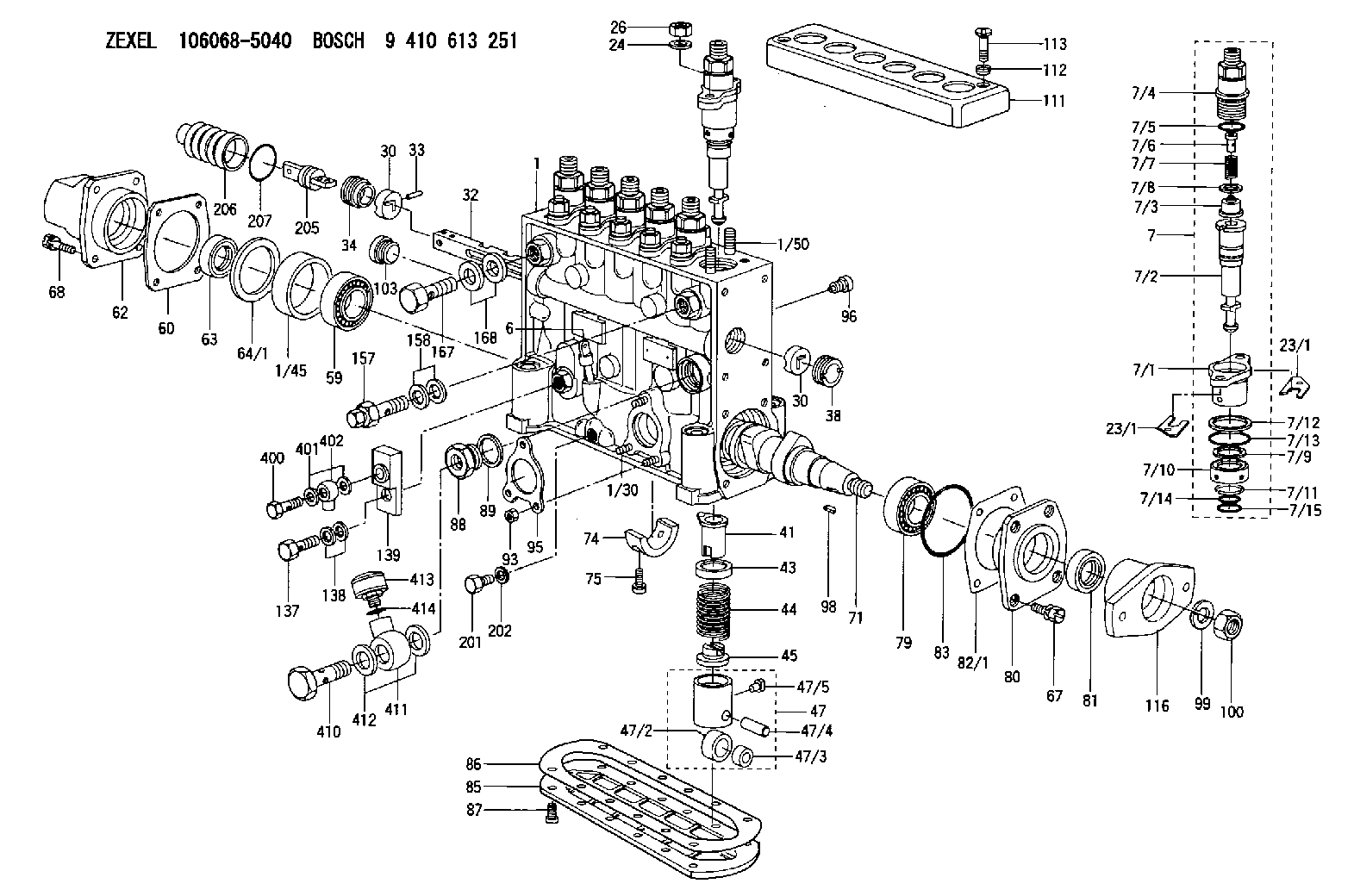

Scheme ###:
| 1. | [1] | 134050-3820 | PUMP HOUSING |
| 1/30. | [3] | 029040-6020 | STUD |
| 1/45. | [1] | 134311-0000 | SPACER RING |
| 1/50. | [12] | 134138-0000 | STUD |
| 6. | [1] | 134030-0320 | LEVEL INDICATOR |
| 7. | [6] | 134142-3320 | PLUNGER-AND-BARREL ASSY |
| 7/1. | [6] | 134131-1020 | FLANGE BUSHING |
| 7/2. | [6] | 134101-7520 | PLUNGER-AND-BARREL ASSY P59 |
| 7/3. | [6] | 134110-5220 | DELIVERY-VALVE ASSEMBLY P51 |
| 7/4. | [6] | 134116-1000 | FITTING |
| 7/5. | [0] | 029632-2070 | |
| 7/5. | [6] | 139722-0400 | O-RING |
| 7/6. | [6] | 134117-0500 | FILLER PIECE |
| 7/7. | [6] | 132112-0200 | COILED SPRING |
| 7/8. | [6] | 134115-0100 | GASKET |
| 7/9. | [6] | 029302-0140 | PLAIN WASHER |
| 7/10. | [0] | 134135-0200 | |
| 7/10. | [6] | 134135-0400 | CAPSULE |
| 7/11. | [6] | 029602-0010 | LOCKING WASHER |
| 7/12. | [6] | 134137-0000 | SPACER RING |
| 7/13. | [6] | 029632-9030 | O-RING |
| 7/14. | [0] | 029631-5020 | |
| 7/14. | [6] | 139715-0400 | O-RING |
| 7/15. | [0] | 029631-5020 | |
| 7/15. | [6] | 139715-0400 | O-RING |
| 23/1. | [0] | 134139-0000 | SHIM T0.5 |
| 23/1. | [0] | 134139-0100 | SHIM T0.6 |
| 23/1. | [0] | 134139-0200 | SHIM T0.7 |
| 23/1. | [0] | 134139-0300 | SHIM T0.8 |
| 23/1. | [0] | 134139-0400 | SHIM T0.9 |
| 23/1. | [0] | 134139-0500 | SHIM T0.4 |
| 23/1. | [0] | 134139-0600 | SHIM T0.15 |
| 23/1. | [0] | 134139-2300 | SHIM T1.5 |
| 23/1. | [0] | 134139-2300 | SHIM T1.5 |
| 24. | [12] | 134132-0300 | PLAIN WASHER |
| 26. | [12] | 013021-0040 | UNION NUT M10P1.5H8 |
| 30. | [2] | 134001-0000 | BUSHING |
| 30. | [2] | 134001-0000 | BUSHING |
| 32. | [1] | 134256-2401 | CONTROL RACK |
| 33. | [1] | 024030-2030 | BEARING PIN |
| 34. | [1] | 134222-0200 | BUSHING |
| 38. | [1] | 154050-6520 | CONNECTOR |
| 41. | [6] | 134241-0021 | CONTROL SLEEVE |
| 43. | [6] | 134216-0000 | SLOTTED WASHER |
| 44. | [6] | 134215-0200 | COMPRESSION SPRING |
| 45. | [6] | 134217-0500 | SLOTTED WASHER |
| 47. | [6] | 134200-0020 | TAPPET |
| 47/2. | [6] | 134204-0000 | ROLLER |
| 47/3. | [6] | 134205-0000 | BUSHING |
| 47/4. | [6] | 134203-0000 | BEARING PIN |
| 47/5. | [6] | 131206-0500 | SLIDER |
| 59. | [1] | 016650-2230 | BEARING PLATE 4T-32205(NSK) |
| 59B. | [1] | 028222-5010 | BEARING PLATE 32205-N(KOYO) |
| 60. | [1] | 134312-0000 | GASKET |
| 62. | [1] | 134316-0320 | COVER |
| 63. | [1] | 029621-7020 | PACKING RING |
| 64/1. | [0] | 134303-0000 | SHIM D59.8&43T1.2 |
| 64/1. | [0] | 134303-0100 | SHIM D59.8&43T1.5 |
| 64/1. | [0] | 134303-0200 | SHIM D59.8&43T1.8 |
| 64/1. | [0] | 134303-0300 | SHIM D59.8&43T2.0 |
| 64/1. | [0] | 134303-0400 | SHIM D59.8&43T0.6 |
| 67. | [4] | 029010-6810 | BLEEDER SCREW |
| 68. | [4] | 020106-2040 | BLEEDER SCREW |
| 71. | [1] | 134371-2500 | CAMSHAFT |
| 74. | [1] | 134306-0000 | BEARING SHELL |
| 75. | [2] | 020106-2040 | BLEEDER SCREW |
| 79. | [1] | 016650-2230 | BEARING PLATE 4T-32205(NSK) |
| 79B. | [1] | 028222-5010 | BEARING PLATE 32205-N(KOYO) |
| 80. | [1] | 134316-0700 | COVER |
| 81. | [1] | 026712-5010 | PACKING RING |
| 82/1. | [0] | 134314-0000 | SHIM T0.1 |
| 82/1. | [0] | 134314-0100 | SHIM T0.12 |
| 82/1. | [0] | 134314-0200 | SHIM T0.14 |
| 82/1. | [0] | 134314-0300 | SHIM T0.16 |
| 82/1. | [0] | 134314-0400 | SHIM T0.18 |
| 82/1. | [0] | 134314-0500 | SHIM T0.3 |
| 82/1. | [0] | 134314-0600 | SHIM T0.5 |
| 83. | [1] | 029635-5010 | O-RING |
| 85. | [1] | 134043-0800 | COVER |
| 86. | [1] | 134042-1400 | GASKET |
| 87. | [12] | 012206-1640 | FLAT-HEAD SCREW |
| 88. | [1] | 134002-1500 | ADAPTOR |
| 89. | [1] | 026524-2940 | GASKET |
| 93. | [3] | 139206-0400 | UNION NUT |
| 95. | [1] | 131041-0800 | GASKET |
| 96. | [6] | 134047-0000 | CAPSULE |
| 98. | [1] | 025805-1910 | WOODRUFF KEY |
| 99. | [1] | 023641-8410 | LOCKING WASHER |
| 100. | [1] | 013121-8020 | UNION NUT |
| 103. | [1] | 134026-0000 | CAPSULE |
| 111. | [1] | 134416-0100 | COVER |
| 112. | [2] | 014530-6540 | TAB WASHER |
| 113. | [2] | 021306-3010 | FLAT-HEAD SCREW |
| 116. | [1] | 156635-6000 | COUPLING PLATE |
| 137. | [1] | 134430-0420 | EYE BOLT |
| 138. | [2] | 029331-4230 | GASKET |
| 139. | [1] | 133431-0820 | CONNECTOR |
| 157. | [1] | 131424-1520 | OVER FLOW VALVE |
| 158. | [2] | 029331-4230 | GASKET |
| 159. | [1] | 139814-0700 | INLET UNION |
| 167. | [1] | 029731-4680 | EYE BOLT |
| 168. | [2] | 029331-4230 | GASKET |
| 169. | [1] | 139814-0700 | INLET UNION |
| 201. | [1] | 029111-0020 | CAPSULE |
| 202. | [1] | 026510-1440 | GASKET |
| 205. | [1] | 134510-1020 | CONNECTOR |
| 206. | [1] | 134510-4300 | COVER |
| 207. | [1] | 029632-6030 | O-RING |
| 400. | [1] | 029731-2230 | EYE BOLT |
| 401. | [2] | 026512-1540 | GASKET |
| 402. | [1] | 027112-0840 | INLET UNION |
| 410. | [1] | 029731-6060 | EYE BOLT |
| 411. | [1] | 029711-6100 | INLET UNION |
| 412. | [2] | 026516-2040 | GASKET |
| 413. | [1] | 155406-0120 | AIR FILTER |
| 414. | [1] | 026512-1540 | GASKET |
Include in #1:
106684-4000
as FUEL INJECTION PUMP
Cross reference number
Zexel num
Bosch num
Firm num
Name
FUEL-INJECTION PUMP
* Q 14CA FUEL INJECTION PUMP PE6P,6PD PE
* Q 14CA FUEL INJECTION PUMP PE6P,6PD PE
