106068-5011 ZEXEL F 01G 29M 02S BOSCH FUEL-INJECTION PUMP f01g29m02s 1060685011

Information fuel-injection pump

BOSCH F 01G 29M 02S f01g29m02s

ZEXEL 106068-5011 1060685011

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106068-5011 zexel genuine, new aftermarket engine parts with delivery

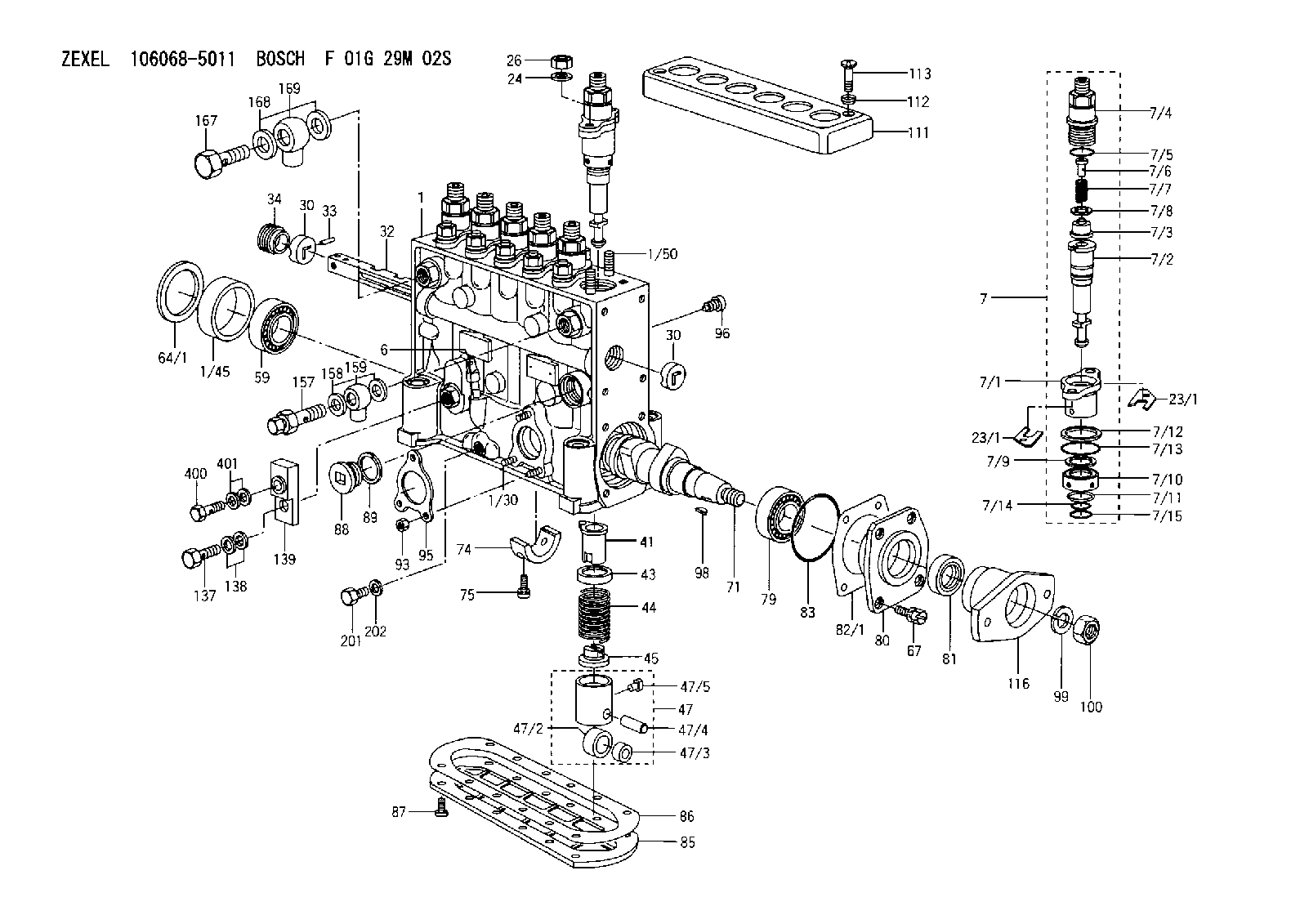

Scheme ###:

1.	[1]	134050-3820	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[12]	134138-0000	STUD
6.	[1]	131030-9320	LEVEL INDICATOR
7.	[6]	134142-3320	PLUNGER-AND-BARREL ASSY
7/1.	[6]	134131-1020	FLANGE BUSHING
7/2.	[6]	134101-7520	PLUNGER-AND-BARREL ASSY P59
7/3.	[6]	134110-5220	DELIVERY-VALVE ASSEMBLY P51
7/4.	[6]	134116-1000	FITTING
7/5.	[6]	139722-0400	O-RING
7/6.	[6]	134117-0500	FILLER PIECE
7/7.	[6]	132112-0200	COILED SPRING
7/8.	[6]	134115-0100	GASKET
7/9.	[6]	029302-0140	PLAIN WASHER
7/10.	[6]	134135-0400	CAPSULE
7/11.	[6]	029602-0010	LOCKING WASHER
7/12.	[6]	134137-0000	SPACER RING
7/13.	[6]	029632-9030	O-RING
7/14.	[6]	139715-0400	O-RING
7/15.	[6]	139715-0400	O-RING
23/1.	[0]	134139-0000	SHIM T0.5
23/1.	[0]	134139-0000	SHIM T0.5
23/1.	[0]	134139-0100	SHIM T0.6
23/1.	[0]	134139-0200	SHIM T0.7
23/1.	[0]	134139-0300	SHIM T0.8
23/1.	[0]	134139-0400	SHIM T0.9
23/1.	[0]	134139-0500	SHIM T0.4
23/1.	[0]	134139-0600	SHIM T0.15
23/1.	[0]	134139-2300	SHIM T1.5
24.	[12]	134132-0300	PLAIN WASHER
26.	[12]	013021-0040	UNION NUT M10P1.5H8
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	134256-2401	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[6]	134241-0021	CONTROL SLEEVE
43.	[6]	134216-0000	SLOTTED WASHER
44.	[6]	134215-0200	COMPRESSION SPRING
45.	[6]	134217-0500	SLOTTED WASHER
47.	[6]	134200-0020	TAPPET
47/2.	[6]	134204-0000	ROLLER
47/3.	[6]	134205-0000	BUSHING
47/4.	[6]	134203-0000	BEARING PIN
47/5.	[6]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
59B.	[1]	028222-5010	BEARING PLATE 32205-N(KOYO)
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
67.	[4]	029010-6810	BLEEDER SCREW
71.	[1]	134371-2500	CAMSHAFT
74.	[1]	134306-0000	BEARING SHELL
75.	[2]	020106-2040	BLEEDER SCREW
79.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
79B.	[1]	028222-5010	BEARING PLATE 32205-N(KOYO)
80.	[1]	134316-0700	COVER
81.	[1]	026712-5010	PACKING RING
82/1.	[0]	134314-0000	SHIM T0.1
82/1.	[0]	134314-0100	SHIM T0.12
82/1.	[0]	134314-0200	SHIM T0.14
82/1.	[0]	134314-0300	SHIM T0.16
82/1.	[0]	134314-0400	SHIM T0.18
82/1.	[0]	134314-0500	SHIM T0.3
82/1.	[0]	134314-0600	SHIM T0.5
83.	[1]	029635-5010	O-RING
85.	[1]	134043-0800	COVER
86.	[1]	134042-1400	GASKET
87.	[12]	012206-1640	FLAT-HEAD SCREW
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[6]	134047-0000	CAPSULE
98.	[1]	029470-5010	WOODRUFF KEY
99.	[1]	023641-8410	LOCKING WASHER
100.	[1]	134325-0700	UNION NUT
111.	[1]	134416-0100	COVER
112.	[2]	014530-6540	TAB WASHER
113.	[2]	021306-3010	FLAT-HEAD SCREW
116.	[1]	156635-7900	COUPLING PLATE
137.	[1]	134430-0420	EYE BOLT
138.	[2]	026514-1840	GASKET
139.	[1]	133431-0821	CONNECTOR
157.	[1]	131424-1520	OVER FLOW VALVE
158.	[2]	029331-4230	GASKET
159.	[1]	139814-0700	INLET UNION
167.	[1]	029731-4680	EYE BOLT
168.	[2]	029331-4230	GASKET
169.	[1]	139814-0700	INLET UNION
201.	[1]	029111-0020	CAPSULE
202.	[1]	026510-1440	GASKET
400.	[1]	029731-2230	EYE BOLT
401.	[2]	026512-1540	GASKET

Include in #1:

106682-4033 as FUEL INJECTION PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

106068-5011

F 01G 29M 02S
NP-PE6P130/320LS3000

FUEL-INJECTION PUMP
Q

Information:

Guidelines For Reusable Parts; Valves And Valve Springs, Forms SEBF8002 and SEBF8034 have the procedure and specifications necessary for checking used valves and valve springs.(1) 4W2471 Spring for valves (outer) (new): Length under test force ... 53.24 mm (2.096 in)Test force ... 245 24 N (55 5 lb)Use again minimum load at length under test force ... 211 N (48 lb)Length of spring at valve open position ... 39.0 mm (1.54 in)Use again minimum load at valve open position ... 755 N (170 lb)Free length after test ... 59.5 mm (2.34 in)Outside diameter ... 37.31 mm (1.469 in)Spring must not be bent more than ... 2.10 mm (.083 in)(1) 4W2472 Spring for valves (inner) (new): Length under test force ... 50.24 mm (1.978 in)Test force ... 178 18 N (40 4 lb)Use again minimum load at length under test force ... 155 N (35 lb)Length of spring at valve open position ... 36.0 mm (1.42 in)Use again minimum load at valve open position ... 321 N (72 lb)Free length after test ... 65.7 mm (2.60 in)Outside diameter ... 25.13 mm (.989 in)Spring must not be bent more than ... 2.30 mm (.091 in)(1) 9Y3326 Spring for valves (outer) (new): Length under test force ... 53.24 mm (2.096 in)Test force ... 521 52 N (117 12 lb)Use again minimum load at length under test force ... 448 N (101 lb)Length of spring at valve open position ... 39.0 mm (1.54 in)Use again minimum load at valve open position ... 923 N (208 lb)Free length after test ... 69.04 mm (2.718 in)Outside diameter ... 42.61 mm (1.678 in)(1) 9Y3327 Spring for valves (inner) (new): Length under test force ... 50.42 mm (1.985 in)Test force ... 264 26 N (59 6 lb)Use again minimum load at length under test force ... 227 N (51 lb)Length of spring at valve open position ... 36 mm (1.4 in)Use again minimum load at valve open position ... 414 N (93 lb)Free length after test ... 70.8 mm (2.79 in)Outside diameter ... 30.0 mm (1.18 in)Spring must not be bent more than ... 2.10 mm (.083 in)(2) Height to top of valve guide ... 32.3 0.8 mm (1.27 .03 in)(3) Diameter of valve stem (new) ... 9.441 0.008 mm (.3717 .0003 in)Use again minimum diameter of valve stems:1W3860 Exhaust ... 9.408 mm (.3704 in)2W2622 Intake ... 9.408 mm (.3704 in)Bore in valve guide with guide installed in the head (new) ... 9.487 0.025 mm (.3735 .0010 in)Use again dimension for valve guide bore ... 9.538 mm (.3755 in)(4) Diameter of valve head: Exhaust valve ... 41.81 0.13 mm (1.646 .005 in)Intake valve ... 44.98 0.13 mm (1.771 .005 in)(5) Angle of intake valve face ... 29 1/4 1/4°Angle of exhaust valve face ... 44 1/4 1/4° (6) Depth of bore in head for valve seat insert ... 13.01 0.35 mm (.512 .014
