106068-4260 ZEXEL 9 410 613 719 BOSCH FUEL-INJECTION PUMP 9410613719 1060684260 221203530a

Information fuel-injection pump

BOSCH 9 410 613 719 9410613719

ZEXEL 106068-4260 1060684260

HINO 221203530A 221203530a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106068-4260 zexel genuine, new aftermarket engine parts with delivery

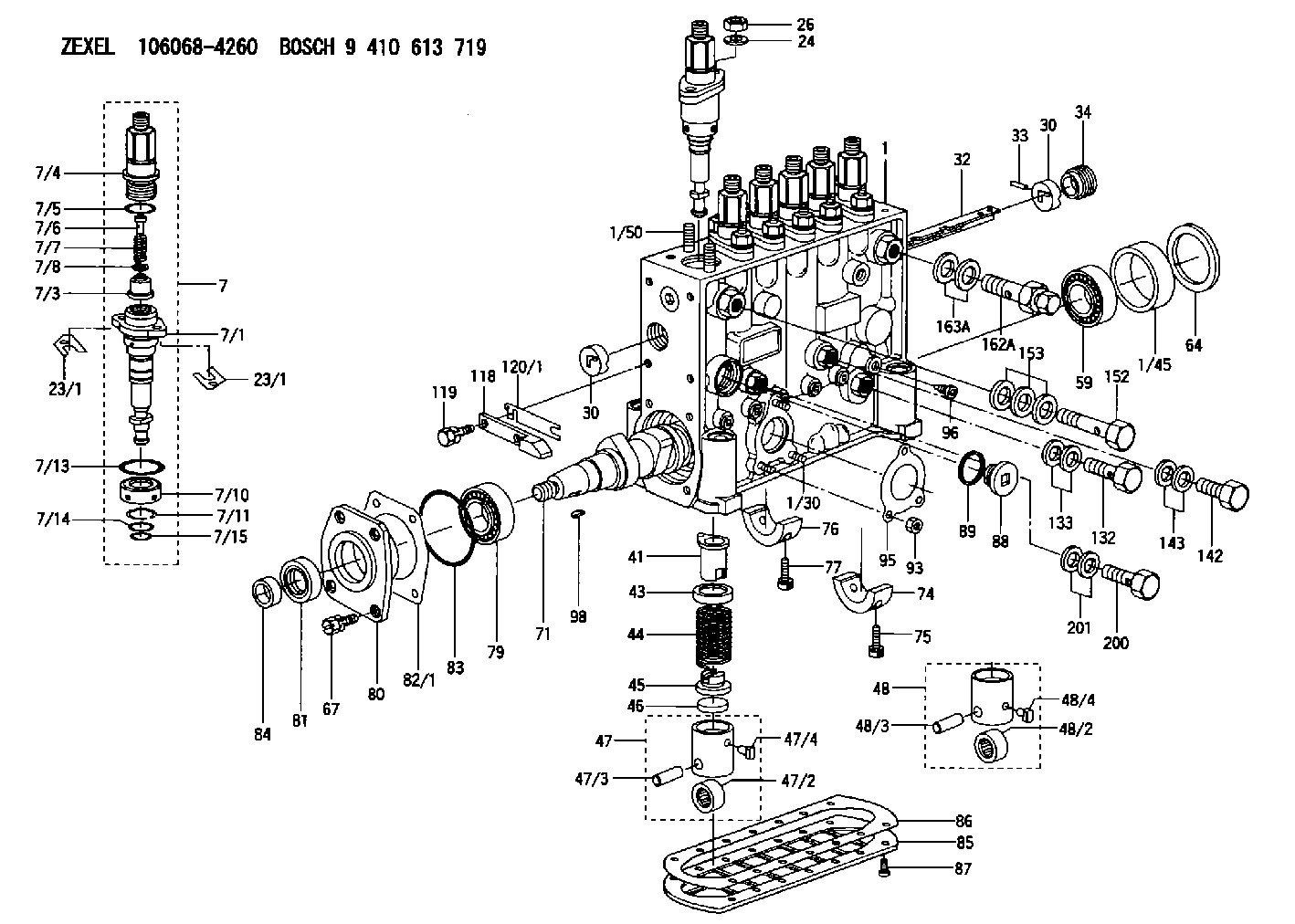

Scheme ###:

1.	[1]	134070-4120	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[12]	134138-0100	STUD
7.	[6]	134168-2220	PLUNGER-AND-BARREL ASSY
7/1.	[6]	134173-5220	PLUNGER-AND-BARREL ASSY S52
7/3.	[6]	134160-8720	DELIVERY-VALVE ASSEMBLY 71P
7/4.	[6]	134171-0320	FITTING
7/5.	[6]	016500-1800	O-RING
7/6.	[6]	134117-1700	FILLER PIECE
7/7.	[6]	134112-2200	COILED SPRING
7/8.	[6]	134115-0300	GASKET
7/10.	[6]	134135-0300	CAPSULE
7/11.	[6]	029602-0010	LOCKING WASHER
7/13.	[6]	139727-0200	O-RING
7/14.	[6]	029631-5020	O-RING
7/15.	[6]	029631-5020	O-RING
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-1000	SHIM T0.525
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1200	SHIM T0.575
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1400	SHIM T0.625
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1600	SHIM T0.675
23/1.	[0]	139400-1700	SHIM T0.700
23/1.	[0]	139400-1800	SHIM T0.725
23/1.	[0]	139400-1900	SHIM T0.750
23/1.	[0]	139400-2000	SHIM T0.775
23/1.	[0]	139400-2100	SHIM T0.800
23/1.	[0]	139400-2200	SHIM T0.825
23/1.	[0]	139400-2300	SHIM T0.850
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2500	SHIM T0.900
23/1.	[0]	139400-2600	SHIM T0.925
23/1.	[0]	139400-2700	SHIM T0.950
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2900	SHIM T1.000
23/1.	[0]	139400-3000	SHIM T1.025
23/1.	[0]	139400-3100	SHIM T1.050
23/1.	[0]	139400-3200	SHIM T1.075
23/1.	[0]	139400-3300	SHIM T1.100
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3500	SHIM T1.150
23/1.	[0]	139400-3600	SHIM T1.175
23/1.	[0]	139400-3700	SHIM T1.200
23/1.	[0]	139400-3800	SHIM T1.225
23/1.	[0]	139400-3900	SHIM T1.250
23/1.	[0]	139400-4000	SHIM T1.275
23/1.	[0]	139400-4100	SHIM T1.300
23/1.	[0]	139400-4200	SHIM T1.325
23/1.	[0]	139400-4300	SHIM T1.350
23/1.	[0]	139400-4400	SHIM T1.375
23/1.	[0]	139400-4500	SHIM T1.400
23/1.	[0]	139400-4600	SHIM T1.425
23/1.	[0]	139400-4700	SHIM T1.450
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4900	SHIM T1.500
23/1.	[0]	139400-5000	SHIM T1.525
23/1.	[0]	139400-5100	SHIM T1.550
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5300	SHIM T1.600
23/1.	[0]	139400-5400	SHIM T1.625
23/1.	[0]	139400-5500	SHIM T1.650
23/1.	[0]	139400-5600	SHIM T1.675
23/1.	[0]	139400-5700	SHIM T1.700
23/1.	[0]	139400-5800	SHIM T1.725
23/1.	[0]	139400-5900	SHIM T1.750
23/1.	[0]	139400-6000	SHIM T1.775
23/1.	[0]	139400-6100	SHIM T1.800
23/1.	[0]	139400-6200	SHIM T1.825
23/1.	[0]	139400-6300	SHIM T1.850
23/1.	[0]	139400-6400	SHIM T1.875
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6600	SHIM T1.925
23/1.	[0]	139400-6700	SHIM T1.950
23/1.	[0]	139400-6800	SHIM T1.975
24.	[12]	134132-0300	PLAIN WASHER
26.	[12]	139210-0200	UNION NUT
30.	[2]	134001-0800	BUSHING
30.	[2]	134001-0800	BUSHING
32.	[1]	134256-6200	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[6]	134241-0620	CONTROL SLEEVE
43.	[6]	134216-0000	SLOTTED WASHER
44.	[6]	134215-0800	COMPRESSION SPRING
45.	[6]	134217-0700	SLOTTED WASHER
46.	[6]	134563-2700	SPRING SEAT
47.	[4]	134200-0820	TAPPET
47/2.	[4]	134204-0200	ROLLER
47/3.	[4]	134203-0000	BEARING PIN
47/4.	[4]	131206-0500	SLIDER
48.	[2]	134200-0720	TAPPET
48/2.	[2]	134204-0200	ROLLER
48/3.	[2]	134203-0000	BEARING PIN
48/4.	[2]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
64.	[1]	134303-0500	SHIM
67.	[4]	139006-4200	BLEEDER SCREW
71.	[1]	134340-1200	CAMSHAFT
74.	[1]	134306-1000	BEARING SHELL
75.	[2]	020106-2040	BLEEDER SCREW
76.	[2]	134306-1100	BEARING SHELL
77.	[4]	020106-2040	BLEEDER SCREW
79.	[1]	035302-0600	BEARING PLATE
80.	[1]	134316-3300	COVER
81.	[1]	139634-0200	PACKING RING
82/1.	[0]	134314-0700	SHIM T0.1
82/1.	[0]	134314-0800	SHIM T0.12
82/1.	[0]	134314-0900	SHIM T0.14
82/1.	[0]	134314-1000	SHIM T0.16
82/1.	[0]	134314-1100	SHIM T0.18
82/1.	[0]	134314-1200	SHIM T0.3
82/1.	[0]	134314-1300	SHIM T0.5
83.	[1]	139766-0000	O-RING
84.	[1]	134563-2500	SLIDING PIECE
85.	[1]	134043-0800	COVER
86.	[1]	134042-1400	GASKET
87.	[12]	012206-1640	FLAT-HEAD SCREW
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[6]	134047-0000	CAPSULE
98.	[1]	025806-2210	WOODRUFF KEY
118.	[1]	134496-4200	POINTER
119.	[2]	029020-6210	BLEEDER SCREW
120/1.	[0]	139400-0100	SHIM T0.2
120/1.	[0]	139400-0200	SHIM T0.3
120/1.	[0]	139400-0300	SHIM T0.5
120/1.	[0]	139400-0400	SHIM T1.0
120/1.	[0]	139400-7200	SHIM T0.1
132.	[1]	134430-4700	EYE BOLT
133.	[2]	139516-0200	GASKET
142.	[1]	139010-1300	BLEEDER SCREW
143.	[2]	139510-0300	GASKET
152.	[1]	029731-4670	EYE BOLT
153.	[3]	139514-0300	GASKET D18.6&14.2T1.6
162A.	[1]	131424-9020	OVER FLOW VALVE
163A.	[2]	139514-0300	GASKET D18.6&14.2T1.6
200.	[1]	134430-3000	EYE BOLT
201.	[2]	139510-0300	GASKET

Include in #1:

106682-3120 as FUEL INJECTION PUMP

106682-3121

Cross reference number

Zexel num

Bosch num

Firm num

Name

106068-4260

9 410 613 719
NP-PE6P130/320LS7S

221203530A HINO

FUEL-INJECTION PUMP
Q 14CA FUEL INJECTION PUMP PE6P,6PD PE

Information:

The diagnostic lamp, on the truck dashboard, can be used to communicate status or operation problems of the electronic control system.Trucks With Cruise
The dash mounted cruise switches are used to interrogate the ECM for system status. With the cruise switch in the "off" position, hold the set/resume switch in the resume position until "check engine" light begins to flash. The sequence of flashes represents the system diagnostic message. The first sequence of flashes adds up to the first digit of the fault code. After a one second pause, a second sequence of flashes will occur which represents the second digit of the fault code. Any additional fault codes will follow, after a pause, and will be displayed in the same manner.Trucks Without Cruise
If cruise control switches are not installed or if their configuration (such as a GM type switch) does not permit their usage for checking diagnostic codes, then a push button momentary ON switch should be installed between Pin 3 of the vehicle connector P7 and engine ground.Faults With Throttle Response
The vehicle should be driven to a dealer for service ONLY if the engine oil pressure gauge indicates normal engine oil pressure and engine fuel pressure is within the normal range.Faults Without Throttle Response
If the check engine light is on and the engine does not respond to changes in throttle position, the vehicle should be driven to a dealer ONLY if the oil pressure gauge indicates normal engine oil pressure and engine fuel pressure is within the normal range.If equipped, turn on the cruise on/off switch and operate the vehicle using the set/resume cruise control switch to raise and lower the engine rpm.The cruise control mode is operational from 0 km/h (mph) up to the vehicle speed limit (VSL) when the 3406B (PEEC III) control unit does not respond to changes in throttle position. Maximum engine rpm will be the programmed engine rpm at the vehicle speed limit (VSL). Cruise control must be reselected after each gear change.
