106068-4050 ZEXEL 9 410 613 625 BOSCH FUEL-INJECTION PUMP 9410613625 1060684050




Information fuel-injection pump

BOSCH 9 410 613 625 9410613625
ZEXEL 106068-4050 1060684050
106068-4050 FUEL-INJECTION PUMP
Rating:
21
Buy FUEL-INJECTION PUMP 106068-4050 zexel genuine, new aftermarket engine parts with delivery

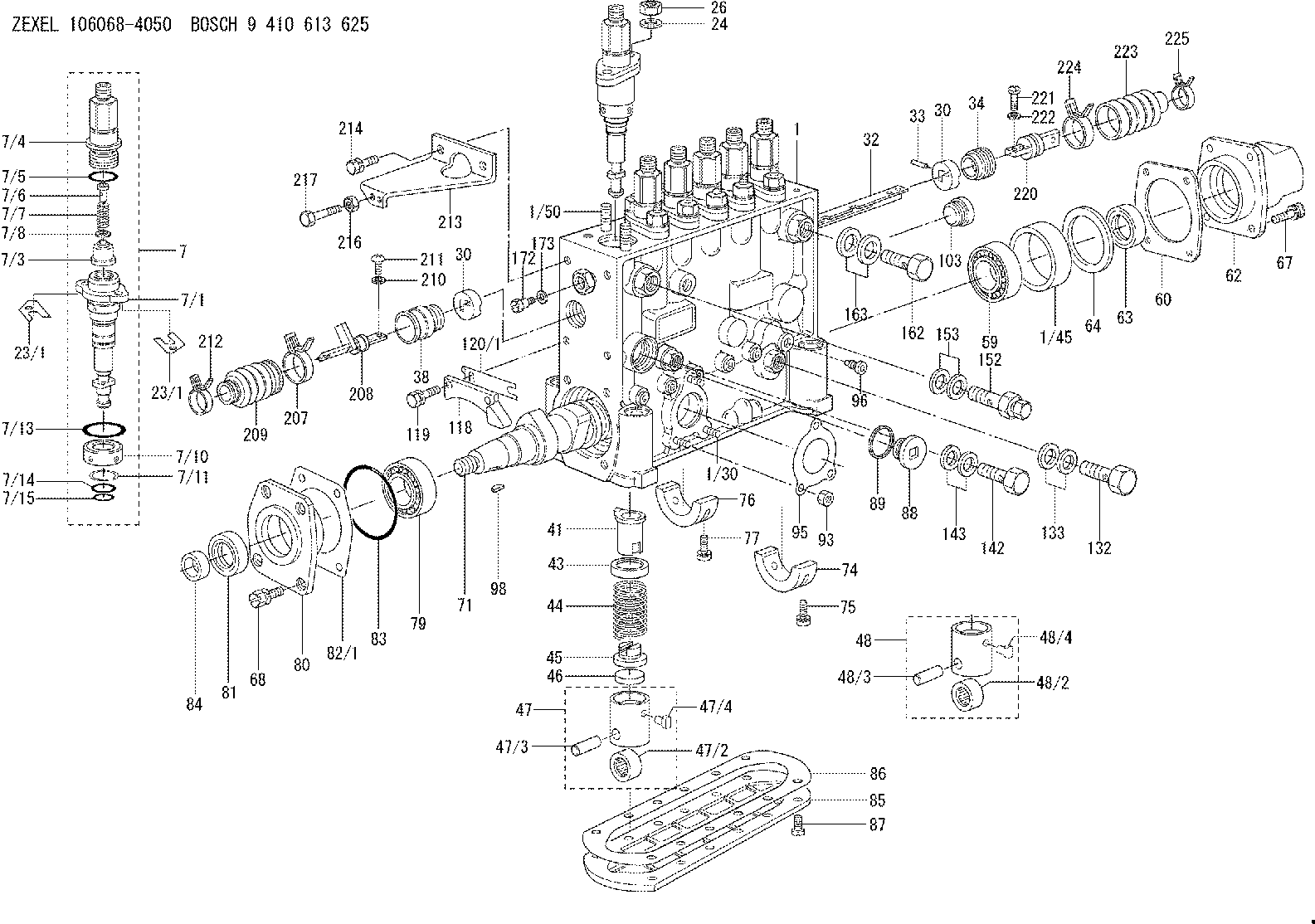

Scheme ###:

1. [1] 134070-0721 PUMP HOUSING
1/30. [3] 029040-6020 STUD
1/45. [1] 134311-0000 SPACER RING
1/50. [12] 134138-0100 STUD
7. [6] 134147-6620 PLUNGER-AND-BARREL ASSY
7/1. [6] 134173-2420 PLUNGER-AND-BARREL ASSY S24
7/3. [6] 134160-1920 DELIVERY-VALVE ASSEMBLY 19P
7/4. [6] 134171-0320 FITTING
7/5. [6] 016500-1850 O-RING
7/6. [6] 134117-1700 FILLER PIECE
7/7. [6] 134112-3500 COMPRESSION SPRING
7/8. [6] 134115-0300 GASKET
7/10. [6] 134135-0300 CAPSULE
7/11. [6] 029602-0010 LOCKING WASHER
7/13. [6] 139727-0300 O-RING
7/14. [6] 139715-0200 O-RING
7/15. [6] 139715-0200 O-RING
23/1. [0] 139400-0900 SHIM T0.500
23/1. [0] 139400-0900 SHIM T0.500
23/1. [0] 139400-1000 SHIM T0.525
23/1. [0] 139400-1100 SHIM T0.550
23/1. [0] 139400-1200 SHIM T0.575
23/1. [0] 139400-1300 SHIM T0.600
23/1. [0] 139400-1400 SHIM T0.625
23/1. [0] 139400-1500 SHIM T0.650
23/1. [0] 139400-1600 SHIM T0.675
23/1. [0] 139400-1700 SHIM T0.700
23/1. [0] 139400-1800 SHIM T0.725
23/1. [0] 139400-1900 SHIM T0.750
23/1. [0] 139400-2000 SHIM T0.775
23/1. [0] 139400-2100 SHIM T0.800
23/1. [0] 139400-2200 SHIM T0.825
23/1. [0] 139400-2300 SHIM T0.850
23/1. [0] 139400-2400 SHIM T0.875
23/1. [0] 139400-2500 SHIM T0.900
23/1. [0] 139400-2600 SHIM T0.925
23/1. [0] 139400-2700 SHIM T0.950
23/1. [0] 139400-2800 SHIM T0.975
23/1. [0] 139400-2900 SHIM T1.000
23/1. [0] 139400-3000 SHIM T1.025
23/1. [0] 139400-3100 SHIM T1.050
23/1. [0] 139400-3200 SHIM T1.075
23/1. [0] 139400-3300 SHIM T1.100
23/1. [0] 139400-3400 SHIM T1.125
23/1. [0] 139400-3500 SHIM T1.150
23/1. [0] 139400-3600 SHIM T1.175
23/1. [0] 139400-3700 SHIM T1.200
23/1. [0] 139400-3800 SHIM T1.225
23/1. [0] 139400-3900 SHIM T1.250
23/1. [0] 139400-4000 SHIM T1.275
23/1. [0] 139400-4100 SHIM T1.300
23/1. [0] 139400-4200 SHIM T1.325
23/1. [0] 139400-4300 SHIM T1.350
23/1. [0] 139400-4400 SHIM T1.375
23/1. [0] 139400-4500 SHIM T1.400
23/1. [0] 139400-4600 SHIM T1.425
23/1. [0] 139400-4700 SHIM T1.450
23/1. [0] 139400-4800 SHIM T1.475
23/1. [0] 139400-4900 SHIM T1.500
23/1. [0] 139400-5000 SHIM T1.525
23/1. [0] 139400-5100 SHIM T1.550
23/1. [0] 139400-5200 SHIM T1.575
23/1. [0] 139400-5300 SHIM T1.600
23/1. [0] 139400-5400 SHIM T1.625
23/1. [0] 139400-5500 SHIM T1.650
23/1. [0] 139400-5600 SHIM T1.675
23/1. [0] 139400-5700 SHIM T1.700
23/1. [0] 139400-5800 SHIM T1.725
23/1. [0] 139400-5900 SHIM T1.750
23/1. [0] 139400-6000 SHIM T1.775
23/1. [0] 139400-6100 SHIM T1.800
23/1. [0] 139400-6200 SHIM T1.825
23/1. [0] 139400-6300 SHIM T1.850
23/1. [0] 139400-6400 SHIM T1.875
23/1. [0] 139400-6500 SHIM T1.900
23/1. [0] 139400-6600 SHIM T1.925
23/1. [0] 139400-6700 SHIM T1.950
23/1. [0] 139400-6800 SHIM T1.975
24. [12] 134132-0300 PLAIN WASHER
26. [12] 139210-0200 UNION NUT
30. [2] 134001-0200 BUSHING
30. [2] 134001-0200 BUSHING
32. [1] 134256-5900 CONTROL RACK
33. [1] 024030-2030 BEARING PIN
34. [1] 134222-1800 BUSHING
38. [1] 134222-1800 BUSHING
41. [6] 134241-0620 CONTROL SLEEVE
43. [6] 134216-0000 SLOTTED WASHER
44. [6] 134215-0800 COMPRESSION SPRING
45. [6] 134217-0700 SLOTTED WASHER
46. [6] 134563-2700 SPRING SEAT
47. [4] 134200-2620 TAPPET
47/2. [4] 134204-0200 ROLLER
47/3. [4] 134203-0000 BEARING PIN
47/4. [4] 131206-0500 SLIDER
48. [2] 134200-2720 TAPPET
48/2. [2] 134204-0200 ROLLER
48/3. [2] 134203-0000 BEARING PIN
48/4. [2] 131206-0500 SLIDER
59. [1] 016650-2230 BEARING PLATE 4T-32205(NSK)
60. [1] 134312-0000 GASKET
62. [1] 134316-0320 COVER
63. [1] 029621-7020 PACKING RING
64. [1] 134303-0500 SHIM
67. [4] 139006-4200 BLEEDER SCREW
68. [4] 139006-4100 BLEEDER SCREW
71. [1] 134340-2700 CAMSHAFT
74. [1] 134306-1000 BEARING SHELL
75. [2] 020106-2040 BLEEDER SCREW
76. [2] 134306-1100 BEARING SHELL
77. [4] 020106-2040 BLEEDER SCREW
79. [1] 035302-0600 BEARING PLATE
80. [1] 134316-3300 COVER
81. [1] 139634-0200 PACKING RING
82/1. [0] 134314-0700 SHIM T0.1
82/1. [0] 134314-0800 SHIM T0.12
82/1. [0] 134314-0900 SHIM T0.14
82/1. [0] 134314-1000 SHIM T0.16
82/1. [0] 134314-1100 SHIM T0.18
82/1. [0] 134314-1200 SHIM T0.3
82/1. [0] 134314-1300 SHIM T0.5
83. [1] 139766-0200 O-RING
84. [1] 134563-2500 SLIDING PIECE
85. [1] 134043-0800 COVER
86. [1] 134042-1400 GASKET
87. [12] 012206-1640 FLAT-HEAD SCREW
88. [1] 134045-0100 CAPSULE
89. [1] 026524-2940 GASKET
93. [3] 139206-0400 UNION NUT
95. [1] 131041-0800 GASKET
96. [6] 134047-0000 CAPSULE
98. [1] 025806-2210 WOODRUFF KEY
103. [1] 134026-0000 CAPSULE
118. [1] 134496-4200 POINTER
119. [2] 029020-6210 BLEEDER SCREW
120/1. [0] 139400-0100 SHIM T0.2
120/1. [0] 139400-0200 SHIM T0.3
120/1. [0] 139400-0300 SHIM T0.5
120/1. [0] 139400-0400 SHIM T1.0
120/1. [0] 139400-7200 SHIM T0.1
132. [1] 029731-4680 EYE BOLT
133. [2] 029341-4130 GASKET
142. [1] 134430-0200 EYE BOLT
143. [2] 029341-0110 GASKET
152. [1] 131424-3420 OVER FLOW VALVE
153. [2] 029341-4130 GASKET
162. [1] 029731-4570 EYE BOLT
163. [2] 029341-4130 GASKET
172. [1] 131420-0400 BLEEDER SCREW
173. [1] 026506-1040 GASKET
207. [1] 134563-4300 CLAMPING BAND
208. [1] 134563-8720 CONNECTOR
209. [1] 134563-4200 COVER
210. [2] 014110-5440 LOCKING WASHER
211. [2] 010635-1240 FLAT-HEAD SCREW
212. [1] 134563-3700 CLAMPING BAND
213. [1] 134510-6100 BRACKET
214. [2] 020006-1640 BLEEDER SCREW
216. [1] 013020-6040 UNION NUT
217. [1] 139006-1200 BLEEDER SCREW
220. [1] 134563-8800 CONNECTOR
221. [2] 010635-1240 FLAT-HEAD SCREW
222. [2] 014110-5440 LOCKING WASHER
223. [1] 134563-4200 COVER
224. [1] 134563-4300 CLAMPING BAND
225. [1] 134563-3700 CLAMPING BAND

Include in #1:

106684-4511 as FUEL INJECTION PUMP

Cross reference number

Zexel num
Bosch num
Firm num
Name
106068-4050
9 410 613 625
NP-PE6P130/300RS7S

FUEL-INJECTION PUMP
Q
