106068-3590 ZEXEL 9 410 613 775 BOSCH FUEL-INJECTION PUMP 9410613775 1060683590

Information fuel-injection pump

BOSCH 9 410 613 775 9410613775

ZEXEL 106068-3590 1060683590

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106068-3590 zexel genuine, new aftermarket engine parts with delivery

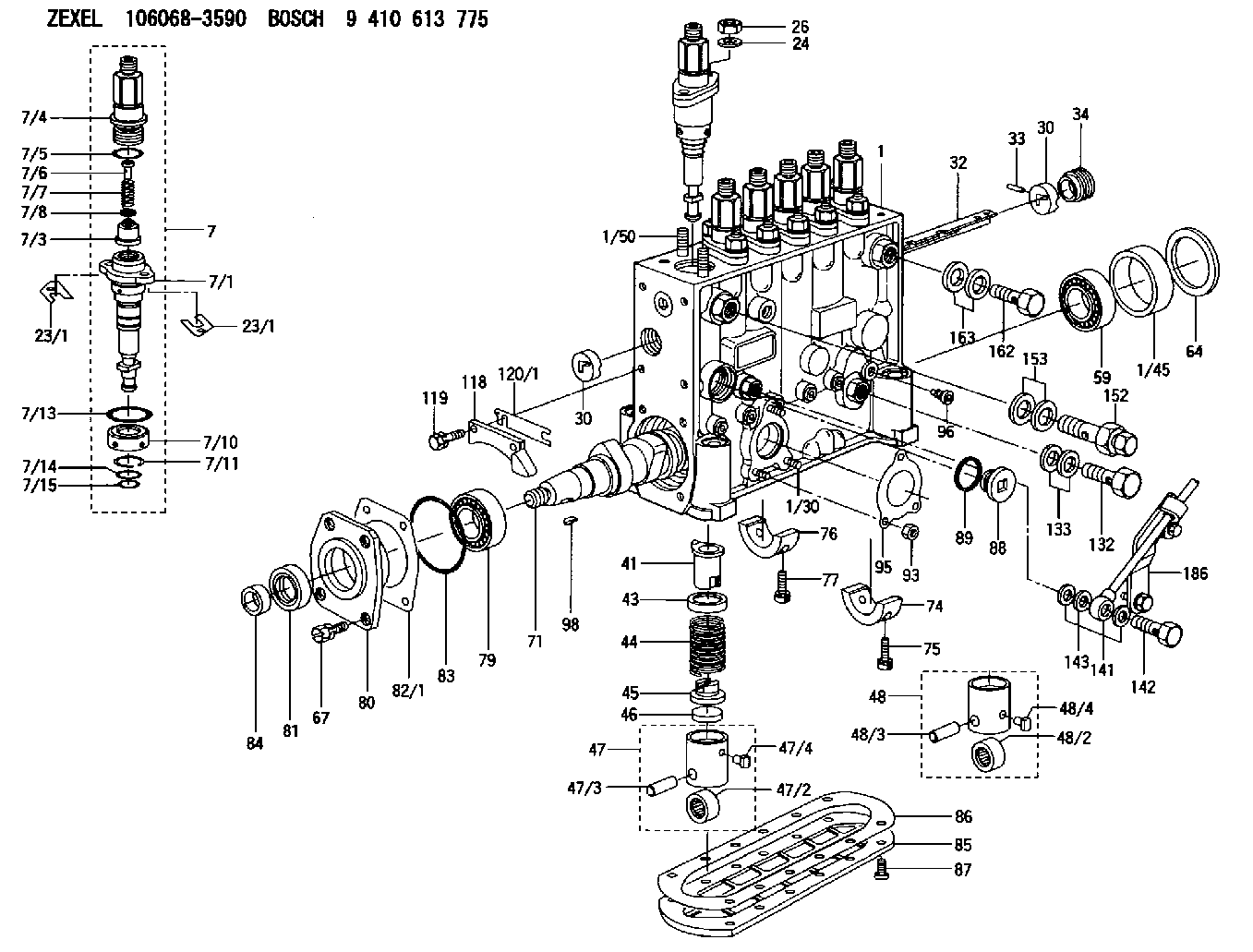

Scheme ###:

1.	[1]	134070-3321	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[12]	134138-0100	STUD
7.	[6]	134168-0020	PLUNGER-AND-BARREL ASSY
7/1.	[6]	134173-4420	PLUNGER-AND-BARREL ASSY S44
7/3.	[6]	134160-3420	DELIVERY-VALVE ASSEMBLY
7/4.	[6]	134171-0320	FITTING
7/5.	[6]	016500-1850	O-RING
7/6.	[6]	134117-1700	FILLER PIECE
7/7.	[6]	134112-2200	COILED SPRING
7/8.	[6]	134115-0300	GASKET
7/10.	[6]	134135-0300	CAPSULE
7/11.	[6]	029602-0010	LOCKING WASHER
7/13.	[6]	139727-0300	O-RING
7/14.	[6]	139715-0200	O-RING
7/15.	[6]	139715-0200	O-RING
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-1000	SHIM T0.525
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1200	SHIM T0.575
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1400	SHIM T0.625
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1600	SHIM T0.675
23/1.	[0]	139400-1700	SHIM T0.700
23/1.	[0]	139400-1800	SHIM T0.725
23/1.	[0]	139400-1900	SHIM T0.750
23/1.	[0]	139400-2000	SHIM T0.775
23/1.	[0]	139400-2100	SHIM T0.800
23/1.	[0]	139400-2200	SHIM T0.825
23/1.	[0]	139400-2300	SHIM T0.850
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2500	SHIM T0.900
23/1.	[0]	139400-2600	SHIM T0.925
23/1.	[0]	139400-2700	SHIM T0.950
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2900	SHIM T1.000
23/1.	[0]	139400-3000	SHIM T1.025
23/1.	[0]	139400-3100	SHIM T1.050
23/1.	[0]	139400-3200	SHIM T1.075
23/1.	[0]	139400-3300	SHIM T1.100
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3500	SHIM T1.150
23/1.	[0]	139400-3600	SHIM T1.175
23/1.	[0]	139400-3700	SHIM T1.200
23/1.	[0]	139400-3800	SHIM T1.225
23/1.	[0]	139400-3900	SHIM T1.250
23/1.	[0]	139400-4000	SHIM T1.275
23/1.	[0]	139400-4100	SHIM T1.300
23/1.	[0]	139400-4200	SHIM T1.325
23/1.	[0]	139400-4300	SHIM T1.350
23/1.	[0]	139400-4400	SHIM T1.375
23/1.	[0]	139400-4500	SHIM T1.400
23/1.	[0]	139400-4600	SHIM T1.425
23/1.	[0]	139400-4700	SHIM T1.450
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4900	SHIM T1.500
23/1.	[0]	139400-5000	SHIM T1.525
23/1.	[0]	139400-5100	SHIM T1.550
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5300	SHIM T1.600
23/1.	[0]	139400-5400	SHIM T1.625
23/1.	[0]	139400-5500	SHIM T1.650
23/1.	[0]	139400-5600	SHIM T1.675
23/1.	[0]	139400-5700	SHIM T1.700
23/1.	[0]	139400-5800	SHIM T1.725
23/1.	[0]	139400-5900	SHIM T1.750
23/1.	[0]	139400-6000	SHIM T1.775
23/1.	[0]	139400-6100	SHIM T1.800
23/1.	[0]	139400-6200	SHIM T1.825
23/1.	[0]	139400-6300	SHIM T1.850
23/1.	[0]	139400-6400	SHIM T1.875
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6600	SHIM T1.925
23/1.	[0]	139400-6700	SHIM T1.950
23/1.	[0]	139400-6800	SHIM T1.975
24.	[12]	134132-0300	PLAIN WASHER
26.	[12]	139210-0200	UNION NUT
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	134256-5000	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[6]	134241-0620	CONTROL SLEEVE
43.	[6]	134216-0000	SLOTTED WASHER
44.	[6]	134215-0800	COMPRESSION SPRING
45.	[6]	134217-0700	SLOTTED WASHER
46.	[6]	134563-2700	SPRING SEAT
47.	[4]	134200-0820	TAPPET
47/2.	[4]	134204-0200	ROLLER
47/3.	[4]	134203-0000	BEARING PIN
47/4.	[4]	131206-0500	SLIDER
48.	[2]	134200-0720	TAPPET
48/2.	[2]	134204-0200	ROLLER
48/3.	[2]	134203-0000	BEARING PIN
48/4.	[2]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE 4T-32205(NSK)
64.	[1]	134303-0500	SHIM
67.	[4]	139006-4200	BLEEDER SCREW
71.	[1]	134340-0700	CAMSHAFT
74.	[1]	134306-1000	BEARING SHELL
75.	[2]	020106-2040	BLEEDER SCREW
76.	[2]	134306-1100	BEARING SHELL
77.	[4]	020106-2040	BLEEDER SCREW
79.	[1]	035302-0600	BEARING PLATE
80.	[1]	134316-3300	COVER
81.	[1]	139634-0200	PACKING RING
82/1.	[0]	134314-0700	SHIM T0.1
82/1.	[0]	134314-0800	SHIM T0.12
82/1.	[0]	134314-0900	SHIM T0.14
82/1.	[0]	134314-1000	SHIM T0.16
82/1.	[0]	134314-1100	SHIM T0.18
82/1.	[0]	134314-1200	SHIM T0.3
82/1.	[0]	134314-1300	SHIM T0.5
83.	[1]	139766-0200	O-RING
84.	[1]	134563-2500	SLIDING PIECE
85.	[1]	134043-0800	COVER
86.	[1]	134042-1400	GASKET
87.	[12]	012206-1640	FLAT-HEAD SCREW
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[6]	134047-0000	CAPSULE
98.	[1]	025806-2210	WOODRUFF KEY
118.	[1]	134496-4200	POINTER
119.	[2]	029020-6210	BLEEDER SCREW
120/1.	[0]	139400-0100	SHIM T0.2
120/1.	[0]	139400-0200	SHIM T0.3
120/1.	[0]	139400-0300	SHIM T0.5
120/1.	[0]	139400-0400	SHIM T1.0
120/1.	[0]	139400-7200	SHIM T0.1
132.	[1]	029731-4680	EYE BOLT
133.	[2]	029341-4130	GASKET
141.	[1]	134433-4820	PIPE
142.	[1]	029731-0490	EYE BOLT
143.	[3]	029341-0110	GASKET
152.	[1]	131424-3720	OVER FLOW VALVE
153.	[2]	029341-4130	GASKET
162.	[1]	029731-4570	EYE BOLT
163.	[2]	029341-4130	GASKET
186.	[1]	134510-8220	BRACKET

Include in #1:

106685-4080 as FUEL INJECTION PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

106068-3590

9 410 613 775
NP-PE6P130/320LS7S

FUEL-INJECTION PUMP
Q

Information:

Start By:a. remove oil pump1. Check the main bearing caps for identification for their location and direction in the block. The caps must be installed in the same location and direction from which they were removed. 2. Remove No. 2 through No. 6 bearing caps (1). Remove thrust plates from the No. 4 main bearing.
If the crankshaft is turned in the wrong direction, the tab of the bearing will be pushed between the crankshaft and cylinder block. This can cause damage to either the crankshaft or cylinder block or both.
3. Remove the upper halves of the main bearings by putting tool (A) in oil hole (2) in the crankshaft. Turn the crankshaft in the direction which will push the
