106068-3570 ZEXEL 9 410 612 473 BOSCH FUEL-INJECTION PUMP 9410612473 1060683570

Information fuel-injection pump

BOSCH 9 410 612 473 9410612473

ZEXEL 106068-3570 1060683570

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106068-3570 zexel genuine, new aftermarket engine parts with delivery

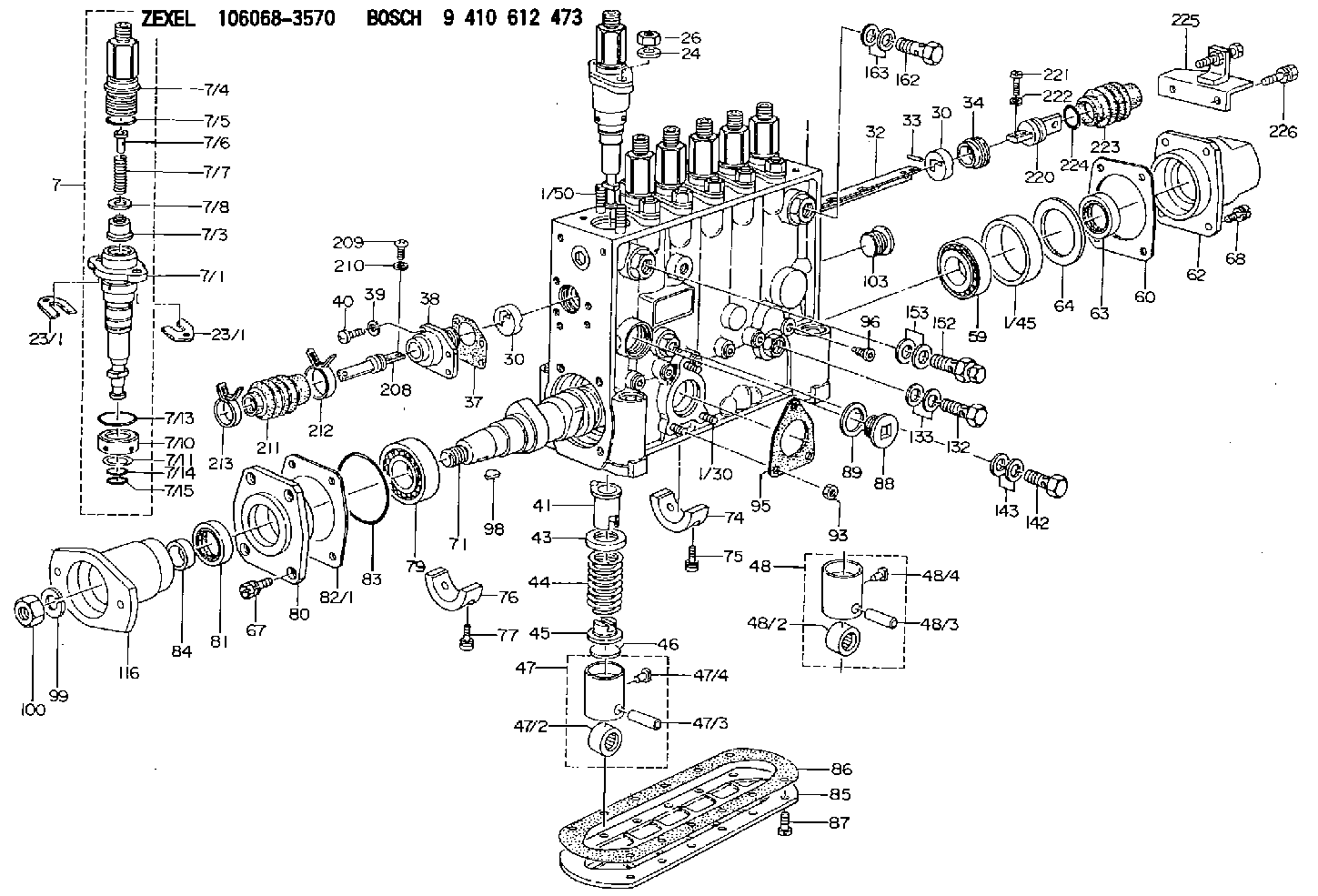

Scheme ###:

1.	[1]	134070-4320	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[12]	134138-0100	STUD
7.	[6]	134147-9620	PLUNGER-AND-BARREL ASSY
7/1.	[1]	134173-0220	PLUNGER-AND-BARREL ASSY
7/3.	[1]	134160-1920	DELIVERY-VALVE ASSEMBLY
7/4.	[1]	134171-0120	FITTING
7/5.	[1]	016500-1850	O-RING
7/6.	[1]	134117-1700	FILLER PIECE
7/7.	[1]	134112-4100	COMPRESSION SPRING
7/8.	[1]	134115-0300	GASKET
7/10.	[1]	134135-0300	CAPSULE
7/11.	[1]	029602-0010	LOCKING WASHER
7/13.	[1]	139727-0300	O-RING
7/14.	[1]	139715-0300	O-RING
7/15.	[1]	139715-0300	O-RING
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-1000	SHIM T0.525
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1200	SHIM T0.575
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1400	SHIM T0.625
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1600	SHIM T0.675
23/1.	[0]	139400-1700	SHIM T0.700
23/1.	[0]	139400-1800	SHIM T0.725
23/1.	[0]	139400-1900	SHIM T0.750
23/1.	[0]	139400-2000	SHIM T0.775
23/1.	[0]	139400-2100	SHIM T0.800
23/1.	[0]	139400-2200	SHIM T0.825
23/1.	[0]	139400-2300	SHIM T0.850
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2500	SHIM T0.900
23/1.	[0]	139400-2600	SHIM T0.925
23/1.	[0]	139400-2700	SHIM T0.950
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2900	SHIM T1.000
23/1.	[0]	139400-3000	SHIM T1.025
23/1.	[0]	139400-3100	SHIM T1.050
23/1.	[0]	139400-3200	SHIM T1.075
23/1.	[0]	139400-3300	SHIM T1.100
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3500	SHIM T1.150
23/1.	[0]	139400-3600	SHIM T1.175
23/1.	[0]	139400-3700	SHIM T1.200
23/1.	[0]	139400-3800	SHIM T1.225
23/1.	[0]	139400-3900	SHIM T1.250
23/1.	[0]	139400-4000	SHIM T1.275
23/1.	[0]	139400-4100	SHIM T1.300
23/1.	[0]	139400-4200	SHIM T1.325
23/1.	[0]	139400-4300	SHIM T1.350
23/1.	[0]	139400-4400	SHIM T1.375
23/1.	[0]	139400-4500	SHIM T1.400
23/1.	[0]	139400-4600	SHIM T1.425
23/1.	[0]	139400-4700	SHIM T1.450
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4900	SHIM T1.500
23/1.	[0]	139400-5000	SHIM T1.525
23/1.	[0]	139400-5100	SHIM T1.550
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5300	SHIM T1.600
23/1.	[0]	139400-5400	SHIM T1.625
23/1.	[0]	139400-5500	SHIM T1.650
23/1.	[0]	139400-5600	SHIM T1.675
23/1.	[0]	139400-5700	SHIM T1.700
23/1.	[0]	139400-5800	SHIM T1.725
23/1.	[0]	139400-5900	SHIM T1.750
23/1.	[0]	139400-6000	SHIM T1.775
23/1.	[0]	139400-6100	SHIM T1.800
23/1.	[0]	139400-6200	SHIM T1.825
23/1.	[0]	139400-6300	SHIM T1.850
23/1.	[0]	139400-6400	SHIM T1.875
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6600	SHIM T1.925
23/1.	[0]	139400-6700	SHIM T1.950
23/1.	[0]	139400-6800	SHIM T1.975
24.	[12]	134132-0300	PLAIN WASHER D20&11T2.5
26.	[12]	139210-0200	UNION NUT
30.	[2]	134001-0400	BUSHING
30.	[2]	134001-0400	BUSHING
32.	[1]	134256-3700	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0200	BUSHING
37.	[1]	134510-6800	GASKET
38.	[1]	134222-1300	ADAPTOR
39.	[4]	014110-4440	LOCKING WASHER
40.	[4]	012154-1440	FLAT-HEAD SCREW M4P0.7L14
41.	[6]	134241-0620	CONTROL SLEEVE
43.	[6]	134216-0000	SLOTTED WASHER
44.	[6]	134215-0800	COMPRESSION SPRING
45.	[6]	134217-0700	SLOTTED WASHER
46.	[6]	134563-2700	SPRING SEAT
47.	[4]	134200-0820	TAPPET
47/2.	[1]	134204-0200	ROLLER
47/3.	[1]	134203-0000	BEARING PIN
47/4.	[1]	131206-0500	SLIDER
48.	[2]	134200-0720	TAPPET
48/2.	[1]	134204-0200	ROLLER
48/3.	[1]	134203-0000	BEARING PIN
48/4.	[1]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE
60.	[1]	134312-0000	GASKET
62.	[1]	134316-0320	COVER
63.	[1]	029621-7020	PACKING RING
64.	[1]	134303-0500	SHIM D59.8&43T1.6
67.	[4]	139006-4200	BLEEDER SCREW
68.	[4]	139006-4100	BLEEDER SCREW
71.	[1]	134340-0100	CAMSHAFT
74.	[1]	134306-1000	BEARING SHELL
75.	[2]	020106-2040	BLEEDER SCREW M6P1L20
76.	[2]	134306-1100	BEARING SHELL
77.	[4]	020106-2040	BLEEDER SCREW M6P1L20
79.	[1]	035302-0600	BEARING PLATE
80.	[1]	134316-3300	COVER
81.	[1]	139634-0200	PACKING RING
82/1.	[0]	134314-0700	SHIM T0.1
82/1.	[0]	134314-0800	SHIM T0.12
82/1.	[0]	134314-0900	SHIM T0.14
82/1.	[0]	134314-1000	SHIM T0.16
82/1.	[0]	134314-1100	SHIM T0.18
82/1.	[0]	134314-1200	SHIM T0.3
82/1.	[0]	134314-1300	SHIM T0.5
83.	[1]	139766-0000	O-RING
84.	[1]	134563-2500	SLIDING PIECE
85.	[1]	134043-0800	COVER
86.	[1]	134042-1400	GASKET
87.	[12]	012206-1640	FLAT-HEAD SCREW M6P1L16
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET D28.9&24.3T2
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[6]	134047-0000	CAPSULE
98.	[1]	025806-2210	WOODRUFF KEY
99.	[1]	014112-0440	LOCKING WASHER
100.	[1]	023012-0040	UNION NUT M20P1.5H16
103.	[1]	134026-0000	CAPSULE
116.	[1]	156637-5900	COUPLING PLATE
132.	[1]	029731-4680	EYE BOLT
133.	[2]	029341-4130	GASKET D20&13.8T2*
142.	[1]	029731-0120	EYE BOLT
143.	[2]	029341-0110	GASKET
152.	[1]	131425-1620	OVER FLOW VALVE
153.	[2]	029341-4130	GASKET D20&13.8T2*
162.	[1]	029731-4680	EYE BOLT
163.	[2]	029341-4130	GASKET D20&13.8T2*
208.	[1]	134563-4000	CONNECTOR
209.	[2]	010635-1040	FLAT-HEAD SCREW M5P0.8L10
210.	[2]	014110-5440	LOCKING WASHER
211.	[1]	134563-4200	COVER
212.	[1]	134563-4300	CLAMPING BAND
213.	[1]	134563-3700	CLAMPING BAND
220.	[1]	134563-7800	CONNECTOR
221.	[2]	010635-1240	FLAT-HEAD SCREW M5P0.8L12
222.	[2]	014110-5440	LOCKING WASHER
223.	[1]	134510-5000	COVER
224.	[1]	029632-6030	O-RING
225.	[1]	134563-8020	BRACKET
226.	[2]	029020-6270	BLEEDER SCREW

Include in #1:

106684-4390 as FUEL INJECTION PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

106068-3570
106068-3571

9 410 612 473

FUEL-INJECTION PUMP
* Q

Information:

2. Remove bolts (3) from cover (1). Remove bolt and washer (2) and remove tube and adapter (4). 3. Remove adapter (5) from tube (4). Remove four O-ring seals (6) from tube (4). 4. Remove four bolts (7), elbow (9) and two adapters (8). 5. Remove four bolts (11), elbow (12), two adapters (10) and pipe (13). 6. Remove twenty-four bolts (15). Remove aftercooler cover (14). 7. Remove aftercooler core (16) from aftercooler housing (17). 8. Remove O-ring seals (19) and gaskets (18) if necessary. The following steps are for the installation of the aftercooler core.9. Clean and inspect all parts. Make a replacement of the parts that are worn or damaged. Lubricate O-ring seals with clean oil at assembly.10. Install O-ring seals (19). Fasten gaskets (18) to both sides of the aftercooler core flange with 5H2471 Cement.11. Install aftercooler core (16) in the aftercooler housing with the end that has the identification "Jacket Water, Fresh Air" or "Treated Water, Fresh Air" toward the water inlet end of the aftercooler housing.12. Install cover (14) on aftercooler housing (17).
To prevent damage to the aftercooler core, tighten the bolts that hold the aftercooler core before tightening the bolts that hold the adapters.
13. Tighten the aftercooler core cover bolts to a torque of 25 7 N m (18 5 lb. ft.). Tighten the bolts again after the engine is operated to a torque of 25 7 N m (18 5 lb. ft.).14. Install the gaskets and adapters (10) on the aftercooler housing. 15. Put O-ring seals (20) on pipe (13) and install pipe (13) into elbow (21).16. Install elbow (12) on pipe (13). Put a gasket between the adapters and elbow (12). Install bolts (11).17. Install gaskets and adapters (8) on the aftercooler housing. Install a gasket and elbow (9). Install bolts (7).18. Install O-ring seals (6) on tube (4). Install adapter (5) on tube (4).19. Install the gasket, adapter and tube (4). Install washer and bolt (2). Install the gasket and cover (1). Tighten bolts (3) to 23 4 N m (17 3 lb. ft.).20. Fill the engine with oil to the correct level. See the Maintenance Manual.
