106067-7541 ZEXEL 9 410 614 087 BOSCH FUEL-INJECTION PUMP 9410614087 1060677541

Information fuel-injection pump

BOSCH 9 410 614 087 9410614087

ZEXEL 106067-7541 1060677541

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106067-7541 zexel genuine, new aftermarket engine parts with delivery

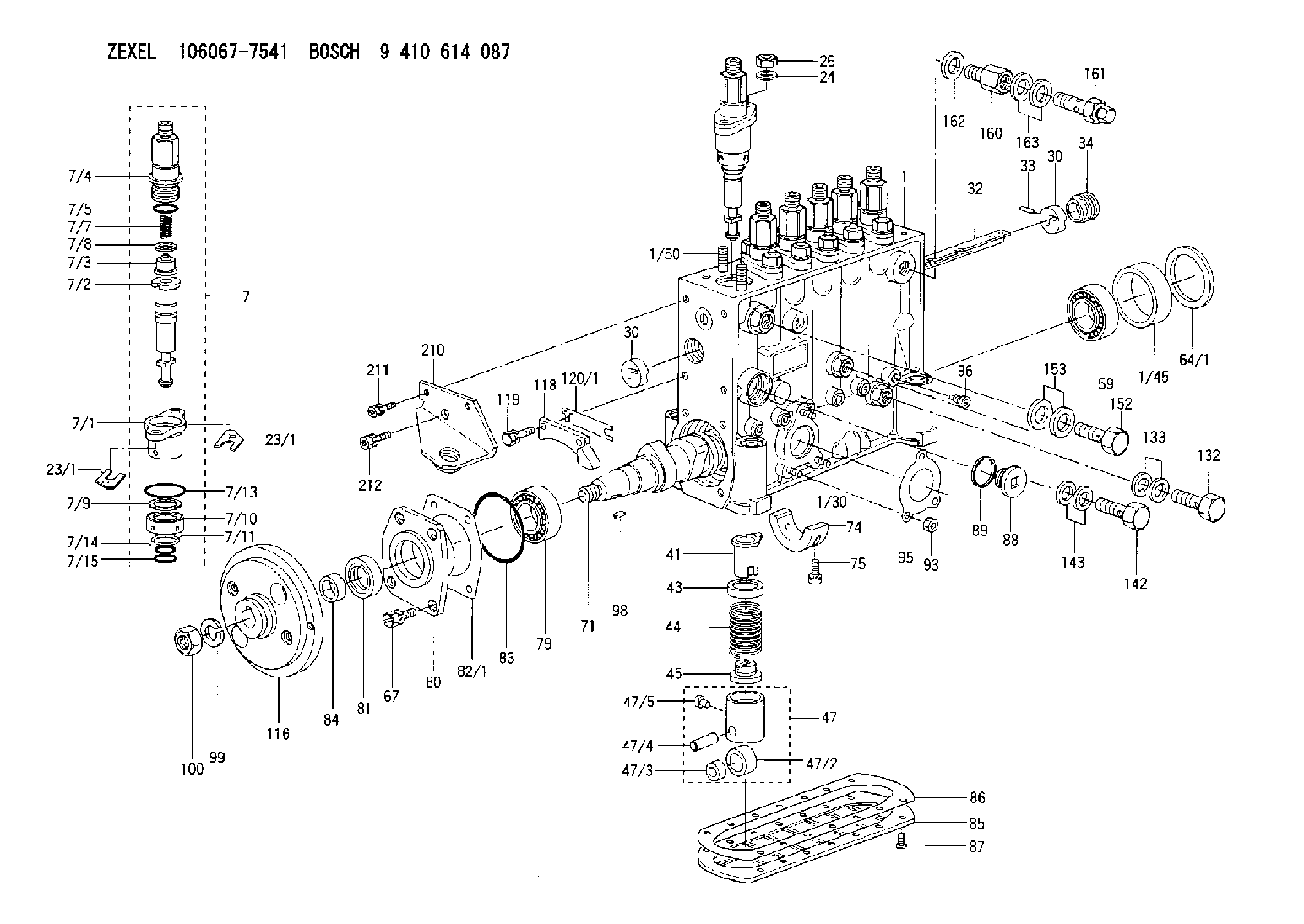

Scheme ###:

1.	[1]	134050-4521	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[12]	134138-0000	STUD
7.	[6]	134150-8920	PLUNGER-AND-BARREL ASSY
7/1.	[1]	134131-1920	FLANGE BUSHING
7/2.	[1]	134101-5820	PLUNGER-AND-BARREL ASSY
7/3.	[1]	134110-6320	DELIVERY-VALVE ASSEMBLY
7/4.	[1]	134116-2520	FITTING
7/5.	[1]	139722-0400	O-RING
7/7.	[1]	134112-0500	COMPRESSION SPRING
7/8.	[1]	134115-0100	GASKET
7/9.	[1]	029302-0140	PLAIN WASHER
7/10.	[1]	134135-0400	CAPSULE
7/11.	[1]	029602-0010	LOCKING WASHER
7/13.	[1]	139729-0400	O-RING
7/14.	[1]	139715-0400	O-RING
7/15.	[1]	139715-0400	O-RING
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-1000	SHIM T0.525
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1200	SHIM T0.575
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1400	SHIM T0.625
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1600	SHIM T0.675
23/1.	[0]	139400-1700	SHIM T0.700
23/1.	[0]	139400-1800	SHIM T0.725
23/1.	[0]	139400-1900	SHIM T0.750
23/1.	[0]	139400-2000	SHIM T0.775
23/1.	[0]	139400-2100	SHIM T0.800
23/1.	[0]	139400-2200	SHIM T0.825
23/1.	[0]	139400-2300	SHIM T0.850
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2500	SHIM T0.900
23/1.	[0]	139400-2600	SHIM T0.925
23/1.	[0]	139400-2700	SHIM T0.950
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2900	SHIM T1.000
23/1.	[0]	139400-3000	SHIM T1.025
23/1.	[0]	139400-3100	SHIM T1.050
23/1.	[0]	139400-3200	SHIM T1.075
23/1.	[0]	139400-3300	SHIM T1.100
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3500	SHIM T1.150
23/1.	[0]	139400-3600	SHIM T1.175
23/1.	[0]	139400-3700	SHIM T1.200
23/1.	[0]	139400-3800	SHIM T1.225
23/1.	[0]	139400-3900	SHIM T1.250
23/1.	[0]	139400-4000	SHIM T1.275
23/1.	[0]	139400-4100	SHIM T1.300
23/1.	[0]	139400-4200	SHIM T1.325
23/1.	[0]	139400-4300	SHIM T1.350
23/1.	[0]	139400-4400	SHIM T1.375
23/1.	[0]	139400-4500	SHIM T1.400
23/1.	[0]	139400-4600	SHIM T1.425
23/1.	[0]	139400-4700	SHIM T1.450
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4900	SHIM T1.500
23/1.	[0]	139400-5000	SHIM T1.525
23/1.	[0]	139400-5100	SHIM T1.550
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5300	SHIM T1.600
23/1.	[0]	139400-5400	SHIM T1.625
23/1.	[0]	139400-5500	SHIM T1.650
23/1.	[0]	139400-5600	SHIM T1.675
23/1.	[0]	139400-5700	SHIM T1.700
23/1.	[0]	139400-5800	SHIM T1.725
23/1.	[0]	139400-5900	SHIM T1.750
23/1.	[0]	139400-6000	SHIM T1.775
23/1.	[0]	139400-6100	SHIM T1.800
23/1.	[0]	139400-6200	SHIM T1.825
23/1.	[0]	139400-6300	SHIM T1.850
23/1.	[0]	139400-6400	SHIM T1.875
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6600	SHIM T1.925
23/1.	[0]	139400-6700	SHIM T1.950
23/1.	[0]	139400-6800	SHIM T1.975
24.	[12]	134132-0300	PLAIN WASHER D20&11T2.5
26.	[12]	013021-0040	UNION NUT M10P1.5H8
30.	[2]	134001-0000	BUSHING
30.	[2]	134001-0000	BUSHING
32.	[1]	134256-4500	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0000	BUSHING
41.	[6]	134241-0021	CONTROL SLEEVE
43.	[6]	134216-0000	SLOTTED WASHER
44.	[6]	134215-0400	COMPRESSION SPRING
45.	[6]	134217-0500	SLOTTED WASHER
47.	[6]	134200-0020	TAPPET
47/2.	[1]	134204-0000	ROLLER
47/3.	[1]	134205-0000	BUSHING
47/4.	[1]	134203-0000	BEARING PIN
47/5.	[1]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
67.	[4]	029010-6810	BLEEDER SCREW
71.	[1]	134371-3300	CAMSHAFT
74.	[1]	134306-0000	BEARING SHELL
75.	[2]	020106-2040	BLEEDER SCREW M6P1L20
79.	[1]	016650-2230	BEARING PLATE
80.	[1]	134316-1700	COVER
81.	[1]	139625-0000	PACKING RING
82/1.	[0]	134314-0000	SHIM T0.1
82/1.	[0]	134314-0100	SHIM T0.12
82/1.	[0]	134314-0200	SHIM T0.14
82/1.	[0]	134314-0300	SHIM T0.16
82/1.	[0]	134314-0400	SHIM T0.18
82/1.	[0]	134314-0500	SHIM T0.3
82/1.	[0]	134314-0600	SHIM T0.5
83.	[1]	029635-5010	O-RING
84.	[1]	134563-0900	SLIDING PIECE
85.	[1]	134043-0800	COVER
86.	[1]	134042-1400	GASKET
87.	[12]	012206-1640	FLAT-HEAD SCREW M6P1L16
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET D28.9&24.3T2
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[6]	134047-0000	CAPSULE
98.	[1]	025805-1910	WOODRUFF KEY
99.	[1]	023641-8410	LOCKING WASHER
100.	[1]	029201-8020	UNION NUT
116.	[1]	156635-8201	COUPLING PLATE
118.	[1]	134496-0800	POINTER
119.	[2]	029020-6210	BLEEDER SCREW
120/1.	[0]	139400-0100	SHIM T0.2
120/1.	[0]	139400-0200	SHIM T0.3
120/1.	[0]	139400-0300	SHIM T0.5
120/1.	[0]	139400-0400	SHIM T1.0
120/1.	[0]	139400-7200	SHIM T0.1
132.	[1]	134430-1600	EYE BOLT
133.	[2]	139516-0200	GASKET
142.	[1]	134430-3000	EYE BOLT
143.	[2]	139510-0300	GASKET
152.	[1]	029731-4680	EYE BOLT
153.	[2]	139514-0300	GASKET
160.	[1]	134400-0300	ADAPTOR
161.	[1]	134424-0920	OVER FLOW VALVE
162.	[1]	139514-0300	GASKET
163.	[2]	139512-0600	GASKET
210.	[1]	134510-7320	BRACKET
211.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
212.	[1]	020118-1440	BLEEDER SCREW

Include in #1:

106672-3047 as FUEL INJECTION PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

106067-7541

9 410 614 087

FUEL-INJECTION PUMP
* Q

Information:

Use fuel consumption or service hours, whichever occurs first, to determine maintenance intervals. Experience has shown that maintenance intervals are most accurately scheduled on the basis of fuel consumed rather than service hours.Daily
Walk-Around Inspection - Inspect engine for leaks and loose connections Engine Crankcase - Check oil level Cooling System - Check coolant level Clutch - Check/Adjust/Lubricate Air Starter & Air Tank (if equipped) - Check Engine Air Cleaner - Check service indicator SR4 Generator - Inspect/CheckEvery 1,900 L (500 gal) of Fuel or 50 Service Hours*
Dust Collector - Clean Light Duty Air Cleaner (If Equipped) - ReplaceEvery 4,250 L (1,100 gal) of Fuel or 125 Service Hours*
Clutch - Check/Adjust/Lubricate Generator Space Heaters - CheckEvery 8,500 L (2,200 gal) of Fuel or 250 Service Hours*
Scheduled Oil Sampling (S O S)1 - Obtain Sample Engine Oil and Filter(s)1 - Change Crankcase Breather1 - Clean Engine Valve Lash (Between First 250 and 1000 Service Hours Only)1 - Check/Adjust Cooling System - Test for supplemental coolant additive concentration Fuel System - Clean/Replace filters, Drain water from fuel tank Radiator Fins, Aftercooler, Belts, and Hoses - Inspect/Check Fan Drive Bearing - Lubricate Batteries - Clean/Check Magnetic Pickup (At First Oil Change Only - Inspect/Clean1These maintenance requirements are to be performed between the 250 and the 1000 Service Hour interval for engines equipped with turbochargers (T, TA & ATAAC) ONLY. Refer to 500 Hour interval for Naturally Aspirated (NA) Engines.Every 17,000 L (4,500 gal) of Fuel or 500 Service Hours (NA Only)*
Scheduled Oil Sampling (S O S) - Obtain Sample Engine Oil and Filter(s) - Change Crankcase Breather - Clean Engine Valve Lash (Between First 500 and 1000 Service Hours Only) - Check/AdjustEvery 34,000 L (9,000 gal) of Fuel or 1000 Service Hours*
Engine Protection Devices - Inspect SR4 Generator and Control Panel - Inspect Fuel Control Linkage - LubricateEvery 67,000 L (18,000 gal) of Fuel or 2000 Service Hours*
Engine Valve Lash, Valve Rotators, Fuel Ratio Control, Set Point, and Low Idle - Check/Adjust Fuel Injection Nozzles - Test/Clean/Replace Turbocharger - Inspect Engine Mounts - Inspect Crankshaft Vibration Damper - Inspect SR4 Generator - Check/Inspect Clean/LubricateEvery 91,000 L (24,000 gal) of Fuel or 3000 Service Hours or Two Years*
Cooling System - Add Extender (Extended Life Coolant Only) - Cooling System - Drain/Clean/Replace Coolant - Conventional Coolant/Antifreeze Only Water Pump Seal - Inspect/Replace Hoses - Replace Thermostat - ReplaceEvery 136,000 L (36,000 gal) of Fuel or 4000 Service Hours*
Magnetic Pickup - Inspect/Clean SR4 Generator - Check/Inspect/Clean/LubricateEvery 204,000 L (54,000 gal) of Fuel or 6,000 Service Hours or Four Years
Cooling System - Drain/Flush/Replace Coolant (Extended Life Coolant Only)*Perform previous maintenance interval items first.
