106067-7004 ZEXEL 9 410 612 155 BOSCH FUEL-INJECTION PUMP 9410612155 1060677004

Information fuel-injection pump

BOSCH 9 410 612 155 9410612155

ZEXEL 106067-7004 1060677004

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 106067-7004 zexel genuine, new aftermarket engine parts with delivery

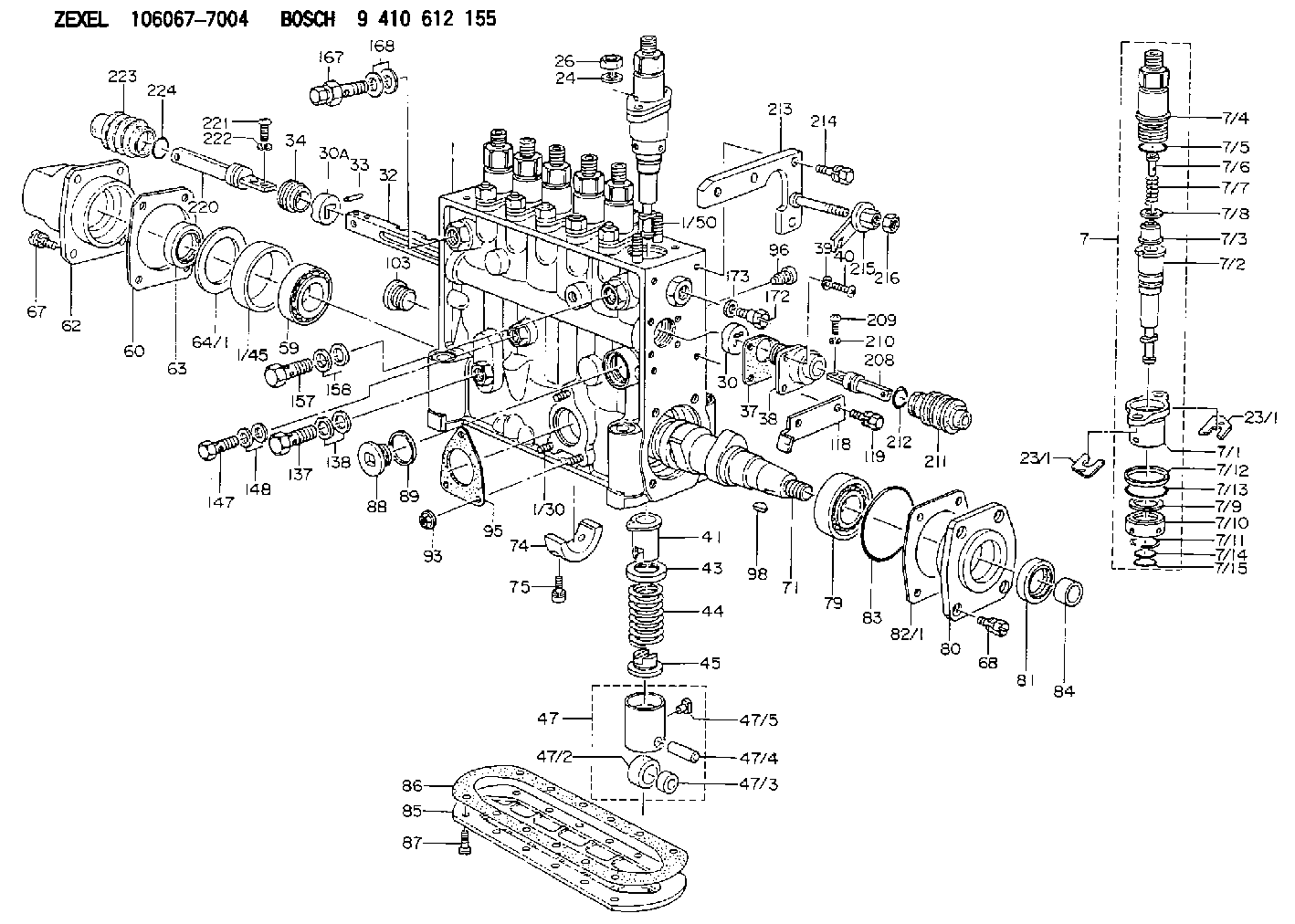

Scheme ###:

1.	[1]	134050-3721	PUMP HOUSING
1/30.	[3]	029040-6020	STUD
1/45.	[1]	134311-0000	SPACER RING
1/50.	[12]	134138-0000	STUD
7.	[6]	134145-2920	PLUNGER-AND-BARREL ASSY
7/1.	[1]	134131-1020	FLANGE BUSHING
7/2.	[1]	134101-7320	PLUNGER-AND-BARREL ASSY
7/3.	[1]	134110-4820	DELIVERY-VALVE ASSEMBLY
7/4.	[1]	134116-2820	FITTING
7/5.	[1]	029632-2070	O-RING
7/6.	[1]	134117-0500	FILLER PIECE
7/7.	[1]	134112-1600	COILED SPRING
7/8.	[1]	134115-0100	GASKET
7/9.	[1]	029302-0140	PLAIN WASHER
7/10.	[1]	134135-0200	CAPSULE
7/11.	[1]	029602-0010	LOCKING WASHER
7/12.	[1]	134137-0100	SPACER RING
7/13.	[1]	029632-9030	O-RING
7/14.	[1]	029631-5020	O-RING
7/15.	[1]	029631-5020	O-RING
23/1.	[0]	139400-0900	SHIM T0.500
23/1.	[0]	139400-1000	SHIM T0.525
23/1.	[0]	139400-1100	SHIM T0.550
23/1.	[0]	139400-1200	SHIM T0.575
23/1.	[0]	139400-1300	SHIM T0.600
23/1.	[0]	139400-1400	SHIM T0.625
23/1.	[0]	139400-1500	SHIM T0.650
23/1.	[0]	139400-1600	SHIM T0.675
23/1.	[0]	139400-1700	SHIM T0.700
23/1.	[0]	139400-1800	SHIM T0.725
23/1.	[0]	139400-1900	SHIM T0.750
23/1.	[0]	139400-2000	SHIM T0.775
23/1.	[0]	139400-2100	SHIM T0.800
23/1.	[0]	139400-2200	SHIM T0.825
23/1.	[0]	139400-2300	SHIM T0.850
23/1.	[0]	139400-2400	SHIM T0.875
23/1.	[0]	139400-2500	SHIM T0.900
23/1.	[0]	139400-2600	SHIM T0.925
23/1.	[0]	139400-2700	SHIM T0.950
23/1.	[0]	139400-2800	SHIM T0.975
23/1.	[0]	139400-2900	SHIM T1.000
23/1.	[0]	139400-3000	SHIM T1.025
23/1.	[0]	139400-3100	SHIM T1.050
23/1.	[0]	139400-3200	SHIM T1.075
23/1.	[0]	139400-3300	SHIM T1.100
23/1.	[0]	139400-3400	SHIM T1.125
23/1.	[0]	139400-3500	SHIM T1.150
23/1.	[0]	139400-3600	SHIM T1.175
23/1.	[0]	139400-3700	SHIM T1.200
23/1.	[0]	139400-3800	SHIM T1.225
23/1.	[0]	139400-3900	SHIM T1.250
23/1.	[0]	139400-4000	SHIM T1.275
23/1.	[0]	139400-4100	SHIM T1.300
23/1.	[0]	139400-4200	SHIM T1.325
23/1.	[0]	139400-4300	SHIM T1.350
23/1.	[0]	139400-4400	SHIM T1.375
23/1.	[0]	139400-4500	SHIM T1.400
23/1.	[0]	139400-4600	SHIM T1.425
23/1.	[0]	139400-4700	SHIM T1.450
23/1.	[0]	139400-4800	SHIM T1.475
23/1.	[0]	139400-4900	SHIM T1.500
23/1.	[0]	139400-5000	SHIM T1.525
23/1.	[0]	139400-5100	SHIM T1.550
23/1.	[0]	139400-5200	SHIM T1.575
23/1.	[0]	139400-5300	SHIM T1.600
23/1.	[0]	139400-5400	SHIM T1.625
23/1.	[0]	139400-5500	SHIM T1.650
23/1.	[0]	139400-5600	SHIM T1.675
23/1.	[0]	139400-5700	SHIM T1.700
23/1.	[0]	139400-5800	SHIM T1.725
23/1.	[0]	139400-5900	SHIM T1.750
23/1.	[0]	139400-6000	SHIM T1.775
23/1.	[0]	139400-6100	SHIM T1.800
23/1.	[0]	139400-6200	SHIM T1.825
23/1.	[0]	139400-6300	SHIM T1.850
23/1.	[0]	139400-6400	SHIM T1.875
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6500	SHIM T1.900
23/1.	[0]	139400-6600	SHIM T1.925
23/1.	[0]	139400-6700	SHIM T1.950
23/1.	[0]	139400-6800	SHIM T1.975
24.	[12]	134132-0300	PLAIN WASHER D20&11T2.5
26.	[12]	013021-0040	UNION NUT M10P1.5H8
30.	[1]	134001-0200	BUSHING
30A.	[1]	134001-0000	BUSHING
32.	[1]	134256-2500	CONTROL RACK
33.	[1]	024030-2030	BEARING PIN
34.	[1]	134222-0200	BUSHING
37.	[1]	134510-6800	GASKET
38.	[1]	134222-1000	ADAPTOR
39.	[4]	014110-4440	LOCKING WASHER
40.	[4]	012154-1440	FLAT-HEAD SCREW M4P0.7L14
41.	[6]	134241-0021	CONTROL SLEEVE
43.	[6]	134216-0000	SLOTTED WASHER
44.	[6]	134215-0000	COMPRESSION SPRING
45.	[6]	134217-0500	SLOTTED WASHER
47.	[6]	134200-0020	TAPPET
47/2.	[1]	134204-0000	ROLLER
47/3.	[1]	134205-0000	BUSHING
47/4.	[1]	134203-0000	BEARING PIN
47/5.	[1]	131206-0500	SLIDER
59.	[1]	016650-2230	BEARING PLATE
59B.	[1]	028222-5010	BEARING PLATE
60.	[1]	134312-0000	GASKET
62.	[1]	134316-0320	COVER
63.	[1]	029621-7020	PACKING RING
64/1.	[0]	134303-0000	SHIM D59.8&43T1.2
64/1.	[0]	134303-0100	SHIM D59.8&43T1.5
64/1.	[0]	134303-0200	SHIM D59.8&43T1.8
64/1.	[0]	134303-0300	SHIM D59.8&43T2.0
64/1.	[0]	134303-0400	SHIM D59.8&43T0.6
67.	[4]	029010-6810	BLEEDER SCREW
68.	[4]	020106-2040	BLEEDER SCREW M6P1L20
71.	[1]	134371-1500	CAMSHAFT
74.	[1]	134306-0100	BEARING SHELL
75.	[2]	020106-2040	BLEEDER SCREW M6P1L20
79.	[1]	016650-2230	BEARING PLATE
79B.	[1]	028222-5010	BEARING PLATE
80.	[1]	134316-1700	COVER
81.	[1]	139625-0000	PACKING RING
82/1.	[0]	134314-0000	SHIM T0.1
82/1.	[0]	134314-0100	SHIM T0.12
82/1.	[0]	134314-0200	SHIM T0.14
82/1.	[0]	134314-0300	SHIM T0.16
82/1.	[0]	134314-0400	SHIM T0.18
82/1.	[0]	134314-0500	SHIM T0.3
82/1.	[0]	134314-0600	SHIM T0.5
83.	[1]	029635-5010	O-RING
84.	[1]	134563-0900	SLIDING PIECE
85.	[1]	134043-0800	COVER
86.	[1]	134042-1400	GASKET
87.	[12]	012206-1640	FLAT-HEAD SCREW M6P1L16
88.	[1]	134045-0100	CAPSULE
89.	[1]	026524-2940	GASKET D28.9&24.3T2
93.	[3]	139206-0400	UNION NUT
95.	[1]	131041-0800	GASKET
96.	[6]	134047-0000	CAPSULE
98.	[1]	025805-1910	WOODRUFF KEY
103.	[1]	134026-0000	CAPSULE
118.	[1]	134496-0900	POINTER
119.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
137.	[1]	029731-4680	EYE BOLT
138.	[2]	029341-4130	GASKET D20&13.8T2*
147.	[1]	134430-0200	EYE BOLT
148.	[2]	029341-0110	GASKET
157.	[1]	029731-4570	EYE BOLT
158.	[2]	029341-4130	GASKET D20&13.8T2*
167.	[1]	133424-0221	OVER FLOW VALVE
168.	[2]	029341-4130	GASKET D20&13.8T2*
172.	[1]	131420-0400	BLEEDER SCREW
173.	[1]	029340-6020	GASKET D10&6.5T1.00
208.	[1]	134510-7720	CONNECTOR
209.	[2]	010635-1240	FLAT-HEAD SCREW M5P0.8L12
210.	[2]	014110-5440	LOCKING WASHER
211.	[1]	134510-5000	COVER
212.	[1]	029632-6030	O-RING
213.	[1]	134510-7520	BRACKET
214.	[3]	020106-2040	BLEEDER SCREW M6P1L20
215.	[1]	134513-0300	PLATE
216.	[1]	154011-2100	UNION NUT
220.	[1]	134510-5600	CONNECTOR
221.	[2]	010635-1240	FLAT-HEAD SCREW M5P0.8L12
222.	[2]	014110-5440	LOCKING WASHER
223.	[1]	134510-5000	COVER
224.	[1]	029632-6030	O-RING

Include in #1:

106679-2062 as FUEL INJECTION PUMP

Cross reference number

Zexel num

Bosch num

Firm num

Name

106067-7004
106067-6650

9 410 612 155

FUEL-INJECTION PUMP
