106067-0910 ZEXEL 9 410 614 183 BOSCH FUEL-INJECTION PUMP 9410614183 1060670910




Information fuel-injection pump

BOSCH 9 410 614 183 9410614183
ZEXEL 106067-0910 1060670910
106067-0910 FUEL-INJECTION PUMP
Rating:
29
Buy FUEL-INJECTION PUMP 106067-0910 zexel genuine, new aftermarket engine parts with delivery

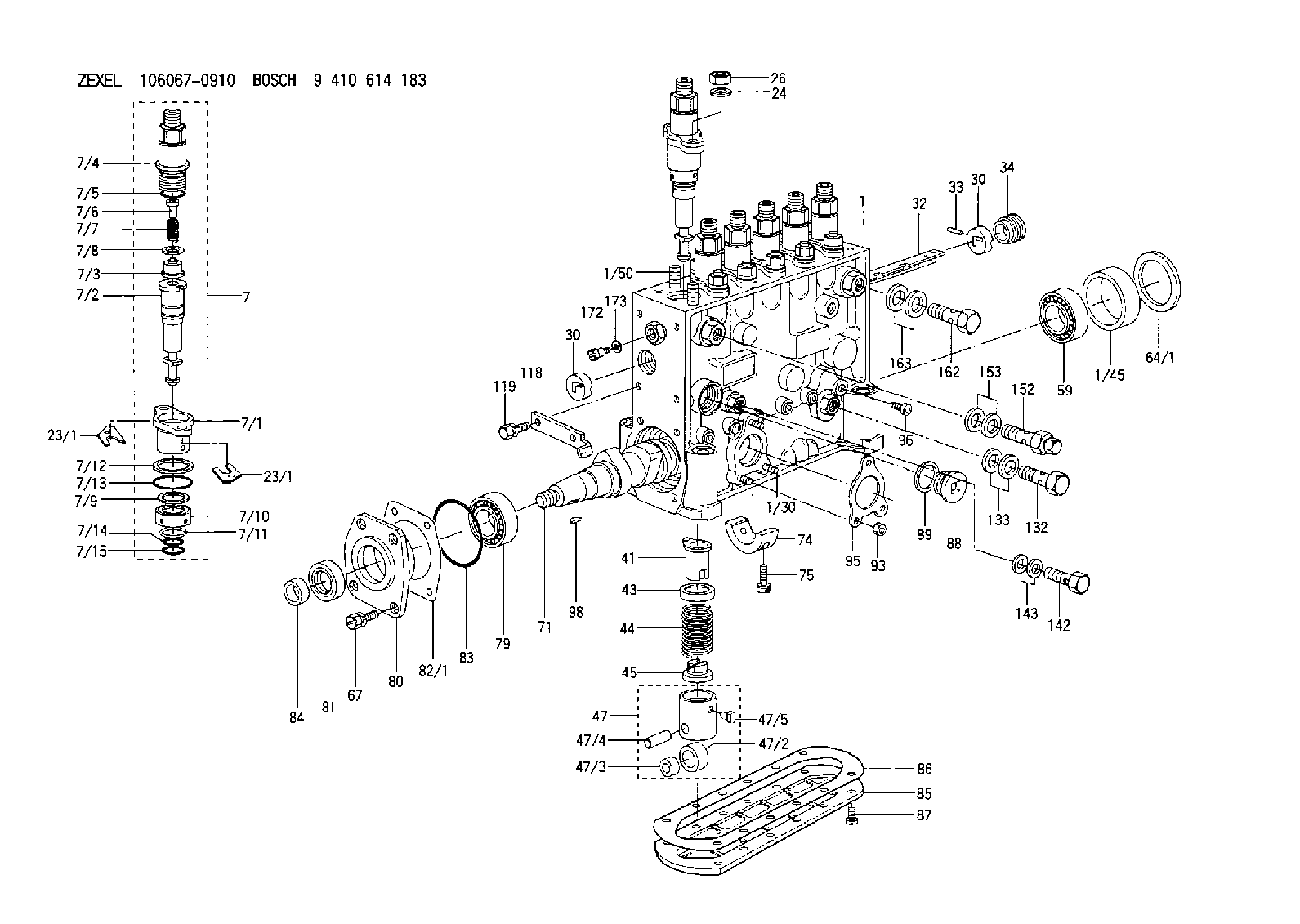

Scheme ###:

PUMP HOUSING
1. [1] 134051-5420 PUMP HOUSING
1/30. [3] 029040-6020 STUD
1/45. [1] 134311-0000 SPACER RING
1/50. [12] 134138-0000 STUD
7. [6] 134165-2720 PLUNGER-AND-BARREL ASSY
7/1. [1] 134131-1020 FLANGE BUSHING
7/2. [1] 134151-7320 PLUNGER-AND-BARREL ASSY
7/3. [1] 134110-4820 DELIVERY-VALVE ASSEMBLY
7/4. [1] 134116-4820 FITTING
7/5. [1] 139722-0200 O-RING
7/6. [1] 134117-0500 FILLER PIECE
7/7. [1] 134112-1600 COILED SPRING
7/8. [1] 134115-0100 GASKET
7/9. [1] 029302-0140 PLAIN WASHER
7/10. [1] 134135-0200 CAPSULE
7/11. [1] 029602-0010 LOCKING WASHER
7/12. [1] 134137-0100 SPACER RING
7/13. [1] 139729-0000 O-RING
7/14. [1] 139715-0200 O-RING
7/15. [1] 139715-0200 O-RING
23/1. [0] 139400-0900 SHIM T0.500
23/1. [0] 139400-1000 SHIM T0.525
23/1. [0] 139400-1100 SHIM T0.550
23/1. [0] 139400-1200 SHIM T0.575
23/1. [0] 139400-1300 SHIM T0.600
23/1. [0] 139400-1400 SHIM T0.625
23/1. [0] 139400-1500 SHIM T0.650
23/1. [0] 139400-1600 SHIM T0.675
23/1. [0] 139400-1700 SHIM T0.700
23/1. [0] 139400-1800 SHIM T0.725
23/1. [0] 139400-1900 SHIM T0.750
23/1. [0] 139400-2000 SHIM T0.775
23/1. [0] 139400-2100 SHIM T0.800
23/1. [0] 139400-2200 SHIM T0.825
23/1. [0] 139400-2300 SHIM T0.850
23/1. [0] 139400-2400 SHIM T0.875
23/1. [0] 139400-2500 SHIM T0.900
23/1. [0] 139400-2600 SHIM T0.925
23/1. [0] 139400-2700 SHIM T0.950
23/1. [0] 139400-2800 SHIM T0.975
23/1. [0] 139400-2900 SHIM T1.000
23/1. [0] 139400-3000 SHIM T1.025
23/1. [0] 139400-3100 SHIM T1.050
23/1. [0] 139400-3200 SHIM T1.075
23/1. [0] 139400-3300 SHIM T1.100
23/1. [0] 139400-3400 SHIM T1.125
23/1. [0] 139400-3500 SHIM T1.150
23/1. [0] 139400-3600 SHIM T1.175
23/1. [0] 139400-3700 SHIM T1.200
23/1. [0] 139400-3800 SHIM T1.225
23/1. [0] 139400-3900 SHIM T1.250
23/1. [0] 139400-4000 SHIM T1.275
23/1. [0] 139400-4100 SHIM T1.300
23/1. [0] 139400-4200 SHIM T1.325
23/1. [0] 139400-4300 SHIM T1.350
23/1. [0] 139400-4400 SHIM T1.375
23/1. [0] 139400-4500 SHIM T1.400
23/1. [0] 139400-4600 SHIM T1.425
23/1. [0] 139400-4700 SHIM T1.450
23/1. [0] 139400-4800 SHIM T1.475
23/1. [0] 139400-4900 SHIM T1.500
23/1. [0] 139400-5000 SHIM T1.525
23/1. [0] 139400-5100 SHIM T1.550
23/1. [0] 139400-5200 SHIM T1.575
23/1. [0] 139400-5300 SHIM T1.600
23/1. [0] 139400-5400 SHIM T1.625
23/1. [0] 139400-5500 SHIM T1.650
23/1. [0] 139400-5600 SHIM T1.675
23/1. [0] 139400-5700 SHIM T1.700
23/1. [0] 139400-5800 SHIM T1.725
23/1. [0] 139400-5900 SHIM T1.750
23/1. [0] 139400-6000 SHIM T1.775
23/1. [0] 139400-6100 SHIM T1.800
23/1. [0] 139400-6200 SHIM T1.825
23/1. [0] 139400-6300 SHIM T1.850
23/1. [0] 139400-6400 SHIM T1.875
23/1. [0] 139400-6500 SHIM T1.900
23/1. [0] 139400-6600 SHIM T1.925
23/1. [0] 139400-6600 SHIM T1.925
23/1. [0] 139400-6700 SHIM T1.950
23/1. [0] 139400-6800 SHIM T1.975
24. [12] 134132-0300 PLAIN WASHER D20&11T2.5
26. [12] 013021-0040 UNION NUT M10P1.5H8
30. [2] 134001-0000 BUSHING
30. [2] 134001-0000 BUSHING
32. [1] 134256-0000 CONTROL RACK
33. [1] 024030-2030 BEARING PIN
34. [1] 134222-0000 BUSHING
41. [6] 134241-0320 CONTROL SLEEVE
43. [6] 134216-0000 SLOTTED WASHER
44. [6] 134215-0700 COILED SPRING
45. [6] 134217-0500 SLOTTED WASHER
47. [6] 134200-0420 TAPPET
47/2. [1] 134204-0100 ROLLER
47/3. [1] 134205-0000 BUSHING
47/4. [1] 134203-0000 BEARING PIN
47/5. [1] 131206-0500 SLIDER
59. [1] 016650-2230 BEARING PLATE
64/1. [0] 134303-0000 SHIM D59.8&43T1.2
64/1. [0] 134303-0100 SHIM D59.8&43T1.5
64/1. [0] 134303-0200 SHIM D59.8&43T1.8
64/1. [0] 134303-0300 SHIM D59.8&43T2.0
64/1. [0] 134303-0400 SHIM D59.8&43T0.6
67. [4] 029010-6810 BLEEDER SCREW
71. [1] 134371-5800 CAMSHAFT
74. [1] 134306-0300 BEARING SHELL
75. [2] 020106-2040 BLEEDER SCREW M6P1L20
79. [1] 016650-2230 BEARING PLATE
80. [1] 134316-1700 COVER
81. [1] 139629-0200 PACKING RING
82/1. [0] 134314-0000 SHIM T0.1
82/1. [0] 134314-0100 SHIM T0.12
82/1. [0] 134314-0200 SHIM T0.14
82/1. [0] 134314-0300 SHIM T0.16
82/1. [0] 134314-0400 SHIM T0.18
82/1. [0] 134314-0500 SHIM T0.3
82/1. [0] 134314-0600 SHIM T0.5
83. [1] 139755-0100 O-RING
84. [1] 134563-0900 SLIDING PIECE
85. [1] 134043-0800 COVER
86. [1] 134042-1400 GASKET
87. [12] 012206-1640 FLAT-HEAD SCREW M6P1L16
88. [1] 134045-0100 CAPSULE
89. [1] 026524-2940 GASKET D28.9&24.3T2
93. [3] 139206-0400 UNION NUT
95. [1] 131041-0800 GASKET
96. [6] 134047-0000 CAPSULE
98. [1] 025805-1910 WOODRUFF KEY
118. [1] 134496-0300 POINTER
119. [2] 029020-6270 BLEEDER SCREW
132. [1] 029731-4680 EYE BOLT
133. [2] 029341-4130 GASKET D20&13.8T2*
142. [1] 134430-0200 EYE BOLT
143. [2] 029341-0110 GASKET
152. [1] 131424-1520 OVER FLOW VALVE
153. [2] 029341-4130 GASKET D20&13.8T2*
162. [1] 029731-4570 EYE BOLT
163. [2] 029341-4130 GASKET D20&13.8T2*
172. [1] 131420-0400 BLEEDER SCREW
173. [1] 026506-1040 GASKET D9.9&6.2T1

Include in #1:

106671-4522 as FUEL INJECTION PUMP

Cross reference number

Zexel num
Bosch num
Firm num
Name
106067-0910
9 410 614 183

FUEL-INJECTION PUMP
* Q




Information:


Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
1. Remove four bolts (1). Disconnect wires (2) and (3). 2. Remove jake brake (A) by lifting with one hand while holding oil tube (4) to insure it does not come out of jake brake (B).3. Remove jake brake (B). 4. Remove four spacers (5). Install in reverse order.End By:a. install valve coverDisassemble And Assemble Jake Brake
Start By:a. Remove jake brake
Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
1. Remove oil tubes (1) and (2). Remove the o-ring seals and check for wear or damage. Replace the o-ring seals during assembly if required. 2. Remove snap ring (3), cup (4), spacer (5), springs (6) and (7) and piston (8). 3. Remove three retaining rings (9). Remove clip (10), Springs (11) and (12) and piston (13) from three locations on the jake brake. 4. Remove three bolts (16), washers (15), clips (14) and piston (17). Assemble in reverse order.End By:a. install jake brake

Have questions with 106067-0910?





Group cross 106067-0910 ZEXEL

Mitsubishi-Heav

106067-0900
9 410 610 541
3626514210
FUEL-INJECTION PUMP
106067-0910
9 410 614 183

FUEL-INJECTION PUMP
106067-0920
9 410 610 999

FUEL-INJECTION PUMP
106067-0930
9 410 611 000

FUEL-INJECTION PUMP

Mitsubishi-Heav

106067-0940
9 410 612 989
3256524320
FUEL-INJECTION PUMP
106067-0950
9 410 613 993

FUEL-INJECTION PUMP
106067-0960
9 410 612 990

FUEL-INJECTION PUMP
106067-0970
9 410 613 986

FUEL-INJECTION PUMP
106067-0980
9 410 614 086

FUEL-INJECTION PUMP

Isuzu

106067-0990
9 410 610 815
NP-PE6P120/721RS3000
1156103140
FUEL-INJECTION PUMP
