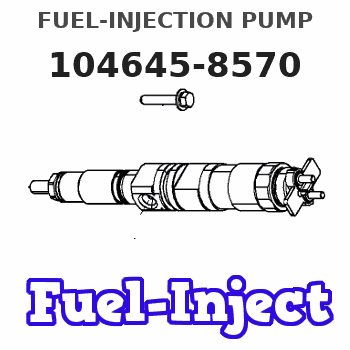

Information fuel-injection pump
BOSCH
9 461 618 863
9461618863
ZEXEL
104645-8570
1046458570
Rating:
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Problem
Some remanufactured fuel injection pumps have been built with the control solenoid in the wrong position. If the solenoid is in the wrong position, the wiring harness may be impossible to connect to the solenoid due to interference of other components.The affected fuel pump part numbers are:
10R-7659 Unit Injection Hydraulic Pump and Mounting Gp
10R-7660 Unit Injection Hydraulic Pump and Mounting Gp
10R-7661 Unit Injection Hydraulic Pump and Mounting Gp
10R-7662 Fuel Pump Gp
20R-3815 Fuel Injection Pump GpSolution
Illustration 1 g06120812
View of the top of the 10R-7661 Unit Injection Hydraulic Pump and Mounting Gp and 10R-7662 Fuel Pump Gp.
(X) Pump center line
(Y) Acceptable solenoid connector orientation (—30 degrees to 30 degrees from pump center line)
Illustration 2 g06120817
View of the top of the 10R-7659 Unit Injection Hydraulic Pump and Mounting Gp, 10R-7660 Unit Injection Hydraulic Pump and Mounting Gp, and 20R-3815 Fuel Injection Pump Gp.
(X) Pump center line
(Z) Acceptable solenoid connector orientation (15 degrees to 45 degrees from pump center line)Check the fuel injection pump solenoid position before attempting to install the pump. Refer to Illustration 1 and Illustration 2. If the orientation of the connector on the solenoid is not within the acceptable range, return the faulty pump and replace the pump with the same part number.Note: Do not attempt to disassemble the fuel injection pump to reposition the solenoid.
