Information fuel-injection pump
BOSCH
9 461 627 143
9461627143
ZEXEL
104641-7270
1046417270
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

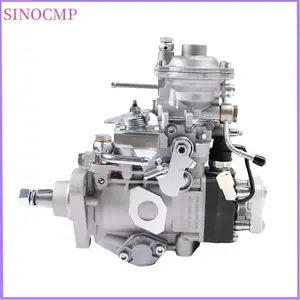

104641-7270 Diesel Fuel Injection Pump VE4/11F1300RNP2489 Pump Oe 1046417270 6205-71-1360
BSZBAS OE:1046417270 6205-71-1360 || Shell impact resistance || Dual filtration system effectively intercepts impurities and reduces blockage issues || Wide compatibility, meets OEM specifications, allows for direct replacement of parts without the need for modification || After replacement, the throttle response significantly increased and fuel consumption decreased
BSZBAS OE:1046417270 6205-71-1360 || Shell impact resistance || Dual filtration system effectively intercepts impurities and reduces blockage issues || Wide compatibility, meets OEM specifications, allows for direct replacement of parts without the need for modification || After replacement, the throttle response significantly increased and fuel consumption decreased
Cross reference number
Zexel num
Bosch num
Firm num
Name
104641-7270
FUEL-INJECTION PUMP
Q 11CJ FUEL INJECTION PUMP VE4 VE
Q 11CJ FUEL INJECTION PUMP VE4 VE
Information:
Typical Example1. Loosen two bolts (2) and two nuts (3). Remove bolt (1), and remove fan drive belts (4).
Typical Example2. Remove the nuts and bolts that hold the fan drive in place. Remove fan drive (5). The following steps are for installation of the fan drive.3. Put fan drive (5) in position on the timing gear cover.4. Install bolts (2) and nuts (3) loosely. Make a replacement of the belts as a set only.5. Install fan belts (4). Install bolt (1). Make an adjustment to the belt tension with tool (A). Measure the belt farthest away from the engine. Tighten new belts to a gauge indication of 120 5. After the engine is operated at high idle for a minimum of 30 minutes, make another adjustment to the belt tension. The correct tension for used belts is a gauge indication of 90 10.6. Tighten bolts (2) and nuts (3) that hold the fan drive in place.Disassemble Fan Drive
Start By:a. remove fan drive 1. Remove two bolts (2) that hold the fan adapter to the pulley.2. Remove fan adapter (1) from the pulley 3. Remove bolts (3) and washer (4). Remove seal (5). 4. Remove pulley (8) from bracket (6).5. Remove bearing (10) and spacer (9) from the pulley. Remove spacer (7), seal (11) and bearing (12) from the pulley.Assemble Fan Drive
1. Install bearing (12) in the rear of pulley (8). 2. Install lip-type seal (11) with tooling (A). The lip of the seal must be away from the bearing. Put 5P960 Multipurpose Type Grease on the lip of the seal.3. Install spacer (7) so the end with the taper is toward the inside of pulley (8).4. Install spacer (9) and bearing (4) in the front of the pulley. 5. Put seal (5) on the front of the pulley. Install the pulley on bracket (6). 6. Install washer (4) and bolts (3) that hold the pulley in position.7. Install the fan drive adapter on the pulley.8. Fill the fan drive with 5P960 Multipurpose Type Grease.End By:a. install fan drive
