Information fuel-injection pump
BOSCH
9 461 627 157
9461627157
ZEXEL
104641-7172
1046417172
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

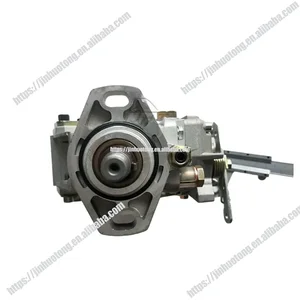

Diesel Fuel Injection Pump NP-VE4/11F1800LNP2371 461627157 9461627157 104641-7172 1046417172 Compatible With JMC JX493ZQ 2.8L
ZAIQUDOU Make sure the OE number matches the part you are replacing. || Easy to install: direct replacement, OEM standard, plug and play. Not just aftermarket replacements. || Efficient and stable: The use of advanced technology can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || Warranty period: 6 months. If there are any problems during this period, repair or replacement services will be provided. || Package includes: 1 piece jet pump
ZAIQUDOU Make sure the OE number matches the part you are replacing. || Easy to install: direct replacement, OEM standard, plug and play. Not just aftermarket replacements. || Efficient and stable: The use of advanced technology can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || Warranty period: 6 months. If there are any problems during this period, repair or replacement services will be provided. || Package includes: 1 piece jet pump
Diesel Fuel Injection Pump NP-VE4/11F1800LNP2371 461627157 9461627157 104641-7172 1046417172 Compatible With JMC JX493ZQ 2.8L
ZAIQUDOU Make sure the OE number matches the part you are replacing. || Easy to install: direct replacement, OEM standard, plug and play. Not just aftermarket replacements. || Efficient and stable: The use of advanced technology can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || Warranty period: 6 months. If there are any problems during this period, repair or replacement services will be provided. || Package includes: 1 piece jet pump
ZAIQUDOU Make sure the OE number matches the part you are replacing. || Easy to install: direct replacement, OEM standard, plug and play. Not just aftermarket replacements. || Efficient and stable: The use of advanced technology can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || Warranty period: 6 months. If there are any problems during this period, repair or replacement services will be provided. || Package includes: 1 piece jet pump

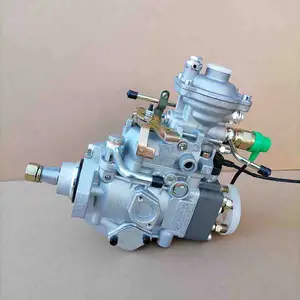

Diesel Fuel Injection Compatible For VE Pump 104641-7172 VE4/11F1800L2371 Compatible For JMC JX493ZQ
TINEOOC OEM NO. 104641-7172 VE4/11F1800L2371 || Diesel Fuel Injection compatible for VE Pump 104641-7172 VE4/11F1800L2371 Compatible For JMC JX493ZQ || ⚙️ The name of my store is: A spare parts king, here is the car parts you want! || ⚙️ The fuel pump is equipped with a standardized interface for quick and easy installation, no additional tools or modifications are required, and vehicle owners can easily replace it by themselves. || ⚙️ Optimized design and advanced technology ensure that the fuel pump provides a constant and stable fuel supply, enhancing the overall performance and fuel efficiency of the vehicle.
TINEOOC OEM NO. 104641-7172 VE4/11F1800L2371 || Diesel Fuel Injection compatible for VE Pump 104641-7172 VE4/11F1800L2371 Compatible For JMC JX493ZQ || ⚙️ The name of my store is: A spare parts king, here is the car parts you want! || ⚙️ The fuel pump is equipped with a standardized interface for quick and easy installation, no additional tools or modifications are required, and vehicle owners can easily replace it by themselves. || ⚙️ Optimized design and advanced technology ensure that the fuel pump provides a constant and stable fuel supply, enhancing the overall performance and fuel efficiency of the vehicle.
Include in #2:
104741-7173
as FUEL INJECTION PUMP
Cross reference number
Zexel num
Bosch num
Firm num
Name
104641-7172
FUEL-INJECTION PUMP
Q 11CJ FUEL INJECTION PUMP VE4 VE
Q 11CJ FUEL INJECTION PUMP VE4 VE
Information:
1. Remove wiring harnesses from bracket (1). 2. Disconnect the wires at connections (5). Remove seal wire (4). Remove five bolts (2), bracket (1) cover (3) and the gasket. 3. Remove two bolts (6) and clamps. Remove rack solenoid (7). 4. Disconnect wires at connections (8). Remove two bolts (10) and bracket assembly (9). Loosen the locknut and remove rack position sensor (11). Be careful not to lose the spring that is around the sensor. To remove the transducer module at this time use the following procedure:a. disconnect wires at connector (8).b. remove the connectors from the wires.c. remove four bolts that fasten transducer module (22) to housing (18).d. feed the wires through housing (18) while removing the transducer module. 5. Remove three bolts (12) from inside housing (14). Remove two bolts (13) and remove housing (14).
Typical Example6. Loosen locknut (15) and remove engine speed sensor (16).
Typical Example7. Remove seven bolts (17) and remove the transducer module and housing (18). 8. Remove three bolts (19) and cover (20). 9. Remove two bolts (21). Remove transducer module (22) and gasket. 10. Remove lockring (27), seat (25), spring (24), sleeve (23) and lockring (26). 11. Remove three bolts (28) and remove cylinder (29). 12. Remove sleeve (30), piston (31) and valve (32). Remove O-ring seal (33) from sleeve (30). 13. Remove bolts (34) and remove retainer (35). Remove two races and one bearing (not shown). Assemble Rack Actuator Package
1. Lubricate bearing (37) with engine oil. Install race (36), bearing (37), race (36) and retainer (35) on the fuel injection pump camshaft. 2. Lubricate O-ring seal (33) with engine oil and install on sleeve (30). Install valve (32) and piston (31) into sleeve (33). 3. Install sleeve (30) into cylinder (29).4. Install lockring (26), sleeve (23), spring (24), seat (25) and lockring (27) on valve (32). 5. Put cylinder assembly (29) in position on the fuel injection pump housing with piston (31) engaged over fuel injection pump rack (38). Be sure that rack (38) is properly engaged with piston (31). 6. Fasten cylinder (29) to the fuel injection pump housing with three bolts (28). The rack and servo valve (32) must move freely after bolts (28) are tight. 7. Install gasket (39) and transducer module (22) on housing (18). 8. Place wire harness (40) in the slot of the housing. 9. Install cover (20) and bolts (19).
Typical Example10. Install the gasket and housing (18) on the fuel injection pump housing with seven bolts (17).
Typical Example11. Install engine speed sensor (16) until it contacts retainer (35). Back the engine speed sensor out (counterclockwise) 180°. This procedure will provide a clearance of .76 mm (.030 in). Tighten locknut (15).
Typical Example12. Install gasket and housing (14).13. Install the rack position sensor damping seal in housing (14). Install the spring and rack position sensor (11) in housing (14).14. Connect the rack position sensor wiring connector to the transducer module wiring connector (P1 to J1). Connect the transducer module wiring connector to the control module wiring
Typical Example6. Loosen locknut (15) and remove engine speed sensor (16).
Typical Example7. Remove seven bolts (17) and remove the transducer module and housing (18). 8. Remove three bolts (19) and cover (20). 9. Remove two bolts (21). Remove transducer module (22) and gasket. 10. Remove lockring (27), seat (25), spring (24), sleeve (23) and lockring (26). 11. Remove three bolts (28) and remove cylinder (29). 12. Remove sleeve (30), piston (31) and valve (32). Remove O-ring seal (33) from sleeve (30). 13. Remove bolts (34) and remove retainer (35). Remove two races and one bearing (not shown). Assemble Rack Actuator Package
1. Lubricate bearing (37) with engine oil. Install race (36), bearing (37), race (36) and retainer (35) on the fuel injection pump camshaft. 2. Lubricate O-ring seal (33) with engine oil and install on sleeve (30). Install valve (32) and piston (31) into sleeve (33). 3. Install sleeve (30) into cylinder (29).4. Install lockring (26), sleeve (23), spring (24), seat (25) and lockring (27) on valve (32). 5. Put cylinder assembly (29) in position on the fuel injection pump housing with piston (31) engaged over fuel injection pump rack (38). Be sure that rack (38) is properly engaged with piston (31). 6. Fasten cylinder (29) to the fuel injection pump housing with three bolts (28). The rack and servo valve (32) must move freely after bolts (28) are tight. 7. Install gasket (39) and transducer module (22) on housing (18). 8. Place wire harness (40) in the slot of the housing. 9. Install cover (20) and bolts (19).
Typical Example10. Install the gasket and housing (18) on the fuel injection pump housing with seven bolts (17).
Typical Example11. Install engine speed sensor (16) until it contacts retainer (35). Back the engine speed sensor out (counterclockwise) 180°. This procedure will provide a clearance of .76 mm (.030 in). Tighten locknut (15).
Typical Example12. Install gasket and housing (14).13. Install the rack position sensor damping seal in housing (14). Install the spring and rack position sensor (11) in housing (14).14. Connect the rack position sensor wiring connector to the transducer module wiring connector (P1 to J1). Connect the transducer module wiring connector to the control module wiring
