Information fuel-injection pump
BOSCH
9 410 617 357
9410617357
ZEXEL
104298-1020
1042981020
KUBOTA
1439151011
1439151011

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below
$399.00
01 Aug 2024
11.0231[4.96] pounds
CN: FridayParts

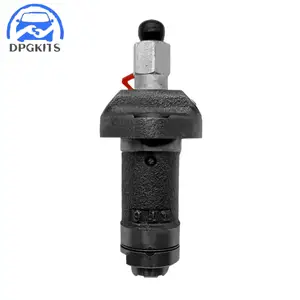

FridayParts Fuel Injection Pump 14391-51011 1439151011 Compatible for Kubota Engine E1250 Replacement
FP FRIDAYPARTS New aftermarket parts, the picture is just for reference. || Part Number:14391-51011, 1439151011, 104298-1020, 1042981020, 9 410 617 357, 9410617357 || Compatible for Kubota Engine E1250 || Please verify your part number before ordering, if you have any question please don't hesitate to contact us.
FP FRIDAYPARTS New aftermarket parts, the picture is just for reference. || Part Number:14391-51011, 1439151011, 104298-1020, 1042981020, 9 410 617 357, 9410617357 || Compatible for Kubota Engine E1250 || Please verify your part number before ordering, if you have any question please don't hesitate to contact us.
$325.00
01 Aug 2024
CN: Bluesun Solar
Solarhome Fuel Injection Pump 14391-51011 104298-1020 Compatible With Kubota E1250 Bosch 9410617357
Solarhome Part Name: Fuel Injection Pump || Part Number: 14391-51011, 1439151011, 104298-1020,1042981020, 9 410 617 357, 9410617357 || Application Models: Compatible With Kubota E1250 Bosch 9410617357 || Package Include: 1X Fuel Injection Pump,14391-51011
Solarhome Part Name: Fuel Injection Pump || Part Number: 14391-51011, 1439151011, 104298-1020,1042981020, 9 410 617 357, 9410617357 || Application Models: Compatible With Kubota E1250 Bosch 9410617357 || Package Include: 1X Fuel Injection Pump,14391-51011
Components :
0. | INJECTION-PUMP ASSEMBLY | 104298-1020 |
1. | _ | |
2. | FUEL INJECTION PUMP | |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105100-5651 |
8. | Nozzle and Holder | 1439153002 |
9. | Open Pre:MPa(Kqf/cm2) | 21.6{220} |
10. | NOZZLE-HOLDER | 105031-3690 |
11. | NOZZLE | 105015-5230 |
Scheme ###:
5. | [1] | 140153-4320 | PLUNGER-AND-BARREL ASSY |
12. | [1] | 140110-3720 | DELIVERY-VALVE ASSEMBLY |
13. | [1] | 140112-1700 | COMPRESSION SPRING |
16. | [1] | 140115-1400 | GASKET |
17. | [1] | 140116-4800 | FITTING |
20. | [1] | 016500-1520 | O-RING |
40. | [1] | 140200-1620 | TAPPET |
44. | [1] | 140212-0300 | BEARING PIN |
45. | [1] | 140213-0600 | LOCKING WASHER |
50. | [1] | 140215-1900 | COMPRESSION SPRING |
51. | [1] | 140216-0800 | SLOTTED WASHER |
52. | [1] | 140217-2200 | SLOTTED WASHER |
53/1. | [1] | 140217-5000 | PLATE D19T2.60 |
53/1. | [1] | 140217-5100 | PLATE D19T2.65 |
53/1. | [1] | 140217-5200 | PLATE D19T2.70 |
53/1. | [1] | 140217-5300 | PLATE D19T2.75 |
53/1. | [1] | 140217-5400 | PLATE D19T2.80 |
53/1. | [1] | 140217-5500 | PLATE D19T2.85 |
53/1. | [1] | 140217-5600 | PLATE D19T2.90 |
53/1. | [1] | 140217-5700 | PLATE D19T2.95 |
53/1. | [1] | 140217-5800 | PLATE D19T3.00 |
53/1. | [1] | 140217-5900 | PLATE D19T3.05 |
53/1. | [1] | 140217-6000 | PLATE D19T3.10 |
53/1. | [1] | 140217-6100 | PLATE D19T3.15 |
53/1. | [1] | 140217-6200 | PLATE D19T3.20 |
53/1. | [1] | 140217-6300 | PLATE D19T3.25 |
53/1. | [1] | 140217-6400 | PLATE D19T3.30 |
53/1. | [1] | 140217-6500 | PLATE D19T3.35 |
53/1. | [1] | 140217-6600 | PLATE D19T3.40 |
53/1. | [1] | 140217-6700 | PLATE D19T3.45 |
53/1. | [1] | 140217-6800 | PLATE D19T3.50 |
53/1. | [1] | 140217-6900 | PLATE D19T3.55 |
53/1. | [1] | 140217-7000 | PLATE D19T3.60 |
53/1. | [1] | 140217-7100 | PLATE D19T3.65 |
53/1. | [1] | 140217-7200 | PLATE D19T3.70 |
53/1. | [1] | 140217-7300 | PLATE D19T3.75 |
53/1. | [1] | 140217-7400 | PLATE D19T3.80 |
53/1. | [1] | 140217-7500 | PLATE D19T3.85 |
53/1. | [1] | 140217-7600 | PLATE D19T3.90 |
53/1. | [1] | 140217-7700 | PLATE D19T3.95 |
53/1. | [1] | 140217-7800 | PLATE D19T4.00 |
53/1. | [1] | 140217-7900 | PLATE D19T4.05 |
53/1. | [1] | 140217-8000 | PLATE D19T4.10 |
53/1. | [1] | 140253-2000 | PLATE |
53/1. | [1] | 140253-2100 | PLATE |
53/1. | [1] | 140253-2200 | PLATE |
53/1. | [1] | 140253-2300 | PLATE |
53/1. | [1] | 140253-2400 | PLATE |
53/1. | [1] | 140253-2500 | PLATE |
53/1. | [1] | 140253-2600 | PLATE |
53/1. | [1] | 140253-2700 | PLATE |
53/1. | [1] | 140253-2800 | PLATE |
53/1. | [1] | 140253-2900 | PLATE |
53/1. | [1] | 140253-3000 | PLATE |
53/1. | [1] | 140253-3100 | PLATE |
53/1. | [1] | 140253-3200 | PLATE |
53/1. | [1] | 140253-3300 | PLATE |
53/1. | [1] | 140253-3400 | PLATE |
53/1. | [1] | 140253-3500 | PLATE |
53/1. | [1] | 140253-3600 | PLATE |
53/1. | [1] | 140253-3700 | PLATE |
53/1. | [1] | 140253-3800 | PLATE |
53/1. | [1] | 140253-3900 | PLATE |
53/1. | [1] | 140253-4000 | PLATE |
53/1. | [1] | 140253-4100 | PLATE |
53/1. | [1] | 140253-4200 | PLATE |
53/1. | [1] | 140253-4300 | PLATE |
53/1. | [1] | 140253-4400 | PLATE |
53/1. | [1] | 140253-4500 | PLATE |
53/1. | [1] | 140253-4600 | PLATE |
53/1. | [1] | 140253-4700 | PLATE |
53/1. | [1] | 140253-4800 | PLATE |
53/1. | [1] | 140253-4900 | PLATE |
60. | [1] | 140243-0920 | CONTROL RACK |
77. | [1] | 140241-2700 | CONTROL SLEEVE |
93. | [1] | 140402-1600 | EYE BOLT |
94. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
Include in #2:
104298-1020
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104298-1020
9 410 617 357
1439151011 KUBOTA
FUEL-INJECTION PUMP
* K 23DA PFR-1KD PFR
* K 23DA PFR-1KD PFR
