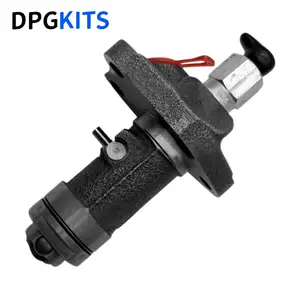

Buy 104297-1011 ZEXEL 9 410 618 481 BOSCH FUEL-INJECTION PUMP 9410618481 1042971011 1116151012

Information fuel-injection pump

BOSCH 9 410 618 481 9410618481

ZEXEL 104297-1011 1042971011

KUBOTA 1116151012 1116151012

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy FUEL-INJECTION PUMP 104297-1011 zexel genuine, new aftermarket engine parts with delivery

Compare Prices: .

As an associate, we earn commssions on qualifying purchases through the links below

SINOCMP 1PCS Fuel Pump Compatible With Kubota Engines Model 11161-51012 104297-1011 9410618481

$622.85

16 Jan 2025
0.8818[0.40] pounds
CN: Linzhilu Trading Par

SINOCMP 1PCS Fuel Pump Compatible With Kubota Engines Model 11161-51012 104297-1011 9410618481
LFBsZC Compatible with Kubota Engines, designed specifically Compatible With models using the 11161-51012 and 104297-1011 fuel pumps. || Versatile application across various Kubota engine types, making it a reliable choice Compatible With your machinery. || Easy installation process, allowing Compatible With quick replacement and minimal downtime Compatible With your . || Robust construction ensures durability and longevity in demanding operating conditions. || Efficient fuel delivery system enhances engine performance and reliability during .

Components :

0.	INJECTION-PUMP ASSEMBLY	104297-1011
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105118-4030
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)	21.6(220)
10.	NOZZLE-HOLDER	105048-2010
11.	NOZZLE	105017-0030

Scheme ###:

5.	[1]	140153-4220	PLUNGER-AND-BARREL ASSY
12.	[1]	140110-3720	DELIVERY-VALVE ASSEMBLY
13.	[1]	140112-1700	COMPRESSION SPRING
16.	[1]	140115-1400	GASKET
17.	[1]	140116-6720	FITTING
20.	[1]	016500-1520	O-RING
40.	[1]	140200-1620	TAPPET
44.	[1]	140212-0300	BEARING PIN
45.	[1]	140213-0600	LOCKING WASHER
50.	[1]	140215-1900	COMPRESSION SPRING
51.	[1]	140216-0800	SLOTTED WASHER
52.	[1]	140217-2200	SLOTTED WASHER
53/1.	[1]	140217-5000	PLATE D19T2.60
53/1.	[1]	140217-5100	PLATE D19T2.65
53/1.	[1]	140217-5200	PLATE D19T2.70
53/1.	[1]	140217-5300	PLATE D19T2.75
53/1.	[1]	140217-5400	PLATE D19T2.80
53/1.	[1]	140217-5500	PLATE D19T2.85
53/1.	[1]	140217-5600	PLATE D19T2.90
53/1.	[1]	140217-5700	PLATE D19T2.95
53/1.	[1]	140217-5800	PLATE D19T3.00
53/1.	[1]	140217-5900	PLATE D19T3.05
53/1.	[1]	140217-6000	PLATE D19T3.10
53/1.	[1]	140217-6100	PLATE D19T3.15
53/1.	[1]	140217-6200	PLATE D19T3.20
53/1.	[1]	140217-6300	PLATE D19T3.25
53/1.	[1]	140217-6400	PLATE D19T3.30
53/1.	[1]	140217-6500	PLATE D19T3.35
53/1.	[1]	140217-6600	PLATE D19T3.40
53/1.	[1]	140217-6700	PLATE D19T3.45
53/1.	[1]	140217-6800	PLATE D19T3.50
53/1.	[1]	140217-6900	PLATE D19T3.55
53/1.	[1]	140217-7000	PLATE D19T3.60
53/1.	[1]	140217-7100	PLATE D19T3.65
53/1.	[1]	140217-7200	PLATE D19T3.70
53/1.	[1]	140217-7300	PLATE D19T3.75
53/1.	[1]	140217-7400	PLATE D19T3.80
53/1.	[1]	140217-7500	PLATE D19T3.85
53/1.	[1]	140217-7600	PLATE D19T3.90
53/1.	[1]	140217-7700	PLATE D19T3.95
53/1.	[1]	140217-7800	PLATE D19T4.00
53/1.	[1]	140217-7900	PLATE D19T4.05
53/1.	[1]	140217-8000	PLATE D19T4.10
53/1.	[1]	140253-2000	PLATE
53/1.	[1]	140253-2100	PLATE
53/1.	[1]	140253-2200	PLATE
53/1.	[1]	140253-2300	PLATE
53/1.	[1]	140253-2400	PLATE
53/1.	[1]	140253-2500	PLATE
53/1.	[1]	140253-2600	PLATE
53/1.	[1]	140253-2700	PLATE
53/1.	[1]	140253-2800	PLATE
53/1.	[1]	140253-2900	PLATE
53/1.	[1]	140253-3000	PLATE
53/1.	[1]	140253-3100	PLATE
53/1.	[1]	140253-3200	PLATE
53/1.	[1]	140253-3300	PLATE
53/1.	[1]	140253-3400	PLATE
53/1.	[1]	140253-3500	PLATE
53/1.	[1]	140253-3600	PLATE
53/1.	[1]	140253-3700	PLATE
53/1.	[1]	140253-3800	PLATE
53/1.	[1]	140253-3900	PLATE
53/1.	[1]	140253-4000	PLATE
53/1.	[1]	140253-4100	PLATE
53/1.	[1]	140253-4200	PLATE
53/1.	[1]	140253-4300	PLATE
53/1.	[1]	140253-4400	PLATE
53/1.	[1]	140253-4500	PLATE
53/1.	[1]	140253-4600	PLATE
53/1.	[1]	140253-4700	PLATE
53/1.	[1]	140253-4800	PLATE
53/1.	[1]	140253-4900	PLATE
60.	[1]	140243-0920	CONTROL RACK
77.	[1]	140241-2700	CONTROL SLEEVE
93.	[1]	140402-1600	EYE BOLT
94.	[2]	026512-1540	GASKET D15.4&12.2T1.50

Include in #2:

104297-1011 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104297-1011

9 410 618 481
NP-PFR1KD70/1NP15

1116151012 KUBOTA

FUEL-INJECTION PUMP
A K

Information:

PARTS NEEDED
Qty
Part Number Description
6 10R7225 INJECTOR GP-FUEL
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 18% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Take the following actions before or after a failure occurs on one or more injectors in any of the engines listed in this service letter.
- If one or more injectors fail it may be necessary to replace up to 6 injectors at the time of repair.
There will be situations when all 6 injectors do not have to be replaced. Refer to next paragraph to determine which injectors should be replaced.
- If an injector repair has previously been performed after approximately 01Oct07 on any of the listed engines, only the injectors that were not replaced at that time should be replaced. This should further be verified by comparing the injector serial numbers in the engine to a range of 3B115776403B to 3B11676551F9. Disregard the first and last two characters in the serial number (in this case "3B" and "3B" in the first serial number and "3B" and "F9" in the second serial number). The reason for verifying the serial number range is due to a batch change of the internal part that is failing. The change was made after serial number 3B11676551F9.
Only injectors falling within the range of 11577640-11676551 should be replaced.
- If the suspect injector can not be identified by using the automatic cylinder cutout test use the two methods below.
- First, run a manual cylinder cutout test at a high engine speed with some load on the engine. When the injector that has failed is cutout, the sound of the engine should be more normal as opposed to the loud knocking heard when the failed injector is active. The second method is to unplug the wiring harness at the valve cover base that sends current to the injector solenoids as well as the harness connection for the injection actuation pressure sensor. By making these disconnections, the fuel injectors will not fire and the HEUI pump will go to maximum actuation pressure. Then remove the valve cover and crank the engine. The injectors that have failed should expel more oil (from the HEUI System) than those that are not failed.
-Refer to RENR9579 for removal/install procedure of the unit injector.
-The serial number of all injectors replaced in an engine covered under this service letter must be documented in the claims story.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-1000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 4.0-hour job
The serial number of any injector(s) replaced in a machine covered under this service letter must be documented in the claims story. Only injectors with serial numbers between 11577640-11676551 (see action required for explanation on how to decode injector serial number) will be
