Information fuel-injection pump
BOSCH
F 01G 09Y 01K
f01g09y01k
ZEXEL
104278-3090
1042783090
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104278-3090 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

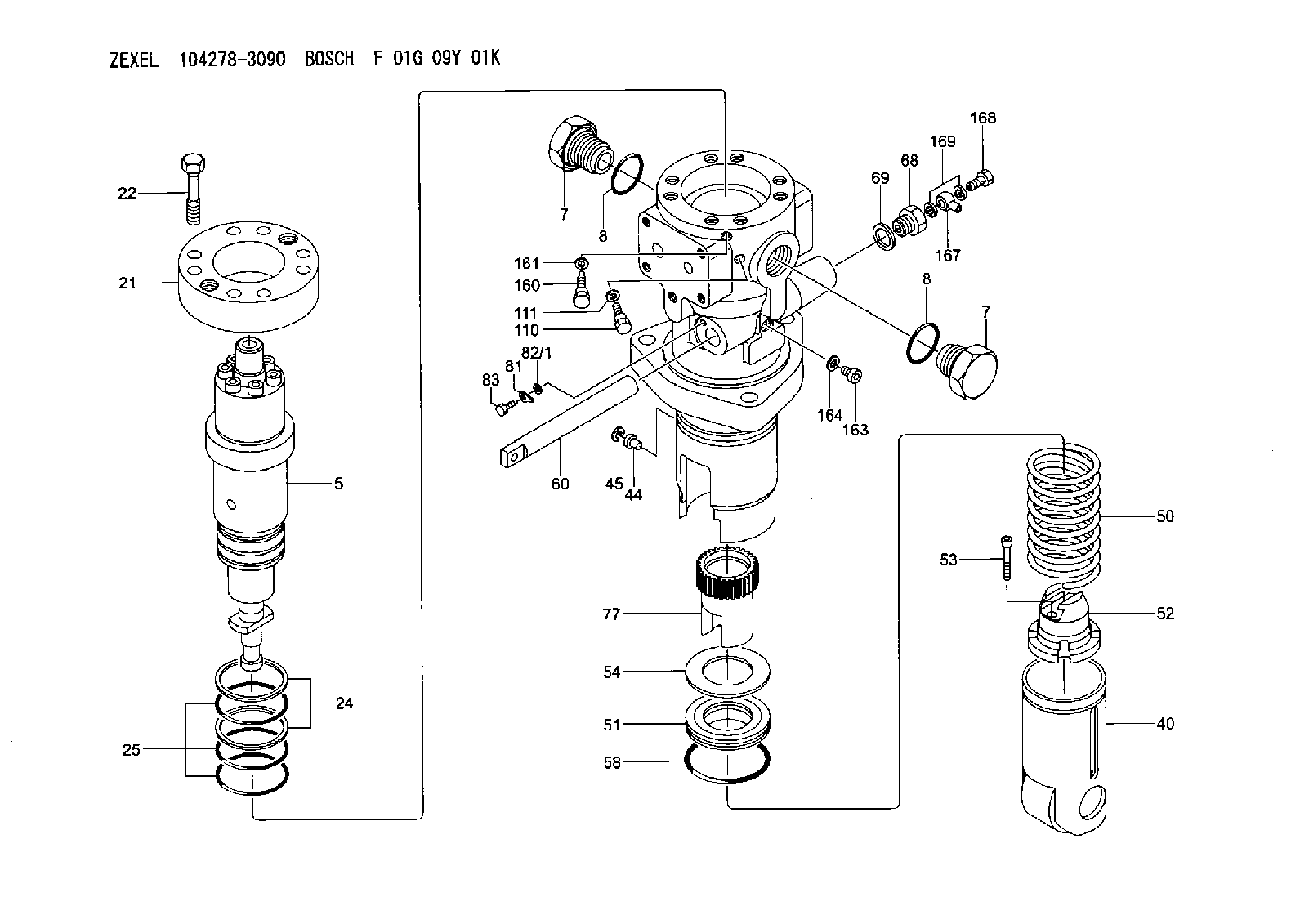

Scheme ###:
| 5. | [1] | 141157-4420 | PLUNGER-AND-BARREL ASSY |
| 7. | [2] | 141133-9701 | CAPSULE |
| 7. | [2] | 141133-9701 | CAPSULE |
| 8. | [2] | 141485-4602 | O-RING |
| 8. | [2] | 141485-4602 | O-RING |
| 21. | [1] | 141119-5001 | FLANGE BUSHING |
| 22. | [8] | 141124-6300 | BLEEDER SCREW |
| 24. | [2] | 141485-7900 | BACKUP RING |
| 25. | [3] | 141485-1502 | O-RING |
| 40. | [1] | 141200-4320 | TAPPET |
| 44. | [1] | 141212-0300 | BEARING PIN |
| 45. | [1] | 016110-1410 | LOCKING WASHER |
| 50. | [1] | 141295-0000 | COMPRESSION SPRING |
| 51. | [1] | 141216-7420 | SLOTTED WASHER |
| 52. | [1] | 141254-4300 | SLOTTED WASHER |
| 53. | [2] | 010206-5020 | HEX-SOCKET-HEAD CAP SCREW |
| 54. | [1] | 141450-2200 | PLATE |
| 58. | [1] | 141485-6302 | O-RING |
| 60. | [1] | 141291-5600 | CONTROL RACK |
| 68. | [1] | 141405-5100 | ADAPTER |
| 69. | [1] | 026526-3140 | GASKET |
| 77. | [1] | 141292-4300 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW |
| 110. | [1] | 141418-3000 | SET OF NUTS |
| 111. | [1] | 141403-2000 | GASKET |
| 160. | [1] | 141418-4400 | SET OF NUTS |
| 161. | [1] | 141403-2000 | GASKET |
| 163. | [2] | 373658-1400 | CAPSULE |
| 164. | [2] | 141403-1800 | GASKET |
| 167. | [1] | 150948-0000 | INLET UNION |
| 168. | [1] | 150949-0100 | EYE BOLT |
| 169. | [2] | 150521-0800 | GASKET |
