Information fuel-injection pump
BOSCH
9 410 617 253
9410617253
ZEXEL
104278-3010
1042783010
DAIHATSU
E366400060Z
e366400060z
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104278-3010 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

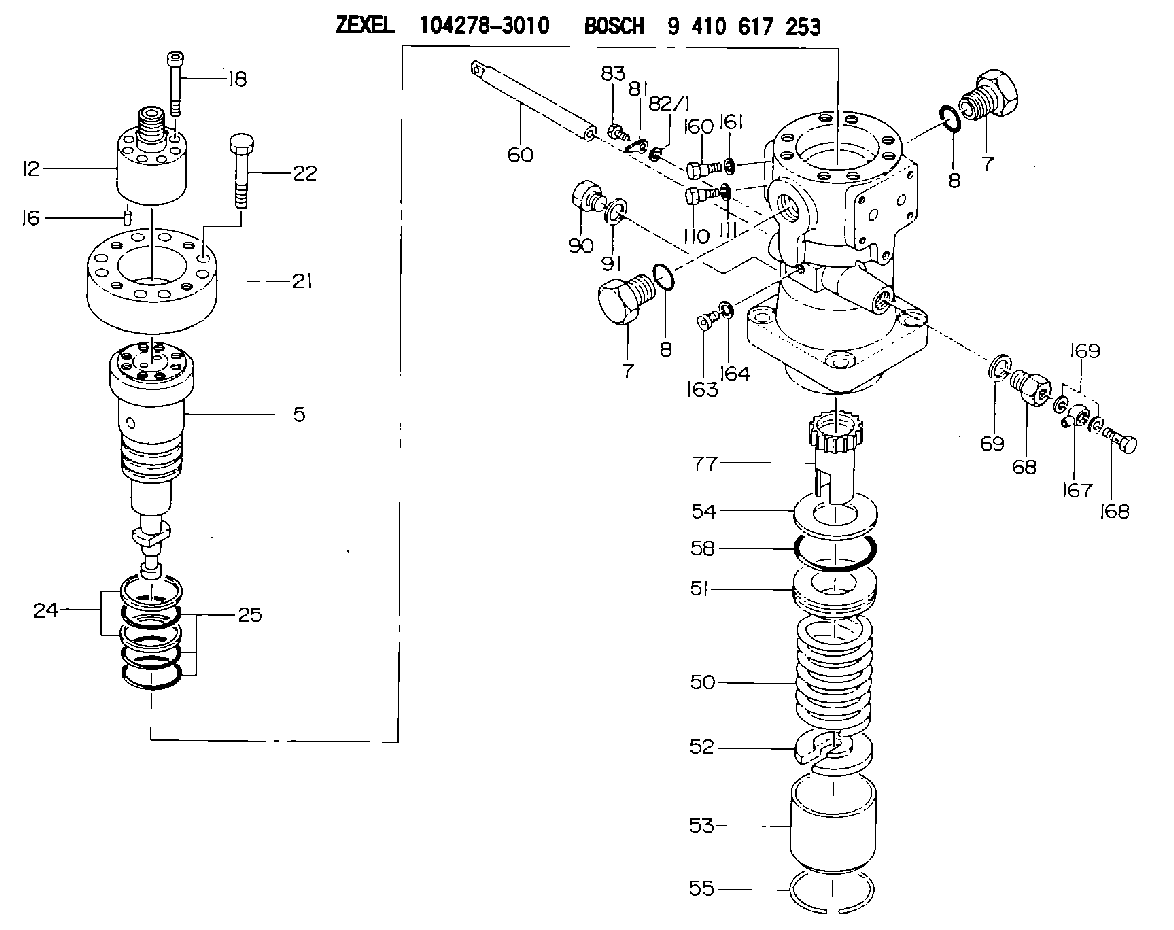

Scheme ###:
| 1. | [1] | 141055-8200 | PUMP HOUSING |
| 5. | [1] | 141157-1520 | PLUNGER-AND-BARREL ASSY |
| 7. | [2] | 141133-9700 | CAPSULE |
| 7. | [2] | 141133-9700 | CAPSULE |
| 8. | [2] | 141485-4600 | O-RING |
| 8. | [2] | 141485-4600 | O-RING |
| 12. | [1] | 141145-7120 | DELIVERY-VALVE ASSEMBLY |
| 16. | [1] | 015204-0100 | SPRING PIN |
| 18. | [8] | 141124-6200 | HEX-SOCKET-HEAD CAP SCREW |
| 21. | [1] | 141119-5000 | FLANGE BUSHING |
| 22. | [8] | 141124-6300 | BLEEDER SCREW |
| 24. | [2] | 016421-0750 | BACKUP RING |
| 25. | [3] | 141485-1500 | O-RING |
| 50. | [1] | 141215-9300 | COMPRESSION SPRING |
| 51. | [1] | 141216-7320 | SLOTTED WASHER |
| 52. | [1] | 141217-9800 | SLOTTED WASHER |
| 53. | [1] | 141294-0900 | GUIDE |
| 54. | [1] | 141450-2200 | PLATE |
| 55. | [1] | 141220-3500 | LOCKING WASHER |
| 58. | [1] | 141485-6300 | O-RING |
| 60. | [1] | 141291-5600 | CONTROL RACK |
| 68. | [1] | 141405-5100 | ADAPTER |
| 69. | [1] | 026526-3140 | GASKET D30.9&26.3T2 |
| 77. | [1] | 141292-4300 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 90. | [1] | 029112-4020 | SCREW PLUG M24P1.5L13 |
| 91. | [1] | 026524-2940 | GASKET D28.9&24.3T2 |
| 110. | [1] | 141418-3000 | SET OF NUTS |
| 111. | [1] | 141403-2000 | GASKET |
| 160. | [1] | 141418-4400 | SET OF NUTS |
| 161. | [1] | 141403-2000 | GASKET |
| 163. | [2] | 373658-1400 | CAPSULE |
| 164. | [2] | 141403-1800 | GASKET |
| 167. | [1] | 150948-0000 | INLET UNION |
| 168. | [1] | 150949-0100 | EYE BOLT |
| 169. | [2] | 150521-0800 | GASKET |
