Information fuel-injection pump
BOSCH
9 410 617 523
9410617523
ZEXEL
104278-1110
1042781110
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104278-1110 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

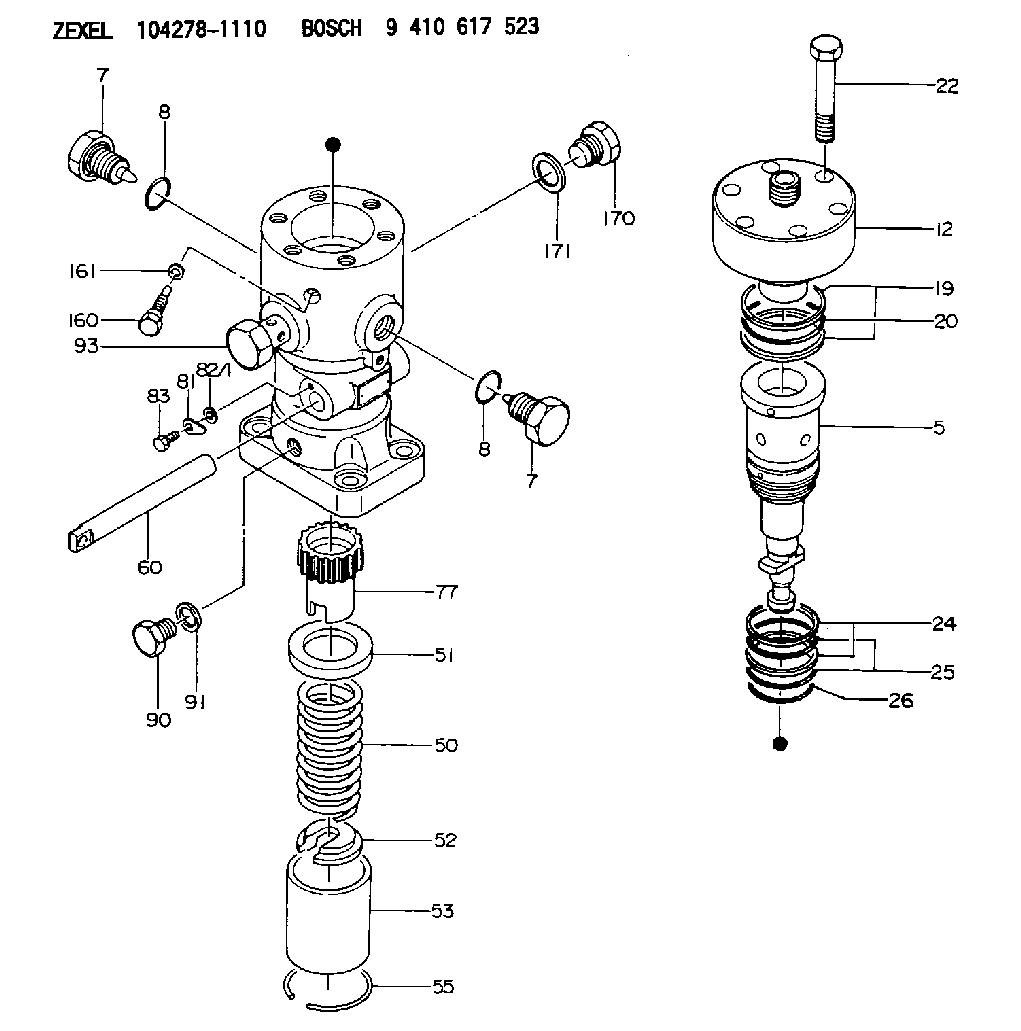

Scheme ###:
| 5. | [1] | 141187-6320 | PLUNGER-AND-BARREL ASSY |
| 7. | [2] | 141133-5000 | CAPSULE |
| 7. | [2] | 141133-5000 | CAPSULE |
| 8. | [2] | 141485-1300 | O-RING |
| 8. | [2] | 141485-1300 | O-RING |
| 12. | [1] | 141142-9920 | DELIVERY-VALVE ASSEMBLY |
| 19. | [2] | 016420-0850 | BACKUP RING |
| 20. | [1] | 141118-3100 | O-RING |
| 22. | [6] | 141124-4800 | BLEEDER SCREW |
| 24. | [2] | 016421-0750 | BACKUP RING |
| 25. | [2] | 141485-1500 | O-RING |
| 26. | [1] | 141118-3000 | O-RING |
| 50. | [1] | 141215-4801 | COMPRESSION SPRING |
| 51. | [1] | 141216-5800 | SLOTTED WASHER |
| 52. | [1] | 141217-8600 | SLOTTED WASHER |
| 53. | [1] | 141218-9900 | GUIDE |
| 55. | [1] | 141220-0700 | LOCKING WASHER |
| 60. | [1] | 141291-2000 | CONTROL RACK |
| 77. | [1] | 141292-1200 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 90. | [1] | 029112-2020 | CAPSULE |
| 91. | [1] | 026522-2740 | GASKET D26.9&22.2T1 |
| 93. | [1] | 141402-5700 | EYE BOLT |
| 160. | [1] | 141418-3000 | SET OF NUTS |
| 161. | [1] | 141403-2000 | GASKET |
| 170. | [1] | 141106-9600 | CAPSULE |
| 171. | [1] | 141489-0200 | GASKET |
Include in #1:
101401-9447
as _
Include in #2:
104278-1110
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Table 1
Item 3408C / 3412C 3176B 3176C / 3196
Connector P14 P1 P1
(-) Battery Pin-21 Pin-5 Pin-5
(+) 8 VDC Pin-10 Pin-35 Pin-35
Cat Data (+) Pin-9 Pin-9 Pin-9
Cat Data (-) Pin-19 Pin-3 Pin-3
Illustration 1 g06449052
(A) Port ECM
(B) Cat Link Booster
(C) EVIM
(D) STBD ECM
(E) CAT Link Booster
(F) Engine Vision Display
Illustration 2 g06449056
(G) Connector A
(H) Connector B
Turn the power OFF to the engine ECM and display unit.
Remove the ECM connector-battery pin and reinsert it into pin-3 on the 4-pin DT connector B (2).
Remove the ECM connector +8 VDC pin and reinsert into pin-4 on the 4-pin DT connector B (2).
Remove the ECM connector (CAT Data+) pin and reinsert into pin-1 on the 4-pin DT connector B (2).
Remove the ECM connector (Cat Data-) pin and reinsert into pin-2 on the 4-pin DT connector B (2).
Insert the BLACK wire into the ECM connector-battery pin.
Insert the PINK wire into the ECM connector CAT Data+ pin.
Insert the WHITE wire into the ECM connector CAT Data- pin.
Insert the RED wire into the ECM connector +8 VDC supply pin.
Plug connector B (2) into connector A (1).
Apply power to the ECM.
