Information fuel-injection pump
BOSCH
9 410 617 522
9410617522
ZEXEL
104278-1100
1042781100
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104278-1100 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

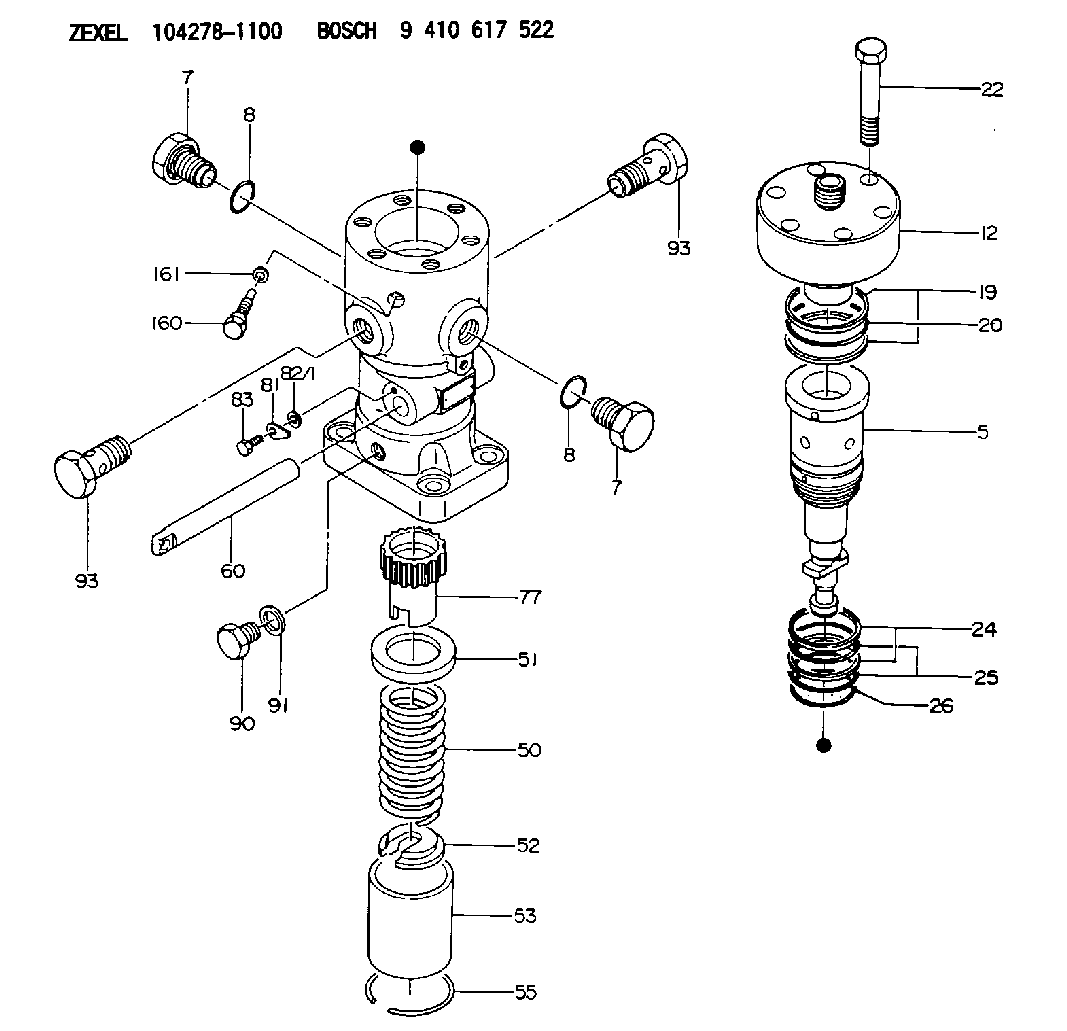

Scheme ###:
| 5. | [1] | 141187-6220 | PLUNGER-AND-BARREL ASSY |
| 7. | [2] | 141133-5000 | CAPSULE |
| 7. | [2] | 141133-5000 | CAPSULE |
| 8. | [2] | 141485-1300 | O-RING |
| 8. | [2] | 141485-1300 | O-RING |
| 12. | [1] | 141142-9920 | DELIVERY-VALVE ASSEMBLY |
| 19. | [2] | 016420-0850 | BACKUP RING |
| 20. | [1] | 141118-3100 | O-RING |
| 22. | [6] | 141124-4800 | BLEEDER SCREW |
| 24. | [2] | 016421-0750 | BACKUP RING |
| 25. | [2] | 141485-1500 | O-RING |
| 26. | [1] | 141118-3000 | O-RING |
| 50. | [1] | 141215-4801 | COMPRESSION SPRING |
| 51. | [1] | 141216-5800 | SLOTTED WASHER |
| 52. | [1] | 141217-8600 | SLOTTED WASHER |
| 53. | [1] | 141218-9900 | GUIDE |
| 55. | [1] | 141220-0700 | LOCKING WASHER |
| 60. | [1] | 141291-2000 | CONTROL RACK |
| 77. | [1] | 141292-1200 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 90. | [1] | 029112-2020 | CAPSULE |
| 91. | [1] | 026522-2740 | GASKET D26.9&22.2T1 |
| 93. | [2] | 141402-5700 | EYE BOLT |
| 93. | [2] | 141402-5700 | EYE BOLT |
| 160. | [1] | 141418-3000 | SET OF NUTS |
| 161. | [1] | 141403-2000 | GASKET |
Include in #1:
101401-9446
as _
Include in #2:
104278-1100
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Table 1
Part Number Description
370-5513 Fuel Line
370-5516 Fuel Injection Line As
370-5517 Fuel Injection Line As
370-5518 Fuel Injection Line As
393-5467 Fuel Line
393-5468 Fuel Line
396-2606 Fuel Line
396-2607 Fuel Line
396-2608 Fuel Line
396-2609 Fuel Line Any of the part numbers listed in Table 1 may be affected.
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
If any of the fuel injection lines are leaking, Caterpillar recommends replacing all high-pressure fuel lines on the engine. Refer to Disassembly and Assembly, Fuel Injection Lines - Remove and Disassembly and Assembly, Fuel Injection Lines - Install.
