Information fuel-injection pump
BOSCH
9 410 618 120
9410618120
ZEXEL
104276-5059
1042765059
NIIGATA-TEKKOU
17F47003B
17f47003b
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104276-5059 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

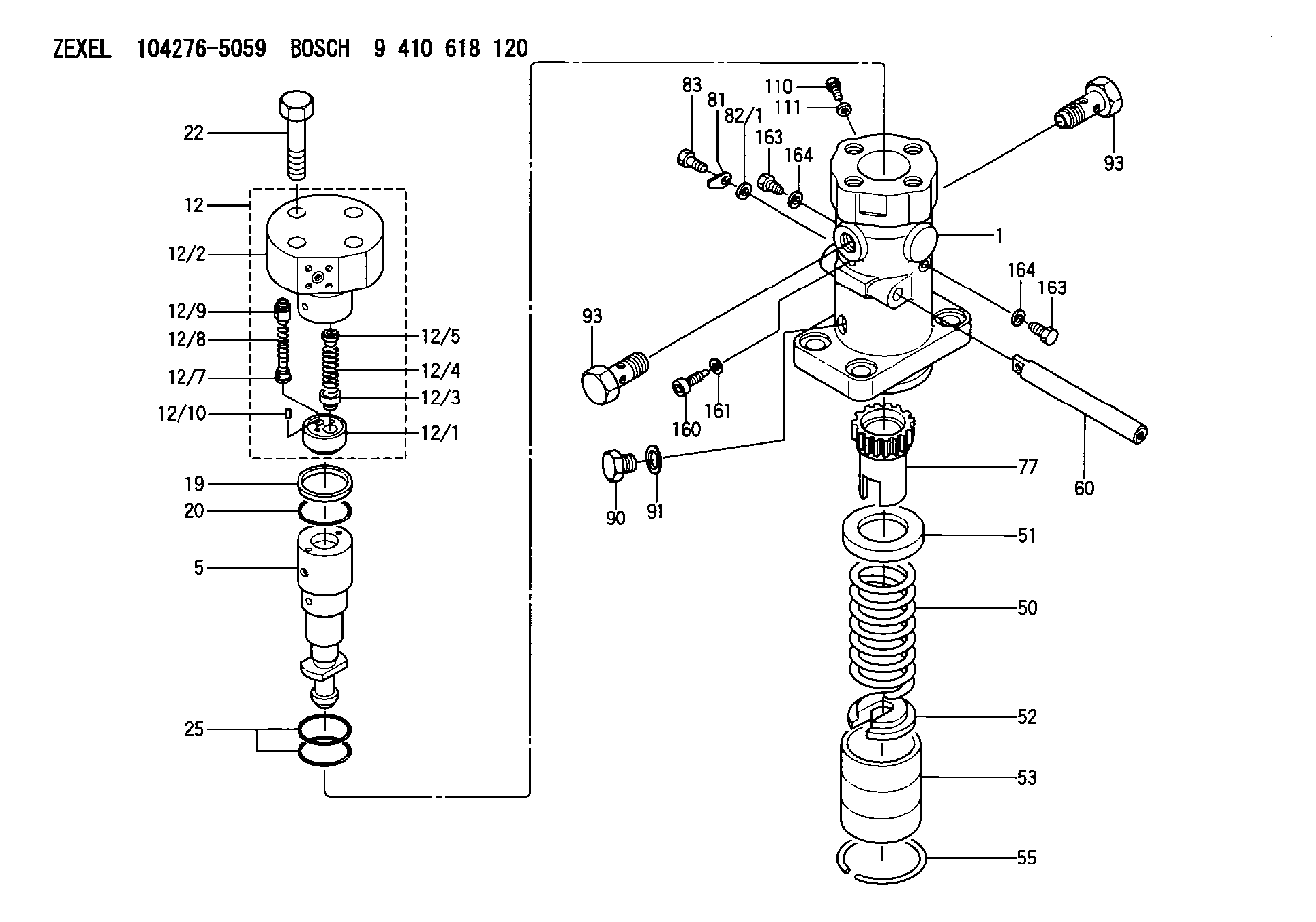

Scheme ###:
| 1. | [1] | 141054-5923 | PUMP HOUSING |
| 5. | [1] | 141177-0520 | PLUNGER-AND-BARREL ASSY |
| 12. | [1] | 141145-0922 | DELIVERY-VALVE ASSEMBLY |
| 12/1. | [1] | 141141-9000 | SEAT;D.V. |
| 12/2. | [1] | 141138-1400 | FITTING |
| 12/3. | [1] | 141142-7300 | VALVE BODY |
| 12/4. | [1] | 141144-0300 | COMPRESSION SPRING |
| 12/5. | [1] | 141113-3400 | SLOTTED WASHER |
| 12/7. | [1] | 141113-3100 | SLOTTED WASHER |
| 12/8. | [1] | 141112-8701 | COILED SPRING |
| 12/9. | [1] | 141145-8400 | VALVE BODY |
| 12/10. | [2] | 141213-1100 | BEARING PIN |
| 19. | [1] | 016421-0600 | BACKUP RING |
| 20. | [1] | 141482-8600 | O-RING |
| 22. | [4] | 141124-4700 | BLEEDER SCREW |
| 25. | [2] | 141403-0001 | O-RING |
| 50. | [1] | 141215-5501 | COMPRESSION SPRING |
| 51. | [1] | 141216-1200 | SLOTTED WASHER |
| 52. | [1] | 141217-8400 | SLOTTED WASHER |
| 53. | [1] | 141294-0003 | GUIDE |
| 55. | [1] | 141220-0700 | LOCKING WASHER |
| 60. | [1] | 141291-2800 | CONTROL RACK |
| 77. | [1] | 141292-2600 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 90. | [1] | 029112-2020 | CAPSULE |
| 91. | [1] | 026522-2740 | GASKET D26.9&22.2T1 |
| 93. | [2] | 141402-3420 | EYE BOLT |
| 93. | [2] | 141402-3420 | EYE BOLT |
| 110. | [1] | 141420-1500 | BLEEDER SCREW |
| 111. | [1] | 141107-0500 | GASKET |
| 160. | [1] | 141418-1500 | SET OF NUTS |
| 161. | [1] | 141107-0700 | GASKET |
| 163. | [2] | 010110-1420 | BLEEDER SCREW |
| 163. | [2] | 010110-1420 | BLEEDER SCREW |
| 164. | [2] | 141107-0500 | GASKET |
| 164. | [2] | 141107-0500 | GASKET |
Include in #1:
101401-9196
as _
Include in #2:
104276-5059
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104276-5059
17F47003B NIIGATA-TEKKOU
FUEL-INJECTION PUMP
K 24JX FUEL INJECTION PUMP PF-1DX PF
K 24JX FUEL INJECTION PUMP PF-1DX PF
