Information fuel-injection pump
BOSCH
9 410 617 173
9410617173
ZEXEL
104275-5001
1042755001
NIIGATA-URAWA
V0N47000F
v0n47000f
Rating:
Components :
| 0. | INJECTION-PUMP ASSEMBLY | 104275-5001 |
| 1. | _ | |
| 2. | FUEL INJECTION PUMP | |
| 3. | NUMBER PLATE | |
| 4. | _ | |
| 5. | CAPSULE | |
| 6. | ADJUSTING DEVICE | |
| 7. | NOZZLE AND HOLDER ASSY | |
| 8. | Nozzle and Holder | |
| 9. | Open Pre:MPa(Kqf/cm2) | |
| 10. | NOZZLE-HOLDER | |
| 11. | NOZZLE |

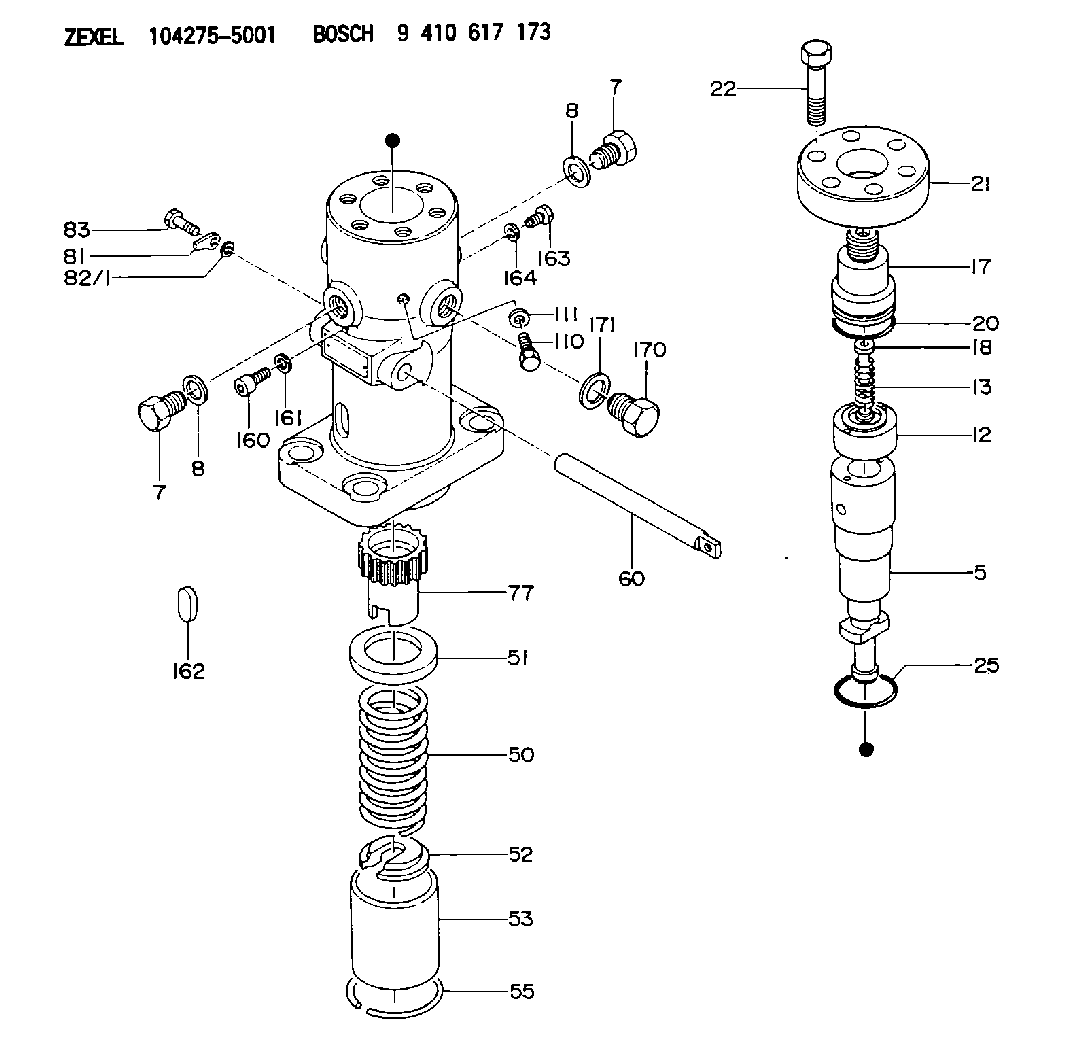

Scheme ###:
| 5. | [1] | 141176-6421 | PLUNGER-AND-BARREL ASSY |
| 7. | [2] | 141133-0600 | CAPSULE |
| 7. | [2] | 141133-0600 | CAPSULE |
| 8. | [2] | 141403-1700 | GASKET |
| 8. | [2] | 141403-1700 | GASKET |
| 12. | [1] | 141140-7520 | DELIVERY-VALVE ASSEMBLY |
| 13. | [1] | 141112-6500 | COMPRESSION SPRING |
| 17. | [1] | 141136-8100 | FITTING |
| 18. | [1] | 141117-8800 | FILLER PIECE |
| 20. | [1] | 141482-8600 | O-RING |
| 21. | [1] | 141119-3700 | FLANGE BUSHING |
| 22. | [6] | 141124-1400 | BLEEDER SCREW |
| 25. | [1] | 141403-0001 | O-RING |
| 50. | [1] | 141215-5501 | COMPRESSION SPRING |
| 51. | [1] | 141216-1200 | SLOTTED WASHER |
| 52. | [1] | 141217-5600 | SLOTTED WASHER |
| 53. | [1] | 141218-8020 | GUIDE |
| 55. | [1] | 141220-0700 | LOCKING WASHER |
| 60. | [1] | 141244-5900 | CONTROL RACK |
| 77. | [1] | 141241-7300 | CONTROL SLEEVE |
| 81. | [1] | 141245-2000 | POINTER |
| 82/1. | [0] | 023500-6210 | PLAIN WASHER D11&6.4T1.5 |
| 82/1. | [0] | 029300-6010 | PLAIN WASHER D11&6.4T0.8 |
| 82/1. | [0] | 029300-6020 | PLAIN WASHER D11&6.4T0.35 |
| 83. | [1] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 110. | [1] | 141420-0600 | BLEEDER SCREW |
| 111. | [1] | 141107-0500 | GASKET |
| 160. | [1] | 141418-1500 | SET OF NUTS |
| 161. | [1] | 141107-0700 | GASKET |
| 162. | [1] | 141480-1000 | COVER |
| 163. | [1] | 010010-1420 | BLEEDER SCREW |
| 164. | [1] | 141107-0500 | GASKET |
| 170. | [1] | 029112-6020 | CAPSULE |
| 171. | [1] | 141403-1600 | GASKET |
Include in #2:
104275-5001
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104275-5001
V0N47000F NIIGATA-URAWA
FUEL-INJECTION PUMP
K 24JX FUEL INJECTION PUMP PF-1DX PF
K 24JX FUEL INJECTION PUMP PF-1DX PF
